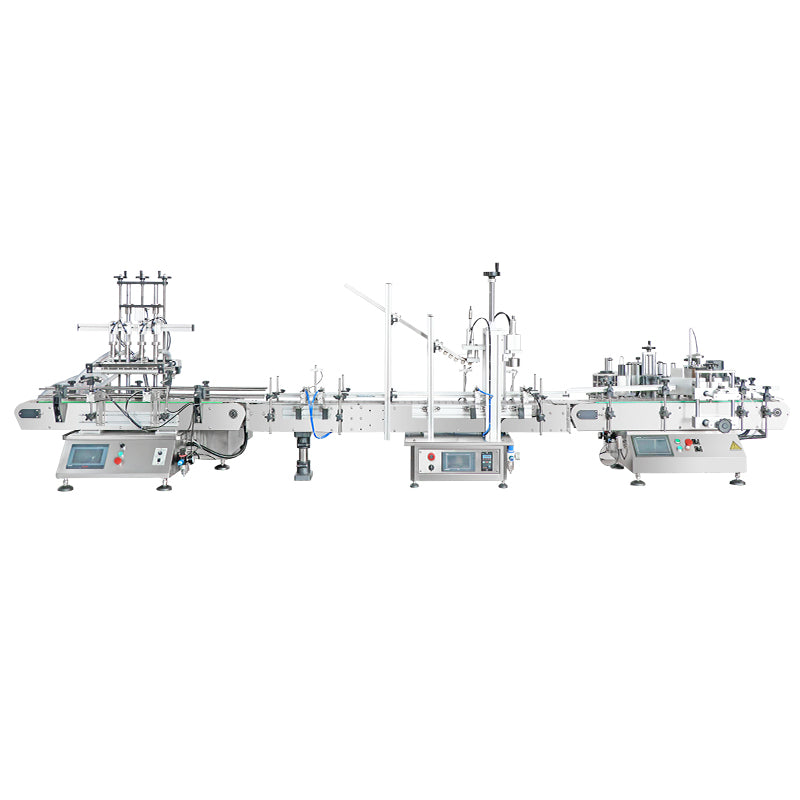

ZONESUN ZS-DPCL2/ZS-FAL180D5 Custom Liquid Filling Capping Round Bottle Labeling Production Line
ZONESUN ZS-DPCL2/ZS-FAL180D5 Custom Liquid Filling Capping Round Bottle Labeling Production Line
Normál ár
$7,299.00 USD
Normál ár
Akciós ár
$7,299.00 USD
A szállítási költséget a megrendeléskor számítjuk ki.
Mennyiség
Nem sikerült betölteni az átvehetőségi adatokat
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
DESCRIPTION
These are 2 tabletop custom lines. One is used for screw caps, the other is used for corks. We offer a complete solution. Whatever your packaging needs are, you can rely on ZONESUN.
Filling Machine
- Machine Model：ZS-DTDP2C Filling Machine
- Voltage：220V / 110V, 50–60Hz
- Power：1000 W
- Filling Pump：Diaphragm Pump
- Filling Speed：20–25 bottles/min × 2 (depends on bottle & liquid)
- Max Flow Rate：20 L/min × 2 (each pump)
- Suitable Bottle Height：<220 mm (customizable, max height 300 mm)
- Filling Accuracy：≤ ±1% (for water)
- Max Suction Distance：2 m
- Power-Off Memory Function：Available
Capping Machine
- Machine Model：ZS-DTHSP4 Capping Machine
- Voltage：220V / 110V, 50–60Hz Filling Machine
- Power：500 W
- Filling Head：4 Heads (customizable)
- Filling Range：5–100ml / 10–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml
- Filling Speed：20–60 bottles/min (depends on bottle & liquid)
- Filling Head Diameter：OD 10 mm (other sizes optional)
- Filling Accuracy：≤ ±1% (for water)
- Air Pressure：0.4–0.6 MPa
- Packaging Size Approx.：1530 × 1400 × 1350 mm
- Gross Weight Approx.：234 kg
Capping Machine
- Machine Model：ZS-XG1870 Capping Machine
- Bottle Height：60–270 mm
- Cap Diameter：18–70 mm
- Working Speed：20–40 bottles/min (depends on bottle & cap)
- Working Voltage：AC 220V / 110V, 50–60Hz
- Air Pressure：0.4–0.6 MPa
- Air Connector Size：OD 8 mm
- Conveyor Length：1117 mm
- Machine Size Approx.：1170 × 580 × 1110 mm
- Package Size Approx.：1160 × 610 × 1140 mm
- Net/Gross Weight Approx.：65.5 kg / 97.5 kg
Capping Machine
- Machine Model：ZS-XG1870D1 Capping Machine
- Working Voltage：AC 220V / 110V, 50–60Hz
- Bottle Height：60–270 mm
- Cap Diameter：Customizable (≤130 mm)
- Working Speed：20–40 bottles/min (depends on bottle & cap)
- Air Pressure：0.4–0.6 MPa
- Air Connector Size：OD 8 mm
- Conveyor Size：1150 mm (W) × 1200 mm (L)
- Package Size Approx.：1150 × 650 × 820 mm
- Package Weight：Approx. 95 kg
Labeling Machine
- Machine Model：ZS-TB500 Labeling Machine
- Voltage：110V–60Hz / 220V–50Hz
- Working Speed Approx.：20–50 bottles/min
- Labeling Size：Height: 15–140 mm / Length: 25–300 mm
- Roll Inside Diameter：Ø76 mm
- Roll Outside Diameter：Ø350 mm
- Suitable Bottle Diameter：≤100 mm
- Air Compressor Connector：OD 8 mm
- Package Size Approx.：1290 × 860 × 900 mm
- Net/Gross Weight Approx.：95.5 kg / 130 kg
