VERTICAL FORM FILL SEAL SOLUTIONS

VFFS Packaging Machines for Powder, Granule, Liquid and Paste

ZONESUN vertical form fill seal machines automatically form bags from roll film, measure and fill products, seal the packages, and cut them into finished sachets or pouches.

Different dosing systems can be configured according to product flowability, particle size, viscosity, filling weight, bag dimensions and required output.

01

Product

Powder, granule, liquid, paste or tablets

02

Dosing System

Auger, cup, weigher, pump or counter

03

Bag Style

Back seal, three-side or four-side seal

04

Bag Size

Bag width, length and filling volume

05

Output

Required finished bags per minute

Not Sure Which VFFS Machine Fits Your Product?

Send us your product details, filling weight, bag dimensions, roll film specifications and target output.

Get a Machine Recommendation

VFFS WORKING PROCESS

How Does a VFFS Packaging Machine Work?

A vertical form fill seal machine converts roll film into finished packages through continuous bag forming, product dosing, sealing and cutting.

01

Film Unwinding

Roll film is automatically unwound and guided through the machine.

02

Bag Forming

Film passes through the forming collar and is shaped into a bag.

03

Product Dosing

The selected dosing system measures and fills the product.

04

Heat Sealing

The bag is vertically and horizontally sealed at set temperatures.

05

Bag Cutting

Finished sachets or bags are cut and discharged from the machine.

DOSING SYSTEM SELECTION

Choose the Right Dosing System

The dosing system should be selected according to product flowability, viscosity, particle size, bulk density and filling weight.

Product Type Recommended Dosing System Typical Applications
Fine Powder Auger Filler Flour, milk powder, coffee powder, spices and chemical powder
Free-Flowing Granule Volumetric Cup Sugar, salt, rice, seeds and small uniform granules
Mixed or Irregular Granule Multihead Weigher Snacks, nuts, frozen food, candy and irregular materials

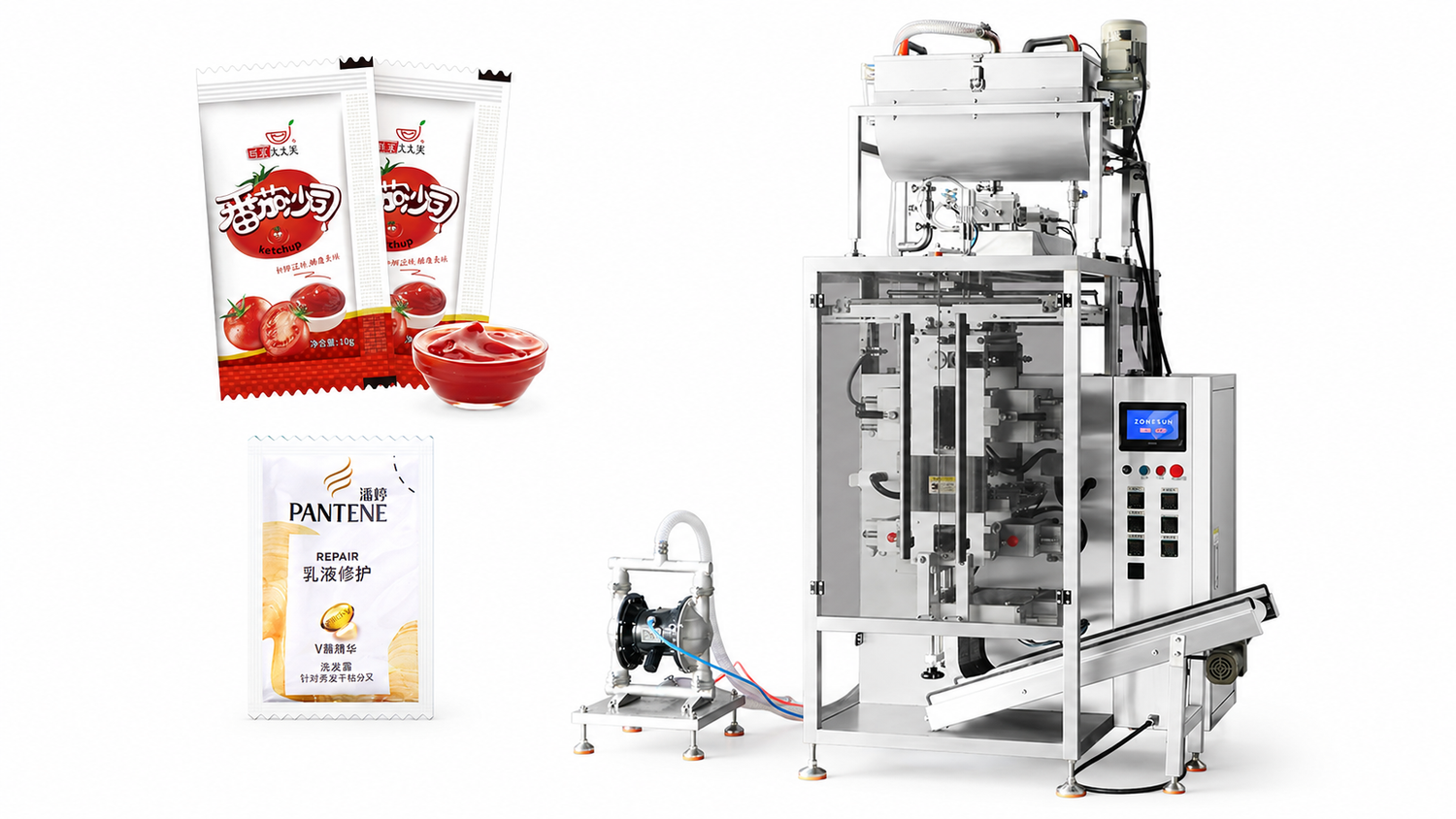

Free-Flowing Liquid Pump Filling System Water, juice, oil, liquid detergent and other liquids
Viscous Liquid or Paste Piston or Lobe Pump Sauce, honey, cream, gel, shampoo and viscous products
Tablets or Individual Pieces Electronic Counter Tablets, capsules and other countable small products

Dosing accuracy and working speed depend on product consistency, bulk density, particle size, filling weight and machine configuration.

BAG SEALING STYLES

Common VFFS Bag Styles

The available sealing style depends on the selected machine structure, film material and finished bag dimensions.

01

Back Seal

Suitable for standard pillow bags and efficient general-purpose packaging for powders, granules and liquids.

02

Three-Side Seal

Creates a flat package with sealed edges on three sides, suitable for small sachets and sample packaging.

03

Four-Side Seal

Provides a neat, flat package with sealing on four sides for small-dose and multi-lane applications.

BAG & FILM SPECIFICATIONS

Bag Size and Film Width Guide

Please provide the finished bag dimensions and roll film specifications before confirming a VFFS machine.

Back-Seal Bag Reference Film Width ≈ 2 × Bag Width + Back-Seal Allowance

This formula is for preliminary reference only. Final film width must be confirmed according to the forming collar, sealing structure and selected machine specification.

01

Bag Width

Finished bag width in millimeters.

02

Bag Length

Finished cut length of each bag.

03

Film Material

Composite film structure and sealing layer.

04

Film Thickness

Total roll-film thickness and tolerance.

05

Print Repeat Length

Distance between printed registration marks.

06

Color Mark Position

Location and contrast of the registration mark.

OPTIONAL FUNCTIONS

Configure the Machine for Your Packaging Process

Optional functions should be confirmed before manufacturing because they may affect the mechanical structure, electrical configuration and bag layout.

Date Coding Batch Number Printing Easy-Tear Notch Hole Punching Nitrogen Flushing Dust Collection Automatic Feeding Printed Film Registration Finished Bag Conveyor Checkweighing Metal Detection Multi-Lane Packaging

MACHINE SELECTION INFORMATION

What Information Do We Need?

Send us the following information so our team can recommend a suitable dosing system, bag-forming structure and machine model.

Using printed film? Please also provide the print layout, color mark position and print repeat length.
01

Product name and characteristics

02

Product photos or samples

03

Filling weight or volume

04

Bag width and bag length

05

Film material and thickness

06

Required bags per minute

07

Required sealing style

08

Local voltage and frequency

SAMPLE TESTING PROCESS

Confirm the Configuration Before Production

Sample testing can be arranged when required to confirm product feeding, dosing, bag forming and sealing performance.

01

Submit Product Information

Provide product properties, filling weight and bag specifications.

02

Confirm Dosing System

Select an auger, cup, weigher, pump or counting system.

03

Test Samples

Test actual product and film materials when required.

04

Confirm Configuration

Finalize machine specifications and optional functions.

FREQUENTLY ASKED QUESTIONS

VFFS Packaging Machine FAQs

Common questions about dosing systems, roll film, bag sizes and customized machine configurations.

What products can a VFFS machine pack?

Powders, granules, liquids, pastes, tablets and other products can be packaged when a suitable dosing system is configured.

How do I choose the correct dosing system?

The dosing system is selected according to product flowability, viscosity, particle size, bulk density and filling weight.

Can the machine use printed roll film?

A photoelectric registration sensor can be configured for printed film. Please provide the print repeat length and color mark position.

Can one machine make different bag sizes?

A machine may support a defined bag-size range. Different bag widths may require adjustment or replacement of the forming collar.

Can nitrogen flushing or date coding be added?

These functions may be added depending on the machine model, available installation space and packaging requirements.

Can we send products and film for testing?

Sample testing can be arranged when required. Please contact ZONESUN before sending product or packaging materials.
