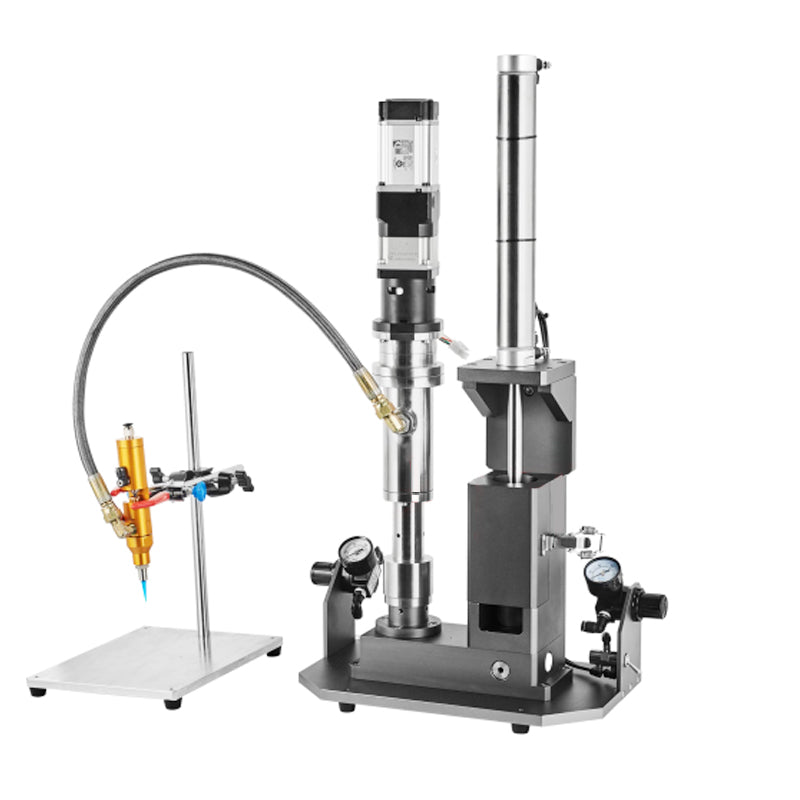

ZONESUN ZS-GD2205 Automatic Glue Dispensing Machine

Overview

The ZONESUN ZS-GD2205 is a custom-designed automatic 3-axis glue dispensing machine built for precision, programmability, and versatility across industrial adhesive application requirements. Featuring 3-axis XYZ positioning, a handheld teach pendant controller, and a Taiwan step motor with Japan guide rail drive system, it supports programmable dispensing patterns including dots, lines, arcs, and circles with accuracy customizable to within ±0.002 mm. Compatible with CAD and CorelDRAW file formats and supporting up to 1,000 sets of stored dispensing programs, the ZS-GD2205 is available in 7 model configurations covering working ranges from 200×200 mm to 300×500 mm, serving electronics, automotive, packaging, and general assembly industries.

Important Note:

1. An external adhesive supply system is required and must be purchased separately.
2. Ensure the selected adhesive supply unit is compatible with the adhesive type, viscosity, and required dispensing pressure for optimal performance.

Model Specifications

Additional Specifications

Three-Axis Motion System (XYZ)

Delivers precise three-axis motion control, positioning the dispensing head on X/Z axis and moving the workpiece on Y axis for accurate, repeatable dispensing.

Teach Pendant Controller

Allows manual positioning of the dispensing head and records coordinate points to program precise dispensing paths.

Syringe Dispensing Head

Provides a fine dispensing outlet at the lowest point, allowing different needle sizes and lengths to be selected based on adhesive viscosity and required dispensing width.

Pneumatic Pressure Control Unit

Displays real-time pressure supplied to the syringe and regulates output pressure to ensure stable, accurate adhesive dispensing.

Operation Panel

Provides direct machine control with functions for manual dispensing, reset, start, and emergency stop, ensuring safe and efficient operation.

Key Features

• 3-Axis XYZ Precision Positioning — ±0.002 mm Accuracy: Taiwan step motor with Japan guide rail and timing belt drive delivers repeatable positioning accuracy customizable to within ±0.002 mm — enabling consistent adhesive placement on fine-pitch electronic components, precision mechanical assemblies, and complex curved paths.
• Handheld Teach Pendant Programming: Operators manually guide the dispensing head to target positions and record coordinate points directly via the teach pendant — eliminating the need for CAD programming expertise for simple jobs while still supporting CAD and CorelDRAW file import for complex multi-path programs.
• Multi-Pattern Dispensing — Dots, Lines, Arcs & Circles: Programmable motion paths support all standard dispensing patterns including point dispensing, straight-line beads, arc segments, and full circles — covering the full range of bonding, sealing, and potting geometries encountered in electronics and mechanical assembly.
• 7 Model Configurations (200×200 mm to 300×500 mm Working Range): Seven platform sizes from compact ZS-GD220S to large-format ZS-GD631X accommodate workpieces from small PCBs to large panel assemblies, with Z-axis travel options of 100 mm or 300 mm for different component height clearances.
• Syringe Dispensing Head with Interchangeable Needles: Fine dispensing outlet with selectable needle sizes and lengths allows operators to match tip geometry to adhesive viscosity and required bead width — from ultra-fine UV adhesive dots to wider silicone bead applications.
• Pneumatic Pressure Control Unit — Real-Time Pressure Display: Integrated pressure regulator displays and controls the air pressure supplied to the syringe in real time, ensuring stable, consistent adhesive flow rate regardless of syringe fill level or ambient temperature variation.
• 1,000-Program Storage with CAD / CorelDRAW Import: Built-in and external storage supports up to 1,000 dispensing program sets with 32MB file capacity, enabling rapid recipe recall for multi-SKU production without reprogramming between jobs.
• Operation Panel with Emergency Stop: Dedicated control panel provides manual dispensing, reset, start, and emergency stop functions, ensuring safe operator intervention at any point in the dispensing cycle without requiring software access.

Applications

• Electronics & PCB Assembly: Precision dot and line dispensing of UV adhesive, epoxy, and solder paste on PCBs, connectors, sensors, and electronic module housings for bonding, underfill, and conformal coating applications.
• LED Lighting Manufacturing: Dispensing of silicone encapsulant, thermal adhesive, and optical adhesive on LED strip substrates, COB modules, and LED driver housings requiring precise bead placement and consistent coverage.
• Automotive Component Assembly: Adhesive and sealant dispensing on automotive sensors, control unit housings, gaskets, and structural bonding joints requiring programmable multi-path dispensing and repeatable bead geometry.
• Medical Device Manufacturing: Precision adhesive dispensing on medical device housings, sensor assemblies, and diagnostic equipment components requiring ±0.002 mm placement accuracy and validated, repeatable dispensing programs.
• Packaging & Labeling Equipment: Hot melt adhesive and cold glue dispensing for carton sealing, label bonding, and packaging assembly operations requiring high-speed programmable dot or line dispensing patterns.
• General Industrial Assembly: Bonding, sealing, and potting of mechanical assemblies, hardware components, and consumer product housings across diverse manufacturing environments requiring flexible, multi-pattern adhesive application.
