ZONESUN ZS-GTU1 Pneumatic Paste Filling Machine With Mixer

Description

This pneumatic filling machine is designed for high viscosity materials such as honey, sauces, chili sauce, bean paste, sesame sauce and so on.We can offer multiple nozzles of filling machine as customers’ need like 1/2/4 nozzles.This one is designed with mixing function and it can mix paste automatically.

Application

This machine is widely used for filling paste like sauces, curry pastes, fruit juices, ketchups,water,honey,milk etc.

PARAMETER

• Machine Model：ZS-GTU1

• Voltage：220V / 110V

• Filling Nozzles：1 / 2 / 4 nozzles (customizable)

• Filling Range：10–100 ml / 10–200 ml / 30–300 ml / 50–500 ml / 100–1000 ml / 500–2500 ml / 1000–5000 ml

• Filling Speed：8–25 bottles/min

• Filling Accuracy：≤1%

• Air Pressure：0.4–0.6 MPa

• Machine Size (L×W×H)：1130 × 315 × 740 mm

• Net Weight：54.5 kg

• Packing Size (L×W×H)：1280 × 515 × 810 mm

• Gross Weight：76 kg

Fine Steel Filling Nozzle

Anti-dripping fine steel nozzle ensures stable, accurate paste filling. Filling volume adjustable, available in 1/2/4 nozzle options.

U-shaped Mixing Hopper

Rotary vane bracket mixes paste uniformly, preventing sedimentation. Mixing speed adjustable for different viscosities.

Pneumatic filling cylinder

Controls paste intake and discharge for consistent volumetric filling, with adjustable filling volume observed by scale.

Pedal Switch

Enables easier control during working and testing, with automatic operation after data setting.

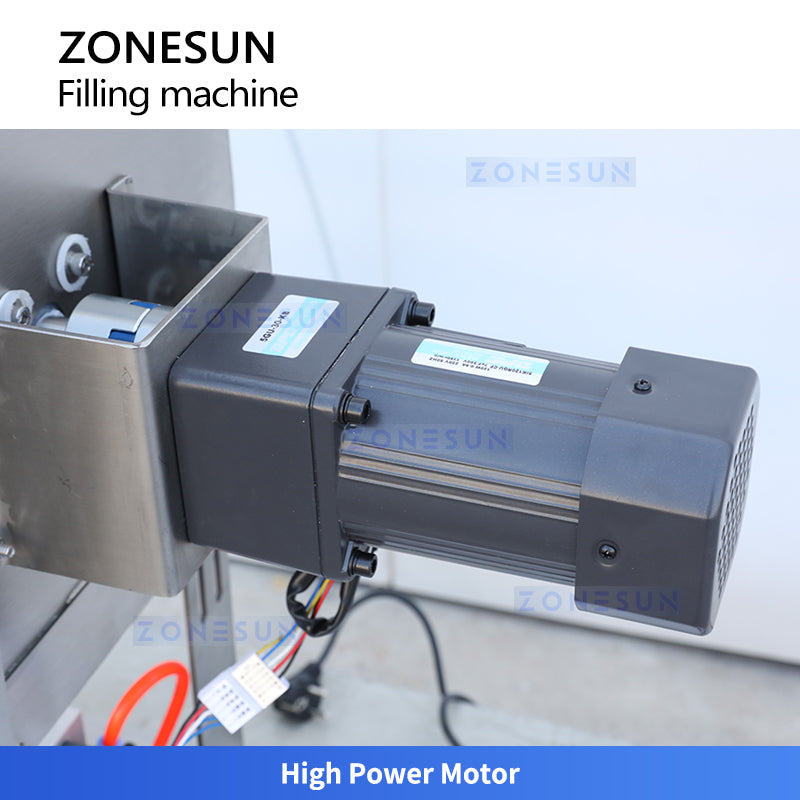

High Power Motor

Stable operation and long service life with low-noise performance for better working environment.
