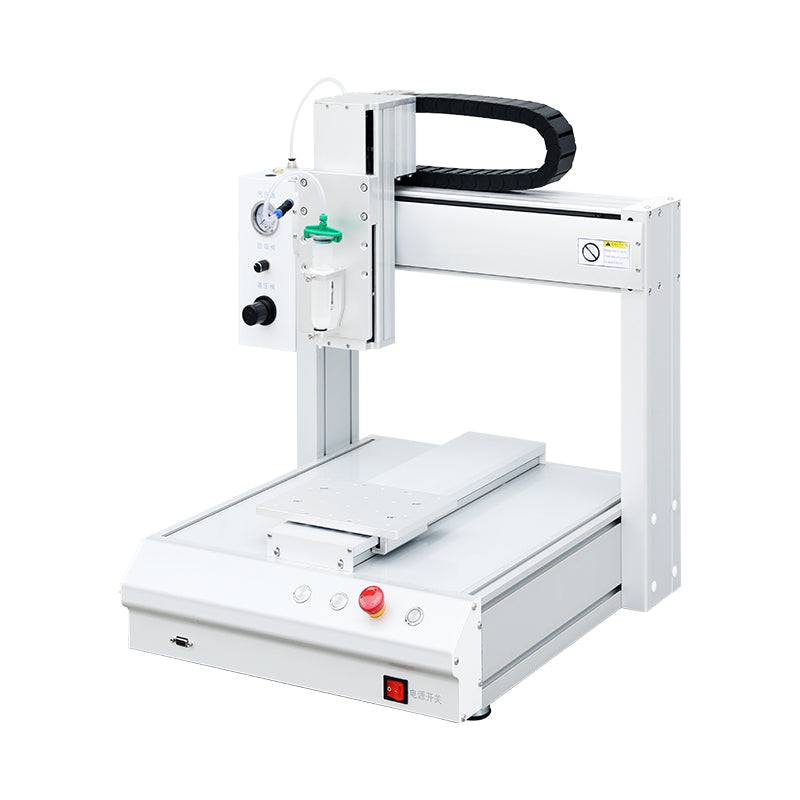

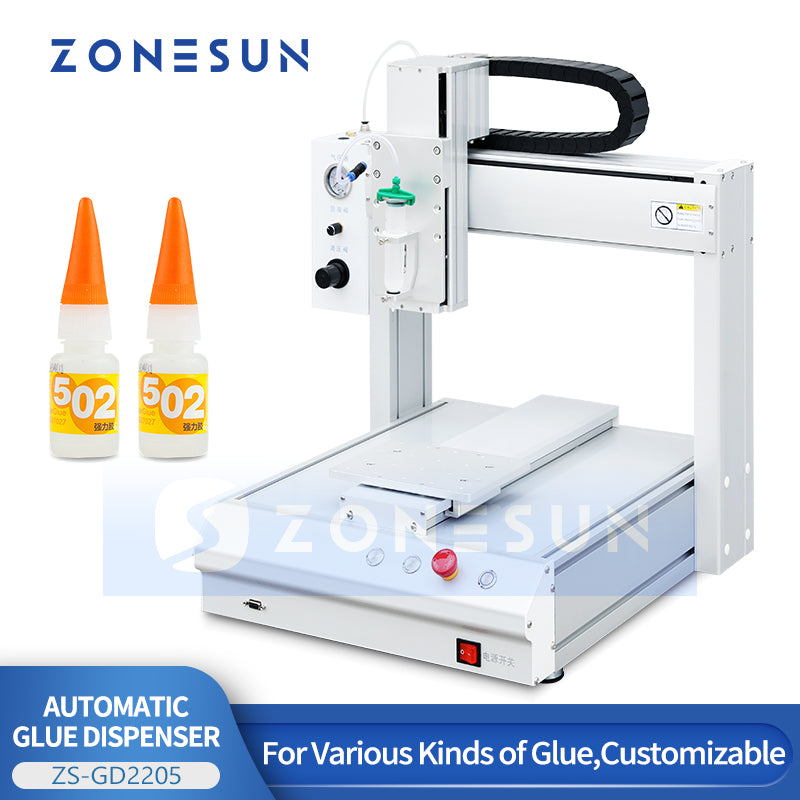

The ZS-GD2205 is a custom-designed automatic glue dispensing machine built for precision and versatility. Featuring 3-axis positioning and a handheld teach pendant, it supports various dispensing patterns including dots, lines, arcs, and circles. With compatibility across multiple industries—electronics, automotive, packaging—it ensures accurate application for glues of different viscosities. Ideal for manufacturers seeking programmable, high-speed adhesive solutions.
Note:

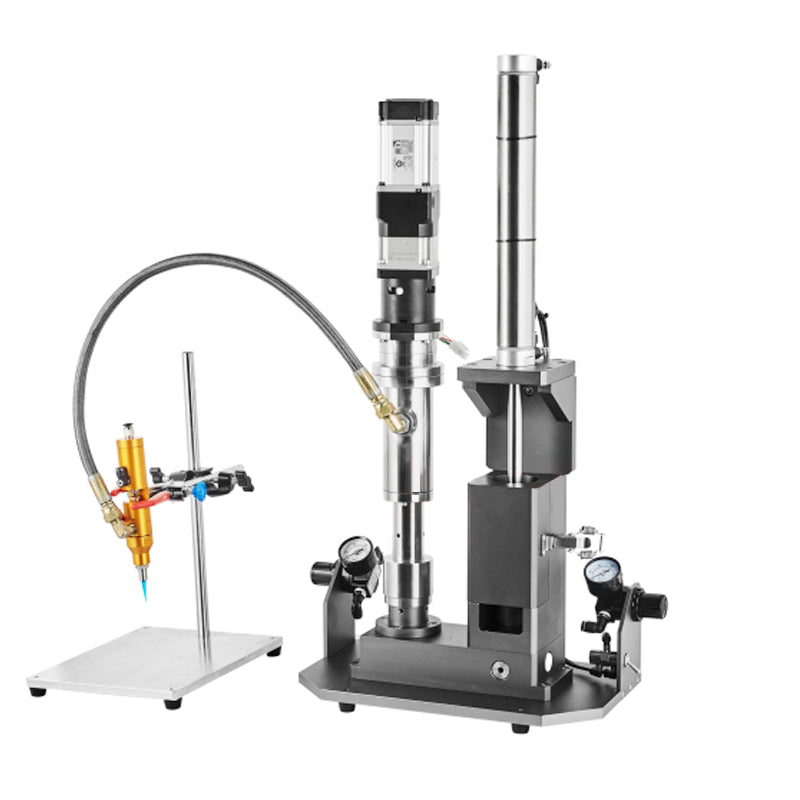

- An external adhesive supply system is required and must be purchased separately.
- Users should ensure the selected adhesive supply unit is compatible with the adhesive type, viscosity, and required dispensing pressure to achieve optimal performance.
Specification
| Model | ZS-GD220S | ZS-GD331 | ZS-GD441 | ZS-GD551 | ZS-GD431X | ZS-GD531X | ZS-GD631X |
|---|---|---|---|---|---|---|---|
| Control Axis | 3-axis (XYZ) | Dual Y-axis | Dual Y-axis | Dual Y-axis | Dual Y-axis | Dual Y-axis | Dual Y-axis |
| X-axis Travel | 200mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
| Y-axis Travel | 200mm | 300mm | 400mm | 500mm | 300mm | 400mm | 500mm |
| Z-axis Travel | 100mm | 100mm | 100mm | 100mm | 300mm | 300mm | 300mm |
| Working Range | 200×200mm | 300×300mm | 300×400mm | 300×500mm | 300×300mm | 300×400mm | 300×500mm |
| Machine Size (L×W×H) | 475×415×350mm | 520×580×440mm | 580×680×490mm | 685×785×560mm | 585×580×440mm | 585×680×490mm | 685×785×560mm |
| Machine Weight | 35kg | 44kg | 55kg | 66kg | 50kg | 60kg | 75kg |
⚙️ Additional Specifications
| Parameter | Specification |
|---|---|
| Accuracy | Customizable to within ±0.002mm |
| Drive Control | Handheld teach pendant |
| Motor System | Taiwan step motor + timing belt + Japan guide rail |
| Processing Speed | Supports ~1000 sets of data; max 32MB per file |
| Storage | Built-in + external 3MB storage |
| Supported File Format | CAD / CorelDRAW |
| Control Box Capacity | 256MB |
| Offline Card Capacity | 32MB |
| Power Supply | AC220V, 50–60Hz, 350W |

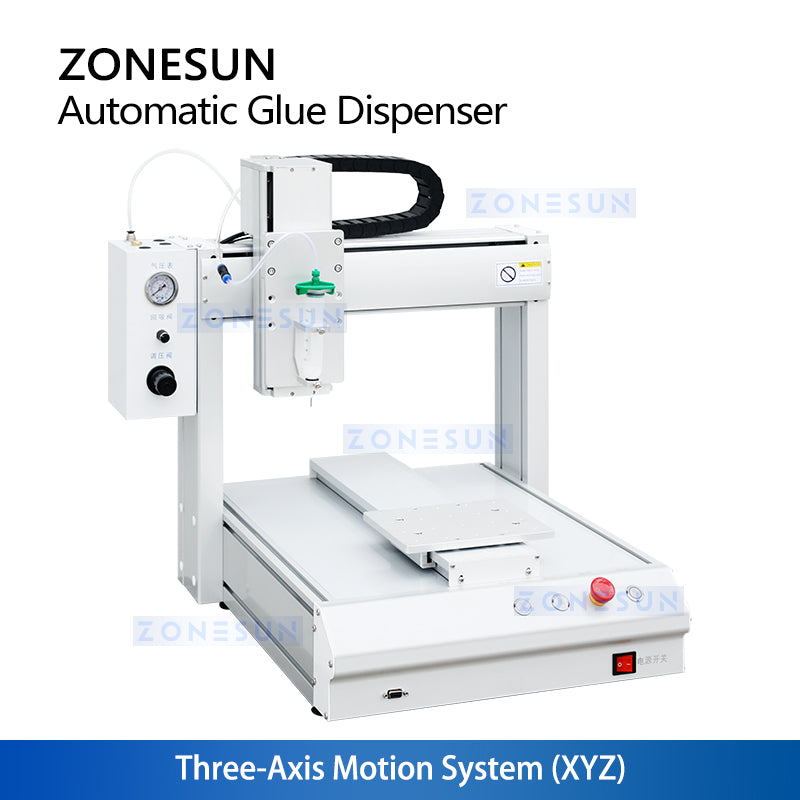

Three-Axis Motion System (XYZ)
Delivers precise three-axis motion control, positioning the dispensing head on X/Z axis and moving the workpiece on Y axis for accurate, repeatable dispensing.

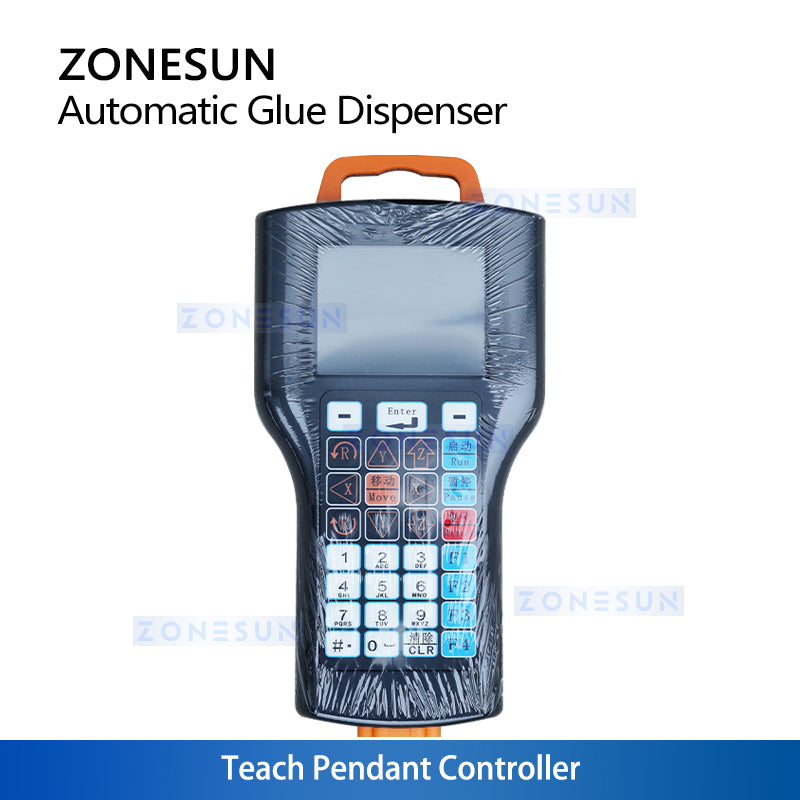

Teach Pendant Controller
Allows manual positioning of the dispensing head and records coordinate points to program precise dispensing paths.

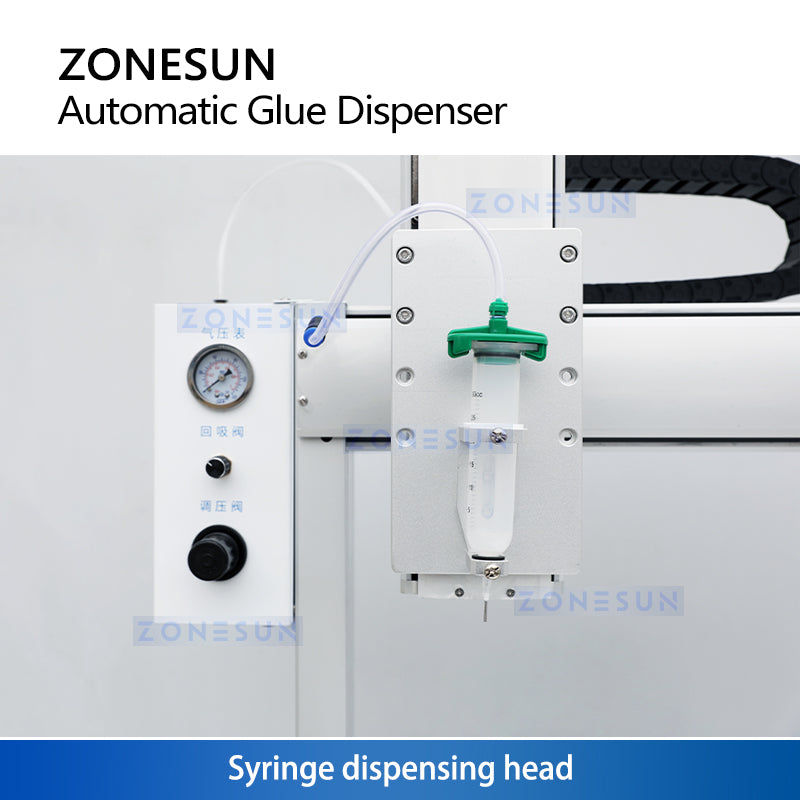

Syringe dispensing head
Provides a fine dispensing outlet at the lowest point, allowing different needle sizes and lengths to be selected based on adhesive viscosity and required dispensing width.

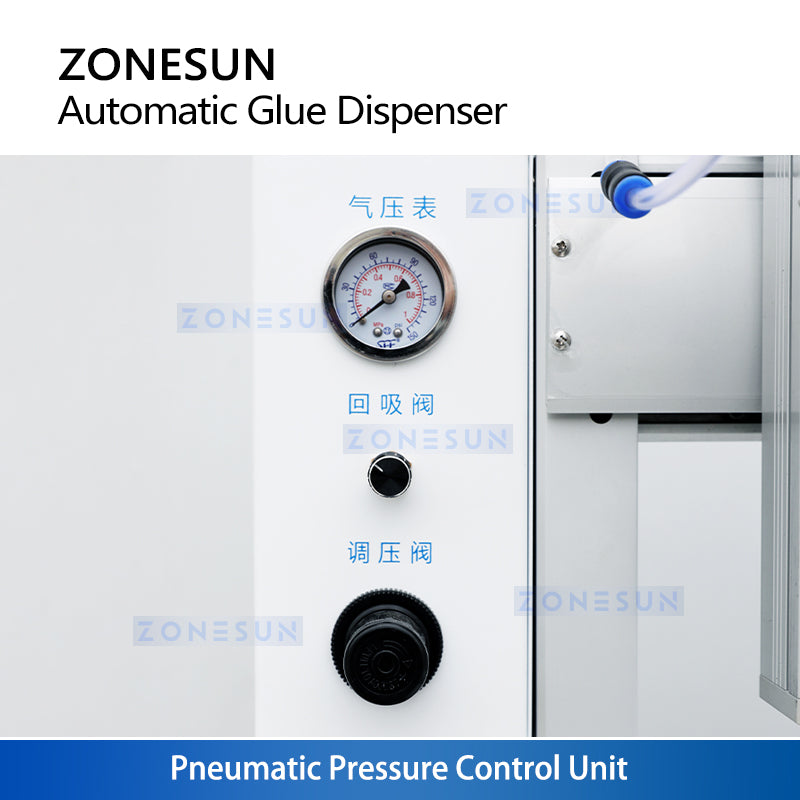

Pneumatic Pressure Control Unit
Displays real-time pressure supplied to the syringe and regulates output pressure to ensure stable, accurate adhesive dispensing.

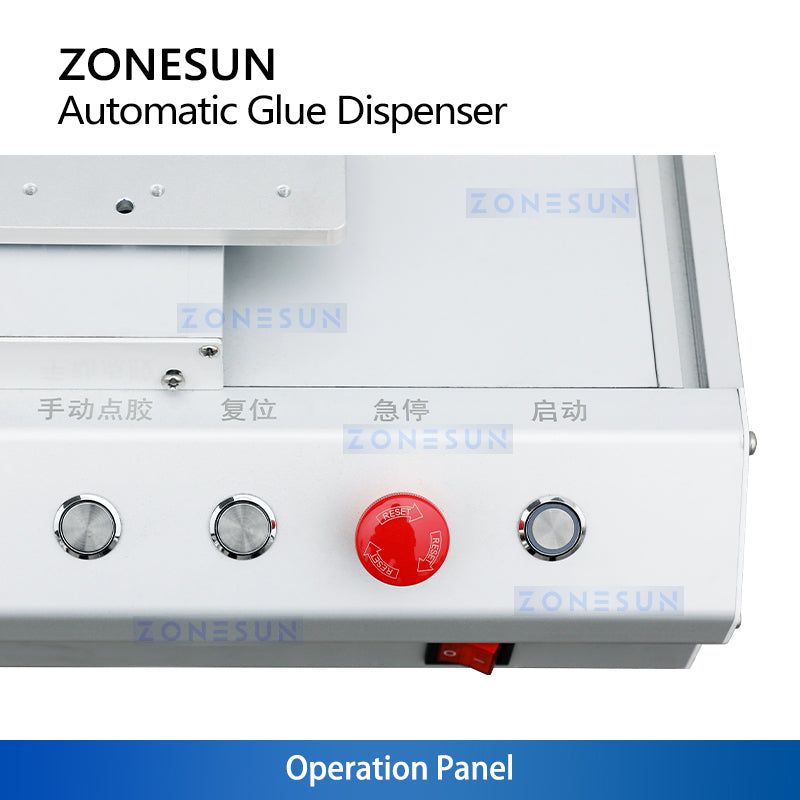

Operation Panel
Provides direct machine control with functions for manual dispensing, reset, start, and emergency stop, ensuring safe and efficient operation.
