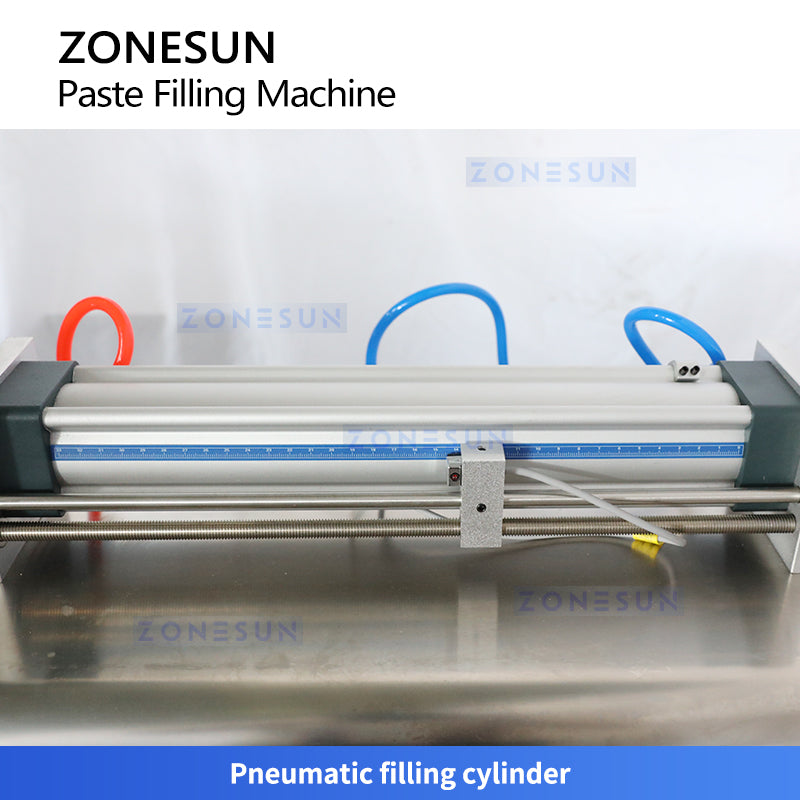

ZONESUN ZS-GY1C Pneumatic Automatic Paste Filling Machine With Conveyor

The ZS-GY1C filling machine is designed for efficient, semi-automatic filling of liquids and pastes such as water, lotion, honey, and cream. Equipped with a 2-meter conveyor belt, it integrates seamlessly with automatic capping and labeling machines, making it ideal for streamlined production lines in cosmetics, food, pharmaceuticals, and daily chemical industries.

Parameter:

• Model：ZS-GY1C

• Power Supply：220V / 110V, 50/60Hz

• Power：130 W

• Filling Accuracy：≤ ±0.5%

• Filling Speed：10–20 bottles/min

• Filling Volume Range：5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml / 500–3000 ml / 1000–5000 ml (optional)

• Conveyor Size (L×W)：2000 × 100 mm

• Filling Nozzle Diameter：Φ10 mm

• Required Air Pressure：0.4–0.6 MPa

• Air Connector Size：OD 8 mm

• Air Consumption：≥ 0.1 m³/min

• Machine Weight：24 kg (filling machine) + 4 kg (hopper) + 61 kg (conveyor)

• Packing Weight：30 kg (filling machine) + 5.5 kg (hopper) + 89 kg (conveyor)

• Packing Size：113 × 35 × 30.5 cm (filling machine) / 46.5 × 47 × 52 cm (hopper) / 210 × 62 × 53 cm (conveyor)
