DESCRIPTION

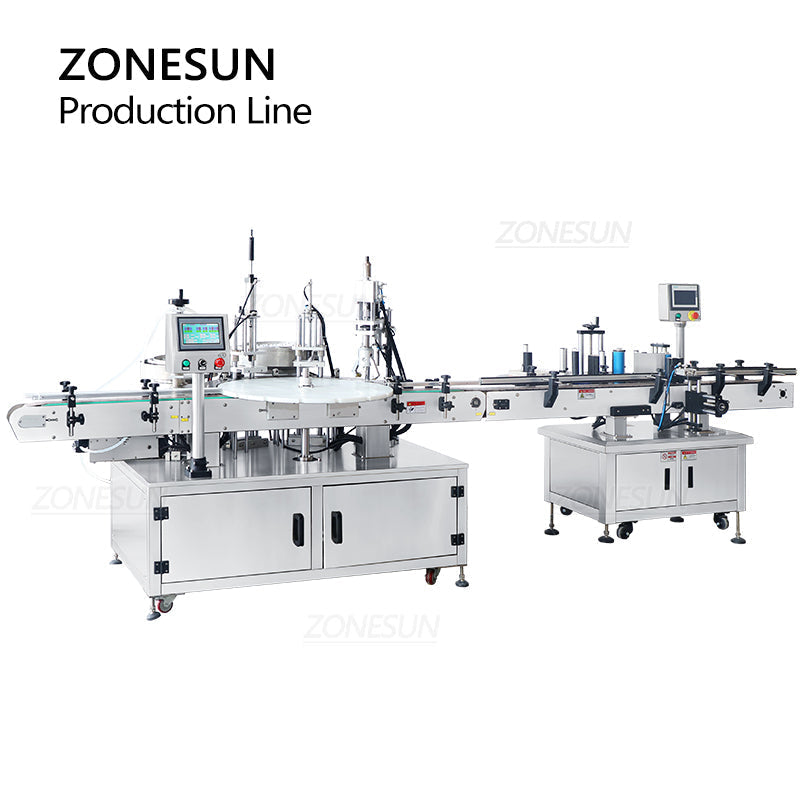

This automatic production line is designed with multiple functions. It can arrange bottles, fill liquid, feed bottle plugs and caps, cap bottles, and label stickers automatically. This is suitable for essential oil, eye drops, etc. We can customize the machine and make it can work for different sizes of containers at the same time.

PARAMETER

FILLING & CAPPING MACHINE

• Machine Model：ZS-AFC13
• Voltage：220V/110V 50-60Hz
• Power：1000W
• Filling Pump：Peristaltic Pump
• Working Speed：About 15-20 bottles/min (Depending on bottle size and liquid)
• Max Flow Rate：2L/min (each nozzle and based on water)
• Bottle Cap Diameter：Can be customized
• Air Pressure：0.6-0.8MPa
• Package Size：About 1800*1070*1760mm

LABELING MACHINE

• Model：ZS-TB260R
• Power Supply：AC220V 50Hz/60Hz 1000W
• Labeling Capacity：25-50 bottles/min(depending on bottle size)
• Labeling Accuracy：±1.0mm
• Suitable Bottle Diameter：Φ12-100mm
• Label Size：(L)20-300mm (H)15-150mm
• Roll Inside Diameter：Φ76mm
• Roll Outside Diameter：Φ350mm
• Conveyor Size：112*2000mm(W)
• Machine Size：About 2000*820*1380mm
• Package Size：About 2100*890*1520mm
• Net Weight/Gross Weight：About 180kg/250kg

PRODUCT DETAILS

CONTROL PANEL

With PLC controls, it’s easy to set working parameters.

FILLING

Peristaltic pump, the heads can be controlled separately.

FEEDING 1

Inner stopper, sucker design.

FEEDING 2

Overcaps, tapping

CAPPING

For screw caps only, with a sensor.
It keeps screwing until the cap is tightened.

LABELING

Cylindrical bottles, customizable for double-sided labeling.
