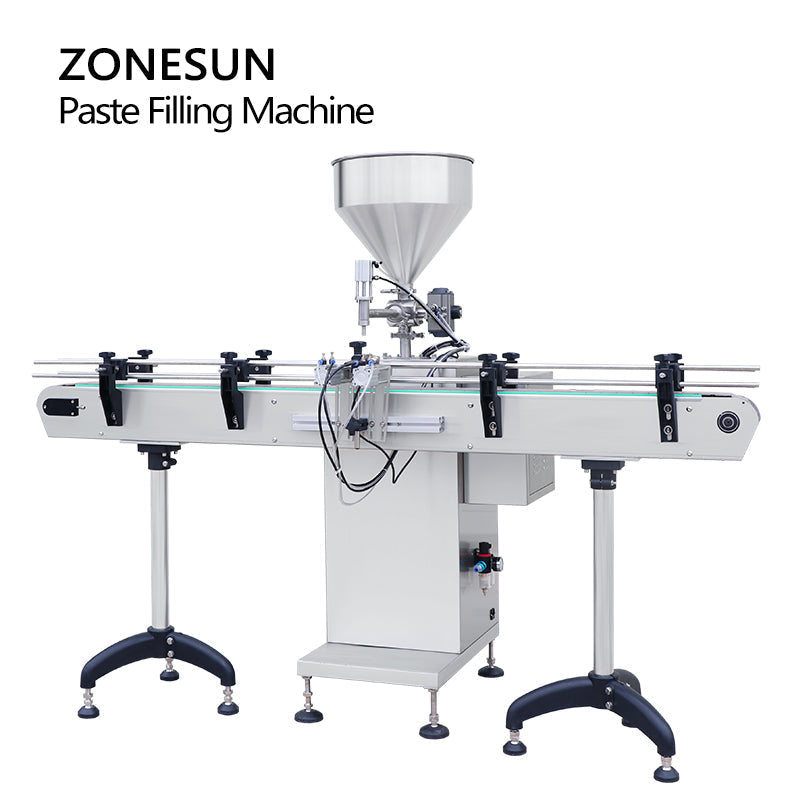

ZONESUN ZS-GY1SM Servo Motor Liquid Paste Filling Machine
ZONESUN ZS-GY1SM Servo Motor Liquid Paste Filling Machine
픽업 사용 가능 여부를 로드할 수 없습니다.
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
DESCRIPTION
Compared with other paste filling machines, this one is controlled by a servo motor, which brings high accuracy. What's more, the operator just needs to set the parameter of the filling volume, except for the filling speed and the filling time, which is super convenient. This machine is widely used in food, daily chemical and cosmetics industries.
APPLICATION
This machine is suitable for filling paste such as honey, glue, syrup, ketchup, etc.
PARAMETER
|
Model |
ZS-GY1SM |
|
Voltage |
220/110V 50/60Hz |
|
Power |
900W |
|
Filling |
5-100/10-300/50-500/100-1000ml (choose based on your requirement) |
|
Filling |
10-25 bottles/min (depend on material and bottle size) |
|
Filling Accuracy |
≤±0.5% |
|
Conveyor Size |
2m*10cm(L*W) |
|
Equipped with air pressure |
0.4-0.6 MPa |
|
Air Consumption |
≥0.1m³/min |
|
Machine |
82kg(Filling Machine)+36kg(Conveyor Belt) |
|
Package |
108kg(Filling Machine)+59kg(Conveyor Belt) |
|
Package size |
65*70*132cm(Filling Machine) 45*45*48cm(Hopper) 209*45*50cm(Conveyor Belt) |
