ZONESUN ZS-NP2 2 Heads Paste & Viscous Liquid Peristaltic Pump Filling Machine
ZONESUN ZS-NP2 2 Heads Paste & Viscous Liquid Peristaltic Pump Filling Machine
픽업 사용 가능 여부를 로드할 수 없습니다.
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
DESCRIPTION

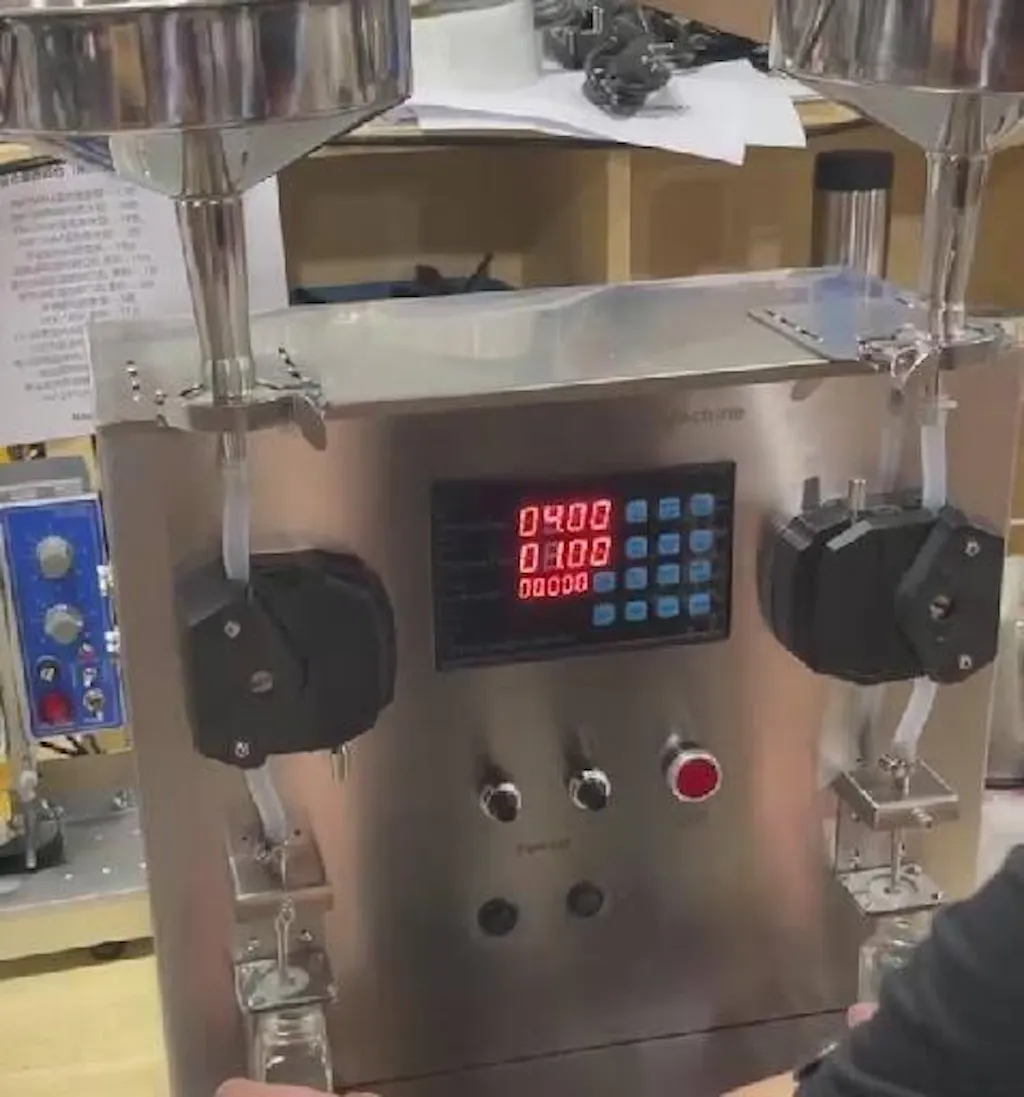

This filling machine is equipped with peristaltic pumps. The liquid only flows in the tube, which is safe. It is convenient to replace and clean the tube. With the help of gravity, it can fill thick liquid, such as honey, nail polish, glue, oral solution, etc.
PARAMETER
|
Machine Model |
ZS-NP2 |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
150W |
|
Machine Pump |
Peristaltic Pump |
|
Filling Range |
3-20ml(viscous liquid) 3-200ml(fluid liquid) |
|
Max Flow Rate |
2L/min*2(based on water) |
|
Filling Nozzle Diameter |
OD 4.8mm&7.8mm&5.4mm |
|
Filling Accuracy |
±1% |
|
Hopper Size |
Diameter: 200mmHeight:185mm |
|
Delay Range |
0.01s -999.9s |
|
Count Range |
1-59999 times |
|
Machine Size |
480mm*350mm*610mm(L*W*H) |
|
Machine Weight |
14.5kg |
|
Package Size |
670mm*470mm*390mm(L*W*H) |
|
Package Weight |
24KG |
