ZONESUN ZS-XG16D1 Custom Automatic Wooden Cork Cap Pressing Machine With Cap Feeder
ZONESUN ZS-XG16D1 Custom Automatic Wooden Cork Cap Pressing Machine With Cap Feeder
Couldn't load pickup availability
Parameter
|
Machine Model |
ZS-XG16D1 |
|
Working Voltage |
AC220V/110V 50-60HZ |
|
Power |
About 1100W |
|
Bottle Height |
30-300mm |
|
Bottle Caps Diameter |
18-70mm |
|
Bottle Diameter |
30-100mm |
|
Working Speed |
20-60 bottles/minute(depending on bottle and caps) |
|
Working Pressure |
0.4-0.6 MPa |
|
Size Of Air Compressor Connector |
OD 8mm |
|
Conveyor Length |
115mm(W)*1020mm(L) |
|
Machine Size |
About 680*680*1730mm |
|
Machine Weight |
About 112.5kg |
|
Package Size |
About 770*1650*1970mm |
|
Package Weight |
About 180kg |
Application
This machine is suitable for pressing wine bottle corks. With a cork guiding rail, it can feed automatically before capping bottles. The guide rail can be customized according to caps' diameter. This machine can work with automatic filling machine and labeling machine, realizing automated production.
Custom Capping
The air cylinder will make start to work and feed cork caps,bottles will be transported to press bottles.The size of pressing head will be customized according to bottle cap size,ensures that the cap will be pressed well.

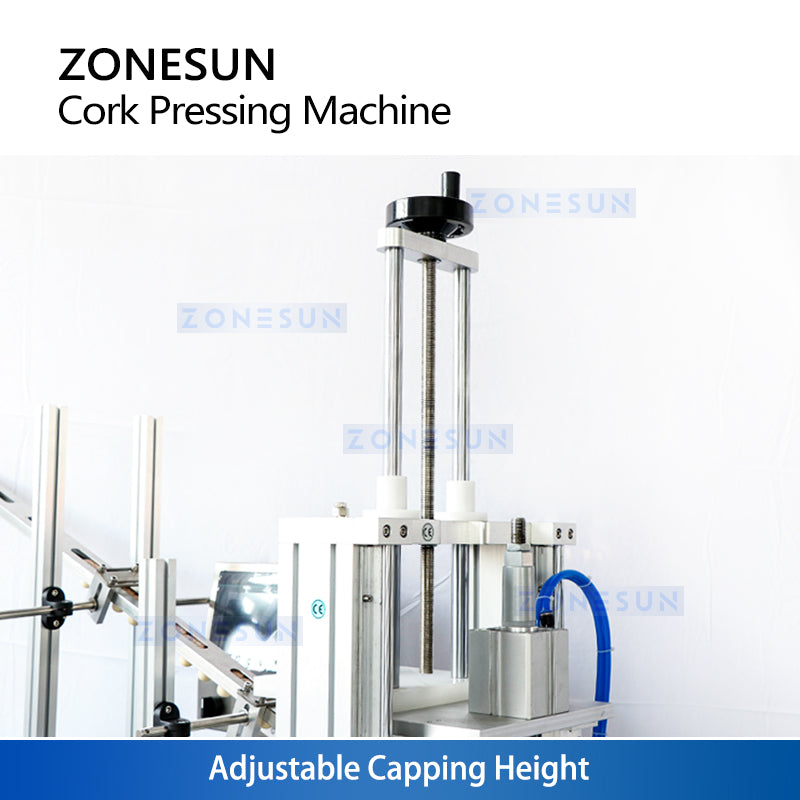

Adjustable Height
The working height of the machine can be adjusted according to the rotary knob makes the machine can work better improve production quality.
Custom Guiding Rail
The high quality bottle cap guiding rail can help you arrange bottle caps before pressing bottle caps,this rail will be customized according to your bottle caps size.
Electric Eye
There are three pieces of electric eyes they are used for detecting and separating bottles,feed bottle caps and press bottle caps.Make the production can be processed in order.
Conveyor Belt
High quality chain conveyor belt,larger loading capacity ensures the bottle can be transported smoothly and stably.The length of conveyor belt can be customized according to production need.
