ZONESUN ZS-XG1870 18-70mm Pneumatic Desktop Automatic Capping Machine
ZONESUN ZS-XG1870 18-70mm Pneumatic Desktop Automatic Capping Machine
Couldn't load pickup availability
Description

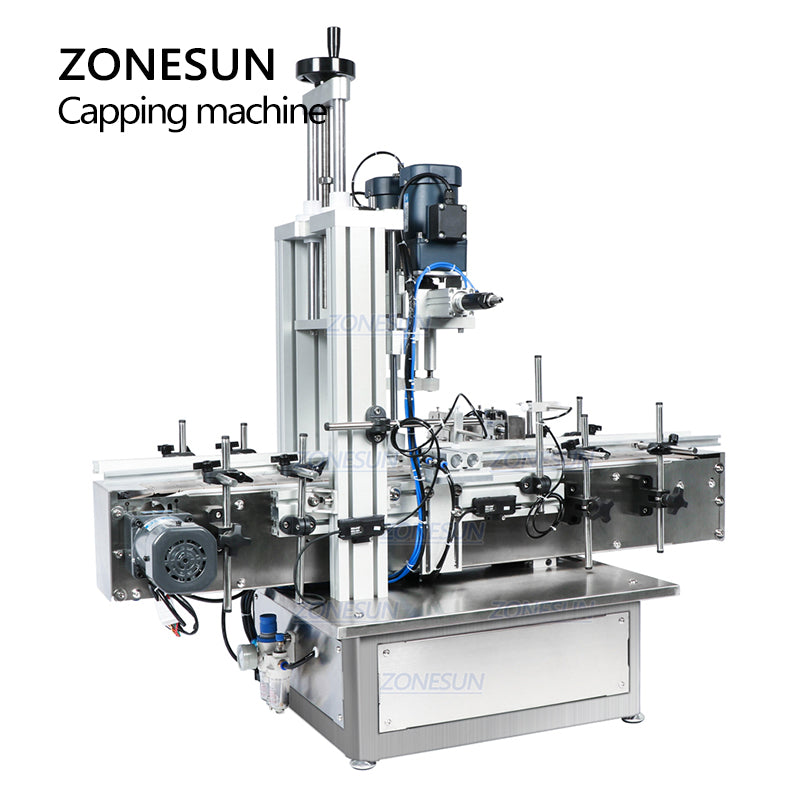

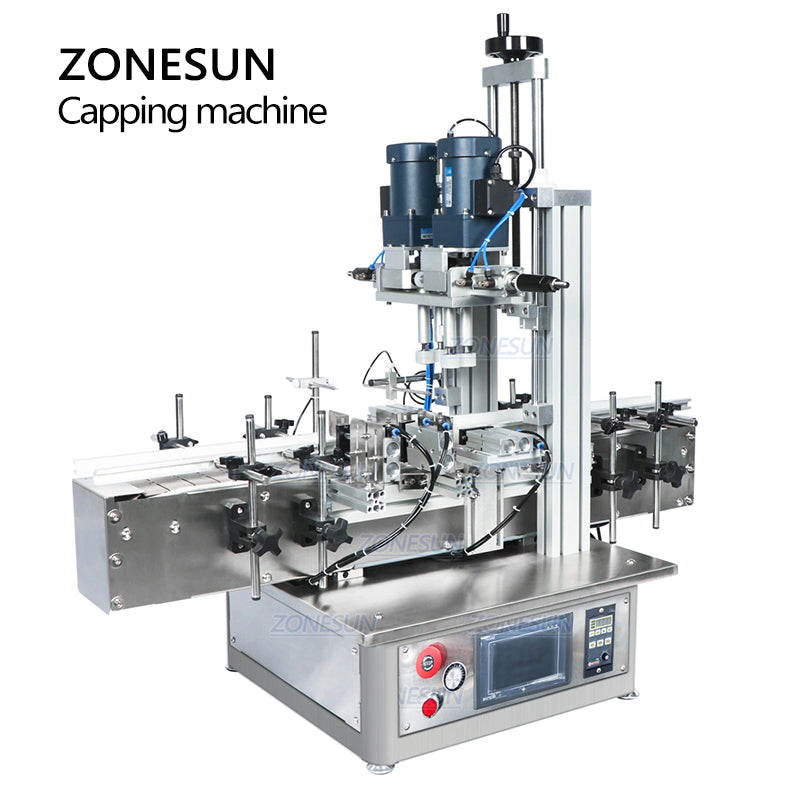

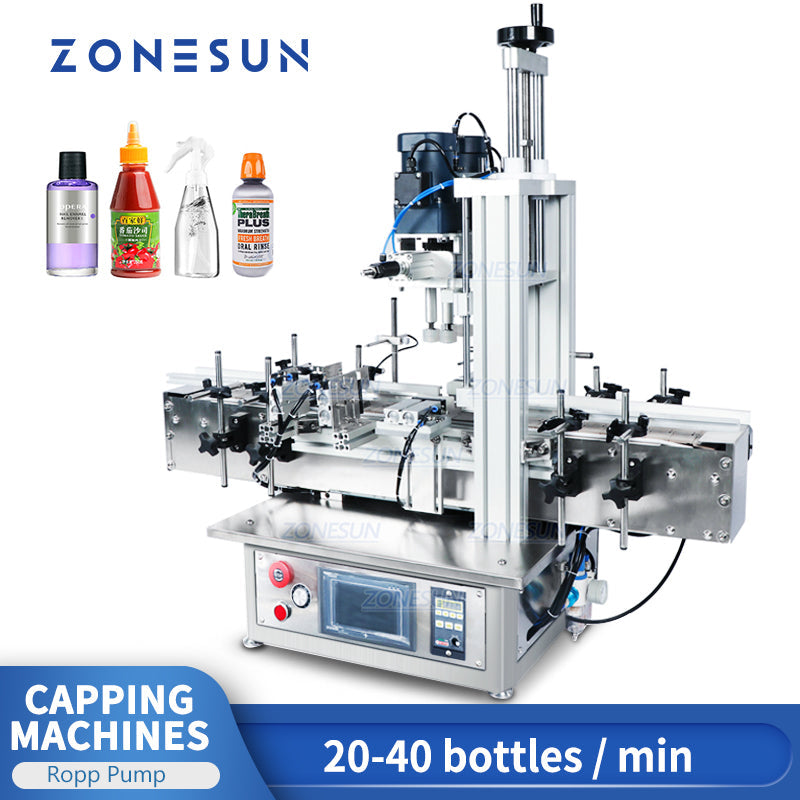

This desktop automatic capping machine can work with our desktop filling machine,labeling machine and become the production line.Spent less money but get powerful machine like the full automatic machine,this one can cap about 40 bottles/min.Ensure the high working efficiency and save working space.
Parameter
|
Bottle height
|
60-270mm
|
|||
|
Bottle Caps Diameter
|
18-70mm
|
|||
|
Working speed
|
20-40 bottles/minute(depending on bottle and caps)
|
|||
|
Working voltage
|
AC220V/110V 50-60HZ
|
|||
|
Working pressure
|
0.4-0.6 MPa
|
|||
|
Dimension
|
1 120* 580* 1110mm
|
|||
|
Conveyor Length
|
1117mm
|
|||
PRODUCT DETAIL
The working height can be adjusted by the rotary knob,- suitable bottle height is 60-270mm.

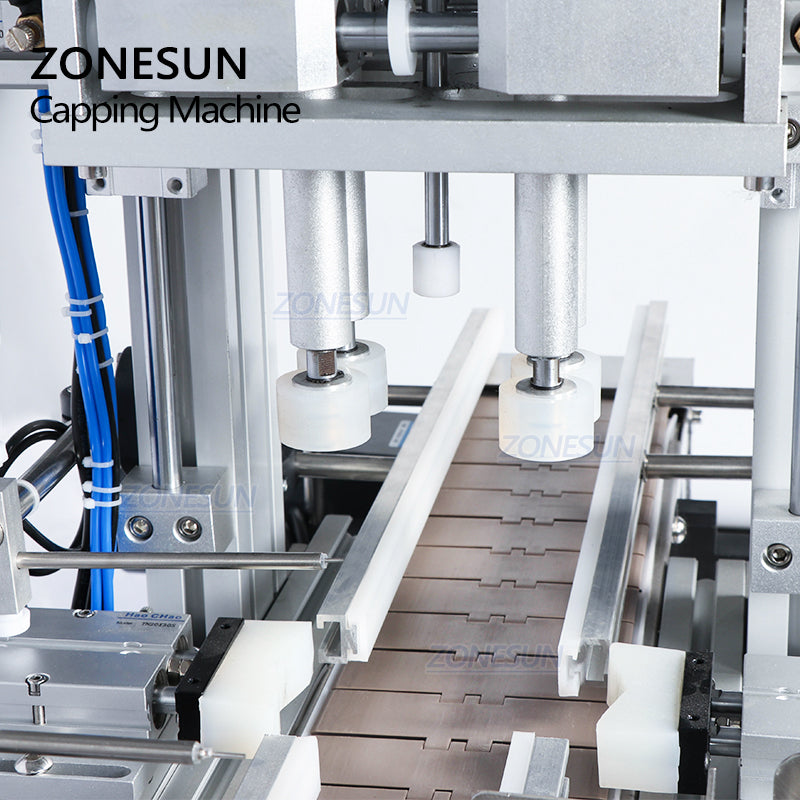

Designed for various shapes of bottle caps,like smoke oil bottles,spray bottles,beverage bottle caps.It will press the bottle caps and tight it automatically.Improve working efficiency greatly.

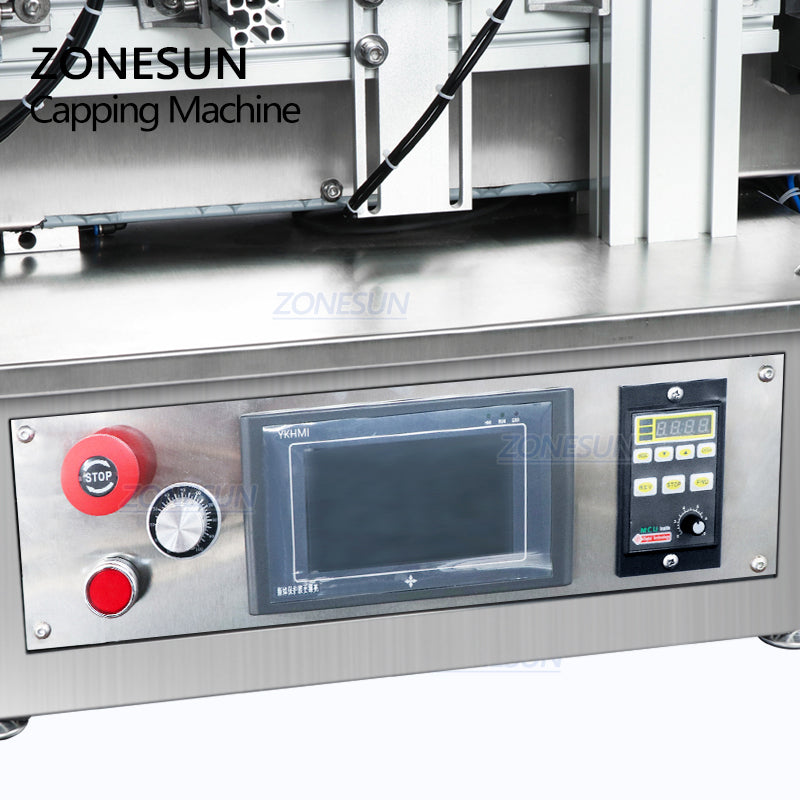

This machine is with electric eyes,can prevent from missing bottles,reduce the working error,the sensitivity of the electric eye can be adjusted by the black machine part during working.

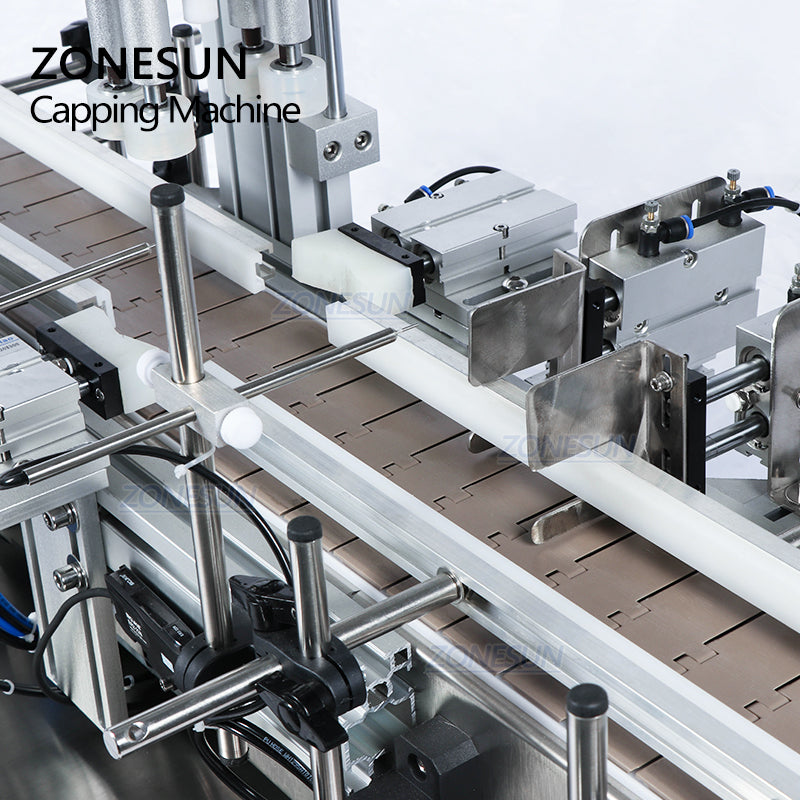

With conveyor,this machine can transfer bottles automatically,save labor ,reduce the production process and improve the working accuracy.
Equipped with powerful motor,the main motors and the conveyor motor are separately,ensure that the machine can work stably and safely.
The barometer can be used to watch the air pressure in real time.This machine should work with air compressor,customers need to buy it separately.If you need it,please contact us.
