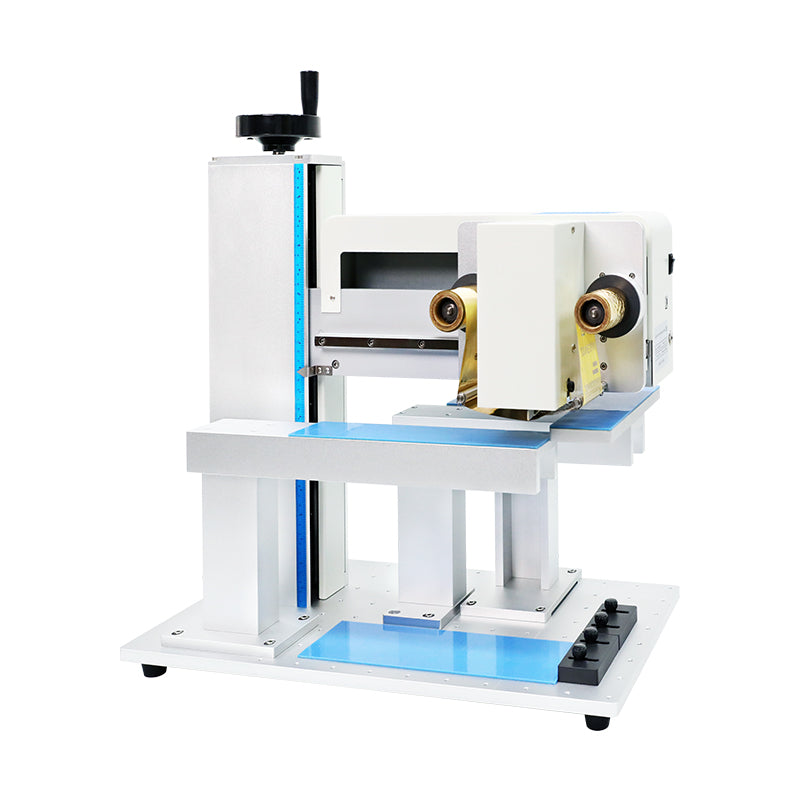

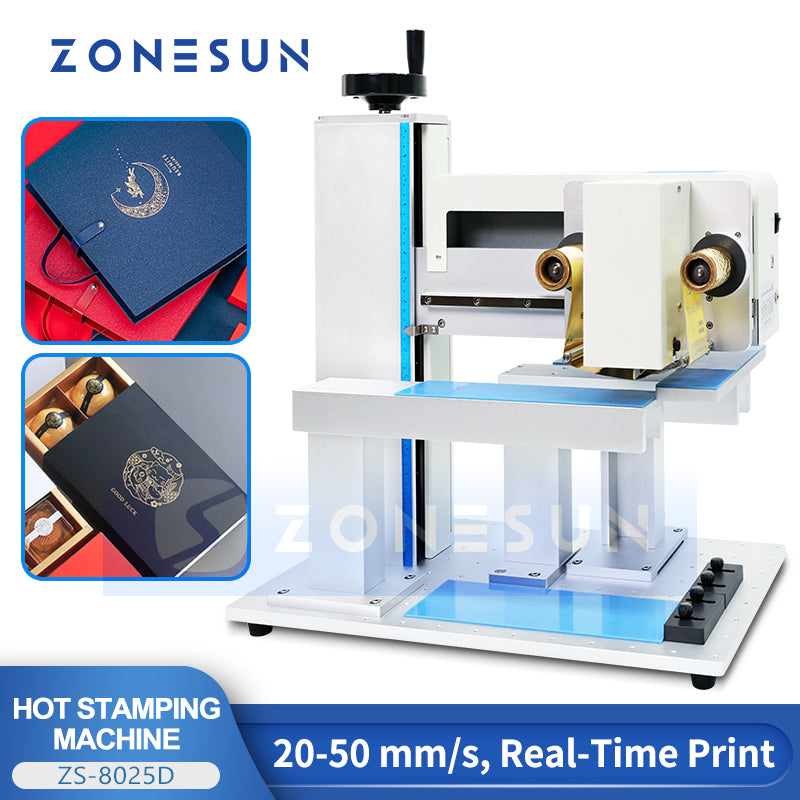

ZONESUN ZS-8025D Digital Stamping Machine

Overview

The ZONESUN ZS-8025D is a digital hot foil stamping machine featuring a unique protruding platform design that enables foil stamping on hollow objects, boxes, bags, and irregular surfaces that conventional flat-bed stampers cannot reach. Compatible with CorelDRAW, Photoshop, and Adobe Illustrator via USB, it eliminates the need for traditional metal stamping plates — designs are sent directly from software to the machine, dramatically reducing setup time and cost for short runs and custom jobs. With a print head lifespan of 150,000 meters and support for a wide range of substrates including paper, leather, PET, PVC, PU, acrylic, and frosted PVC, the ZS-8025D delivers professional-grade metallic foil finishes for packaging, branding, and personalization applications.

Technical Parameters

• Model: ZS-8025D
• Compatible Software: CorelDRAW, Photoshop, Adobe Illustrator (AI) — Windows OS
• Port Type: USB-B
• Foil Roll Type: Electrochemical aluminum hot stamping foil
• Applicable Materials: Paper, cardboard, adhesive labels, plastic sheets, PET, PVC, PU, leather, film, frosted PVC, acrylic sheets
• Max Material Thickness: 3500 mm
• Max Printing Area: Length 220 mm × Width 57 mm
• Printing Speed: 20–50 mm/s
• Print Head Lifespan: 150,000 meters
• Power Supply: 150W, AC 110–240V, 50/60Hz
• Packing Size: 53 × 33 × 55 cm
• Net / Gross Weight: 22.3 kg / 29 kg

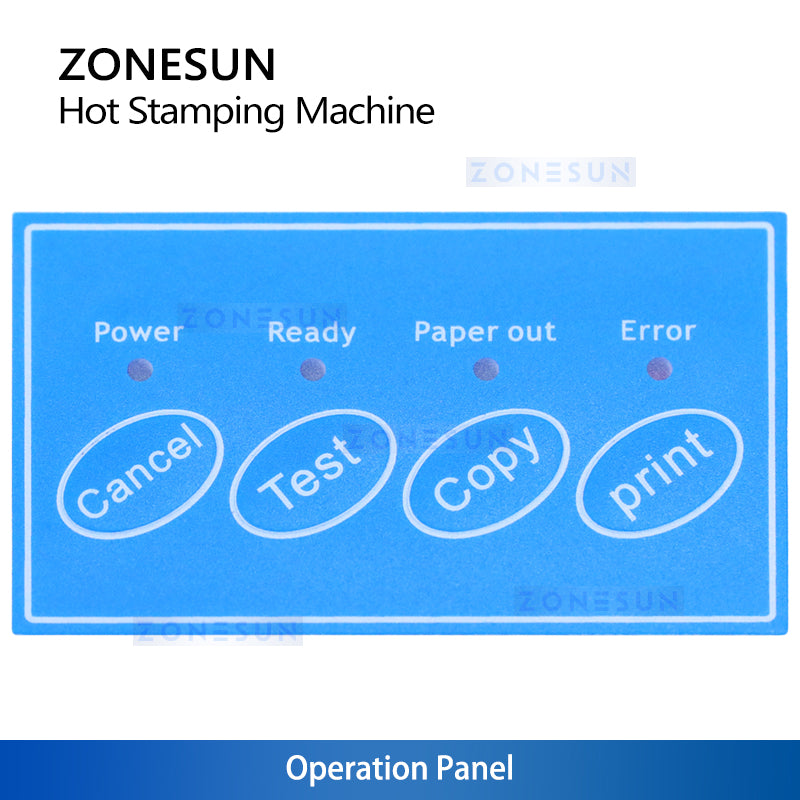

OPERATION PANEL

Integrates status LEDs and physical keys to monitor printer status in real time and easily execute test, copy, or print cancellation commands.

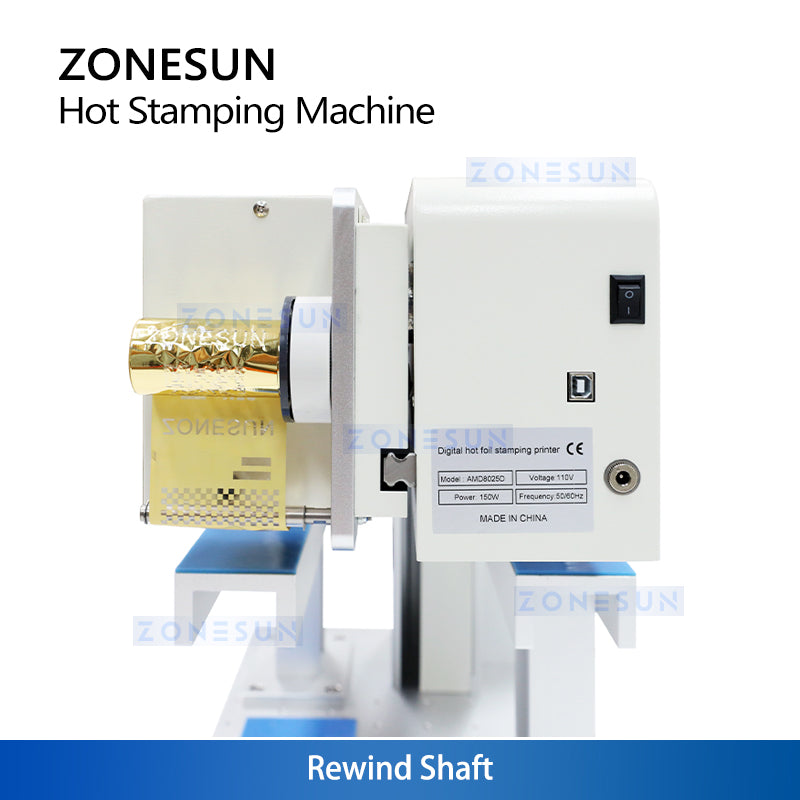

REWIND SHAFT

Automatically rewinds and collects used hot foil in real time to ensure continuous, smooth feeding and tidy waste management.

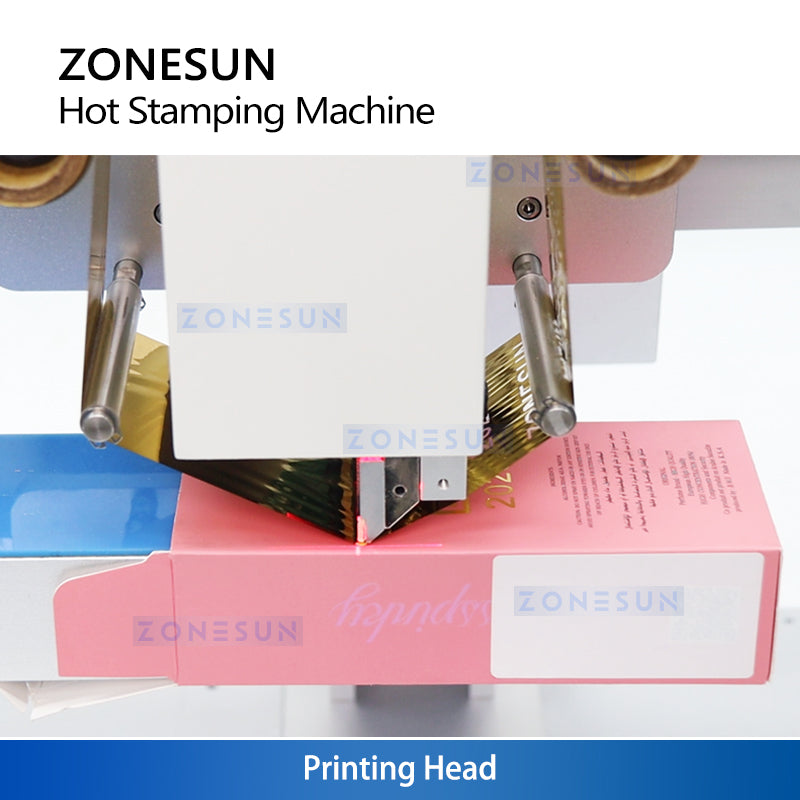

PRINTING HEAD

Utilizes localized heat and pressure to transfer hot foil metallic layer onto products in real time for dynamic data printing.

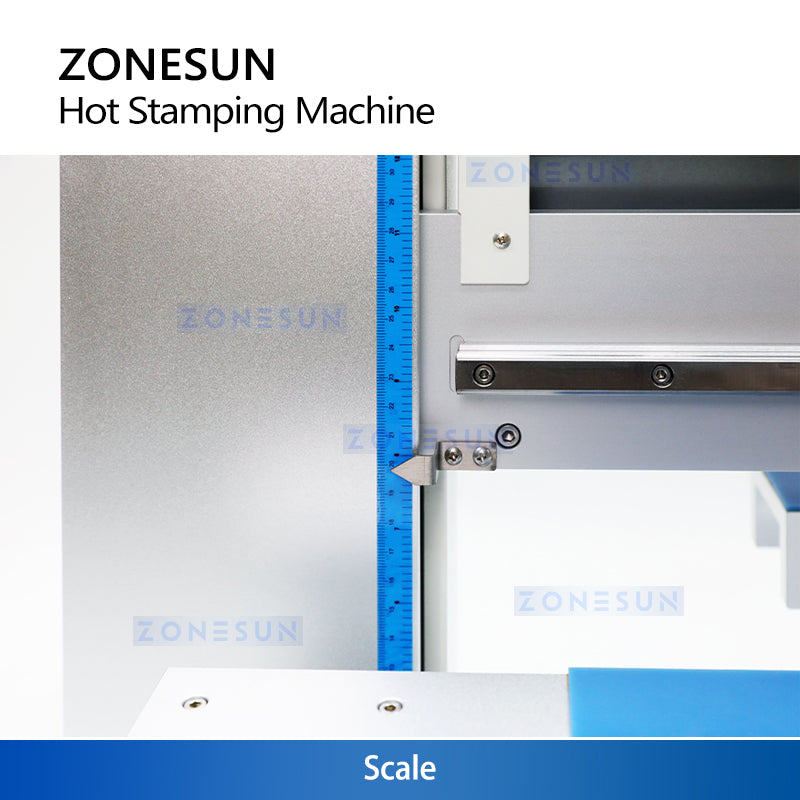

SCALE

Provides an intuitive measurement scale and a precise indicator to quickly calibrate and align the stamping head height for various product thicknesses.

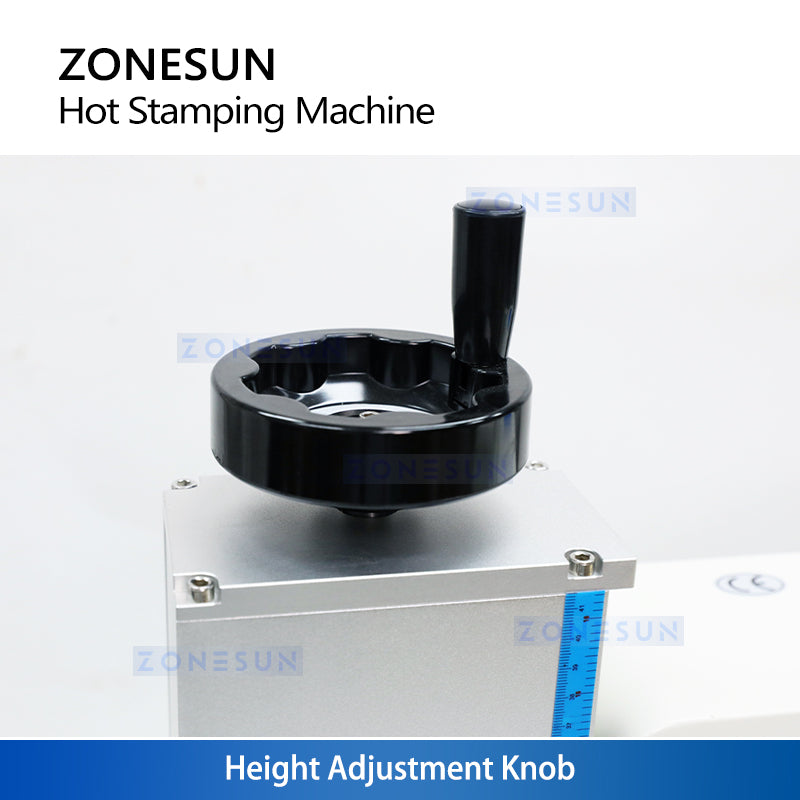

HEIGHT ADJUSTMENT KNOB

Rotates the mechanical handwheel to precisely lift or lower the stamping head, adjusting it to the perfect working height for different product thicknesses.

Key Features

• No Plate Required — Direct Digital Stamping: Designs are sent directly from CorelDRAW, Photoshop, or Adobe Illustrator to the machine via USB — eliminating the cost, lead time, and storage of traditional metal stamping plates. Ideal for short runs, custom orders, and frequent design changes.
• Protruding Platform for Hollow & Irregular Surfaces: The unique raised platform design allows the stamping head to reach inside boxes, bags, and hollow objects that flat-bed stampers cannot access — opening up packaging decoration possibilities unavailable with conventional equipment.
• Wide Material Compatibility: Stamps cleanly on paper, cardboard, adhesive labels, PET, PVC, PU, leather, film, frosted PVC, and acrylic sheets — a single machine covers the full range of packaging and product materials used in luxury and retail branding.
• 150,000-Meter Print Head Lifespan: Industrial-grade thermal print head rated for 150,000 meters of foil stamping, delivering long-term reliability and low per-unit consumable cost across high-volume production runs.
• Electrochemical Aluminum Hot Stamping Foil: Compatible with standard electrochemical aluminum foil rolls available in gold, silver, holographic, and custom colors — producing high-gloss, durable metallic finishes that resist scratching and fading.
• 20–50 mm/s Adjustable Stamping Speed: Variable speed control allows operators to optimize foil transfer quality for different substrate types and foil colors, balancing throughput with finish quality.
• Universal Voltage (110–240V, 50/60Hz): Single power supply covers both North American and international electrical standards, enabling global deployment without voltage conversion equipment.
• Compact & Lightweight (22.3 kg Net): Desktop-scale footprint and low weight make the ZS-8025D suitable for studio, workshop, and small production environments without requiring dedicated floor space or heavy-duty installation.

Applications

• Luxury Packaging & Gift Boxes: Gold and silver foil logo stamping on rigid gift boxes, folding cartons, and presentation packaging for jewelry, cosmetics, spirits, and premium consumer goods brands.
• Paper Bags & Shopping Bags: Brand name and logo foil stamping on the exterior and interior surfaces of paper shopping bags, including the challenging hollow interior areas accessible via the protruding platform.
• Leather Goods & Accessories: Hot foil branding on leather wallets, handbags, belts, notebook covers, and accessories for fashion brands and personalized gift manufacturers.
• Cosmetic & Beauty Packaging: Foil decoration on cosmetic boxes, compact cases, lipstick tubes, and skincare packaging requiring premium metallic finish branding.
• Stationery & Greeting Cards: Foil stamping on greeting cards, invitations, wedding stationery, certificates, and premium notebooks for print shops and personalization services.
• Wine, Spirits & Food Packaging: Label and box foil decoration for wine bottles, whisky gift sets, chocolate boxes, and premium food packaging requiring luxury shelf presence.
• Short-Run & Custom Branding: On-demand foil stamping for small batch custom orders, corporate gifts, event merchandise, and personalized products where plate-based stamping is cost-prohibitive.
