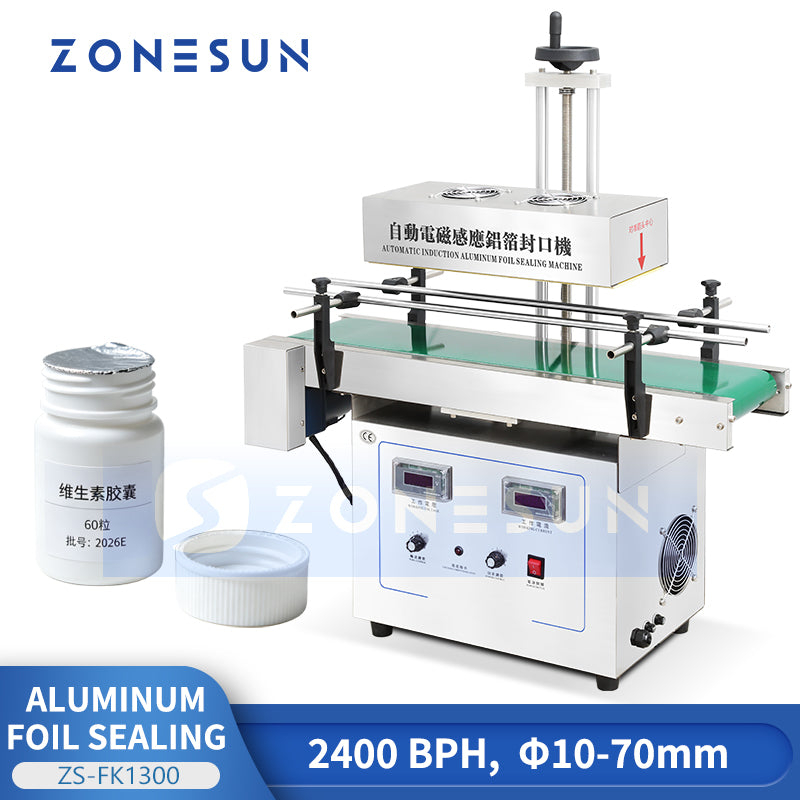

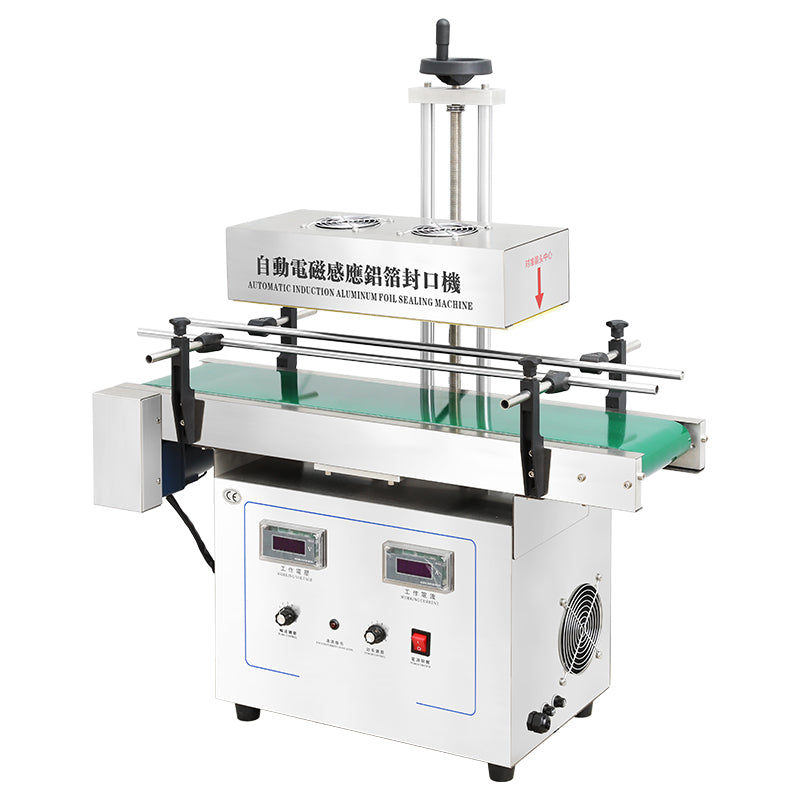

ZONESUN ZS-FK1300 10-70mm High Speed Automatic Induction Aluminum Foil Sealing Machine

ZONESUN ZS-FK1300 Automatic Continuous Induction Aluminum Foil Sealing Machine

The ZONESUN ZS-FK1300 is a high-speed automatic electromagnetic induction aluminum foil sealing machine designed for continuous, non-contact sealing of bottles and containers. Electromagnetic induction heats the aluminum foil liner, melting the adhesive film to bond it tightly to the bottle mouth — delivering a tamper-evident, airtight seal without direct contact. With a sealing diameter range of Φ10–70 mm and a maximum speed of 2,400 bottles/hour, it is ideal for pharmaceutical, food, daily chemical, and catering production lines requiring high efficiency and consistent seal quality.

Technical Specifications

• Model: ZS-FK1300
• Voltage: AC 110V / 220V, 50–60 Hz
• Max Power: 1,300 W
• Sealing Diameter: Φ10–70 mm
• Suitable Bottle Height: 20–300 mm
• Suitable Bottle Diameter: Within 150 mm
• Max Sealing Speed: 2,400 bottles/hr (varies by container size and material)
• Conveyor Size: 150 mm (W) × 760 mm (L)
• Cooling Method: Air cooling
• Machine Material: Stainless steel
• Machine Dimensions: 790 × 330 × 860 mm (L × W × H)
• Package Dimensions: 900 × 410 × 510 mm
• Package Weight: 30 kg

Applications

The ZS-FK1300 is designed for continuous aluminum foil induction sealing across multiple industries:

• Pharmaceutical — pill bottles, capsule containers, liquid medicine bottles
• Food & beverage — sauce jars, condiment bottles, cooking oil containers
• Daily chemical — shampoo, lotion, detergent, and personal care bottles
• Catering & food service — spice jars, seasoning bottles
• Cosmetics — cream jars, serum bottles, toner containers

Key Features

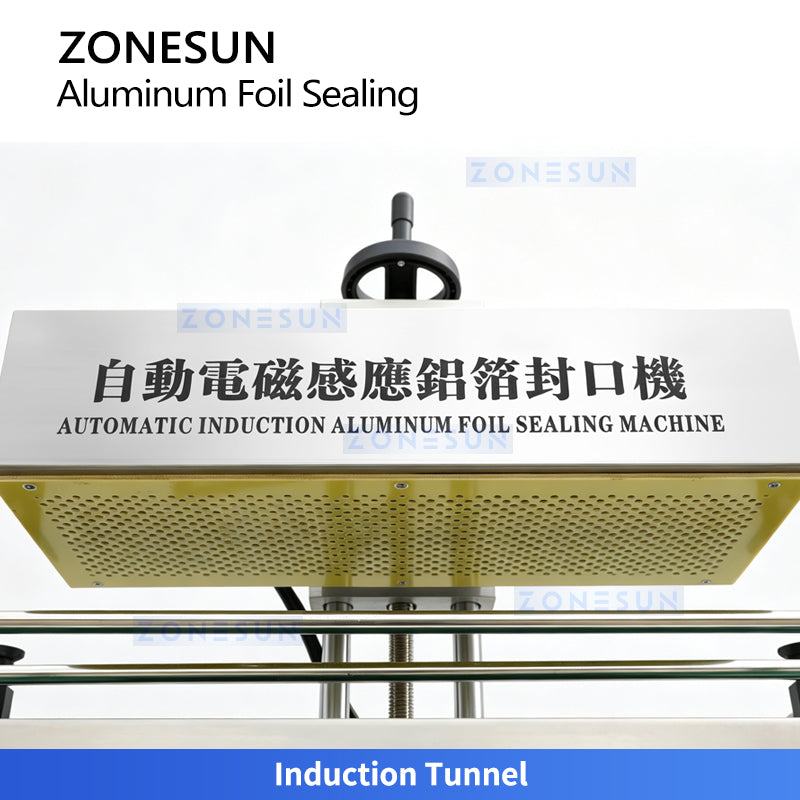

• Electromagnetic Induction Sealing — Non-contact heating melts the adhesive film under the aluminum foil for a fast, reliable, tamper-evident seal
• Wide Sealing Diameter Range — Φ10–70 mm accommodates a broad range of bottle and container sizes without tooling changes
• High-Speed Continuous Operation — Up to 2,400 bottles/hr for efficient production line integration
• Adjustable Bottle Height Compatibility — Handles bottles from 20–300 mm tall, suitable for vials, jars, and large containers

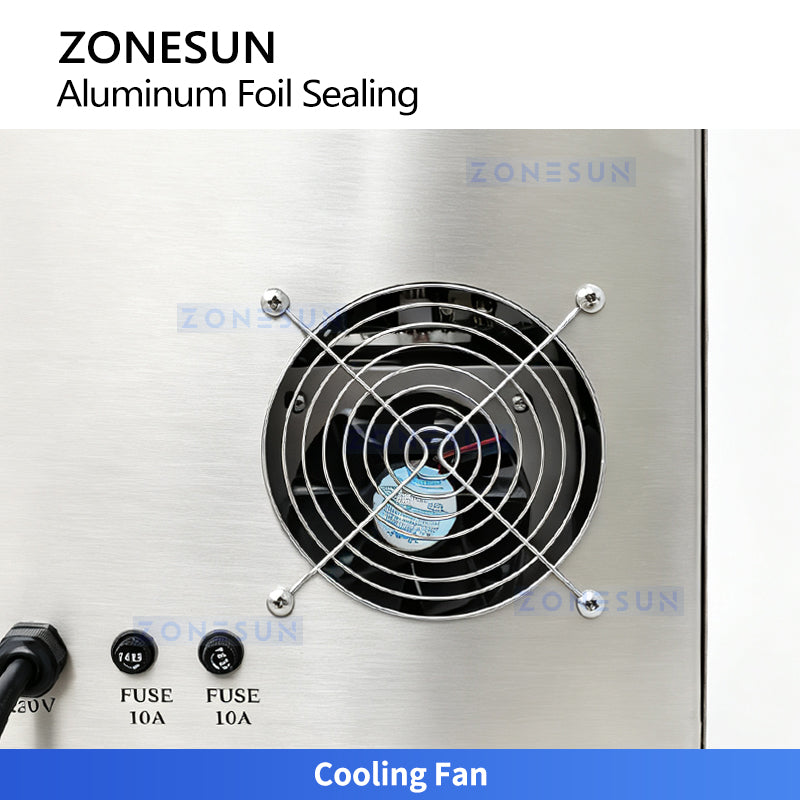

• Air Cooling System — Maintains stable sealing head temperature during continuous high-speed operation
• Stainless Steel Construction — Food-grade and corrosion-resistant for pharmaceutical, food, and chemical applications

Benefits

• Tamper-Evident Airtight Seals — Electromagnetic induction bonding creates a secure, leak-proof seal that protects product integrity
• Non-Contact Process — No direct contact with the bottle mouth eliminates contamination risk and reduces wear
• High Production Efficiency — 2,400 bottles/hr continuous output reduces labor cost and improves throughput
• Versatile Container Compatibility — Seals plastic, glass, and composite bottles across pharmaceutical, food, and chemical sectors

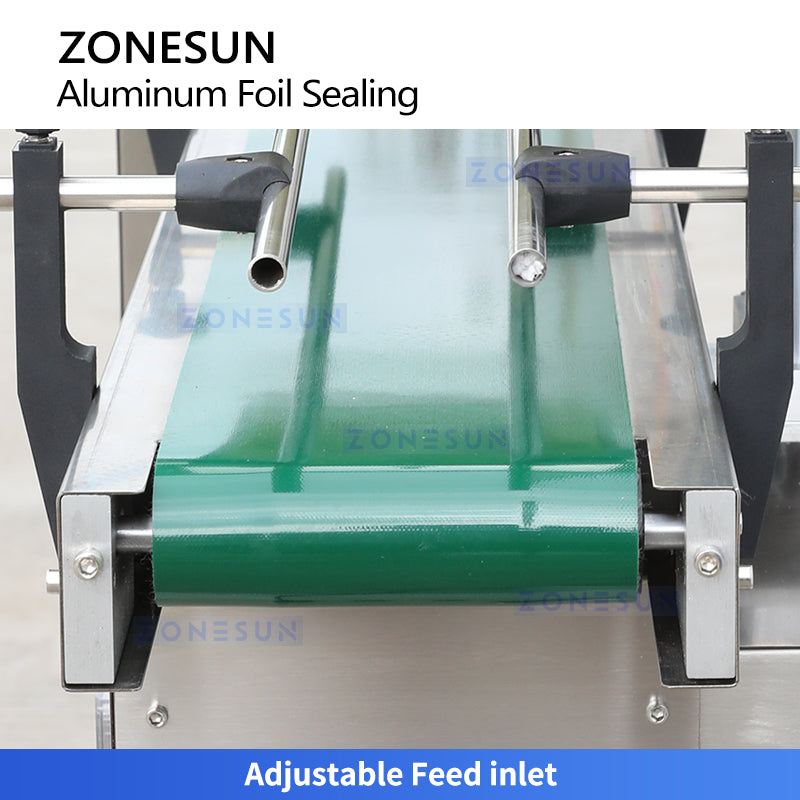

• Easy Line Integration — Conveyor-based design integrates seamlessly with filling and capping lines
