ZONESUN ZS-FSMP8 Automatic Magnetic Pump Liquid Bag Feeding Filling Sealing Machine

DESCRIPTION

Introducing our high-quality VFFS liquid bagger, designed to streamline your liquid packaging process. This machine features state-of-the-art magnetic pumps, ensuring accurate and consistent filling every time.

To use the VFFS liquid bagger, simply pour your liquid into the material tank. When the machine starts, the feeding pump will transport the liquid up to the hopper of the main machine. The machine then uses magnetic pumps to fill the liquid in 8 channels, with unparalleled accuracy and precision.

Meanwhile, the film is automatically fed and formed in the forming station, ensuring a perfect fit for your liquid product. The machine then moves to the sealing station, where the bag is securely sealed to ensure no leaks or spills. Finally, the cutting station cuts the bag to the desired length, providing a clean and professional finish.

Our VFFS liquid bagger is user-friendly, with easy-to-use controls that make operation a breeze. It's also highly customizable, allowing you to adjust the bag size and fill volume to fit your specific needs.

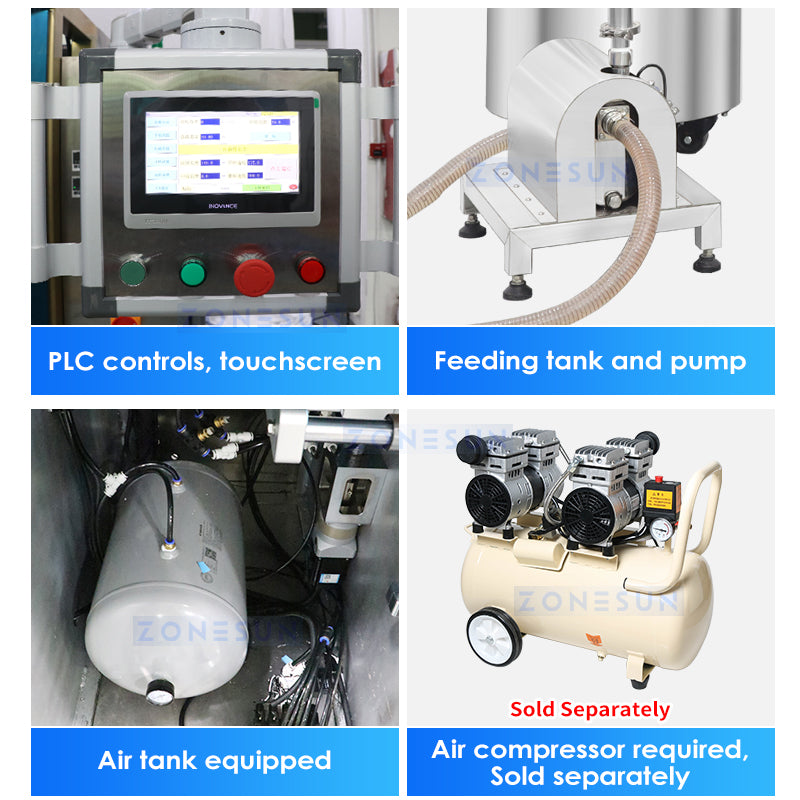

Our monoblock is equipped with advanced PLC controls, making it easy to operate and control. Its high level of automation and precision make it the perfect choice for small and medium-sized businesses looking to enhance their packaging process.

Whatever your packaging needs are, you can rely on ZONESUN.

Technical Specifications

Model: ZS-FSMP8
Power Consumption: 9.5kW
Bagging Capacity: 25–40 bags/min per channel
Material Feeding:

• Tank: 150L
• Hopper: 50L (Customizable)

Pump Type: Magnetic Pump × 8
Number of Channels: 8
Film Size: 500mm
Bag Size:

• Length: 34–150mm
• Width: 15–26mm (Customizable)

Bagging Style:

• Back seals
• round corners

Machine Dimensions: 2100(L) × 1700(W) × 1800(H) mm
Machine Weight: 700kg

FILM FEEDING

The film is fed from a roll, and the machine is equipped with a film alignment system that ensures the film is correctly positioned for accurate packaging. Additionally, the film feeding mechanism is adjustable, allowing you to customize the length of the bag to fit your specific needs.

PUMPS

The magnetic pumps ensure a consistent and precise fill. The technology allows for precise control over the pump speed and flow rate, ensuring that the liquid is dispensed at the required volume and rate.

FORMING

The forming mechanism is designed to create a strong and sturdy bag that can securely hold your liquid product without any leaks or spills. The forming mechanism allows you to customize the size and shape of the bag to fit your specific needs.

SEALING

The sealing mechanism uses advanced technology to ensure a strong and secure seal, even for bags filled with thicker or more viscous liquid products.

CUTTING

The cutting mechanism is designed to provide a clean and precise cut, ensuring a professional finish for your liquid product.
