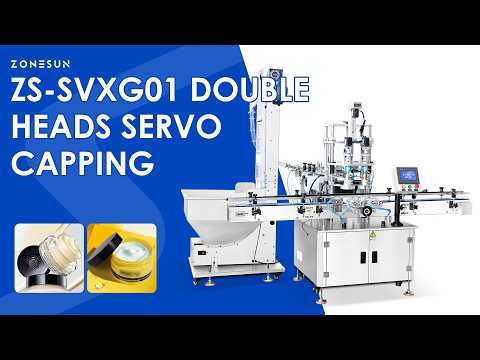

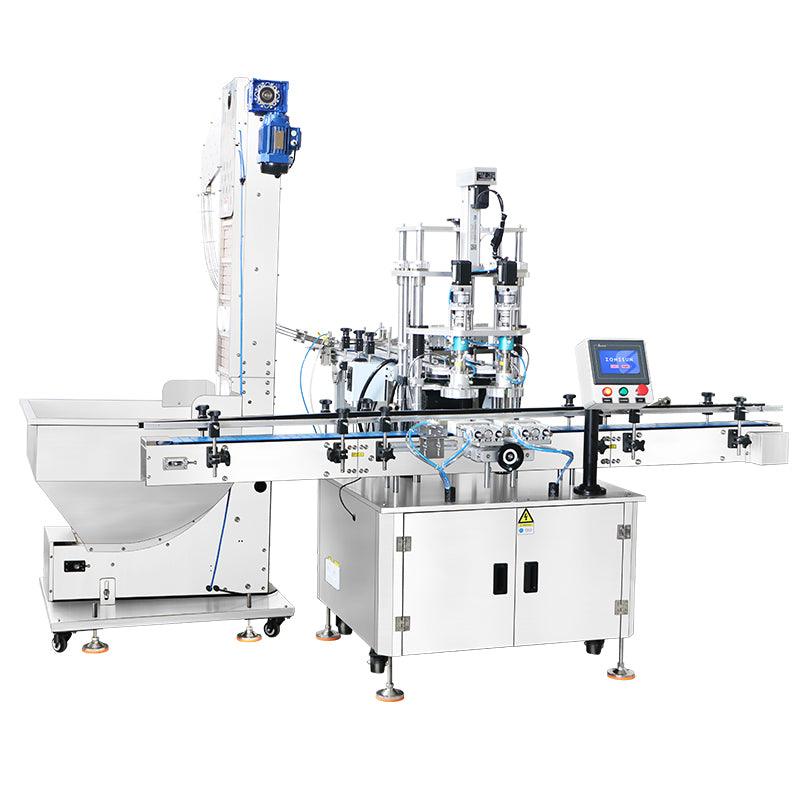

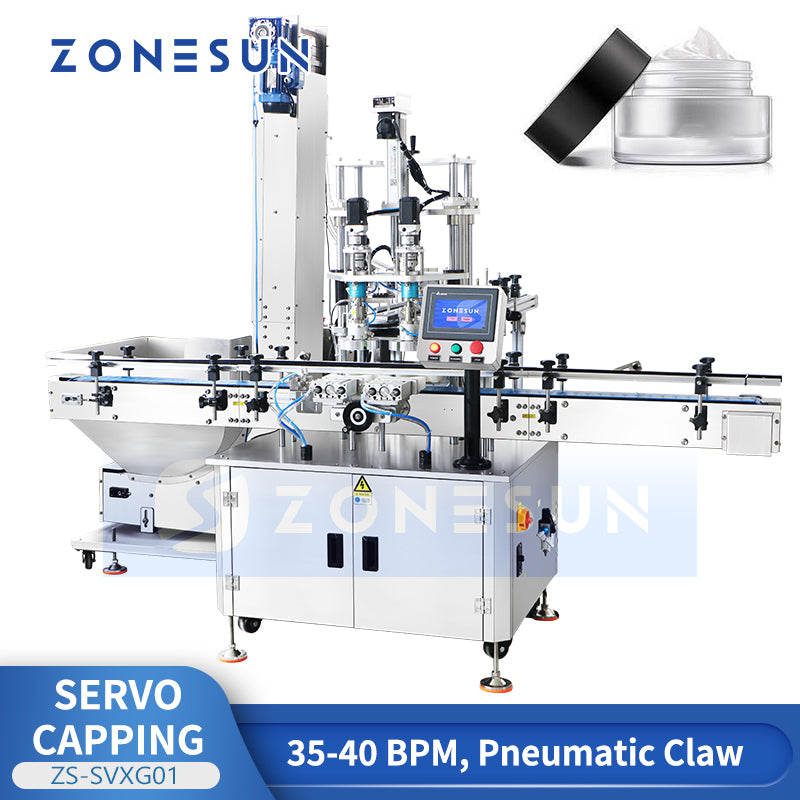

ZONESUN ZS-SVXG01 Automatic Servo Screw Capping Machine Double Heads Capper

DESCRIPTION

The ZONESUN ZS-SVXG01 is a fully automatic double-head servo screw capping machine engineered for high-speed, high-consistency cap sealing across the seasoning, food, daily chemical, and cosmetics industries. It integrates automatic cap elevator feeding, pneumatic cap transfer, bottle clamping, conveyor transport, and dual servo-driven screw capping into a single continuous production line. The servo torque control system ensures every cap is tightened to a precise, repeatable specification — eliminating under-tightened leaks and over-tightened cap damage. With SUS304 stainless steel construction and wide bottle/cap compatibility, the ZS-SVXG01 is built for demanding production environments that require reliability, hygiene, and versatility.

PARAMETER

• Machine Model：ZS-SVXG01
• Machine Voltage：110 / 220V, 50–60Hz, 1.5KW
• Suitable Bottle Size：φ20–150 mm, H = 20–220 mm
• Suitable Cap Size：Customizable
• Working Capacity：2100–2300 BPH
• Conveyor Size：2000 × 114 mm (L × W), Working Height: 850 mm
• Machine Casing Material：SUS304 Stainless Steel
• Air Consumption：0.4–0.6 MPa
• Machine Size：Approx. 2280 × 2050 × 2250 mm
• Machine Weight：Approx. 260 kg
• Package Size：Approx. 2290 × 1340 × 1420 mm (Cap Elevator) + 1150 × 1050 × 1200 mm (Capping Machine)
• Package Weight：Approx. 270 kg (Cap Elevator) + 314 kg (Capping Machine)

APPLICATION

The ZONESUN ZS-SVXG01 is designed for production lines that require fast, precise, and reliable screw-cap sealing across a wide range of bottle formats and industries:

• Food & Seasoning：Soy sauce, vinegar, cooking oil, hot sauce, condiment bottles, and seasoning jars requiring consistent torque sealing for leak-free shelf-ready packaging
• Cosmetics & Personal Care：Shampoo, conditioner, lotion, toner, and body wash bottles in round, oval, or irregular shapes requiring gentle yet secure screw-cap closure
• Daily Chemical & Household：Detergent, disinfectant, fabric softener, and cleaning product bottles that demand high-speed capping with tamper-evident sealing
• Pharmaceutical & Healthcare：Oral liquid bottles, supplement containers, and health product packaging requiring GMP-compliant, torque-controlled screw capping
• Beverage & Liquid Products：Juice, functional drinks, and bottled water in plastic or glass bottles requiring high-throughput automated capping on continuous production lines

With a working capacity of 2100–2300 BPH and compatibility with bottles from φ20 to 150 mm in diameter, the ZS-SVXG01 handles the majority of round bottle formats on the market — making it a versatile, future-proof investment for multi-SKU production environments.

MACHINE FEATURES

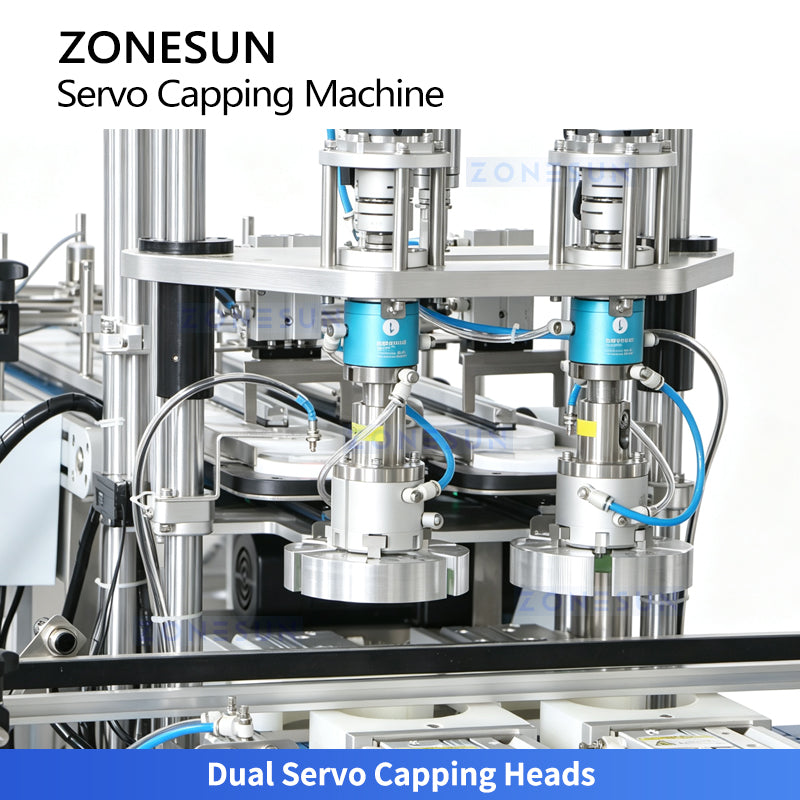

• Double-Head Servo Capping System：Two independent servo-driven capping heads work simultaneously, doubling throughput versus single-head machines while maintaining precise, programmable torque on every cap

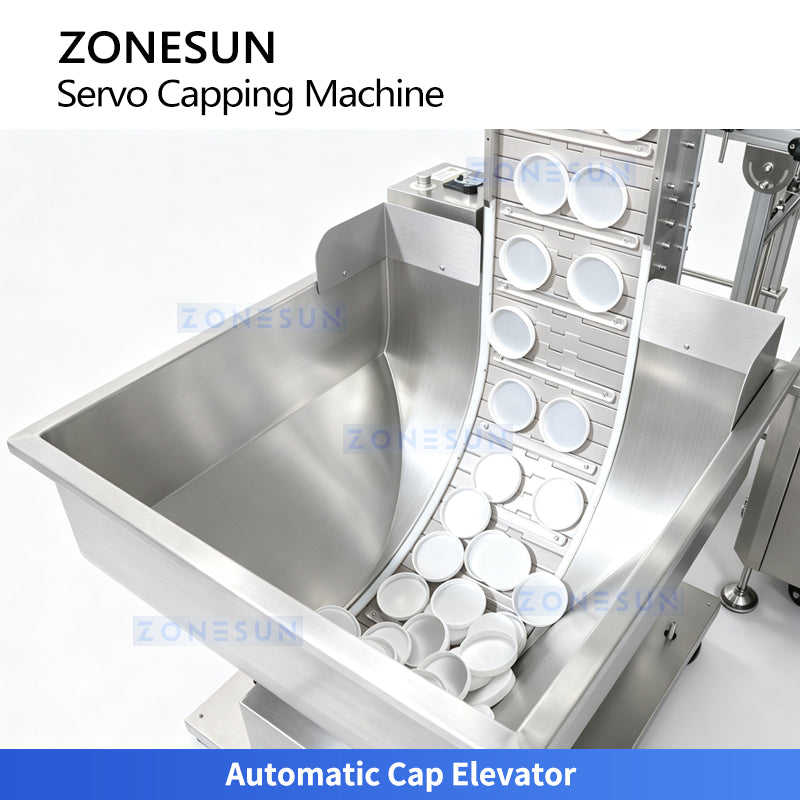

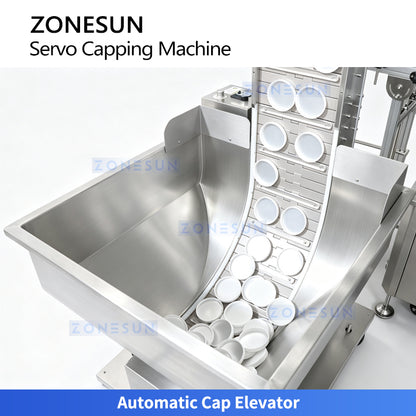

• Automatic Cap Elevator Feeder：Integrated cap elevator automatically sorts, orients, and feeds caps into the capping station continuously — eliminating manual cap loading and keeping the line running without interruption

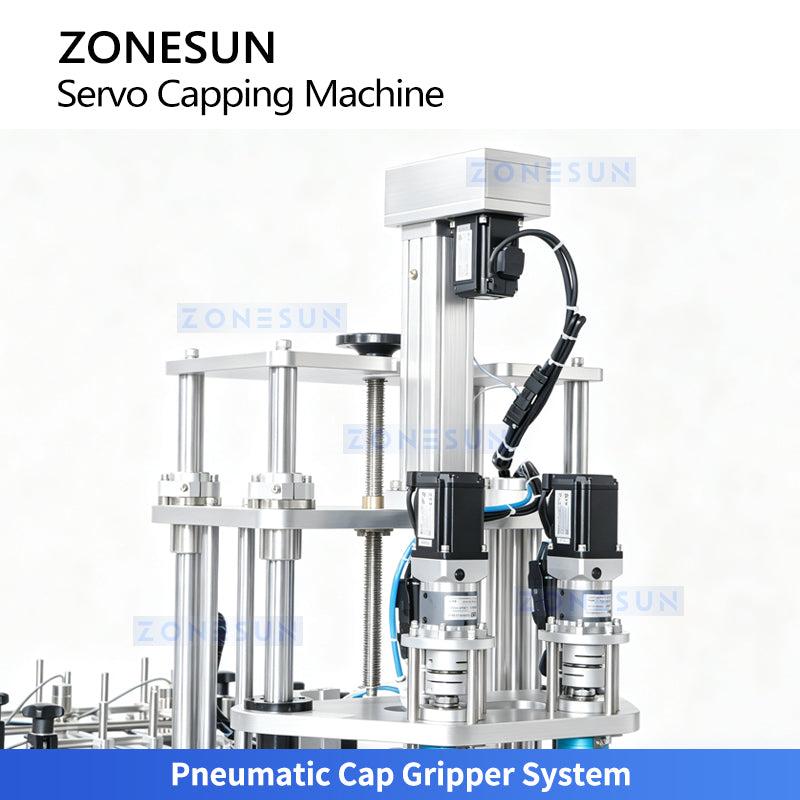

• Pneumatic Cap Transfer Mechanism：Pneumatic gripper transfers caps from the elevator to the bottle mouth with stable, repeatable positioning, preventing misalignment and cross-threading
• Wide Bottle & Cap Compatibility：Handles bottles from φ20–150 mm in diameter and 20–220 mm in height, covering round bottles of virtually all standard sizes across food, cosmetic, and chemical industries
• Servo Torque Control：Programmable servo motor delivers consistent, adjustable capping torque for each product SKU — preventing under-tightened leaks and over-tightened cap deformation
• SUS304 Stainless Steel Construction：Full stainless steel machine casing meets food-grade and GMP hygiene standards, resistant to corrosion, easy to clean, and built for long-term industrial use

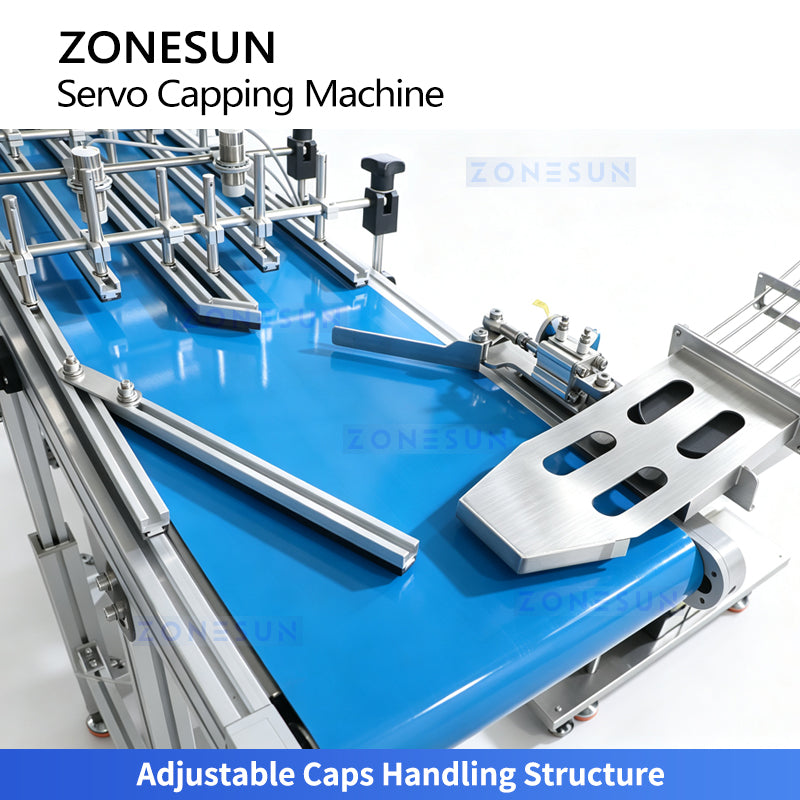

• Continuous Conveyor Transport：2000 mm conveyor belt with adjustable width transports bottles smoothly through the capping zone at a consistent pace, supporting uninterrupted high-speed production

MACHINE ADVANTAGES & BENEFITS

• High-Speed Output with Dual-Head Efficiency：2100–2300 BPH capacity — achieved through simultaneous dual-head capping — maximizes line throughput without requiring a larger footprint or additional equipment
• Zero Cap Damage, Zero Leakage：Servo torque control eliminates the two most common capping defects — under-tightened leaks and over-tightened cracked caps — reducing product returns and rework costs
• Dramatically Reduced Labor Cost：Fully automated cap feeding, transfer, and screw capping replaces manual capping operators, cutting per-unit labor cost while improving consistency across every shift
• Multi-Format Versatility：Wide bottle and cap size range with quick-adjust tooling allows the ZS-SVXG01 to run multiple product SKUs on a single machine, reducing capital investment for multi-product lines
• Consistent Quality Across Every Shift：Servo-driven automation eliminates operator fatigue and human variation, delivering the same capping torque and quality at hour one and hour ten of every production run
• Low Maintenance, High Reliability：Sealed servo motors, pneumatic components, and stainless steel frame minimize wear and corrosion, keeping maintenance intervals long and unplanned downtime low
• Compliance-Ready for Global Export：SUS304 construction, servo control, and food-grade design support CE, and GMP compliance requirements for food, cosmetic, and pharmaceutical manufacturers worldwide
