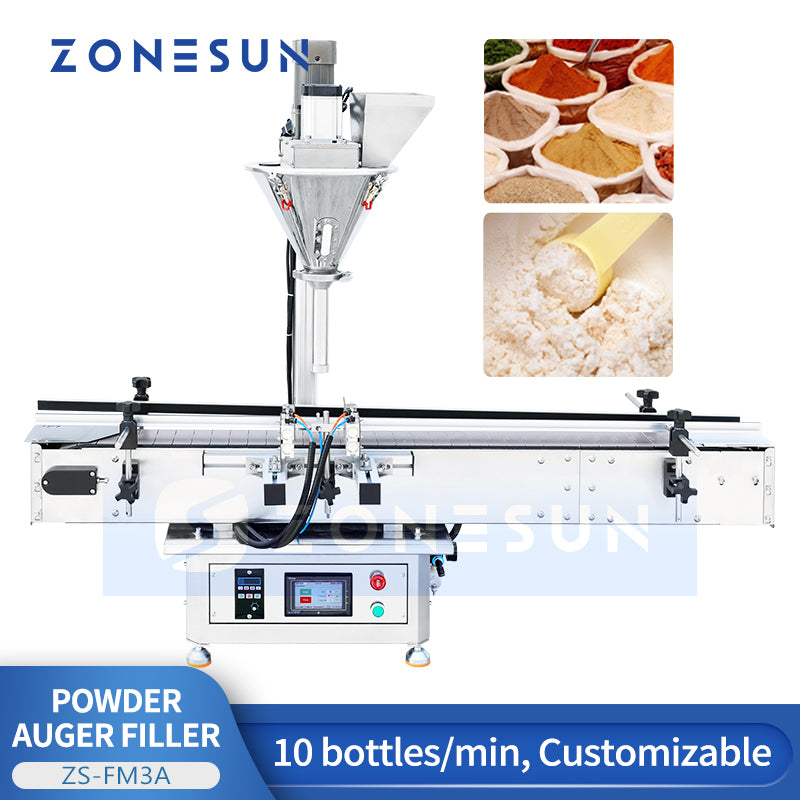

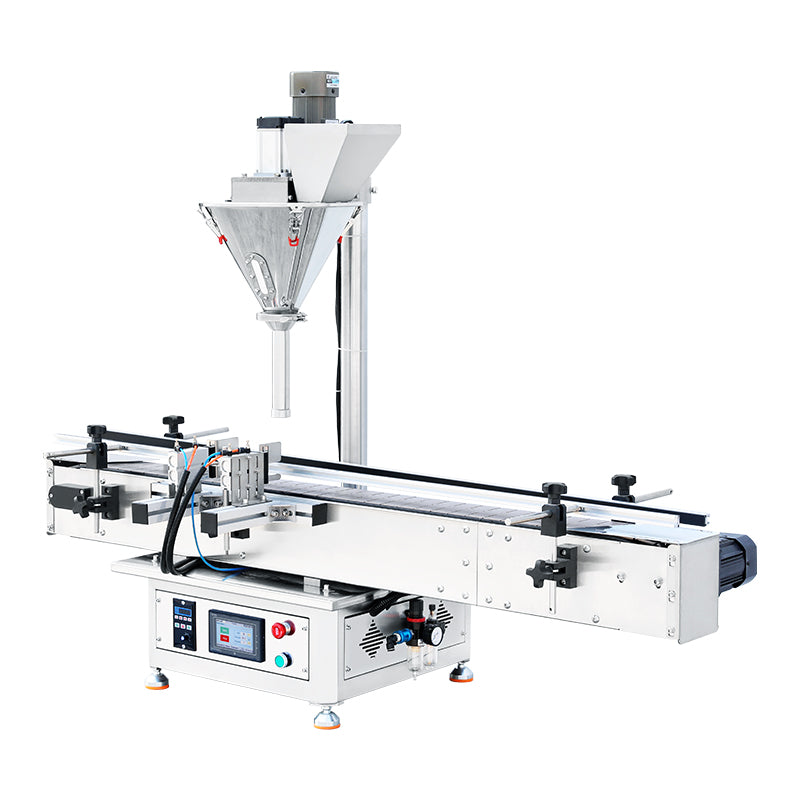

ZONESUN ZS-FM3A Automatic Powder Filling Machine

ZONESUN ZS-FM3A Automatic Auger Powder Filling Machine

The ZONESUN ZS-FM3A is an automatic auger powder filling machine designed for precise, efficient filling of dry powder products into bottles and containers. Using a precision auger metering system with internal stirring, it delivers consistent fill weights from 50 g to 500 g at ±1% accuracy. With automatic bottle transport, PLC touchscreen control, and a pneumatic bottle-blocking device, it reduces labor cost and integrates seamlessly with capping and labeling machines for a fully automated production line.

Technical Specifications

• Model: ZS-FM3A
• Voltage: 110V / 220V, 50–60 Hz
• Power: 0.5 kW
• Filling Range: 50–500 g
• Filling Speed: ~10 bottles/min (varies by bottle size and material)
• Filling Accuracy: ±1%
• Hopper Capacity: ~6 L
• Hopper Diameter: ~320 mm
• Filling Nozzle Diameter: 20 mm (customizable)
• Working Height: 420–490 mm (adjustable)
• Measuring Method: Auger filling

Applications

The ZS-FM3A is designed for filling dry powder products across multiple industries:

• Food & beverage — milk powder, coffee powder, matcha powder, spice powder
• Pharmaceutical — capsule powder, herbal powder, health supplement powder
• Chemical — detergent powder, chemical powder, industrial dry materials
• Cosmetics — talcum powder, face powder, dry cosmetic formulations
• Agriculture — pesticide powder, fertilizer powder

Operation Panel

Sets all necessary working parameters easily through a smart PLC control panel, supporting customized system languages according to specific customer requirements.

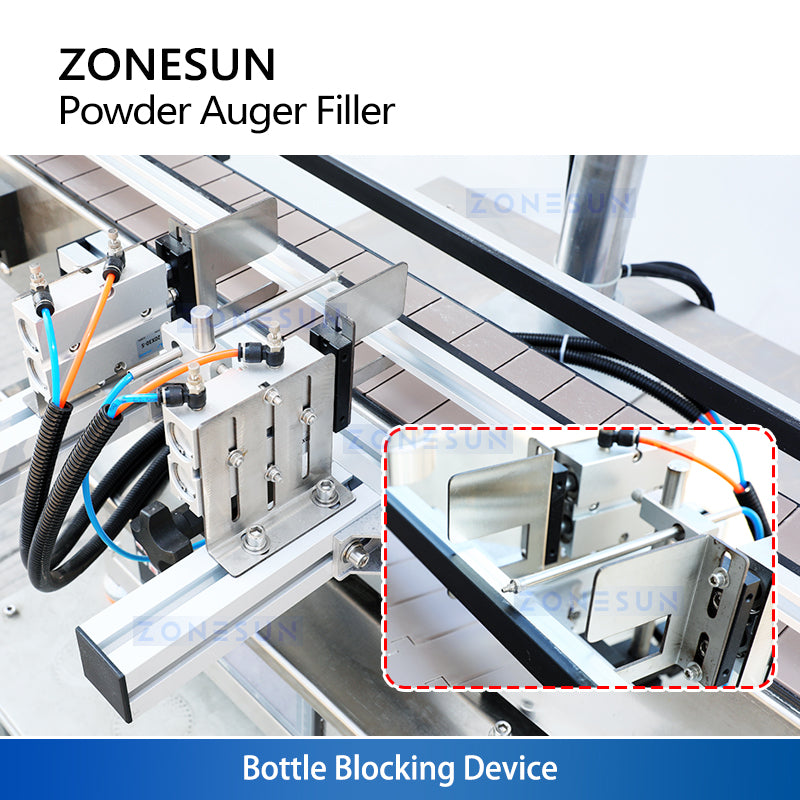

Bottle Blocking Device

Triggers the pneumatic mechanisms via sensors to block and hold bottles instantly upon detection, ensuring accurate positioning under the nozzle for filling.

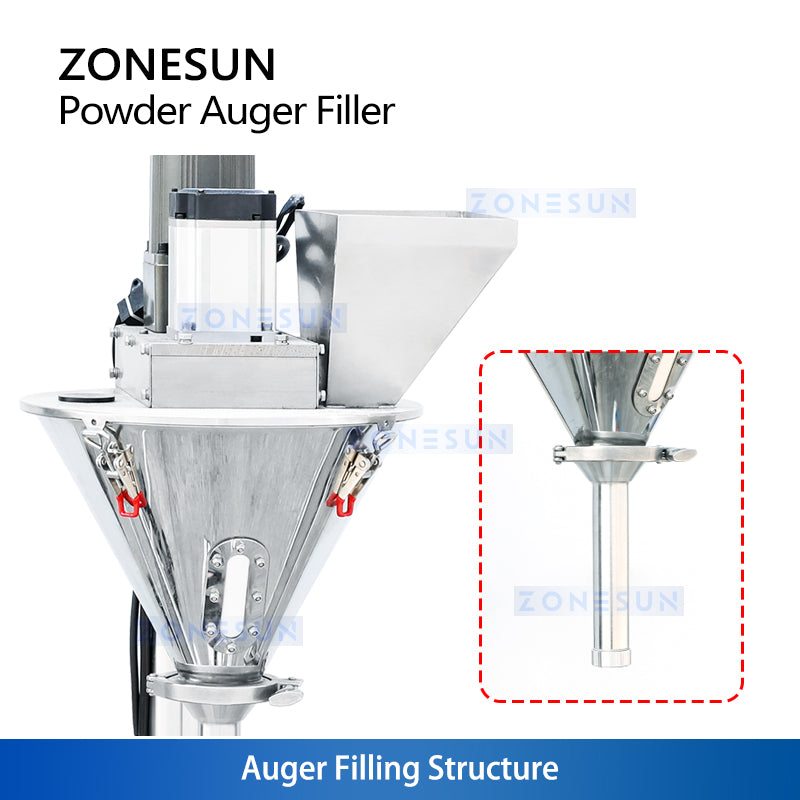

Auger Filling Structure

Fills powder accurately via precision auger metering within a large hopper, utilizing internal stirring to ensure uniform material discharge and high efficiency.

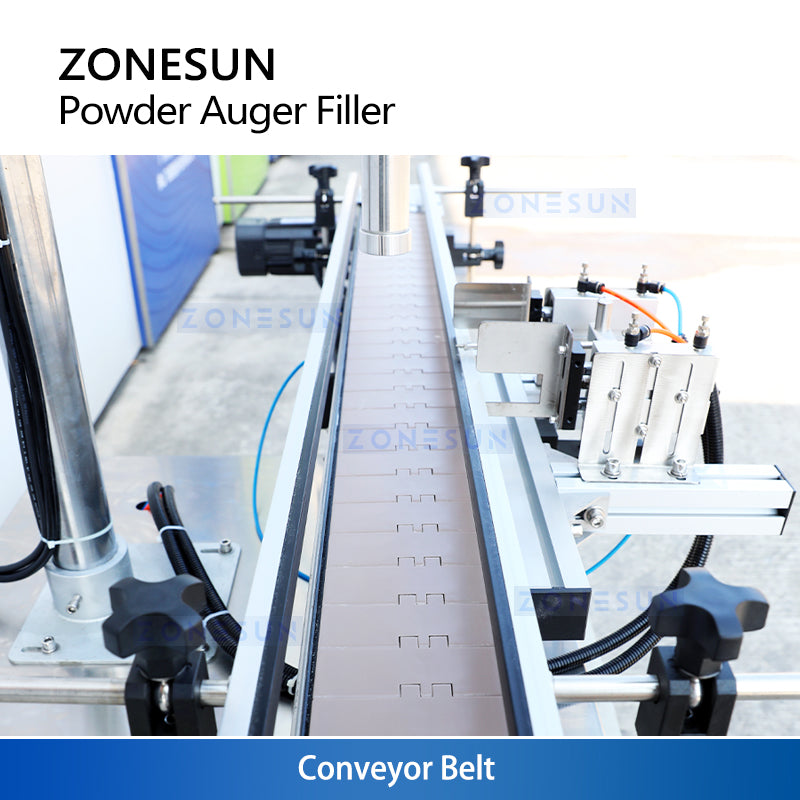

Conveyor Belt

With chain conveyor belt, it can transport heavy containers stably and smoothly. Improve work efficiency. The width of feed inlet can be adjusted according to bottles' size.

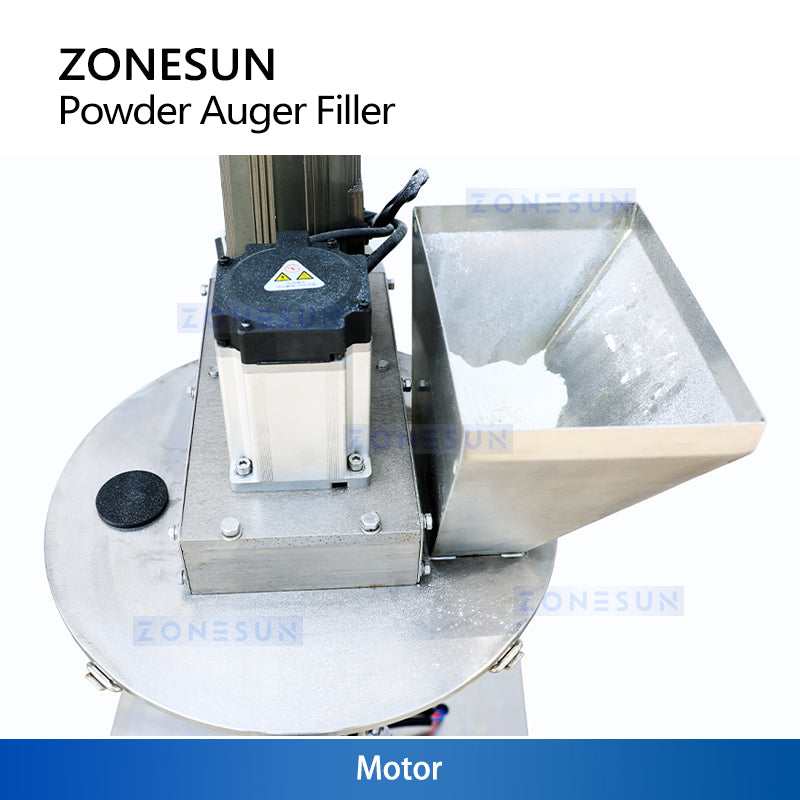

Motor

Provides strong and reliable torque via a powerful motor system to ensure stable, continuous machine operation during the powder filling process.

Key Features

• Precision Auger Metering — Internal stirring ensures uniform powder discharge and consistent fill weight at ±1% accuracy
• PLC Touchscreen Control — Easy parameter setting with customizable system language support for global customers
• Pneumatic Bottle-Blocking Device — Sensor-triggered pneumatic mechanism positions bottles precisely under the nozzle for every fill cycle
• Automatic Bottle Transport — Chain conveyor handles heavy containers stably with adjustable feed inlet width for different bottle sizes
• Wide Filling Range — 50–500 g range with 20 mm nozzle (customizable) accommodates diverse product and container requirements
• Production Line Integration — Compatible with automatic capping and labeling machines for fully automated powder packaging lines

Benefits

• High Filling Accuracy — ±1% deviation minimizes product waste and ensures consistent dosing across every bottle
• Reduced Labor Cost — Fully automatic bottle transport and filling eliminates manual handling at the filling station
• Versatile Powder Compatibility — Handles milk powder, coffee, spices, pharmaceuticals, and chemical powders in one machine
• Easy Operation & Maintenance — PLC touchscreen simplifies setup; straightforward auger structure reduces downtime
• Scalable Automation — Integrates with capping and labeling machines to build a complete automated powder packaging line
