ZONESUN ZS-AFS03L Premade Pouch Filling Sealing Machine Packing Machine

DESCRIPTION

This high-speed, automatic 2-head magnetic pump filling and sealing machine is perfect for packaging energy drinks, milk, and other liquids into pre-made irregular pouches. Its advanced feeding structure ensures smooth and efficient operation, minimizing downtime and maximizing output. Built with durable, high-quality components, this machine offers reliable performance and easy maintenance. Ideal for medium to large-scale production, this machine boosts efficiency and reduces labor costs, providing a significant return on investment. Contact us today for a customized solution to meet your specific packaging needs.

Parameter

• Model: ZS-AFS03L
• Voltage: 220/380V 50-60Hz 5Kw
• Filling pump: Magnetic pump
• Recommend filling volume: 10-400g
• Working capacity: 60-90 bag/min
• Suitable pouch size: W45-85mm × L 100-250mm
• Air consumption: 0.7m³/min
• Machine size: About 2350 x 1350 x 1300mm / About 92.6 x 53.2 x 51.2 in
• Machine weight: About 800kg
• Package size: About 2610 x 1460 x 1670mm / About 102.8 x 57.5 x 65.8 in
• Package weight: About 1272KG

OPERATION PANEL

Makes parameter setting more intuitively, customizable interface simplifies machine operation.

POUCH HOLDER & FEEDING

Pouch Holder & Feeding Structure. Can be adjusted according to pouch size, using suctions cups to pass premade pouches to next working process.

POUCH OPENING

Pouch Opening Structure. Using bars and suction cups to open pouches before filling work.

MAGNETIC PUMP

Magnetic Pump Filler. Filling work is controlled by double heads, it has high filling accuracy.

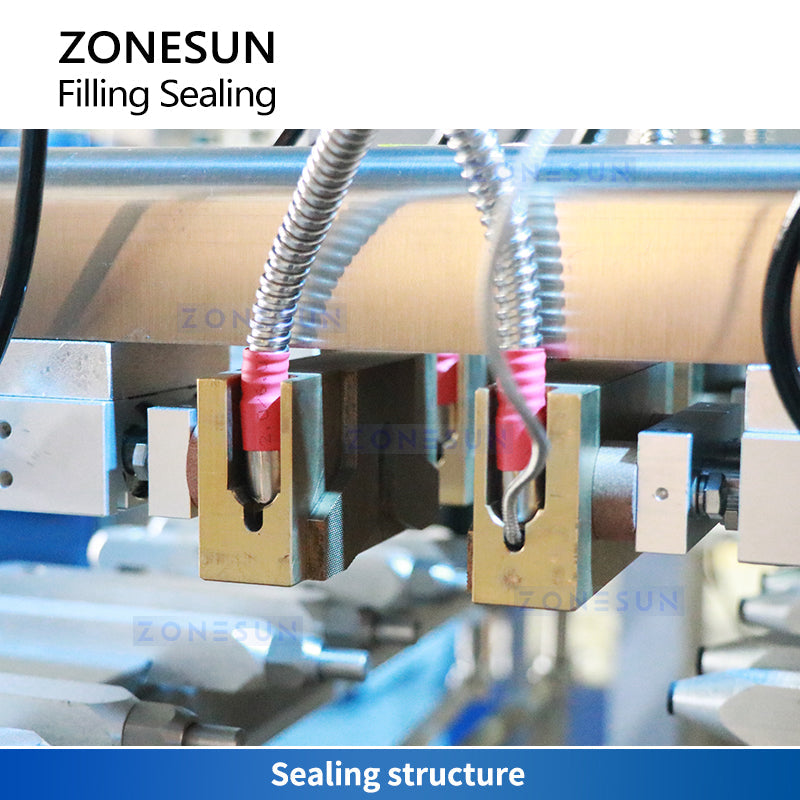

SEALING STRUCTURE

Designed for heat sealable pouches, heating temperature can be adjusted easily. Sealing pattern can be customized.
