ZONESUN ZS-FAL180DT Desktop Dual-Head Liquid Filling & Capping Production Line | Small Scale Bottling Machine

Description

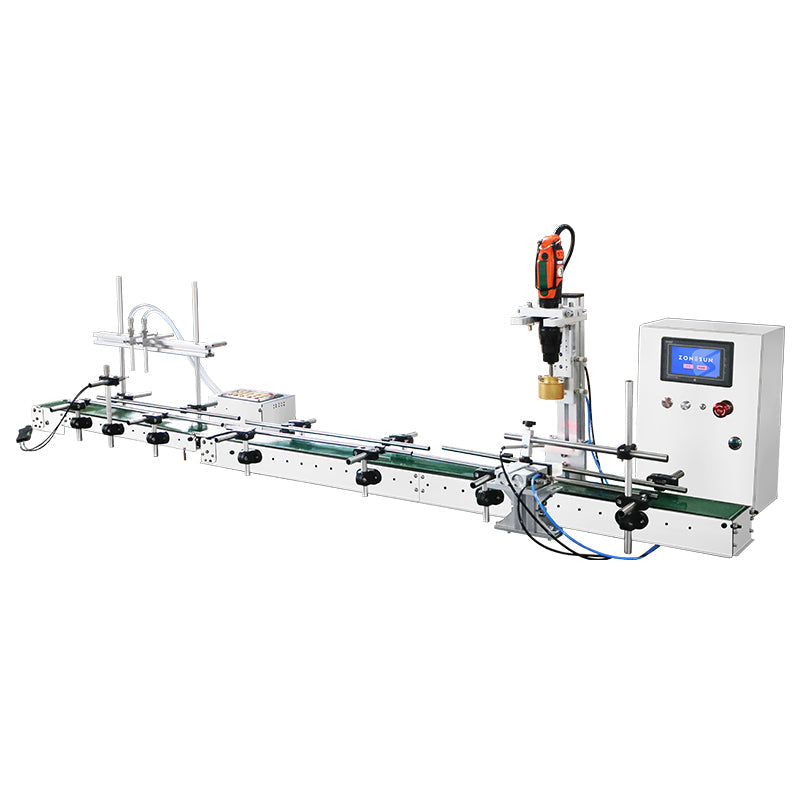

The ZONESUN ZS-FAL180DT is a compact desktop dual-head filling and capping production line designed for small to medium-scale liquid packaging. Equipped with dual filling nozzles, an electric eye for bottle detection, a motor-driven capping structure with pneumatic lifting, and a bottle clamping mechanism, it provides stable, accurate, and synchronized filling-capping performance.

Ideal for water, beverages, sauces, juices, soybean milk, toner, and other low-viscosity, particle-free, non-foaming liquids. Its modular design integrates filling, conveying, bottle positioning, and screw-cap tightening into one streamlined system — perfect for laboratories, workshops, and small production environments.

Technical Specifications

Filling Machine — Model: ZS-DPYT1500

• Output Voltage: DC 12V
• Max Temperature: 5–100°C
• Minimum Filling Rate: 5 ml
• Recommended Filling Range: 5–250 ml
• Max Filling Rate: 3,000 ml/min
• Filling Speed: Adjustable
• Filling Counter: 1–9,999
• Inlet Tube Length: 1.5 m
• Outlet Tube Length: 0.8 m
• Memory Function: Available
• Working Modes: Manual / Automatic / Intelligent Induction
• Filling Nozzle Diameter: 7 mm (Inner) × 11 mm (Outer)
• Machine Size (L×W×H): 636 × 166 × 179 mm
• Package Size (L×W×H): 650 × 170 × 180 mm

Capping Machine — Model: ZS-XGC1

• Voltage: 110 / 220V, 50–60 Hz
• Capacity: 15–24 seals/min
• Cap Diameter: Standard 10–50 mm (Customizable)
• Bottle Diameter: 30–70 mm
• Bottle Height: 90–200 mm
• Capper Power: 100 W
• Capper Pressure: 3–40 kgf/cm²
• Conveyor Size: 1,200 × 100 mm
• Conveyor Payload: 6 kg

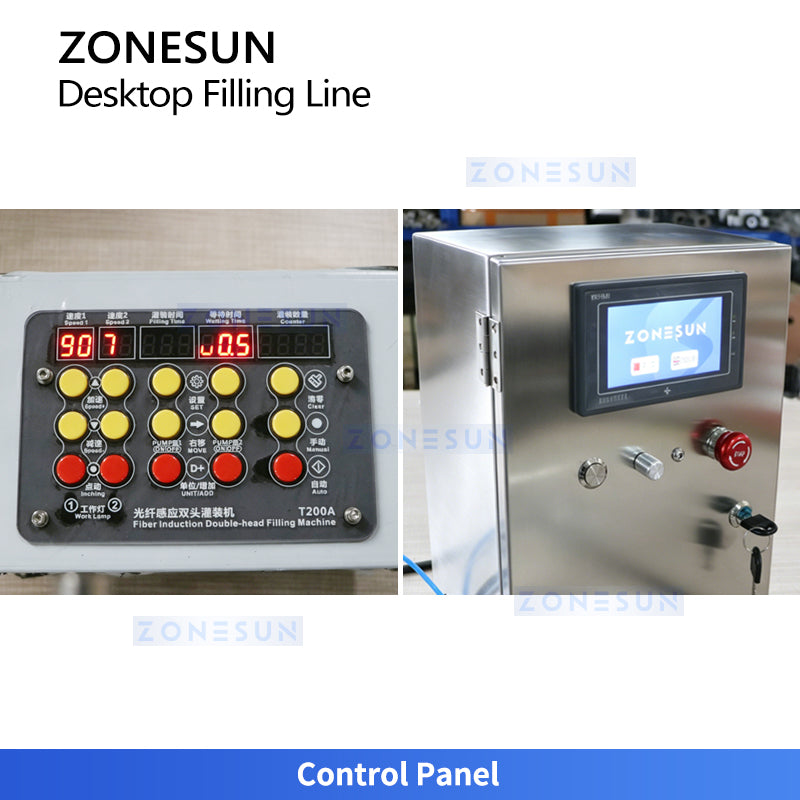

Control Panel

Controls the filling and capping units independently, allowing operators to set parameters, start/stop operations, and monitor working status for stable, synchronized production.

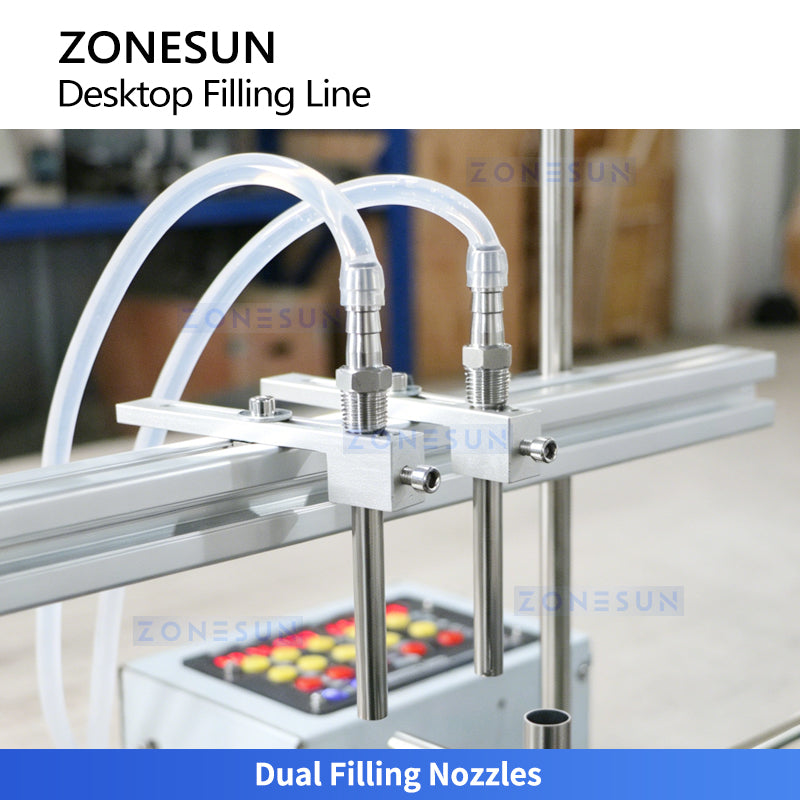

Dual Filling Nozzles

Dispense liquid into two lanes with controlled volume and stable flow, ensuring accurate, consistent, and splash-free dual-head filling for continuous production.

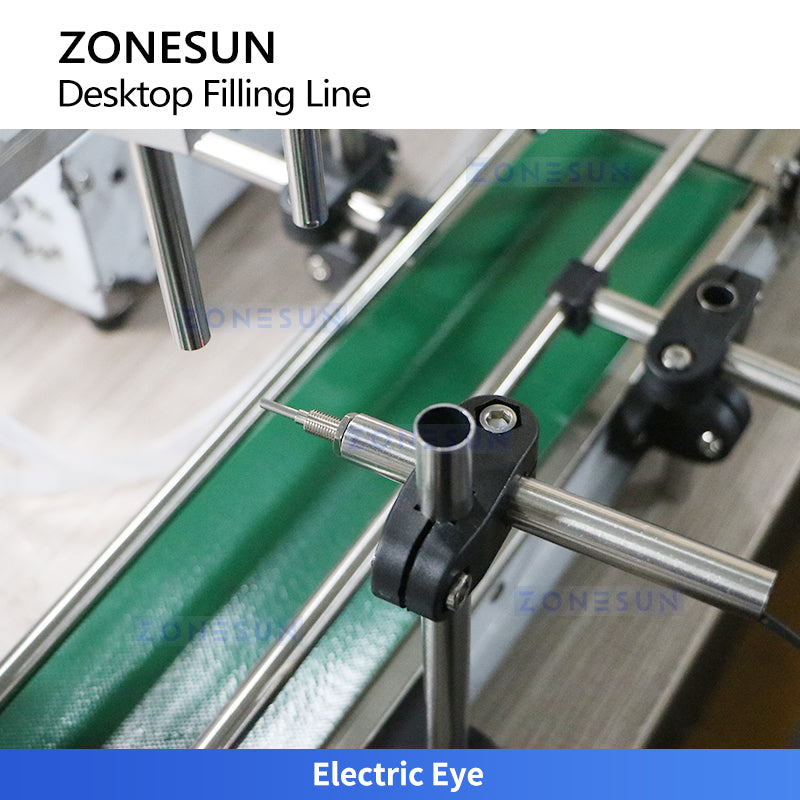

Electric Eye

Detects the presence and position of bottles on the conveyor to ensure accurate filling and capping, preventing missed bottles, misalignment, and operation errors.

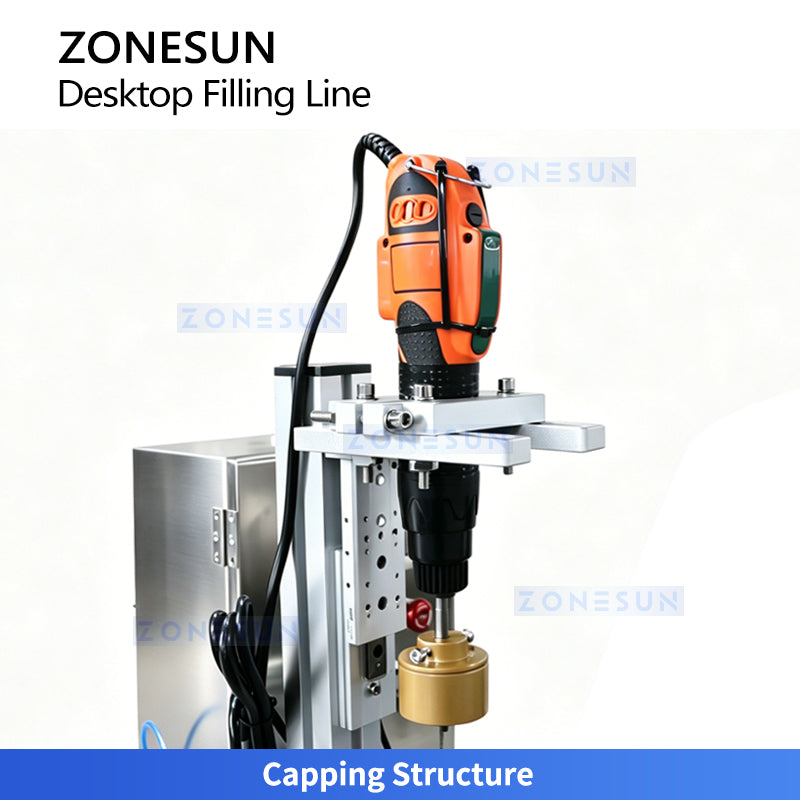

Capping Structure

Provides motor-driven cap gripping and tightening with controlled torque, with pneumatic lifting for smooth height adjustment, ensuring stable sealing.

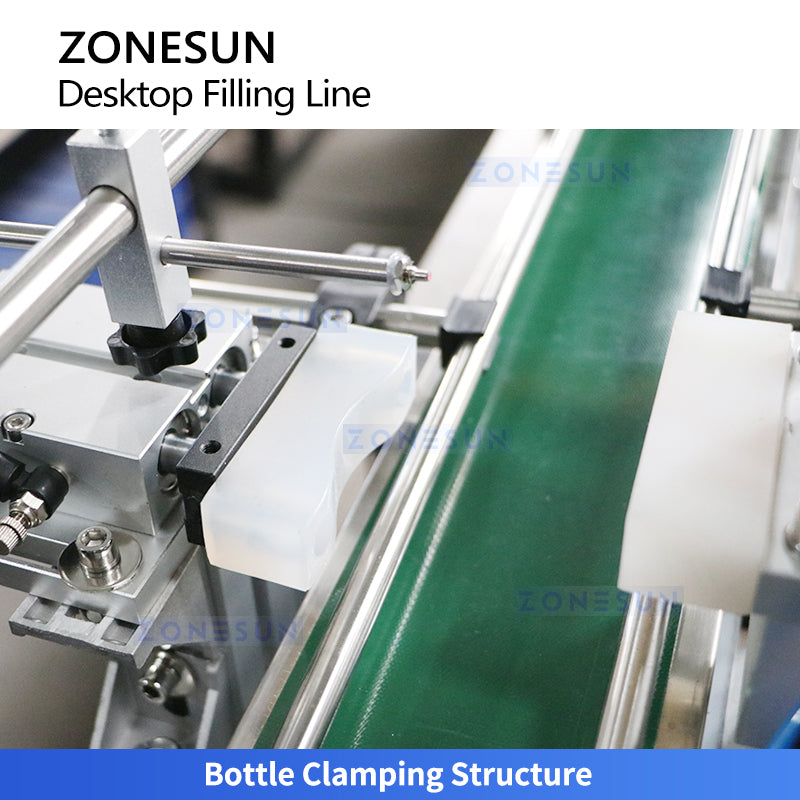

Bottle Clamping Structure

Holds and stabilizes bottles during the capping process to prevent movement or tilting, ensuring accurate cap engagement and consistent sealing quality.

Why Choose the ZS-FAL180DT?

• ✅ 2-in-1 System: Filling and capping integrated in one compact desktop unit
• ✅ Dual Nozzles: Two-lane simultaneous filling for higher throughput
• ✅ Smart Detection: Electric eye prevents missed bottles and misalignment
• ✅ Precise Filling: 5–250 ml range with adjustable speed and 3-mode operation
• ✅ Stable Capping: Motor-driven torque control with pneumatic height adjustment
• ✅ Compact Design: Desktop footprint ideal for labs, workshops, and small lines
• ✅ Worldwide Voltage: 110V / 220V, 50–60Hz compatible

Ideal Applications

• Beverage: Water, juice, soybean milk, energy drinks

• Cosmetics: serum, facial water
• Pharmaceutical: Oral liquids, disinfectants, lab reagents
