DESCRIPTION

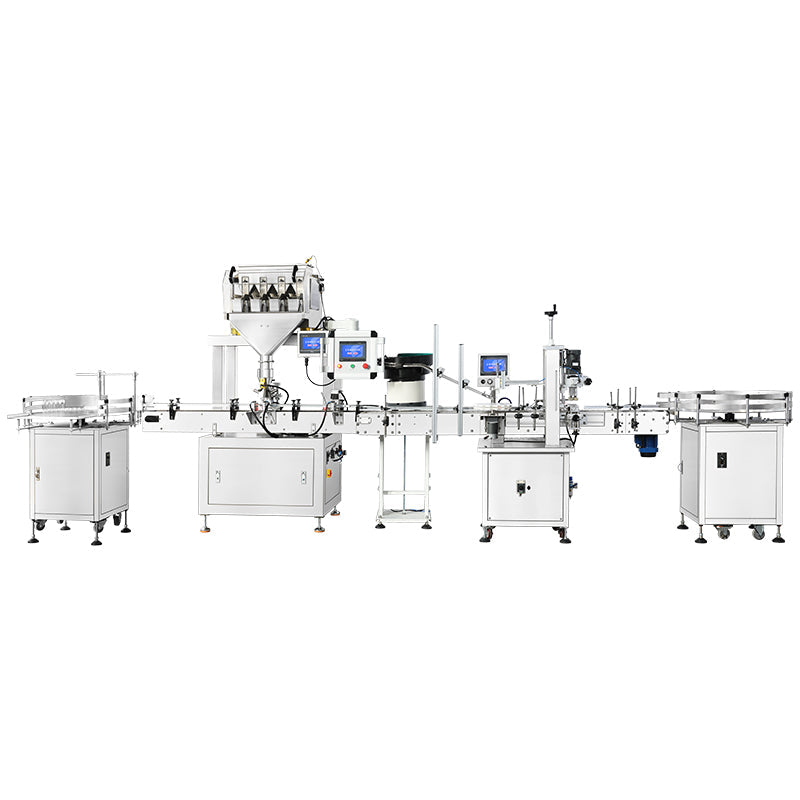

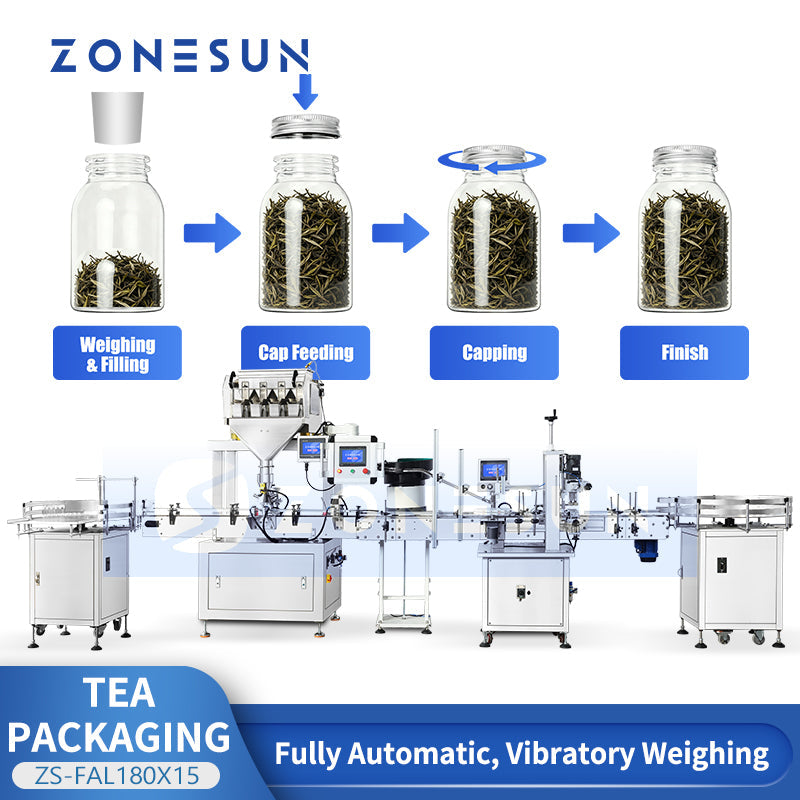

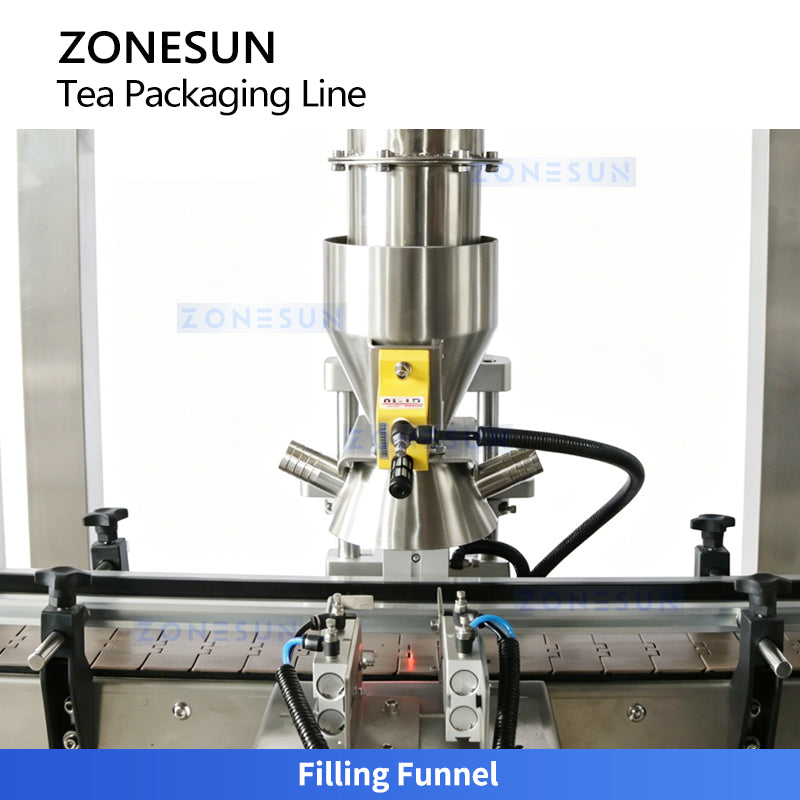

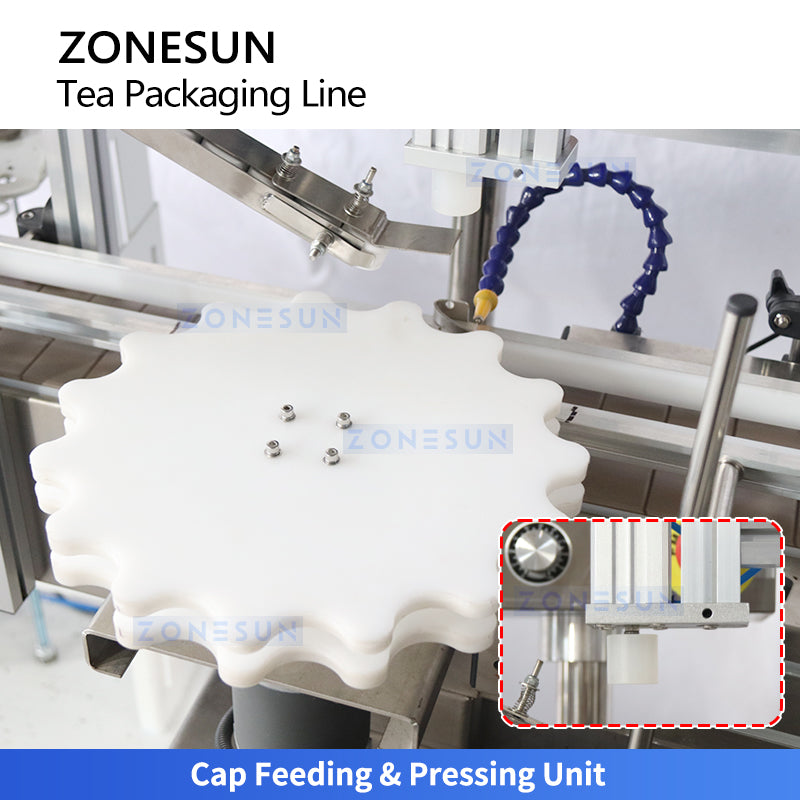

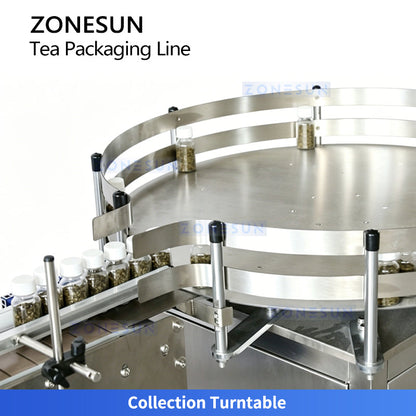

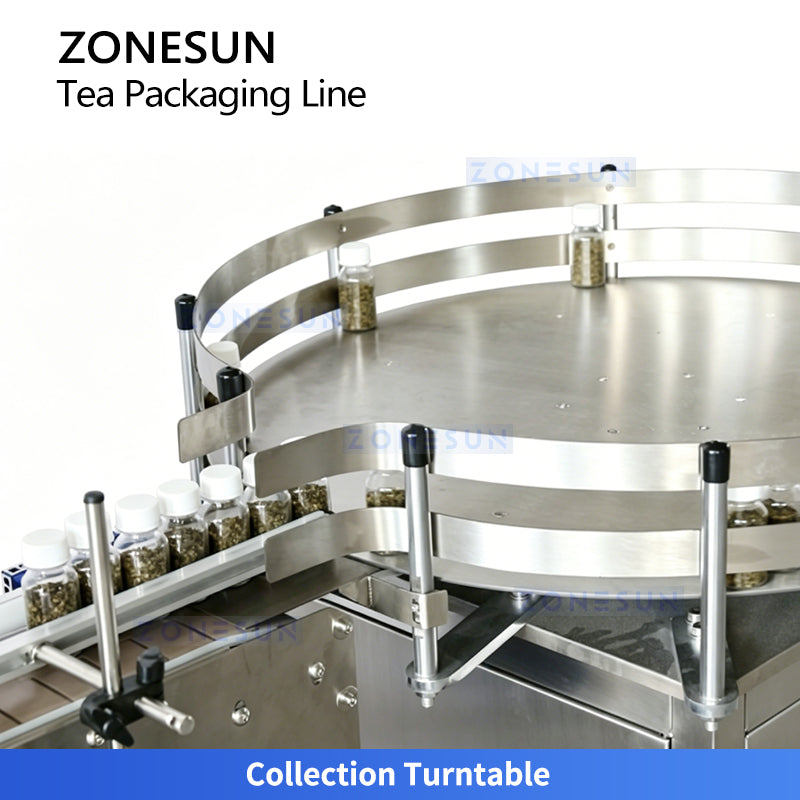

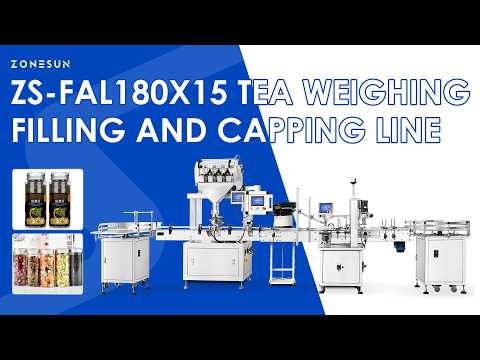

The ZONESUN ZS-FAL180X15 is a fully automatic tea and granule packaging production line engineered for high-precision weighing, filling, and multi-cap capping in one continuous process. Featuring a 4-lane vibratory weighing system, precision dosing, integrated brushing, conveying, cap feeding, capping, and bottle accumulation, this line delivers end-to-end automated packaging at speeds of 20–24 bottles per minute.
Designed for tea, herbs, granules, and dry powder applications, the ZS-FAL180X15 combines ±0.2–2g filling accuracy with multi-cap compatibility — supporting droppers, spray pumps, and pump heads — making it the ideal turnkey solution for manufacturers seeking reliable, high-efficiency bottle packaging.
Technical Specifications
ZS‑KLCZ02 — Vibratory Weighing & Filling Unit
| Voltage | 110V / 220V, 50/60 Hz |
| Hopper Capacity | 20 L |
| Number of Lanes | 4 |
| Weigh Bucket | 4 × 500 ml |
| Filling Range | 10–120 g |
| Filling Accuracy | ±0.2–2 g |
| Product Memory | 10 presets |
| Production Speed | 20–24 bottles/min |
| Machine Dimensions (L×W×H) | 2,180 × 884 × 2,038 mm |
| Packing Size (L×W×H) | 212 × 97 × 231 cm |
| Gross Weight | 407 kg |

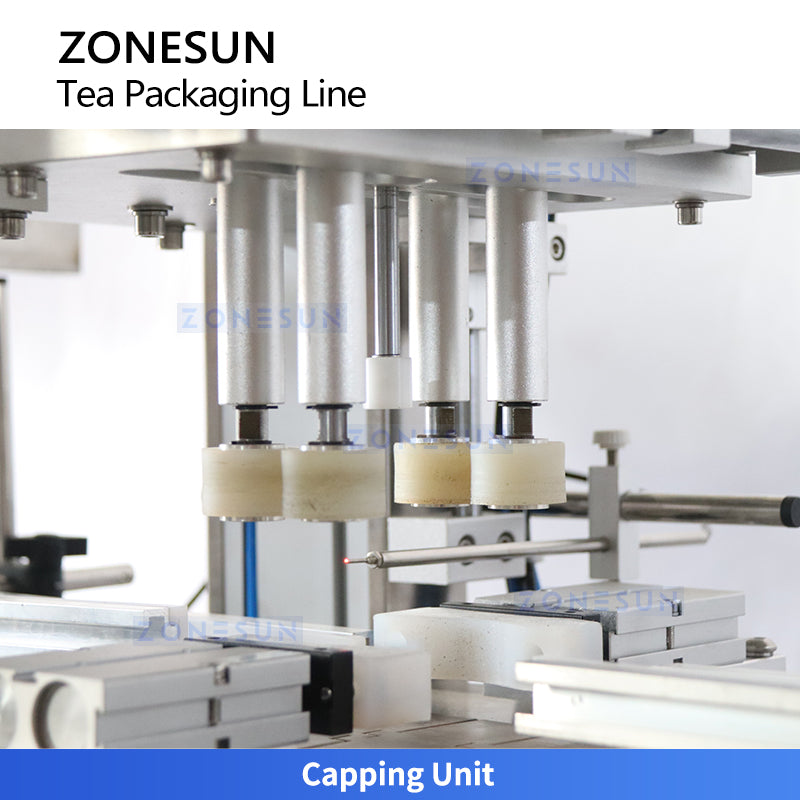

ZS‑XG16V — Multi-Cap Capping Unit
| Working Voltage | AC 220V / 110V, 50–60 Hz |
| Applicable Bottle Height | 30–300 mm |
| Applicable Cap Diameter | 18–70 mm |
| Applicable Bottle Diameter | 20–160 mm |
| Working Speed | 20–60 bottles/min |
| Working Pressure | 0.4–0.6 MPa |
| Machine Dimensions (L×W×H) | ~1,930 × 740 × 1,600 mm |
| Machine Weight | ~150 kg |
| Package Size (L×W×H) | ~2,000 × 820 × 1,760 mm |
Key Features

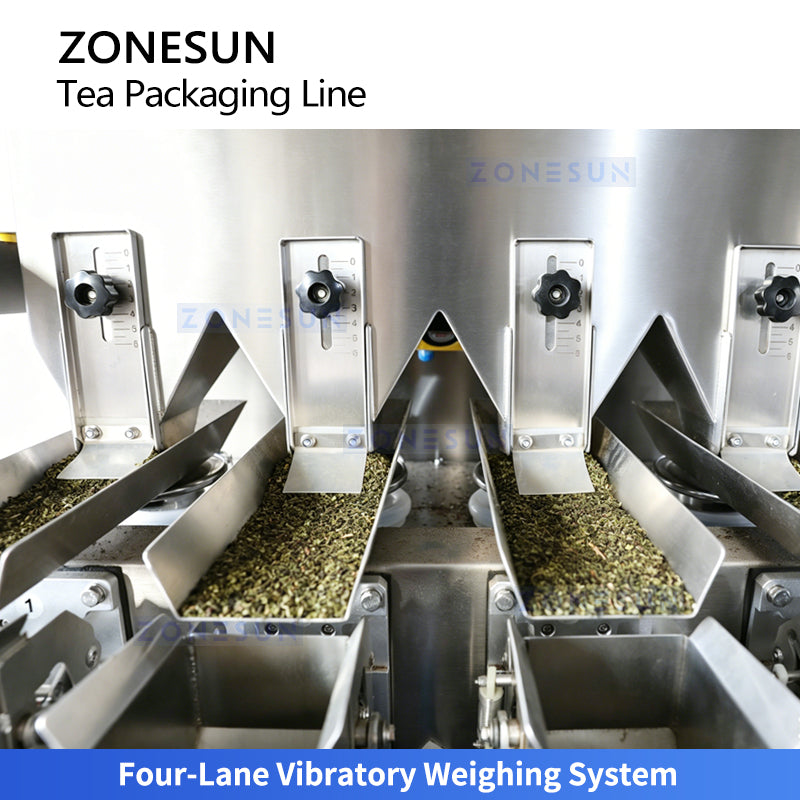

- 4-lane vibratory weighing — simultaneous multi-lane dosing for 20–24 bottles/min throughput
- High filling accuracy — ±0.2–2g precision across 10–120g range with 10-preset memory
- Multi-cap compatibility — supports dropper caps, spray pumps, and pump heads on one machine
- Integrated brushing & conveying — automated bottle transport between filling and capping stations
- Wide bottle compatibility — handles bottles 30–300mm tall, 20–160mm diameter
- Wide cap range — accommodates cap diameters from 18–70mm
- 20L hopper capacity — large feed volume for uninterrupted continuous production
- Turnkey production line — filling, capping, and accumulation fully integrated in one system
Suitable Applications
🔧 Need custom filling range, cap types, or full production line integration?
Contact ZONESUN for OEM/ODM customization, technical specifications, and bulk pricing. Our engineering team is ready to tailor the ZS-FAL180X15 to your exact production requirements.
