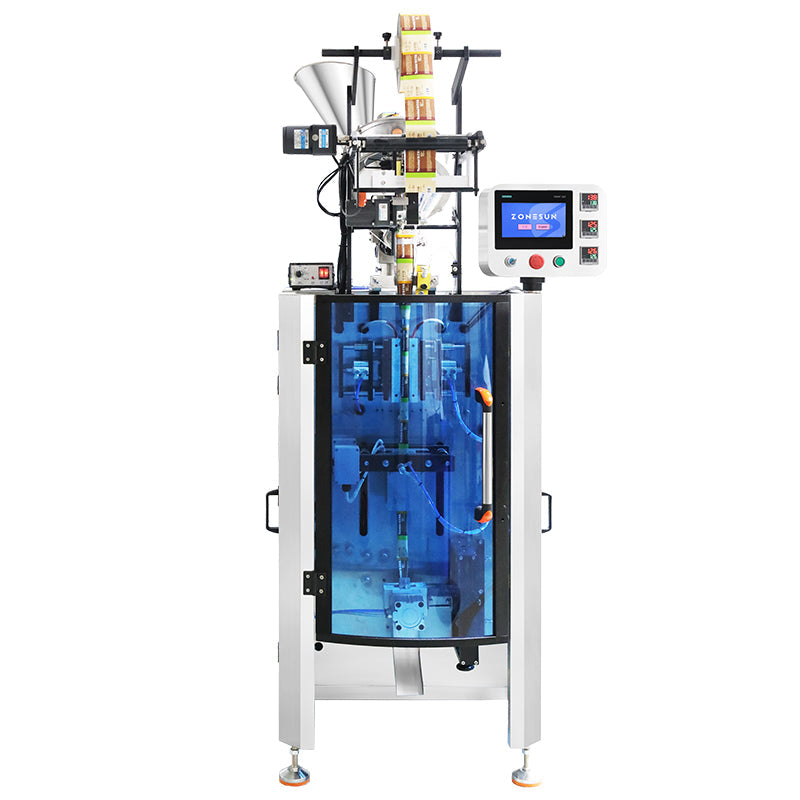

ZONESUN ZS-FS120Q Vertical Powder Packing Machine Automatic Sachet Filler and Sealer
ZONESUN ZS-FS120Q Vertical Powder Packing Machine Automatic Sachet Filler and Sealer
受取状況を読み込めませんでした
DESCRIPTION

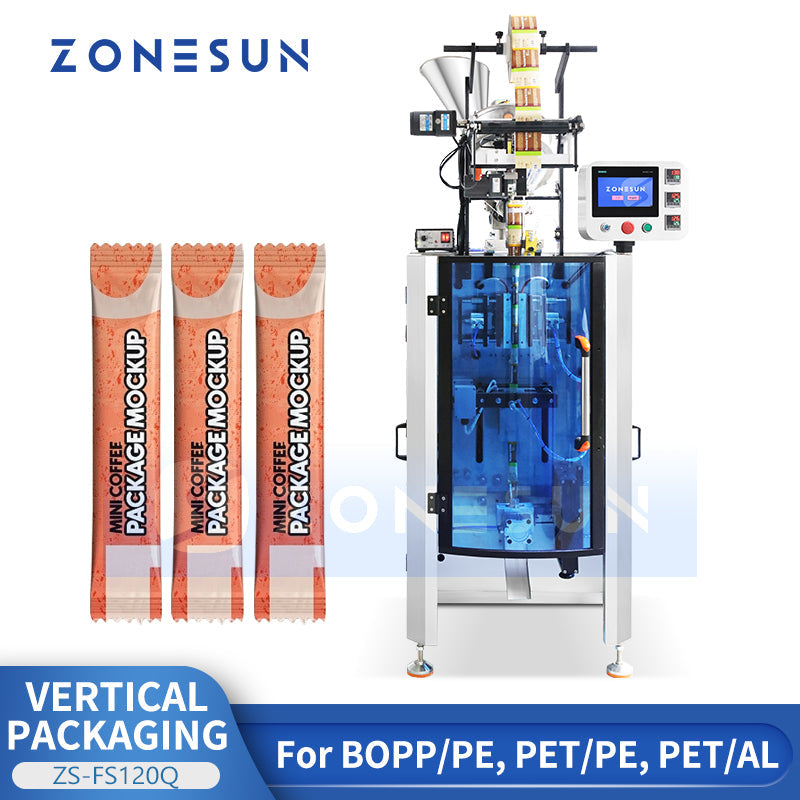

The ZONESUN ZS-FS120Q Vertical Powder Packing Machine is a high-efficiency automatic sachet filler and sealer, designed for precise packaging of powders like coffee, spices, pharmaceuticals, and supplements. Compatible with BOPP/PE, PET/PE, and PET/AL films, it supports a durable pillow-type back seal.This vertical form fill seal machine integrates dosing, bag forming, filling, sealing, batch coding, cutting, and counting in one system. It offers versatile cutting styles—straight, patterned, chain, or rounded—ensuring smooth, jam-free operation. With servo motor control and a touchscreen interface, it's ideal for small businesses and industrial powder packaging.
Parameters
- Model: ZS-FS120Q
- Bag Size: Width 20–50 mm; Length 20–150 mm
- Production Capacity: 25–50 bags/min (depending on material characteristics)
- Weight Range: 1–50 g/bag
- Control System: PLC
- Voltage: 220 V, 50 Hz
- Machine Net Weight: 100 kg
- Gross Weight: 130 kg
- Machine Dimensions (L × W × H): 1150 × 800 × 1920 mm
- Packing Dimensions (L × W × H): 1250 × 850 × 2100 mm
- Frame Material: Stainless steel
- Applicable Packaging Materials: Paper/PE, Cellophane/PE, Metallized/PE, BOPP/PE, Nylon/PE, and other heat-sealable composite films

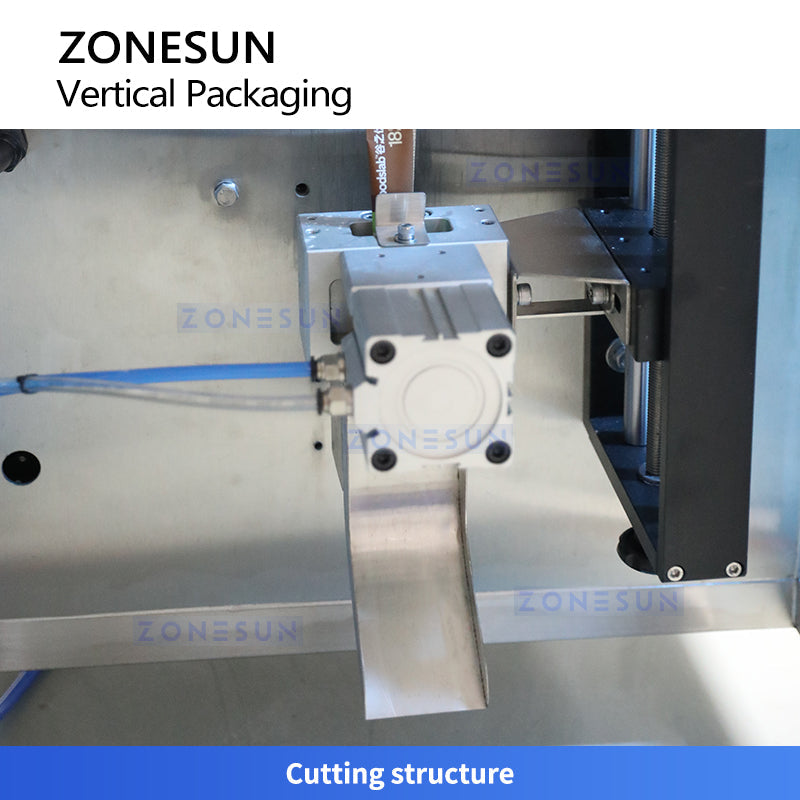

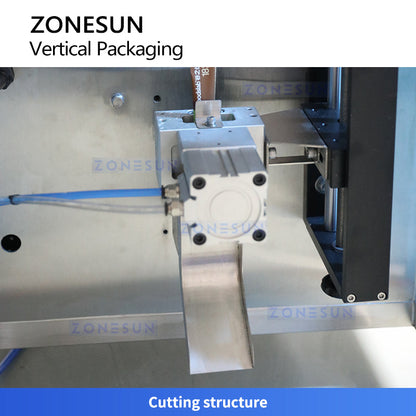

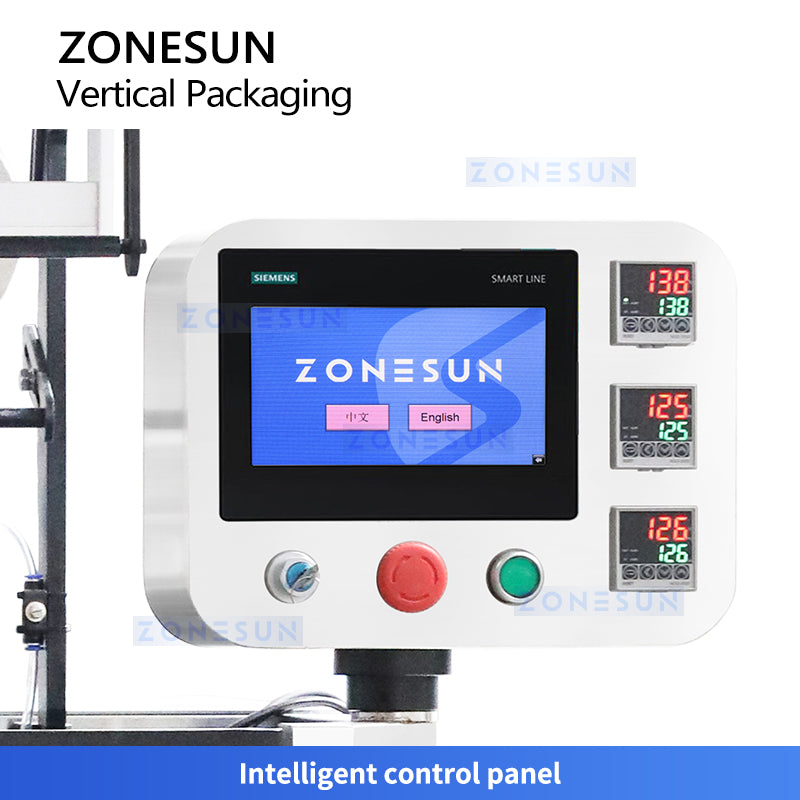

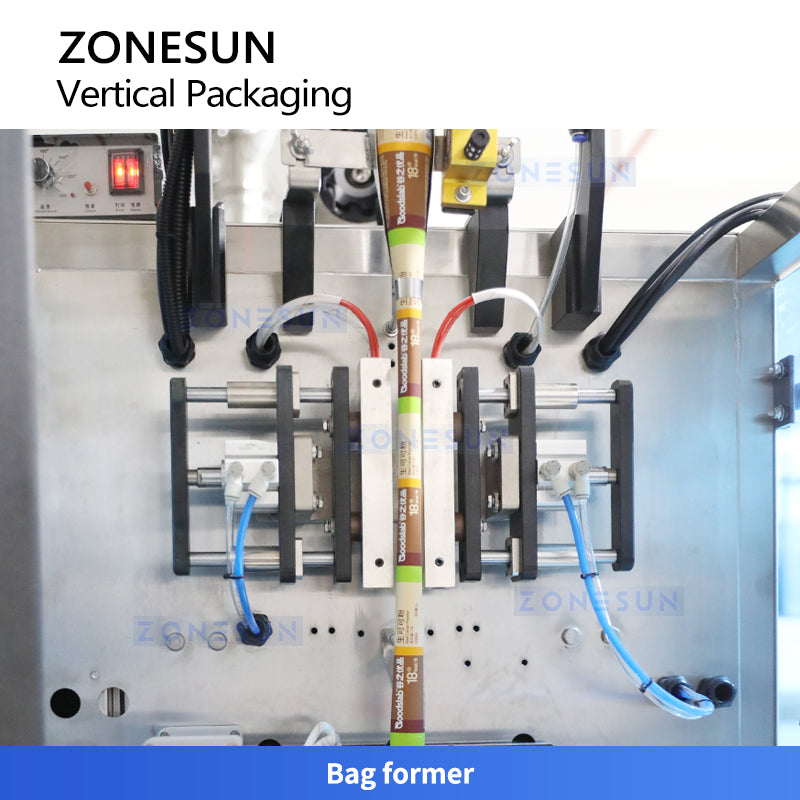

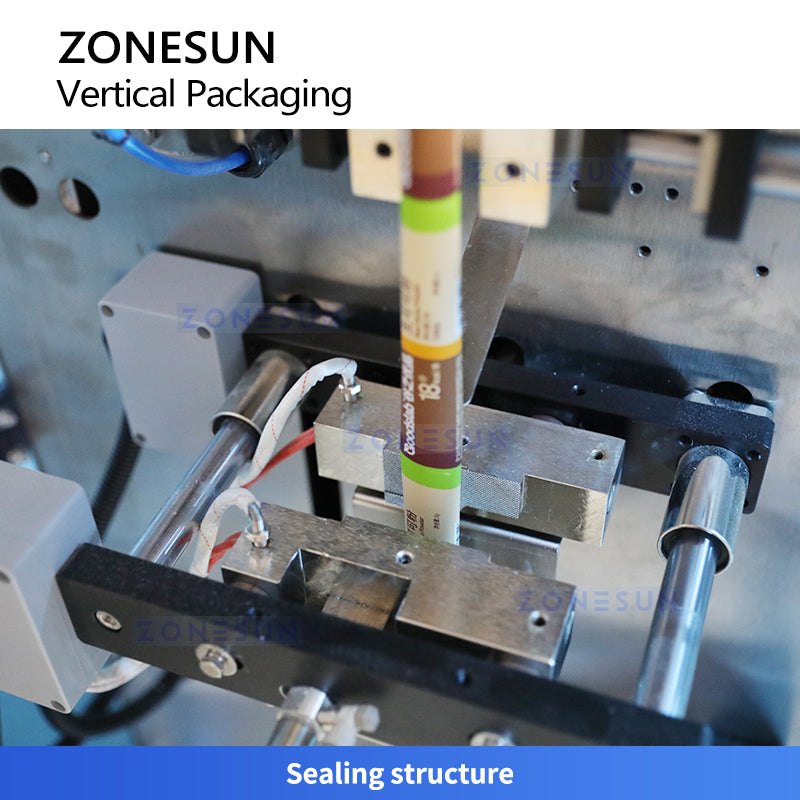

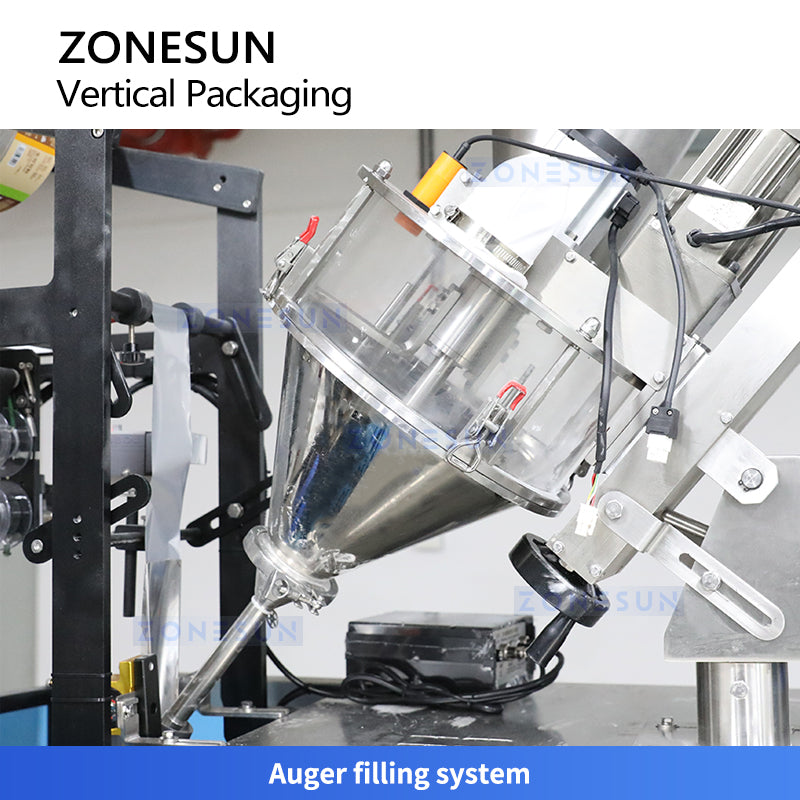

Control Panel: PLC touch screen control, precise parameter setting and real-time monitoring to ensure efficient operation. Auger Filling: High-precision auger conveyor ensures consistent and accurate powder metering, reducing waste and improving product quality. Bag Former: It can form stable pillow-shaped bags with tight sealing, neat appearance and compatibility with various packaging materials. Sealing Structure: The efficient back sealing system ensures a firm and leak-proof seal to maintain product freshness and integrity. Cutting Structure: Supports multiple cutting methods including straight cutting, pattern cutting, chain cutting and circular cutting. Ensures clean cuts and smooth operation without blockage. Coding Structure: Used for printing or coding information such as batch numbers, production dates, or logos onto packaging material.
