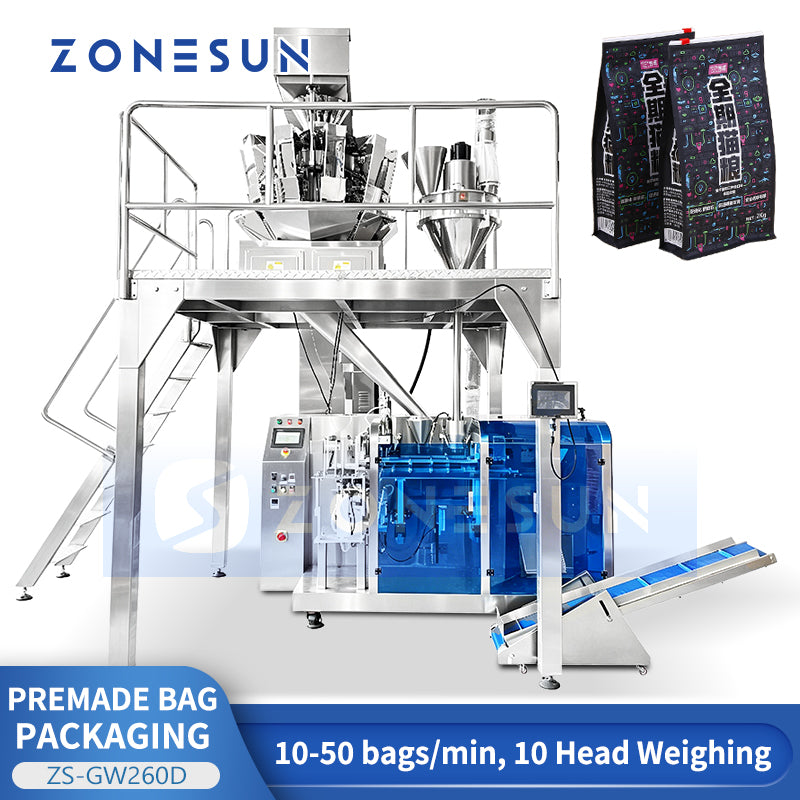

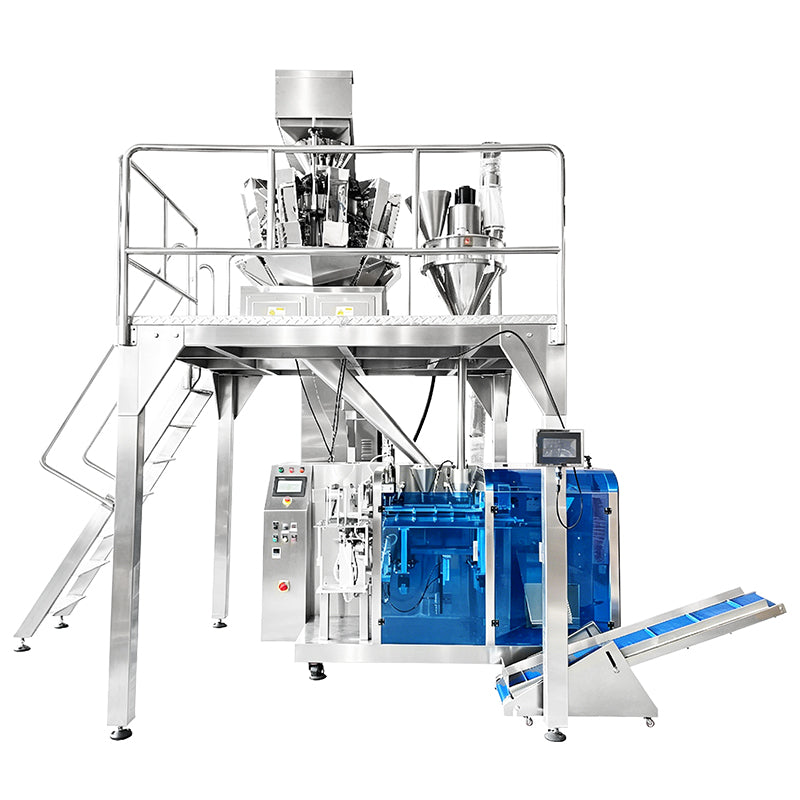

ZONESUN ZS-GW260D Automatic Premade Bag Powder Packaging Machine | 10-Head Weigher | 10–50 BPM | 50g–5kg

Description

The ZONESUN ZS-GW260D is an automatic premade bag-feeding powder packaging machine equipped with a high-precision 10-head combination weigher. Running at 10–50 bags per minute, it handles 50g to 5kg of powders and ultra-fine powder materials including milk powder, feed, rice flour, sugar, MSG, solid beverages, and glucose.

With a horizontal linear layout and Siemens PLC control, it ensures stable operation, accurate weighing, and efficient bag handling across pickup, opening, filling, sealing, and outfeed. It adapts to irregular bag shapes and allows quick format changes without additional accessories.

System Components & Specifications

1. Bag-Feeding Packaging Machine (ZS-GW260D)

• Model： ZS-GW260D
• Voltage： 220 V / 380 V ±10%, 50/60 Hz
• Filling Speed： 10–50 bags/min
• Weighing Range： 50 g–5 kg
• Weighing Accuracy： ±0.3–1.5%
• Filling Method： Auger (screw‑type rotary filling)
• Hopper Capacity： 10–100 L (customizable)
• Max Packaging Volume： 2500 mL
• Bag Size (W × L)： 100–260 mm × 110–500 mm
• Sealing Temperature： 100–190 °C
• Main Machine Power： 3.5 kW
• Filler Power： 2.5 kW
• Air Pressure： 0.6 MPa
• Air Consumption： 0.7 m³/min
• Machine Material： 304 stainless steel
• Main Machine Dimensions (L × W × H)： 2450 × 1200 × 1200 mm
• Main Machine Weight： 1100 kg
• Hopper Size：
• 10L： 600 × 560 × 770 mm，55 kg
• 30L： 520 × 580 × 950 mm，100 kg
• 50L： 540 × 795 × 1030 mm，130 kg


2. 10-Head Combination Weigher

• Type: 10-Head Combination Weigher
• Voltage: AC 220V ±10%, 50–60Hz, 1.5kW
• Weighing Range: 10g – 1kg
• Weighing Accuracy: 0.1g – 1.5g (depending on material)
• Max Speed: Up to 120 bags/min
• Hopper Capacity: 1.6L
• Mixing Capability: Up to 4 types of materials
• Material: 304 Stainless Steel
• Touch Screen: 7 / 9.7 inches
• Dimensions (L×W×H): 1,720 × 1,100 × 1,100mm
• Machine Weight: 450kg

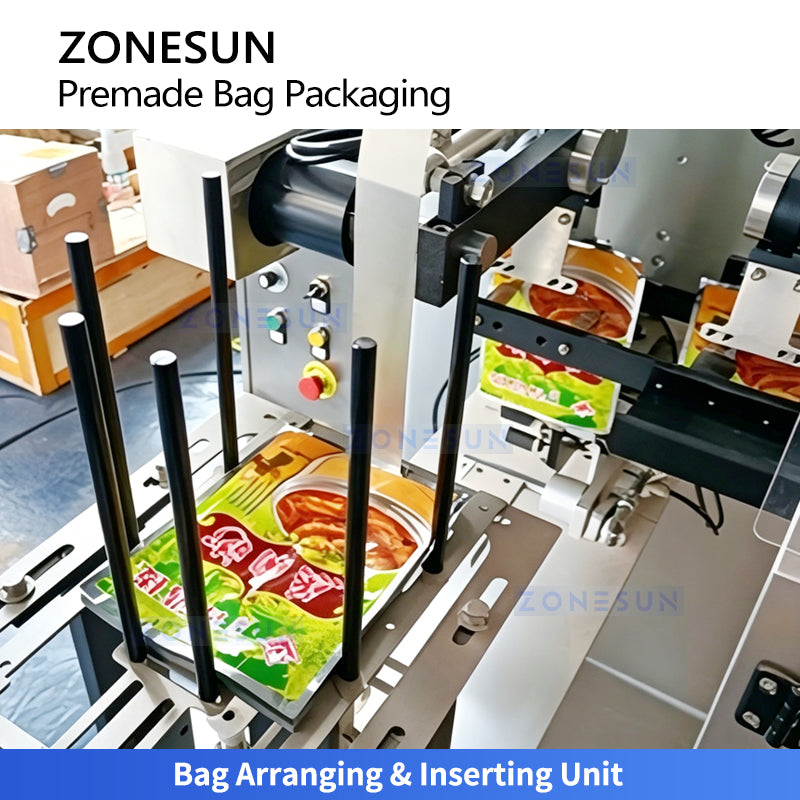

Bag Arranging & Inserting Unit

Puts bags neatly into master bags (200-300 bags). For special-shaped bags such as spout bags, completes the operation with the conveyor belt.

Bag Clamping Device

Clamps the bag from bottom to top inside the bag slot, then transfers it to the coding machine for accurate date coding.

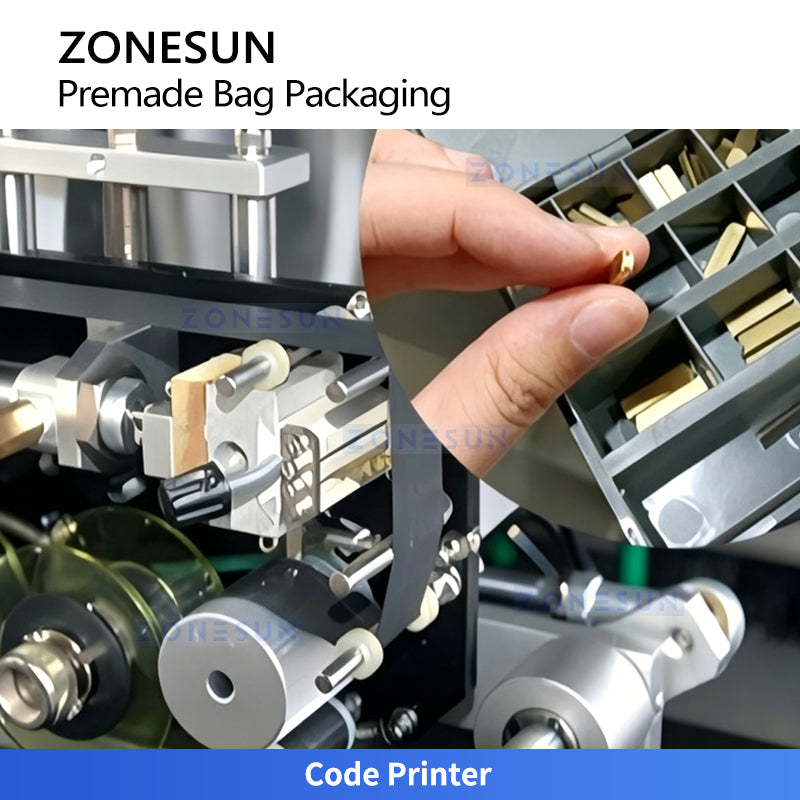

Code Printer

Prints the date on the bag using Arabic characters; Should be customized when special characters are required.

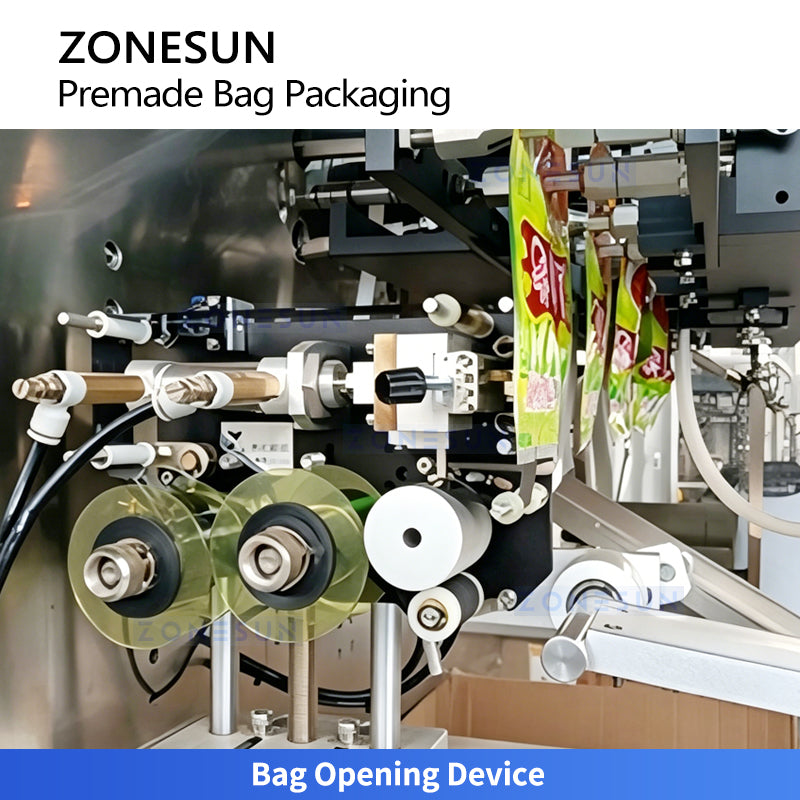

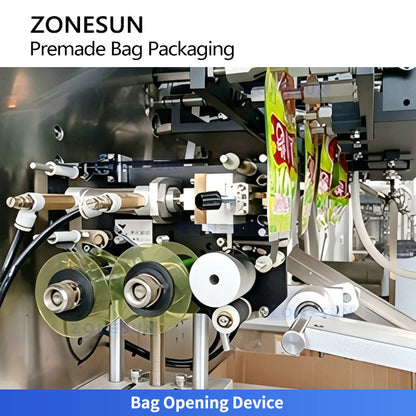

Bag Opening Device

Bag opening device through the air pressure pump device,so that the suction cup automatically hold the bag, so as to complete the bag opening operation process.

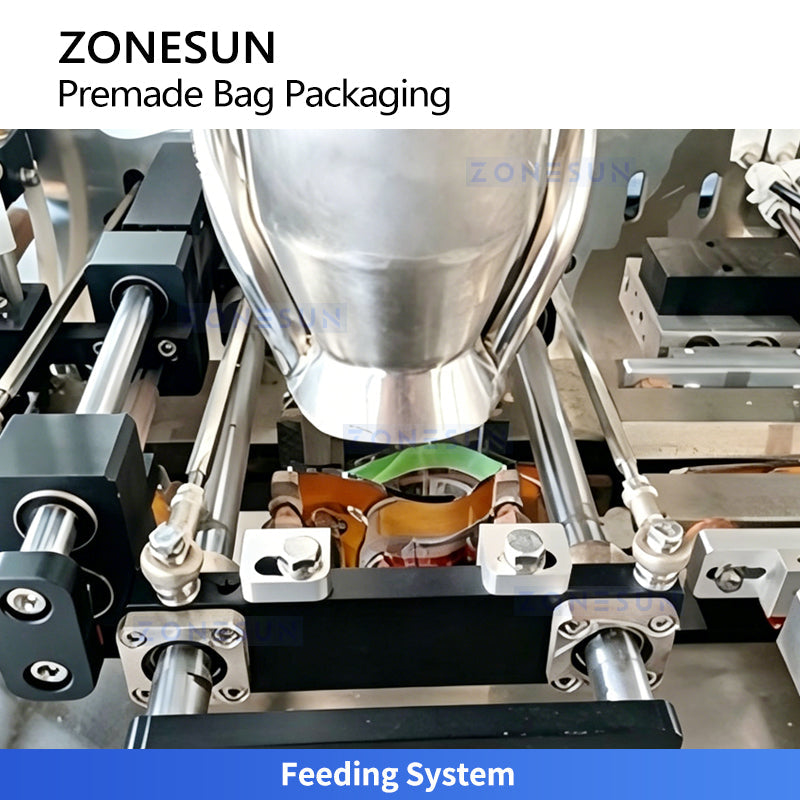

Feeding System

The machine has 3 servomotors built-in, automatic induction bag, no bag filling,accurate feeding, Packing precision error is less than ±0.5-2g.

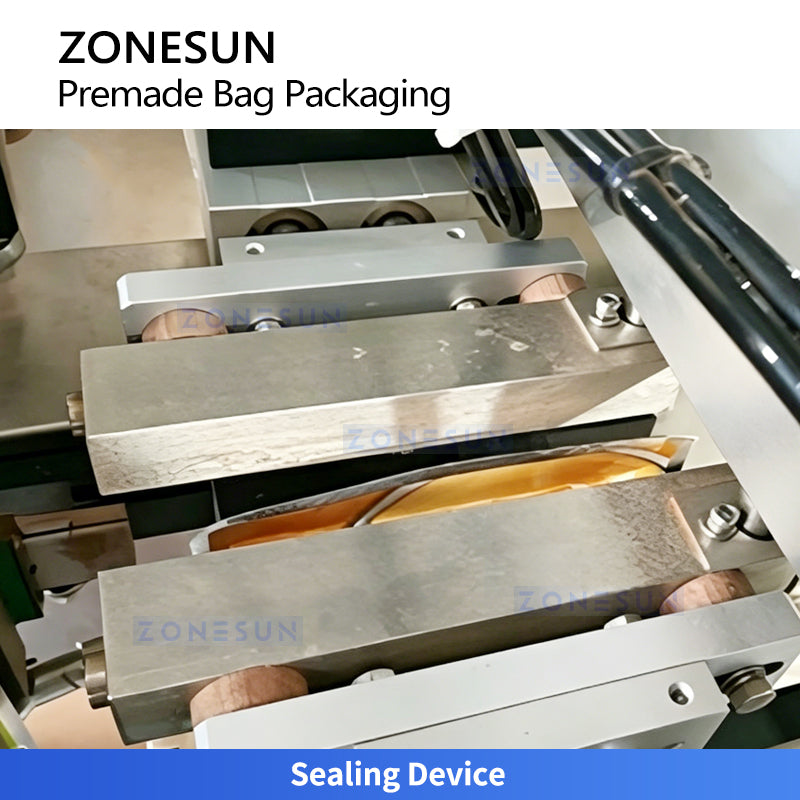

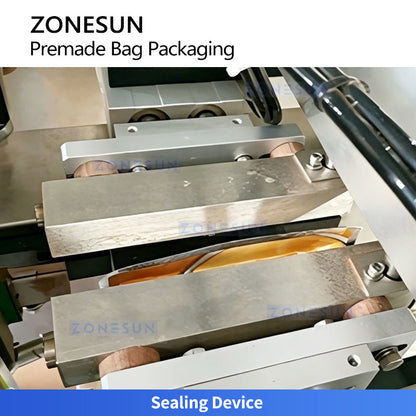

Sealing Device

Uses sealing rods for heat sealing at 100-190 °C; special products may require secondary sealing to ensure tight and durable closure.

10-Head Combination Weigher

Accurately weighs materials with ten heads, auto-combines optimal weights for precise, high-speed filling.

Feeding Elevator

Lifts materials steadily to the combination weigher, ensuring continuous, stable feeding and preventing material interruption during high-speed packaging.

Why Choose the ZS-GW260D?

• ✅ 10-Head Combination Weigher: High-precision weighing from 10g–1kg with ±0.1–1.5g accuracy for consistent fill weights
• ✅ Wide Filling Range: 50g–5kg — suitable for small sachets to large bags
• ✅ High Speed: 10–50 BPM (weigher up to 120 bags/min) for efficient production
• ✅ Siemens PLC Control: Reliable, stable operation with intuitive touchscreen (7” / 9.7”)
• ✅ Horizontal Linear Layout: Compact, space-efficient design for easy line integration
• ✅ Irregular Bag Compatibility: Handles various bag shapes without additional accessories
• ✅ Quick Format Change: Fast switchover between bag sizes and product types

• ✅ 304 Stainless Steel: Food-grade construction for hygienic powder handling

Ideal Applications

• 🥛 Dairy: Milk powder, whey protein, infant formula, creamer
• 🍚 Food & Grain: Rice flour, corn starch, wheat flour, sugar, salt, MSG
• 🍹 Beverages: Solid beverages, instant coffee, tea powder, glucose, electrolyte powder
• 🐾 Feed & Agriculture: Animal feed powder, fertilizer, agricultural additives
• 💊 Pharmaceutical: Medicinal powder, health supplement powder, enzyme powder
