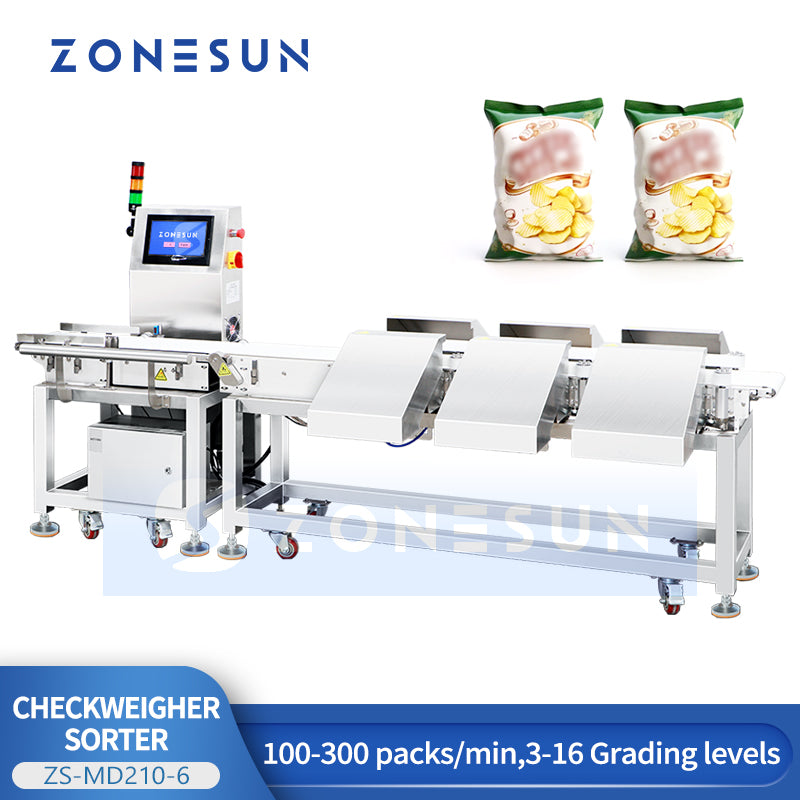

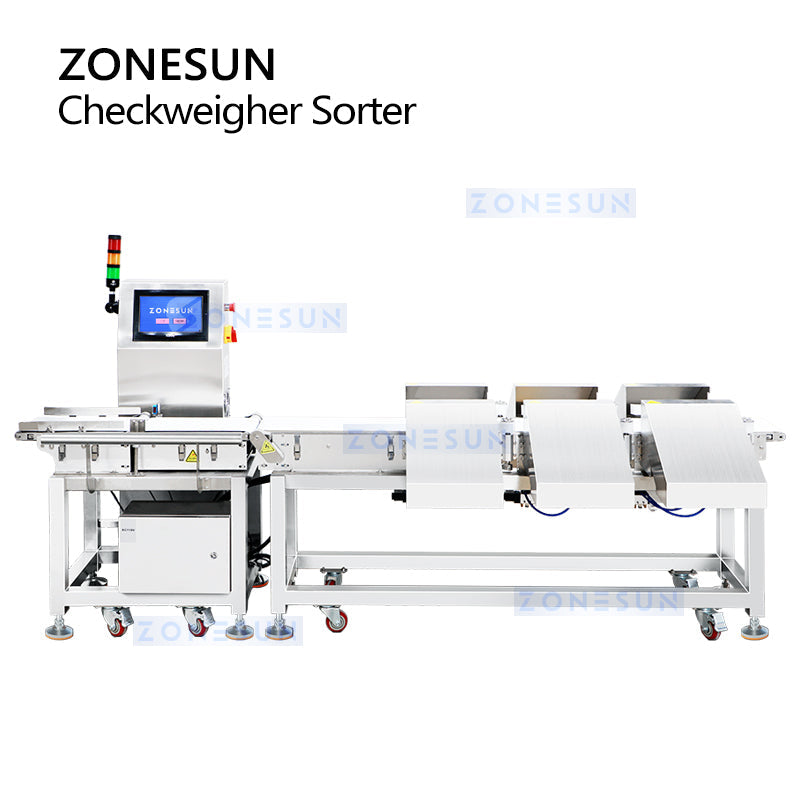

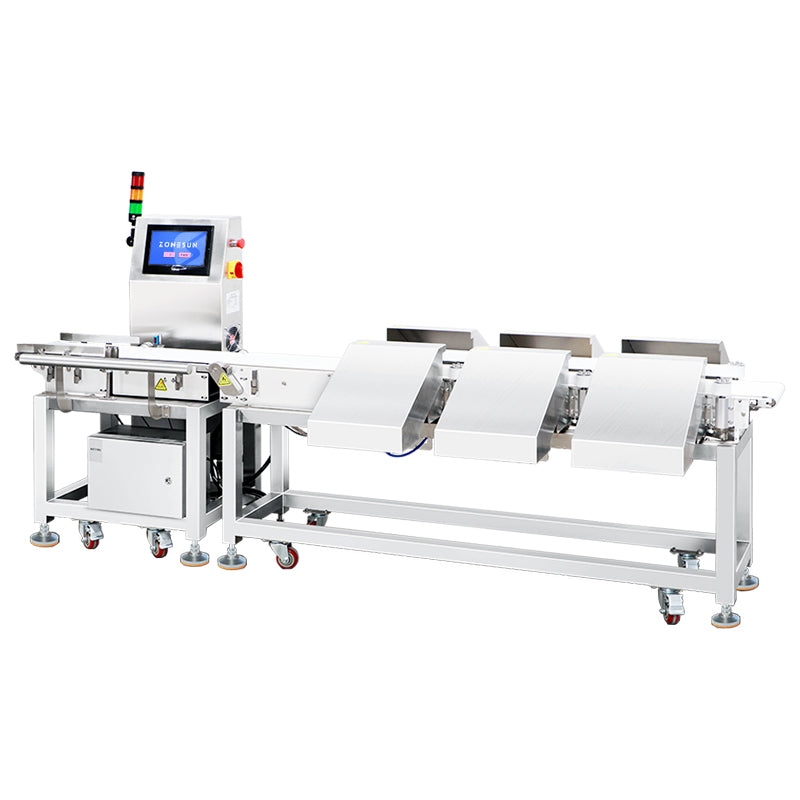

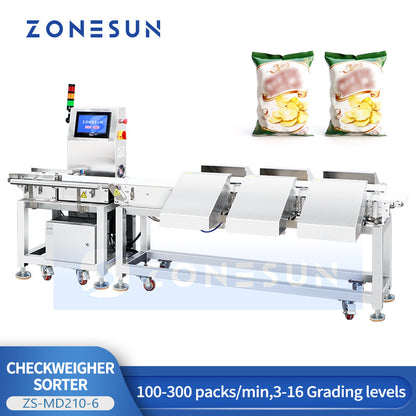

ZONESUN ZS-MD210-6 High-Speed Dynamic Checkweigher with Inline Weighing and Automatic Reject System

Description

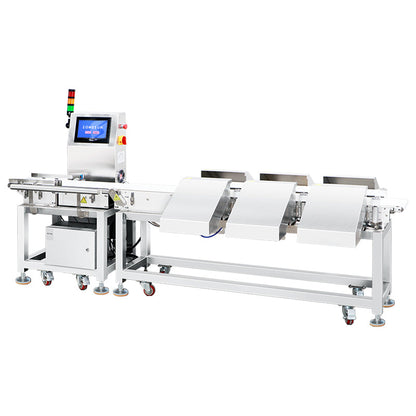

The ZONESUN ZS-MD210-6 is a high-speed multi-grade dynamic checkweigher designed for precise weight detection and automatic sorting. Supporting 100–300 packs per minute and 3–16 weight grading levels, it uses a high-precision load cell, fast-response photoelectric sensor, and configurable rejection mechanisms to ensure accurate and efficient weight classification. With an intuitive touchscreen interface and stable conveyor system, it provides reliable performance for food, beverage, cosmetics, pharmaceuticals, and other industries requiring strict weight compliance and quality control.

Parameter

• Machine Model: ZS‑MD210‑6
• Power Supply: AC 220 V ±10%, 50/60 Hz
• Weight Grading: 3–16 levels or customized
• Weighing Accuracy: ±0.3 g
• Scale Interval: 0.1 g
• Sorting Speed: 100–300 packs/min
• Conveyor Speed: 20–90 m/min
• Weighing Range: 3–1000 g
• Weighing Platform Size: 400 × 220 mm
• Machine Size: About 2665 × 1095 × 1335 mm
• Package Size: About 1940 × 1150 × 1280 mm (Sorting Channel) + 920 × 760 × 1370 mm (Main Machine)
• Package Weight: About 160 kg (Sorting Channel) + 114 kg (Main Machine) = 274 kg

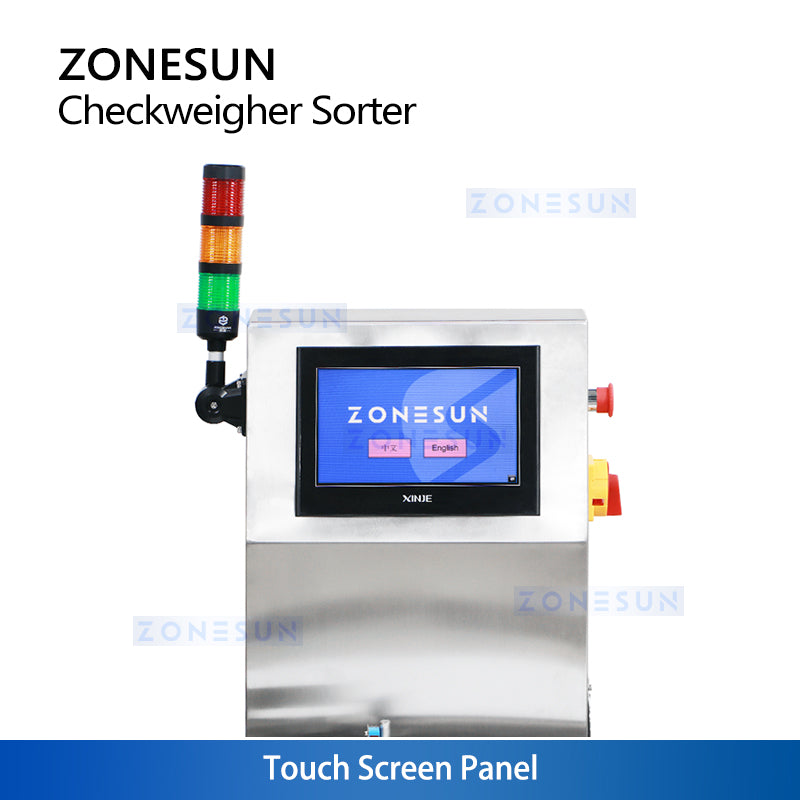

Touch Screen Panel

Enabling intuitive parameter setup and real-time monitoring for stable multi-stage weighing and sorting.

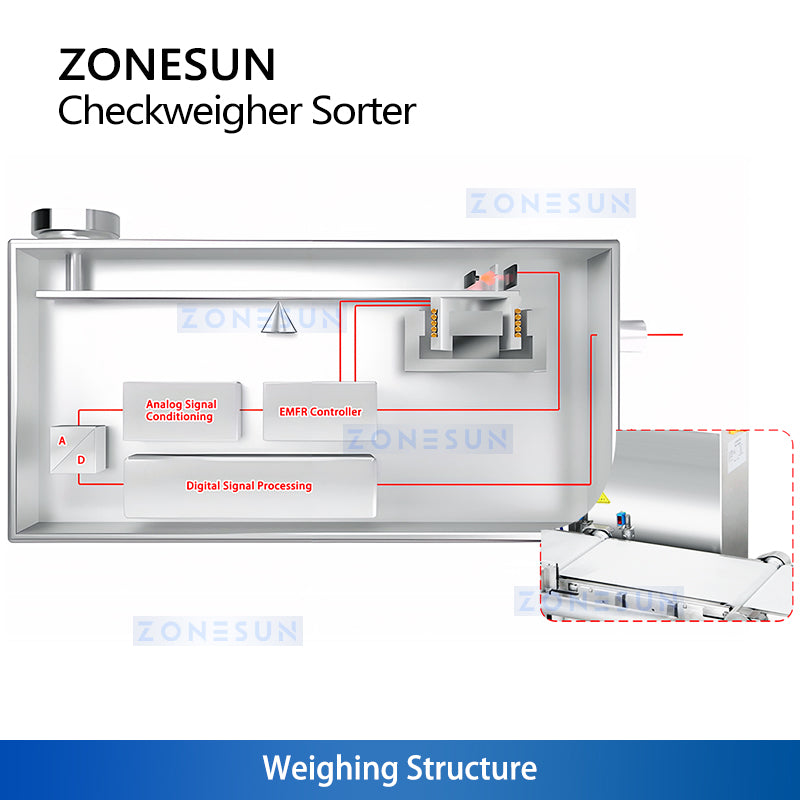

Weighing Structure

Delivering fast, stable, and high-precision dynamic weighing through a dedicated load cell structure designed for multi-stage sorting accuracy.

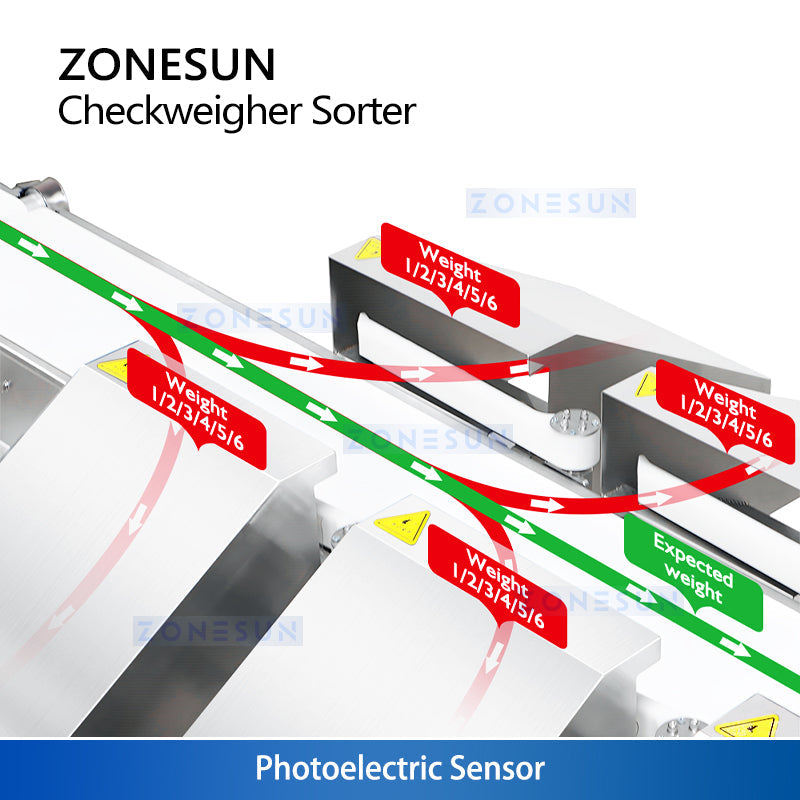

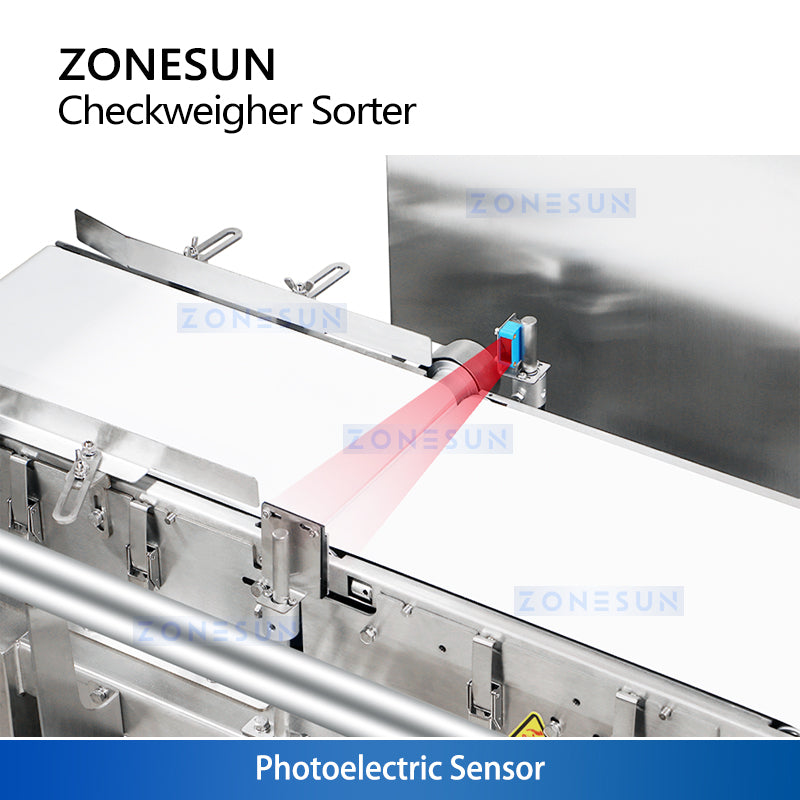

Photoelectric Sensor

Triggering accurate weighing and sorting by detecting product position with fast-response optical sensing.

Rejection System

Removing out-of-spec products with configurable rejection methods including air blast, flapper, pusher, and diverter to ensure accurate multi-stage sorting.
