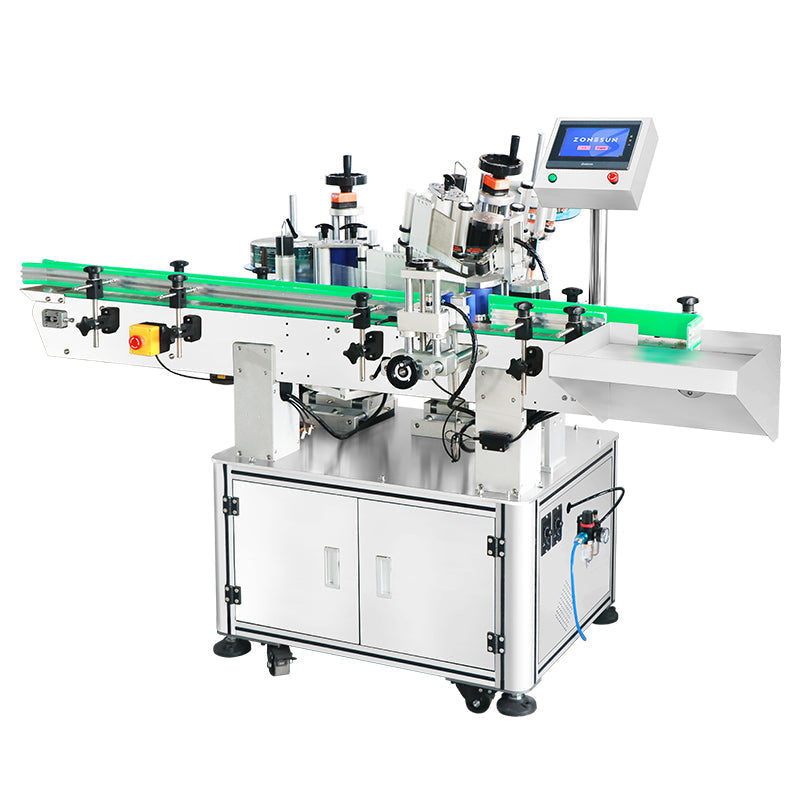

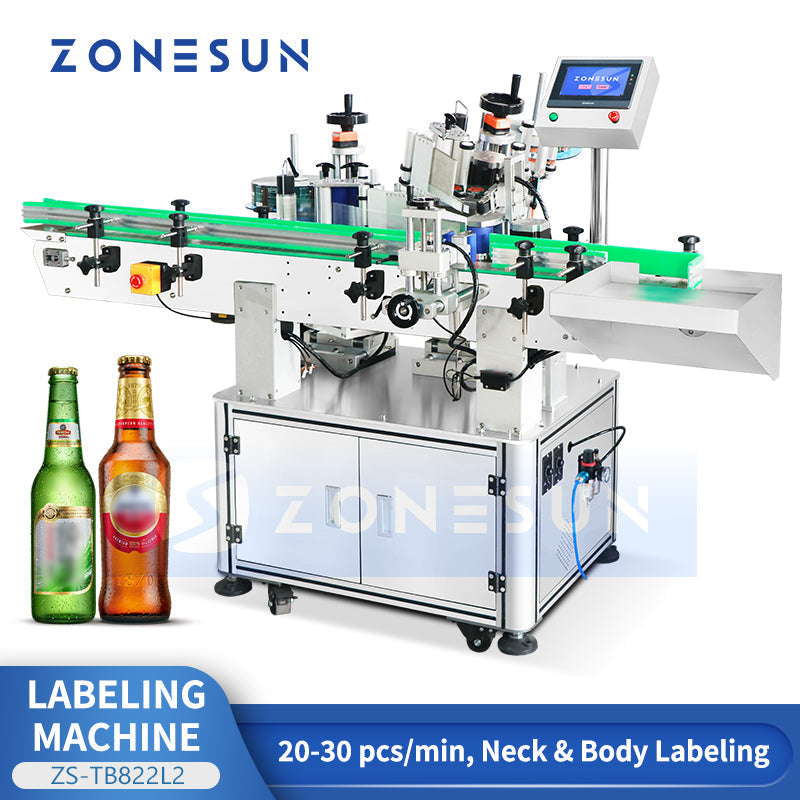

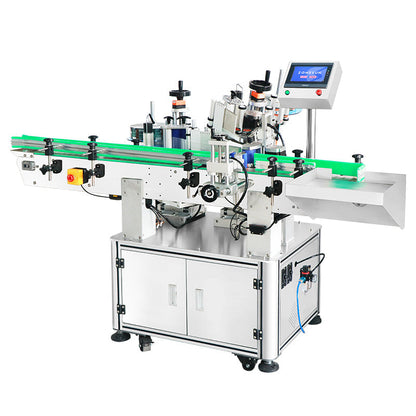

ZONESUN ZS-TB822L2 — Automatic Round Bottle Neck & Body Labeling Machine

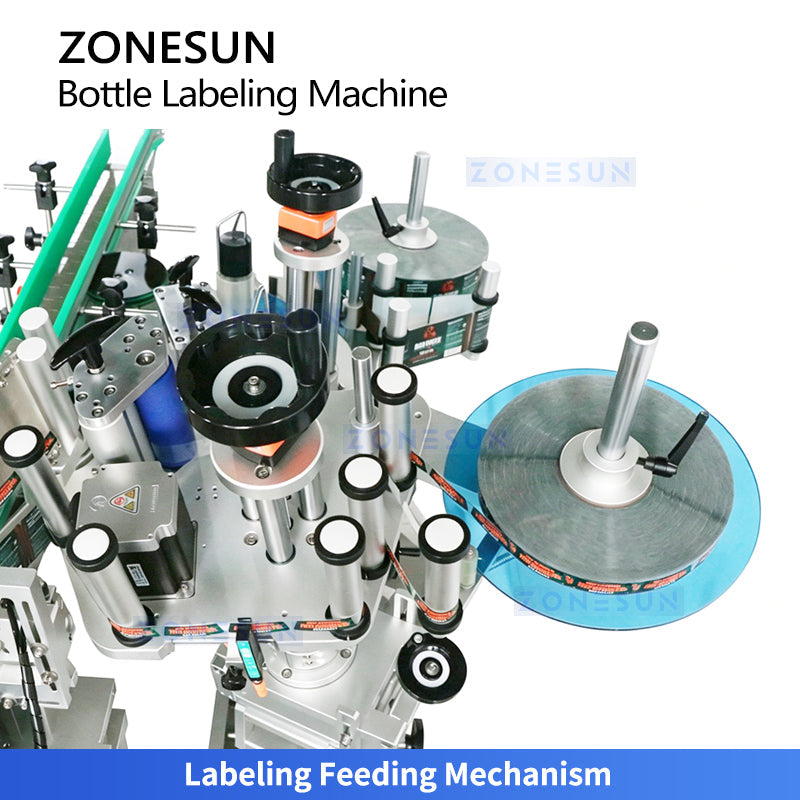

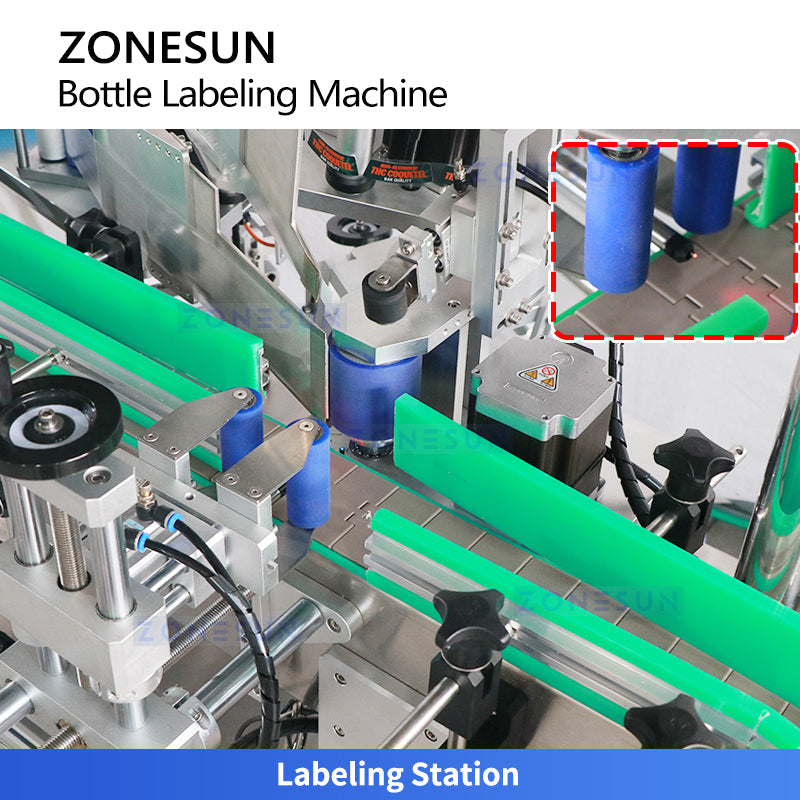

The ZONESUN ZS-TB822L2 is an automatic labeling machine designed to apply neck and body labels simultaneously onto round bottles in a single pass. Operating at 20–30 pcs/min with ±1mm labeling accuracy, it supports bottle diameters from Φ25–100mm and label lengths up to 290mm. Equipped with a touchscreen control panel, sensor-assisted labeling station, stable conveyor, and orderly collection platform, it ensures precise positioning and consistent labeling quality. Ideal for beer, wine, spirits, cosmetics, beverages, and personal care products.
Key Features
- Dual-Position Labeling — Applies body and neck labels simultaneously in one pass, saving time and labor
- High Labeling Accuracy — ±1mm precision (excluding product & label tolerance)
- Wide Bottle Compatibility — Handles Φ25–100mm diameter round bottles
- Flexible Label Size — Length 20–290mm, width 20–160mm (backing paper)
- Adjustable Bottle Height — 25–300mm, customizable to your container

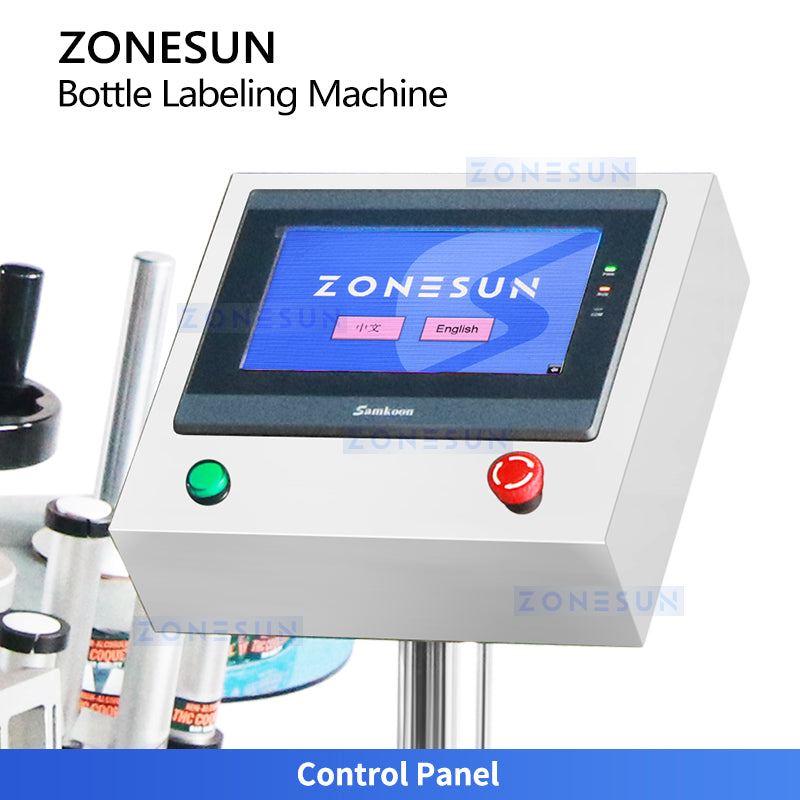

- Touchscreen Control Panel — Intuitive operation with sensor-assisted positioning

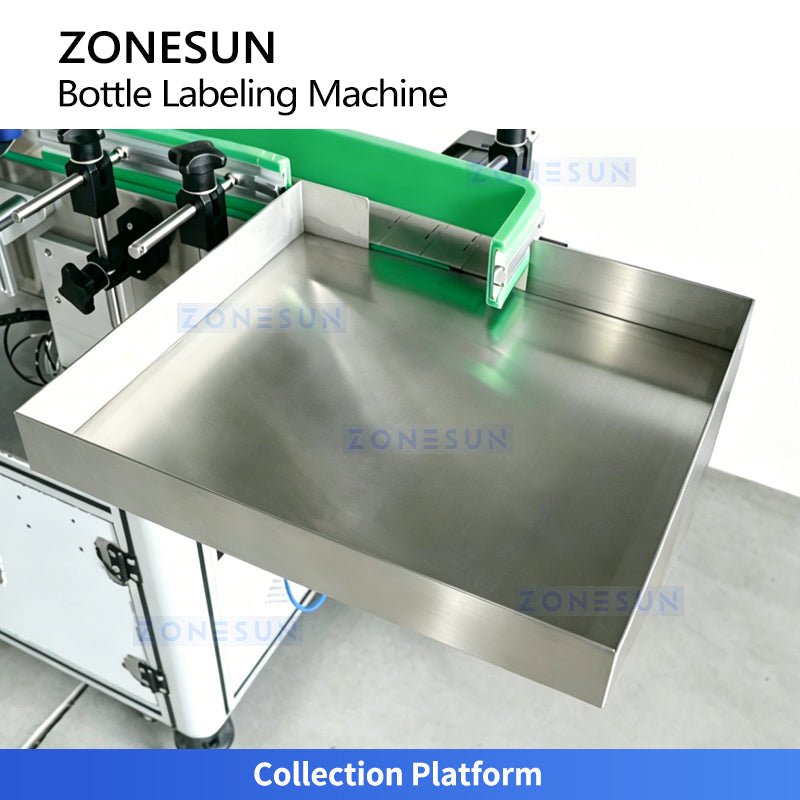

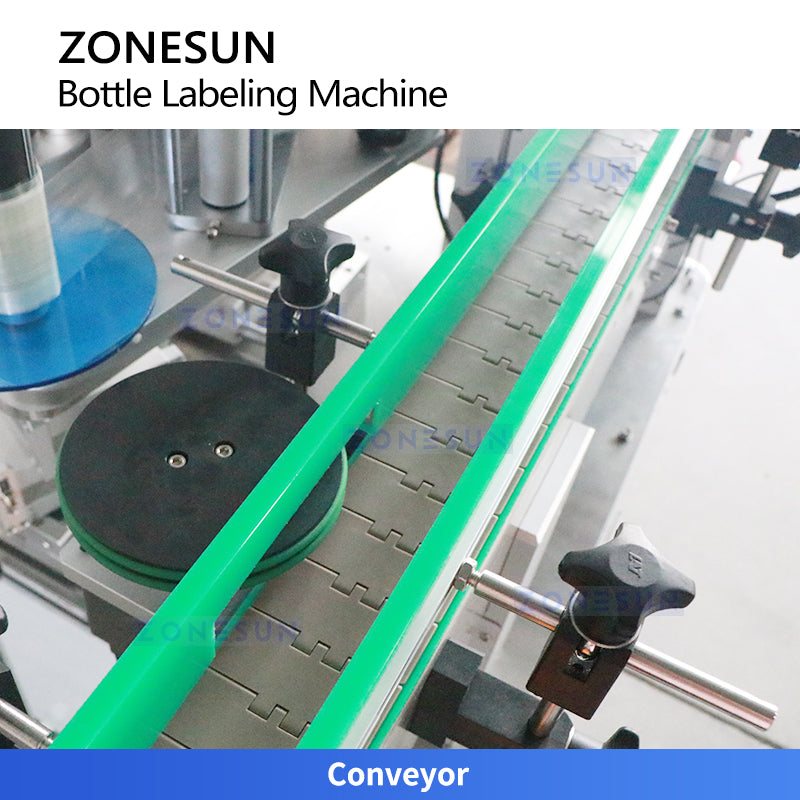

- Stable Conveyor & Collection Platform — Smooth bottle flow and orderly output
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-TB822L2 |
| Labeling Speed | 20–30 pcs/min (depends on product & label size) |
| Labeling Accuracy | ±1mm (excl. product & label tolerance) |
| Applicable Bottle Diameter | Φ25–Φ100mm (round bottles) |
| Applicable Bottle Height | 25–300mm (customizable) |
| Label Length | 20–290mm |
| Label Width (Backing Paper) | 20–160mm |
| Power Supply | 220V, 50Hz |
| Machine Dimensions (L×W×H) | ~2,100 × 1,200 × 1,530 mm |
| Machine Weight | ~185 kg |
Suitable Products & Applications
Beer Bottles
Standard, craft & specialty beer bottles
Wine Bottles
Red, white, rosé & sparkling wine
Spirits & Liquor
Whisky, vodka, gin, baijiu bottles
Beverage Bottles
Juice, tea, kombucha, soft drinks
Sauce & Condiment Bottles
Hot sauce, vinegar, soy sauce bottles
Cosmetic & Pharma Bottles
Round bottles requiring dual-position labels
