Description

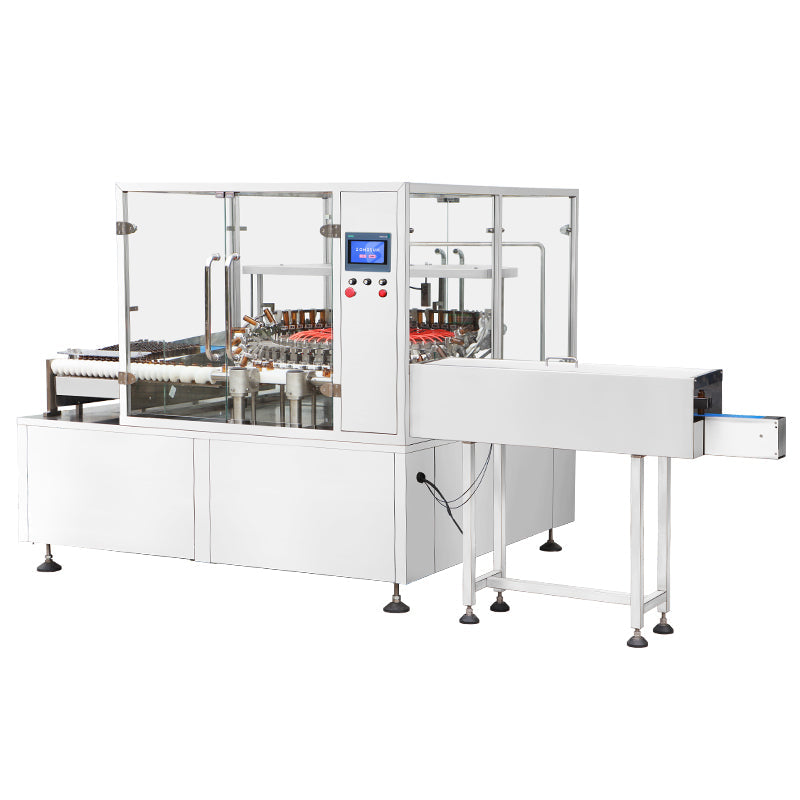

The ZONESUN ZS-WB48 is an automatic multi-head rotary air rinsing machine designed for high-speed cleaning of glass vials and bottles. It operates at a capacity of 12,000–13,000 bottles per hour, using high-pressure air nozzles to efficiently clean both the interior and exterior of each container.

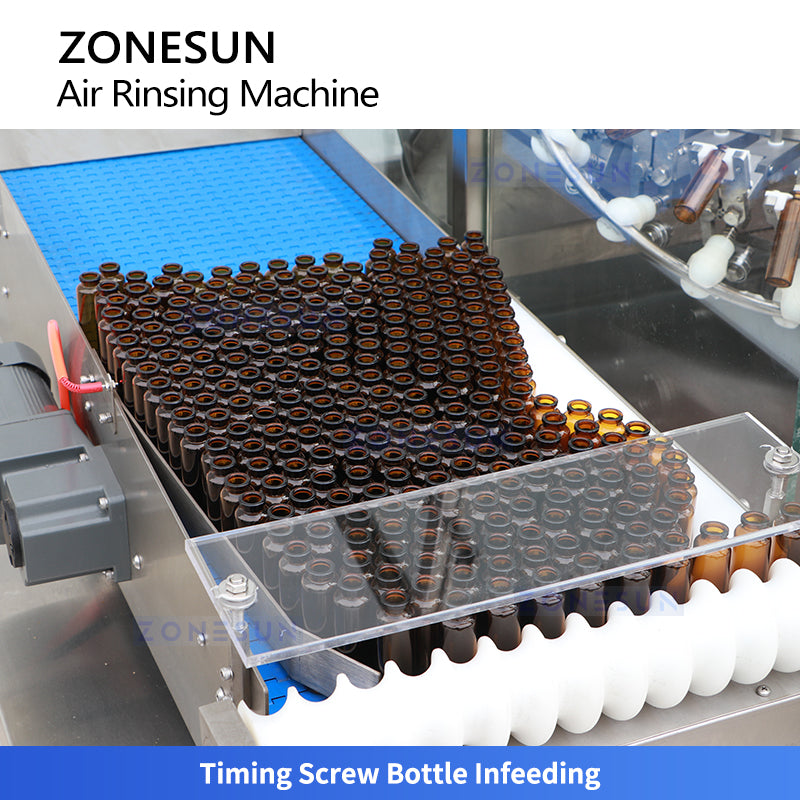

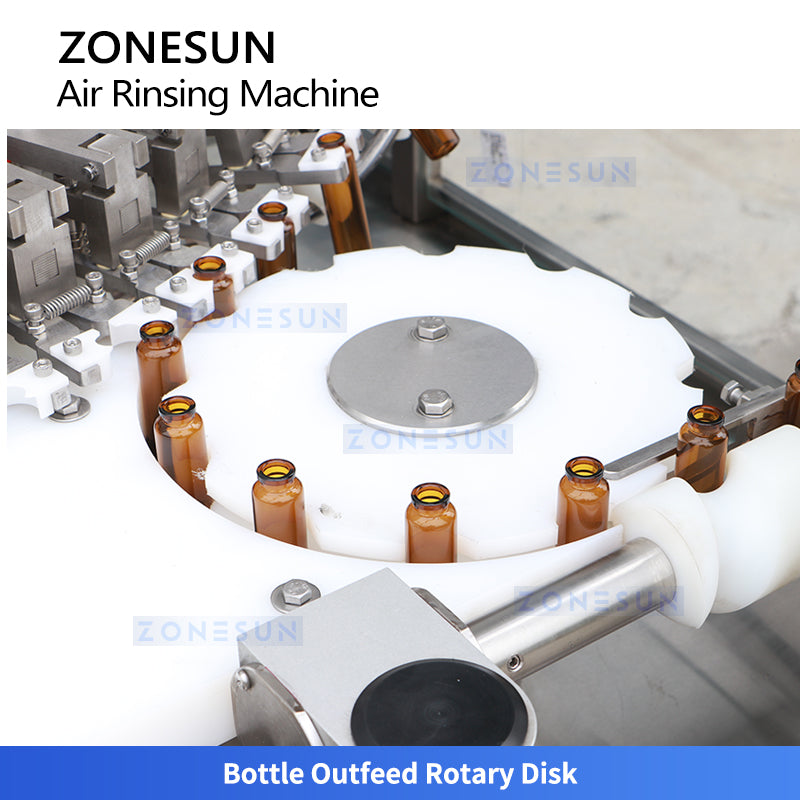

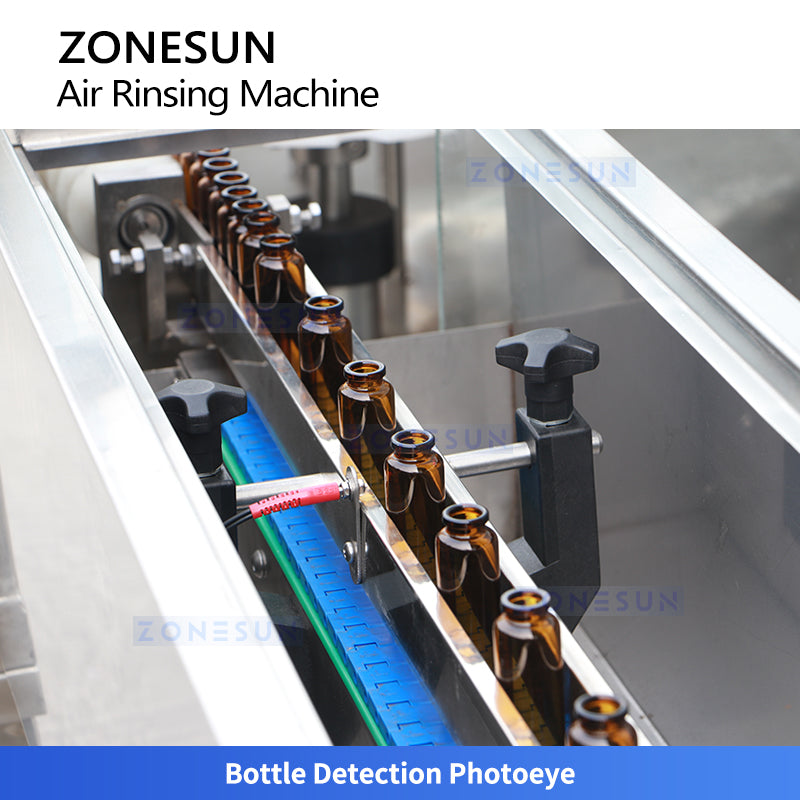

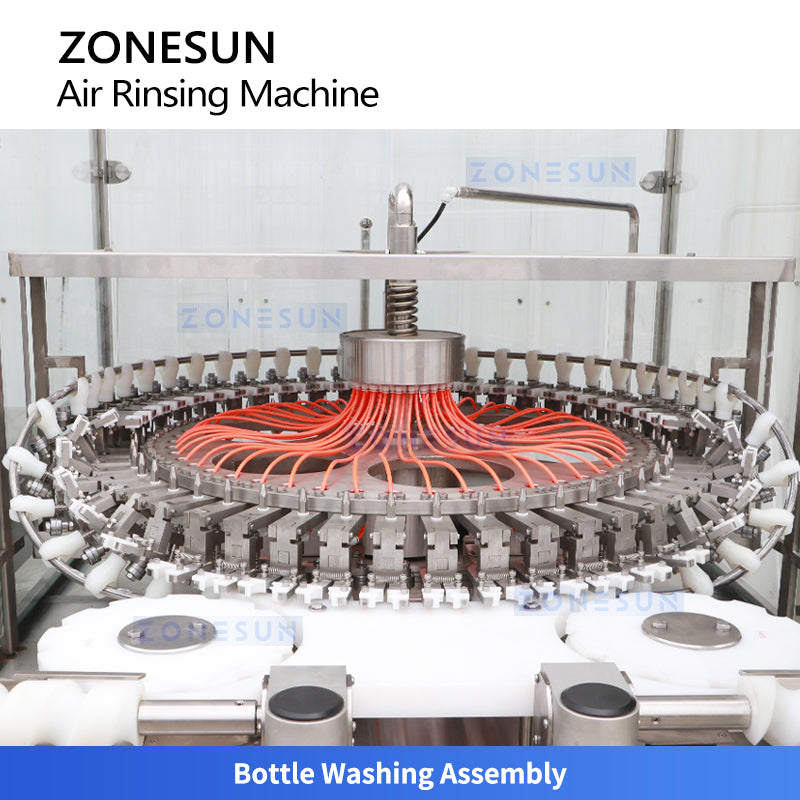

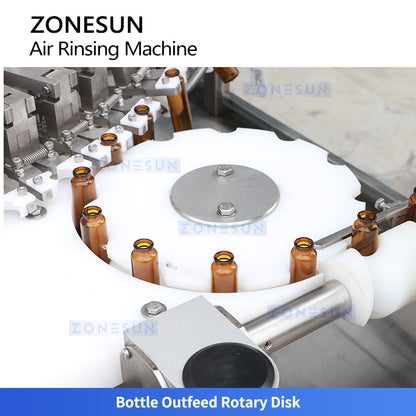

The machine features a timing screw infeed system, bottle detection photoeye, and a rotary rinsing assembly to ensure smooth bottle handling and precise synchronization throughout the rinsing process. With support for customizable bottle sizes, quick-change star wheels and guide plates, it allows fast changeovers and flexible production.

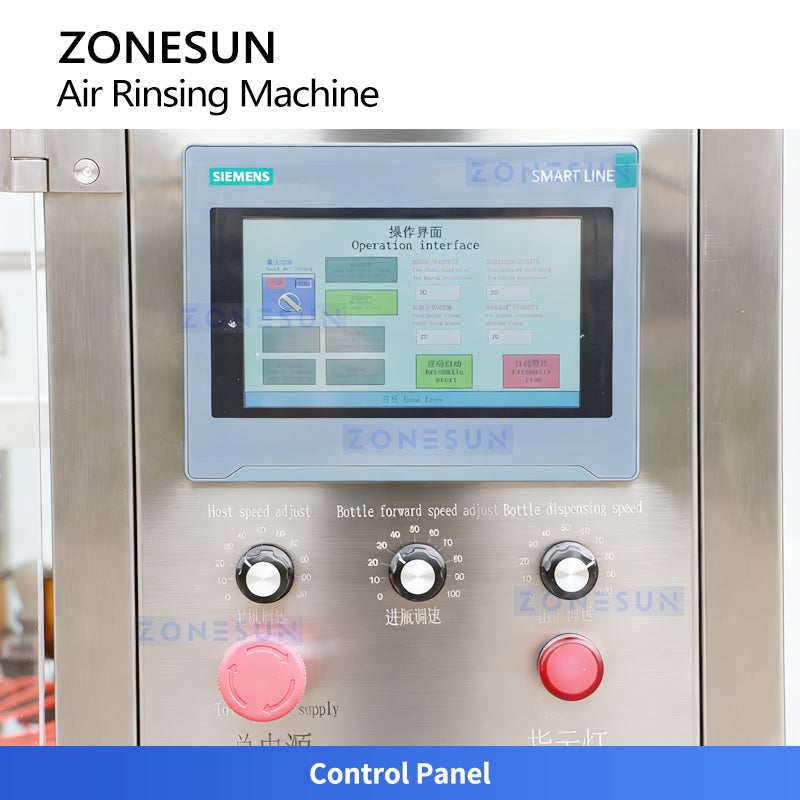

A user-friendly control panel ensures easy operation and reliable continuous performance, making it an ideal solution for pharmaceutical, cosmetic, beverage, and chemical packaging lines.
Technical Specifications
- Machine Model: ZS-WB48
- Voltage: 110V / 220V / 380V, 50/60Hz, 3 kW
- Working Capacity: 12,000–13,000 BPH
- Bottle Size: Customizable
- Bottle Damage Rate: ≤ 3%
- Air Washing Pressure: 0.8–1 MPa
- Conveyor Working Height: 850–900 mm (Adjustable)
- Machine Size (L×W×H): Approx. 3,500 × 1,750 × 1,750 mm
- Machine Weight: Approx. 800 kg
- Package Size — Main Machine: Approx. 2,170 × 1,980 × 1,900 mm
- Package Size — Conveyor: Approx. 1,520 × 420 × 1,240 mm
- Package Weight — Main Machine: Approx. 1,599 kg
- Package Weight — Conveyor: Approx. 80 kg
- Total Package Weight: Approx. 1,679 kg
Why Choose the ZS-WB48?
- ✅ Ultra-High Speed: 12,000–13,000 BPH keeps your production line at full capacity
- ✅ Dry Air Rinsing: High-pressure air jets (0.8–1 MPa) eliminate contamination without liquid waste
- ✅ Low Damage Rate: ≤ 3% bottle damage rate ensures minimal product loss
- ✅ Flexible Voltage: 110V / 220V / 380V — compatible worldwide
- ✅ Quick Changeover: Customizable star wheels and guide plates for fast bottle size switching
- ✅ Smart Detection: Built-in photoeye prevents jams and misfeeds
- ✅ Ergonomic Design: Adjustable conveyor height (850–900 mm) for operator comfort
Ideal Applications
- Pharmaceutical: Vial and ampoule cleaning before filling
- Cosmetics: Bottle preparation for lotions, serums, and perfumes
- Beverage: Glass bottle rinsing before filling and capping
- Chemical: Container cleaning for industrial liquid packaging
