Description

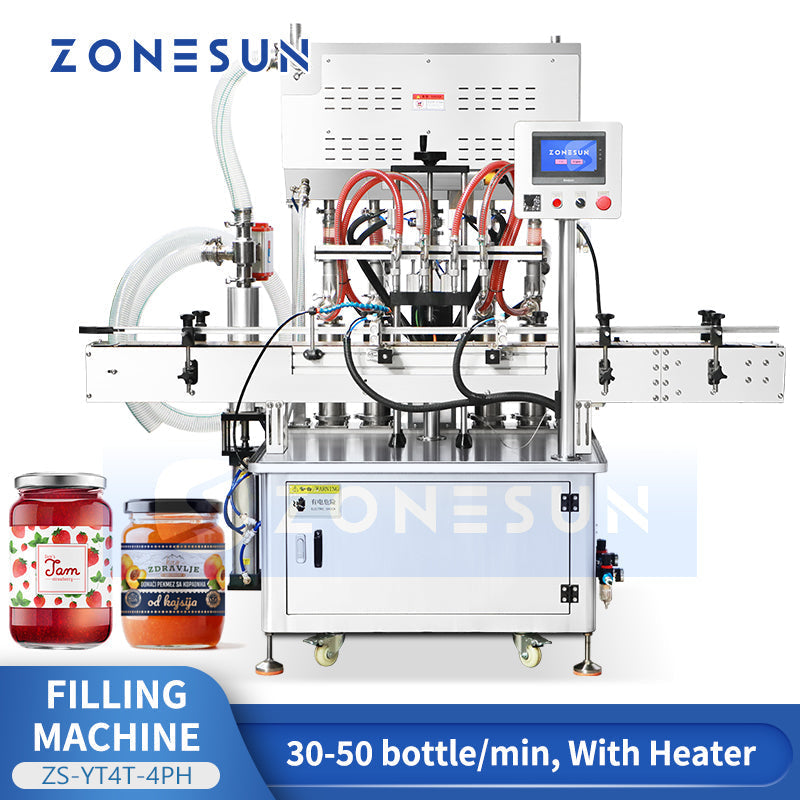

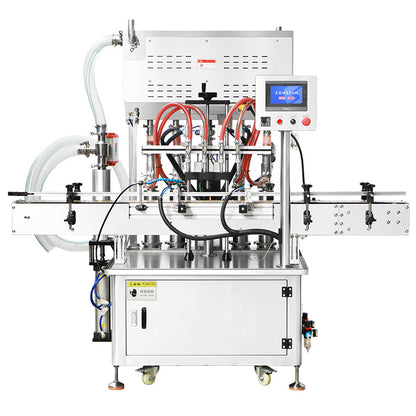

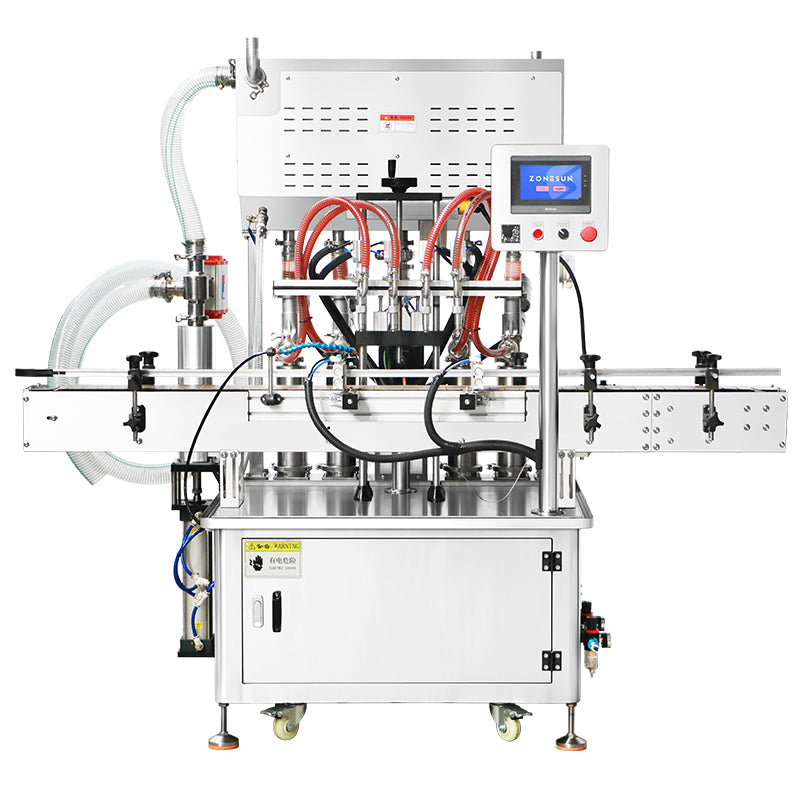

The ZONESUN ZS-YT4T-4PH is a piston pump filling machine with a heating system designed for viscous materials. It is suitable for sauces, honey, tomato paste, peanut butter, and other thick liquids, ensuring smooth, accurate, and stable filling performance.
The machine supports multi-head configurations, adjustable nozzles, and a durable conveyor system, enabling production speeds of 30–50 bottles per minute. Its water-sealed heating structure ensures consistent heating, improving material flow for better filling results. Optional mixing function is available for improved material preparation.
Technical Specifications
- Model: ZS-YT4T-4PH
- Voltage: 110/220V, 50–60Hz, 1 kW
- Filling Range: 10–180ml / 30–500ml / 100–1000ml
- Working Speed: About 30–50 bottles/min
- Filling Pump: Piston pump
- Air Pressure: 0.6–0.8 MPa
- Suitable Temperature Range: 30℃ ≤ T ≤ 90℃
- Filling Accuracy: ±1%
- Filling Nozzles: 4 (customizable)
- Machine Size (L×W×H): Approx. 2,000 × 800 × 1,800 mm
- Machine Weight: Approx. 200 kg
- Package Size: Approx. 2,070 × 960 × 2,010 mm (100–1000ml)
- Package Weight: Approx. 392 kg (100–1000ml)

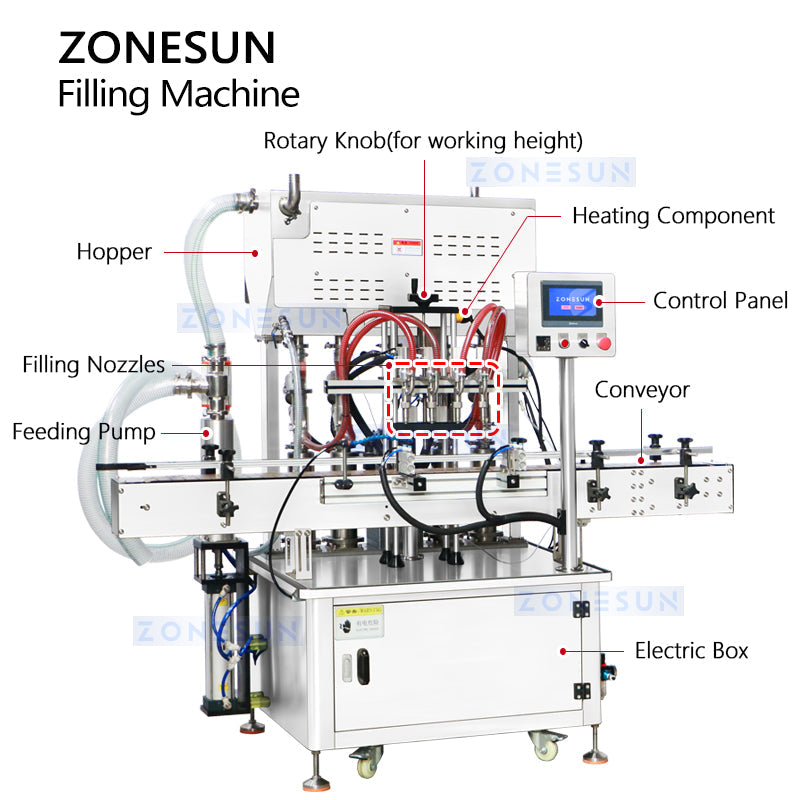

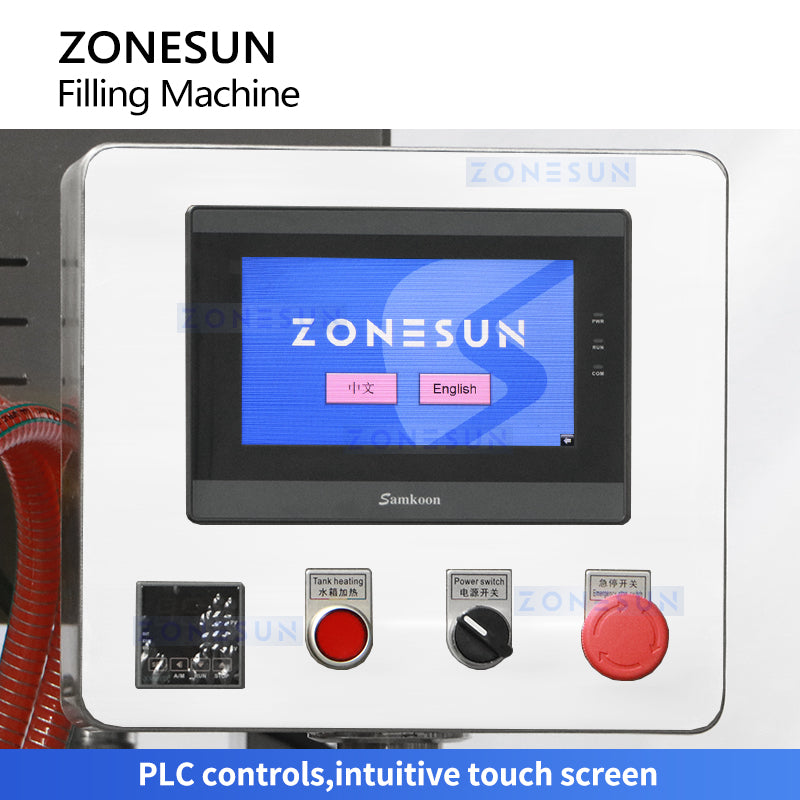

CONTROL PANEL
The touch screen control panel can be customized in different kinds of language for convenient operation. Visual working data makes it easier to adjust the machine in real time.

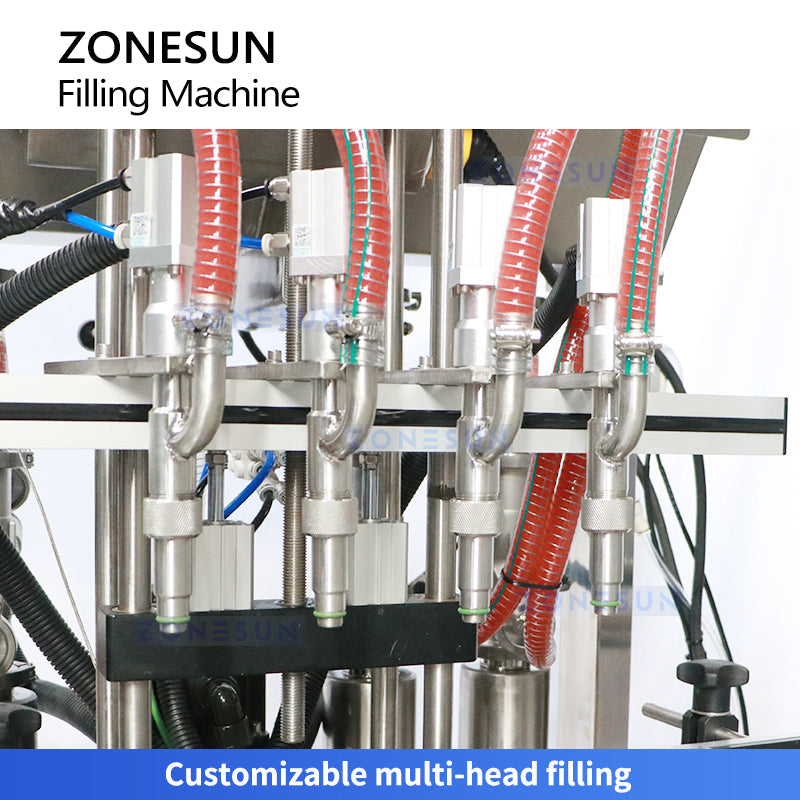

FILLING NOZZLES
The position of filling nozzle can be adjusted according to bottle size,The quantity of filling heads can be customized to improve working efficiency greatly according to production need.

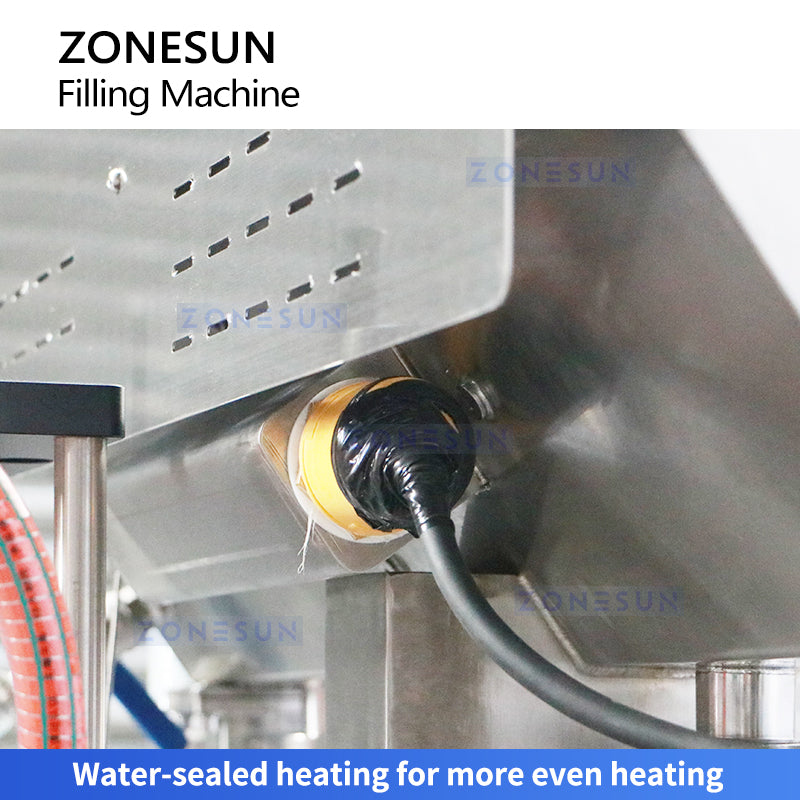

HEATING COMPONENT
The filling machine has heating function which can make products remains in a more fluid state, improving its flow properties. Extra mixing function can be customized for the filling material pretreatment.

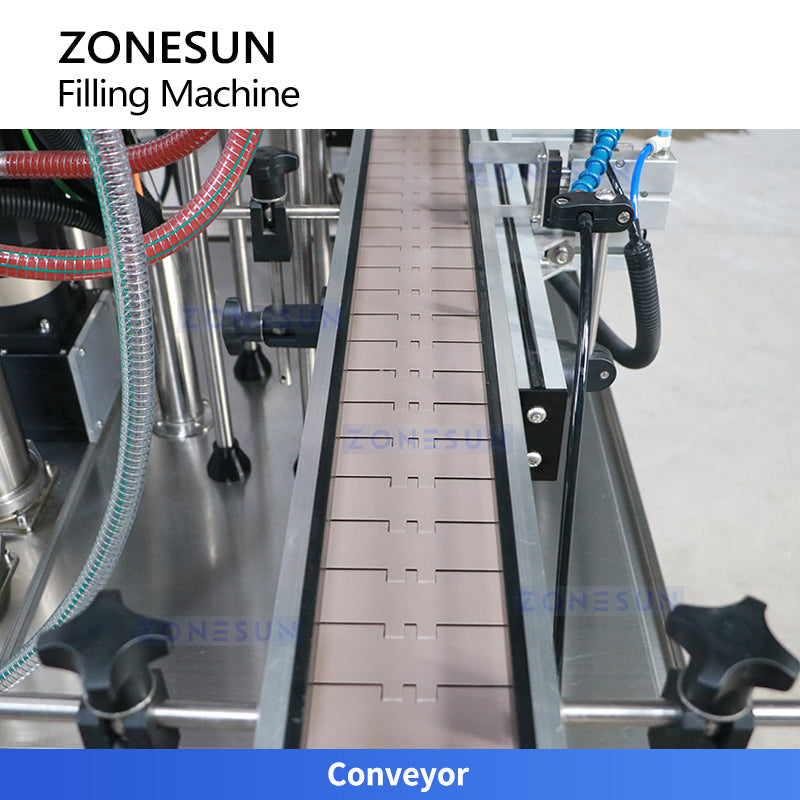

CONVEYOR
Made of high quality conveyor belt,the chain conveyor has larger weight capacity, it can transport bottles faster and smoothly,the width and length can be customized as operation need.
Why Choose the ZS-YT4T-4PH?
- ✅ Heated Filling: Water-sealed heating (30–90℃) keeps viscous materials flowing smoothly
- ✅ High Accuracy: ±1% filling precision reduces waste and ensures consistency
- ✅ High Speed: 30–50 BPM with 4 customizable nozzles for efficient production
- ✅ Wide Filling Range: 10ml to 1,000ml — handles small to large containers
- ✅ Optional Mixing: Built-in mixing function available for material pretreatment
- ✅ Flexible Voltage: 110V / 220V, 50–60Hz — compatible worldwide
- ✅ Customizable: Nozzle quantity, filling range, and conveyor dimensions all adjustable
Ideal Applications
- 🍯 Food: Honey, peanut butter, jam, tomato paste, chili sauce
- 🧴 Cosmetics: Thick creams, lotions, and paste products
- 🧪 Chemical: Adhesives, lubricants, and viscous industrial liquids
- 💊 Pharmaceutical: Ointments and thick medicinal pastes
