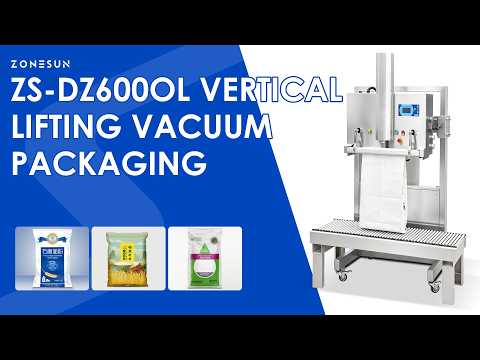

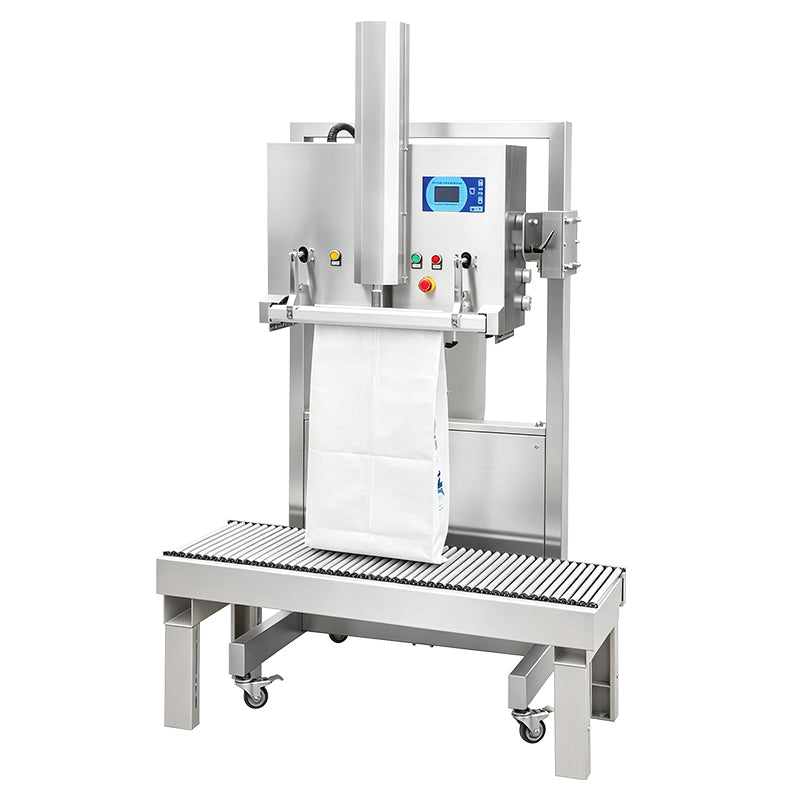

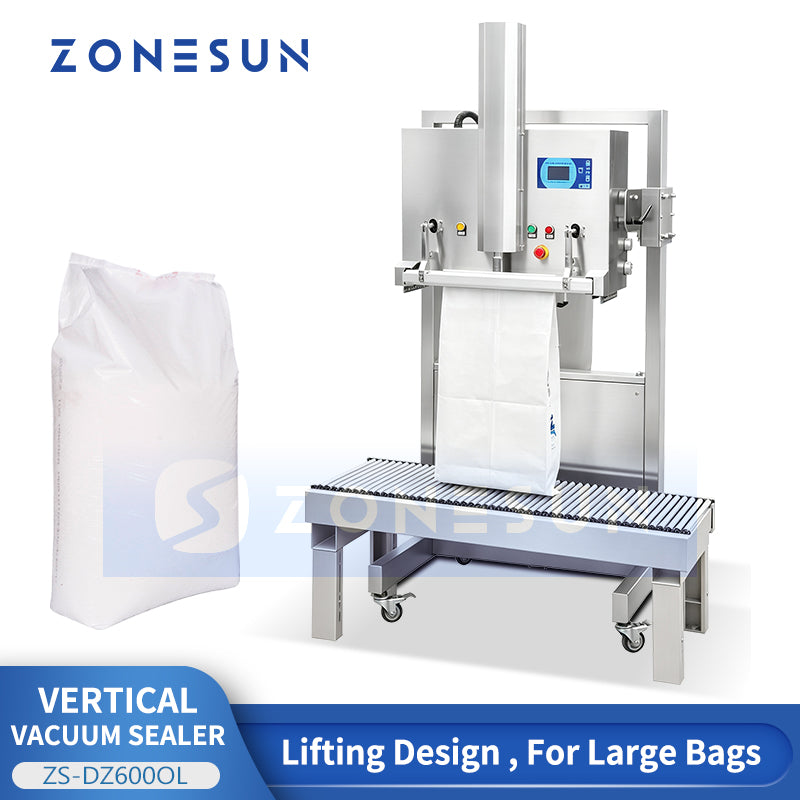

ZONESUN ZS-DZ600OL Large Bag Vacuum Sealer Machine for Bulk Products

Overview

The ZONESUN ZS-DZ600OL is a vertical lifting vacuum packaging machine designed for large bags and high-volume products. With an adjustable lifting head and efficient external suction technology, it supports vacuum, gas flushing, and sealing for powders, granules, and bulky items without the size limitations of traditional chamber vacuum machines.

Available in six sealing lengths from 600 mm to 1200 mm and compatible with 110V / 220V / 240V / 380V, the ZS-DZ600OL series is ideal for food, chemical, and industrial packaging applications requiring large-format vacuum sealing.

Technical Specifications

Model ZS-DZ600OL

• Voltage: 110V / 220V / 240V / 380V, 50/60Hz
• Base Power: 0.75 kW (higher power optional)
• Vacuum Pump Rate: 20 m³/h (40 / 60 / 100 m³/h optional)
• Sealing Power: 1.1 kW
• Sealing Size (L×W): 600 × 80 mm (1 pc)
• Working Speed: 1–5 times/min
• Head Adjustable Height: 69–143 cm
• Dimensions (L×W×H): 90 × 96 × 180 cm
• Weight: 120 kg

Model ZS-DZ700OL

• Voltage: 110V / 220V / 240V / 380V, 50/60Hz
• Base Power: 0.75 kW (higher power optional)
• Vacuum Pump Rate: 20 m³/h (40 / 60 / 100 m³/h optional)
• Sealing Power: 1.1 kW
• Sealing Size (L×W): 700 × 80 mm (1 pc)
• Working Speed: 1–5 times/min
• Head Adjustable Height: 69–143 cm
• Dimensions (L×W×H): 90 × 96 × 180 cm
• Weight: 125 kg

Model ZS-DZ800OL

• Voltage: 110V / 220V / 240V / 380V, 50/60Hz
• Base Power: 0.75 kW (higher power optional)
• Vacuum Pump Rate: 20 m³/h (40 / 60 / 100 m³/h optional)
• Sealing Power: 1.2 kW
• Sealing Size (L×W): 800 × 80 mm (1 pc)
• Working Speed: 1–5 times/min
• Head Adjustable Height: 69–143 cm
• Dimensions (L×W×H): 90 × 96 × 180 cm
• Weight: 130 kg

Model ZS-DZ900OL

• Voltage: 110V / 220V / 240V / 380V, 50/60Hz
• Base Power: 0.75 kW (higher power optional)
• Vacuum Pump Rate: 20 m³/h (40 / 60 / 100 m³/h optional)
• Sealing Power: 1.3 kW
• Sealing Size (L×W): 900 × 80 mm (1 pc)
• Working Speed: 1–5 times/min
• Head Adjustable Height: 69–143 cm
• Dimensions (L×W×H): 125 × 96 × 180 cm
• Weight: 155 kg

Model ZS-DZ1000OL

• Voltage: 110V / 220V / 240V / 380V, 50/60Hz
• Base Power: 0.75 kW (higher power optional)
• Vacuum Pump Rate: 20 m³/h (40 / 60 / 100 m³/h optional)
• Sealing Power: 1.4 kW
• Sealing Size (L×W): 1000 × 80 mm (1 pc)
• Working Speed: 1–5 times/min
• Head Adjustable Height: 69–143 cm
• Dimensions (L×W×H): 125 × 96 × 180 cm
• Weight: 175 kg

Model ZS-DZ1200OL

• Voltage: 110V / 220V / 240V / 380V, 50/60Hz
• Base Power: 0.75 kW (higher power optional)
• Vacuum Pump Rate: 20 m³/h (40 / 60 / 100 m³/h optional)
• Sealing Power: 1.6 kW
• Sealing Size (L×W): 1200 × 80 mm (1 pc)
• Working Speed: 1–5 times/min
• Head Adjustable Height: 69–143 cm
• Dimensions (L×W×H): 133 × 96 × 180 cm
• Weight: 215 kg

Key Features

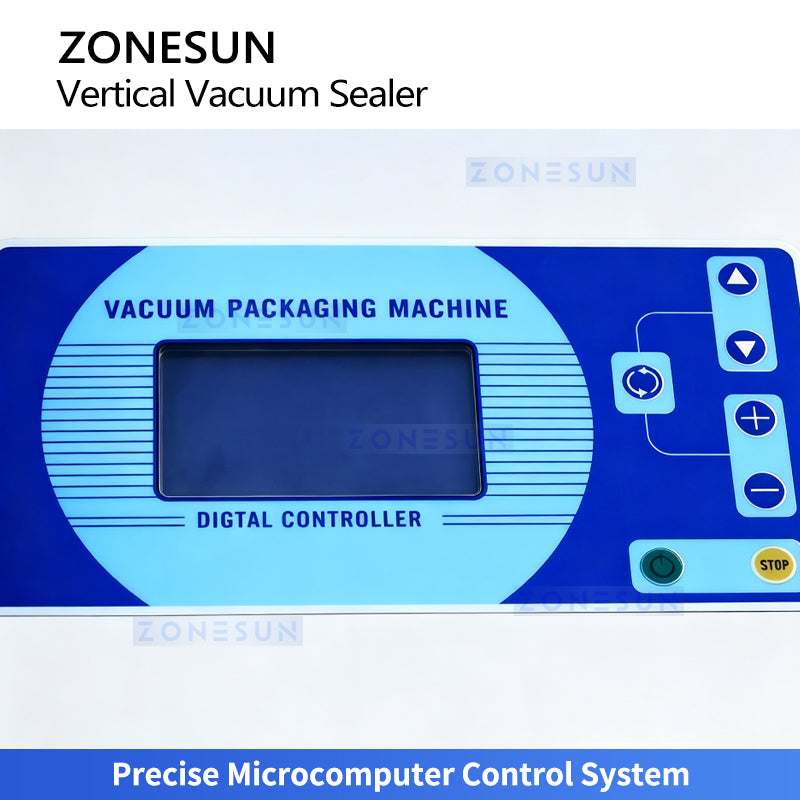

Precise Microcomputer Control System

Presets suction, gas injection, and sealing durations precisely via an intelligent digital panel, ensuring consistent packaging quality across every operational batch.

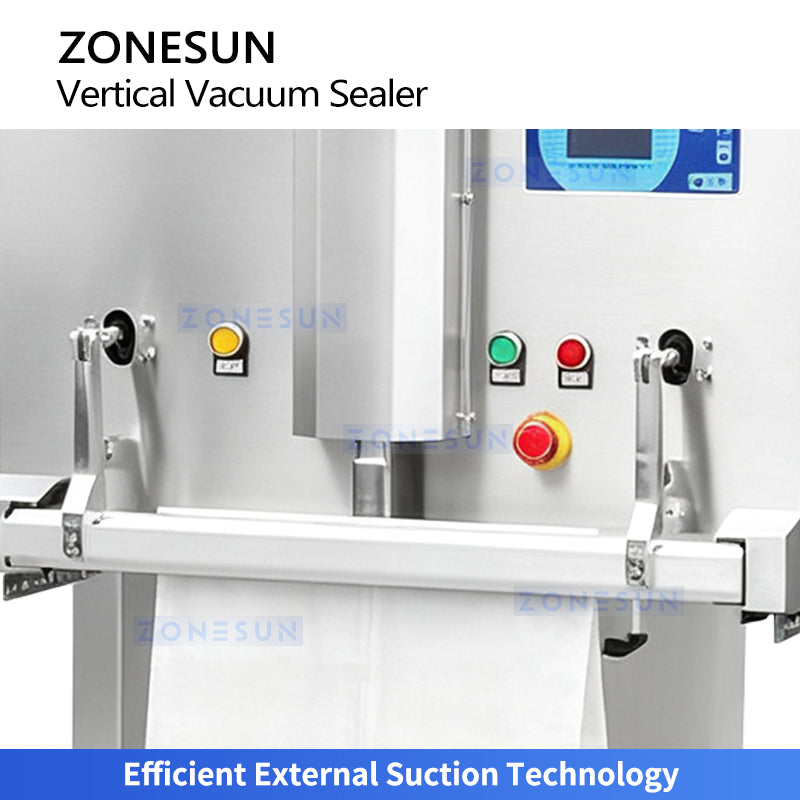

Efficient External Suction Technology

Extract air directly from bags via a chamberless dual-nozzle structure, bypassing volume limits for rapid packaging of powders, granules, and large components.

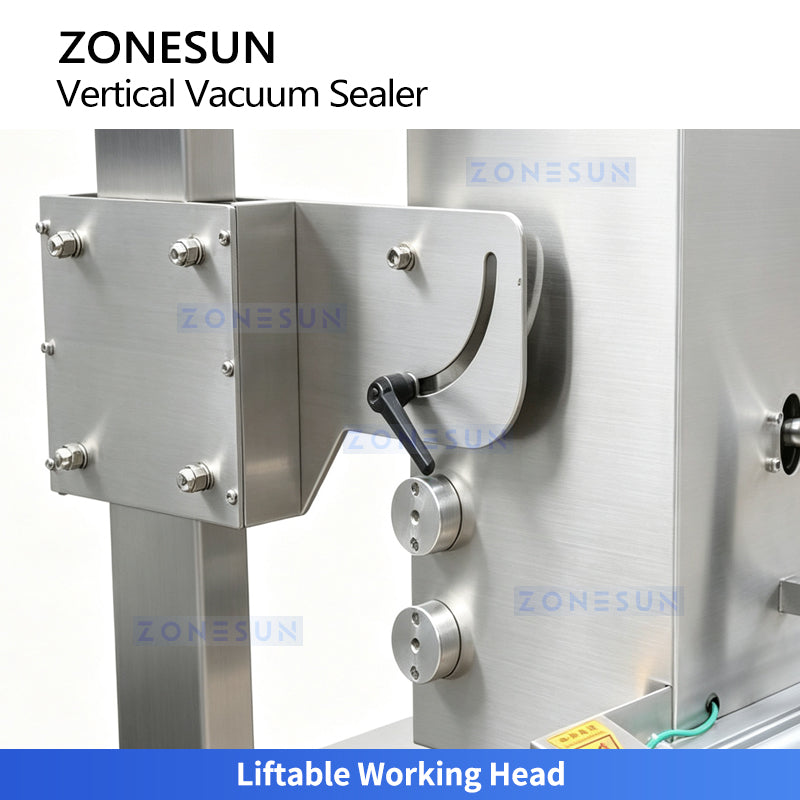

Liftable Working Head

Adjusts the machine head height vertically via smooth mechanics to fit various bag sizes and materials, enabling flawless sealing for large-capacity, high-volume products.

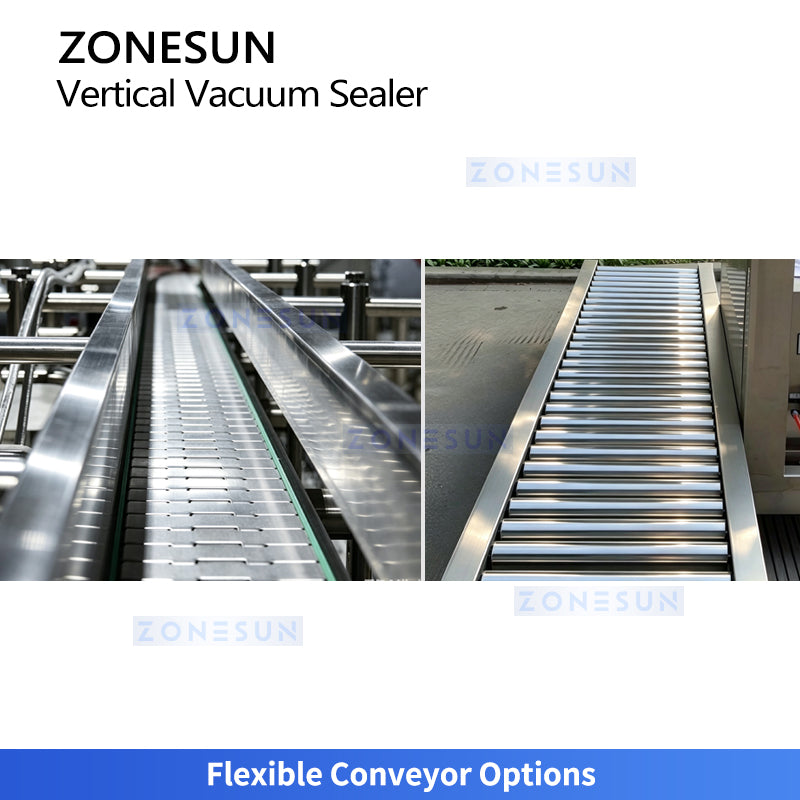

Flexible Conveyor Options

Offers modular selections between a motorized belt conveyor or a non-powered gravity roller system, aligning precisely with different automated or semi-automated production lines.

Ideal Applications

• 🍲 Food & Agriculture — Large-bag vacuum sealing for rice, flour, nuts, dried goods, and bulk food ingredients.
• 🧪 Chemical & Industrial — Powder, granule, and component vacuum packaging for chemical and manufacturing industries.
• 📦 Hardware & Parts — Vacuum sealing of large mechanical components, spare parts, and industrial supplies.
• 🏭 OEM & Contract Packaging — High-volume large-format vacuum packaging for multi-product packaging facilities.
