DESCRIPTION
Introducing our state-of-the-art Candy Packaging Production Line! This comprehensive and efficient system is designed to streamline the packaging process for candies. It encompasses bottle sorting, precise candy counting and filling, desiccant distribution, capping, and aluminum foil sealing. With our Candy Packaging Production Line, you can achieve high-speed, accurate, and hygienic packaging for your sweet treats.
Whatever your packaging needs are, you can rely on ZONESU
Bottle unscrambler
- Bottle specification：50~300/min
- Max. production capacity：60~100/min
- Power：0.5kw
- Voltage：220V
- Machine weight：2200*1050*1900mm
- Machine Weight：250kg
Filling Machine
- Filling capacity：10~30 bottles/min
- Single bottling capacity：2-9999 pcs/bottle
- Bottle diameter：φ20~φ100mm
- Bottle height：40~240mm
Desiccant Inserting Machine
- Filling speed：50~120 bottles/min
- Bottle’s outer diameter：Φ20~80 mm
- Bottle’s height：35~200 mm
- Applicable filling volume：0.5~2 g
- Overall dimension (L*W*H)：1150*800*1900 mm
- Weight：300 kg
Capping Machine
- Max. production capacity：50~120 bottles/min
- Bottle’s outer diameter：Φ23~120 mm
- Bottle’s height：45~150 mm
- Bottle cap’s outer diameter：Φ20~120 mm
- Overall size (L*W*H)：2200*1050*1900mm
- Weight：650 KG
Induction sealing machine
- Sealing speed：120~200 bottles/min
- Applicable size：ø20mm~ø60mm
- Production capacity：50-120 bottles per minute
- Machine size：1600*600*1400mm
- Machine weight：100kg
Labeling machine
- Applicable size：Round bottle
- Labeling speed：20~120 bottles/min
- Bottle diameter：Φ20~80 mm
- Bottle height：35-200mm
- Machine size：2000*700*1650mm
- Weight：280kg
Automatic bottle sorting, can be customized machine, suitable for bottles of different shapes, conveying bottles to the filling area to improve production efficiency.
This machine can be widely used for counting and bottling of candies and other foods,and other materials of various shapes and sizes. It has the function of automatically removing materials of different sizes and troubleshooting, with high filling accuracy.
This desiccant inserting machine can automatically three side seal and fill. Adjustable parameters, suitable for different specifications. Automatically identify desiccant not in bottle alarm to ensure accuracy.
Use high -power servo motor drive，this machine automatically complete the process of automatic bottle feeding, cap unscrambling, cap conveying, bottle screwing and bottle discharging.

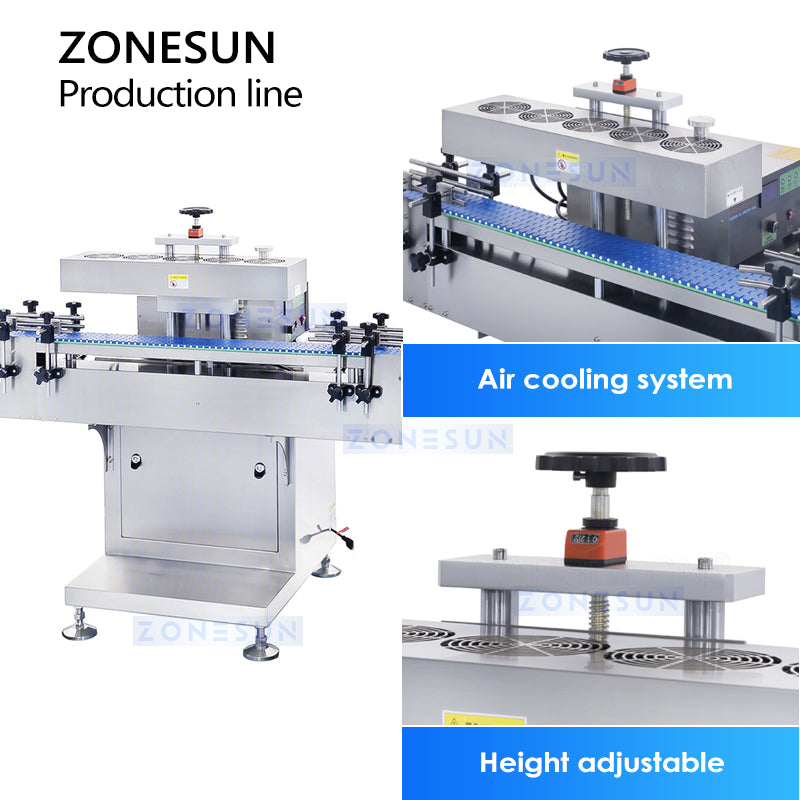

The sealing power can be automatically adjusted according to the size of the aluminum foil, and it utilizes air-cooling technology to ensure faster cooling speed and durability of the machine.
This Labeling machine has simple structure. Equipped with a PLC touch screen control panel, it can adjust parameters in real-time according to the label position, and simple operation.
