ZONESUN ZS-YTFS2 Pneumatic Standing 2 Nozzles Liquid Filling Machine

Overview

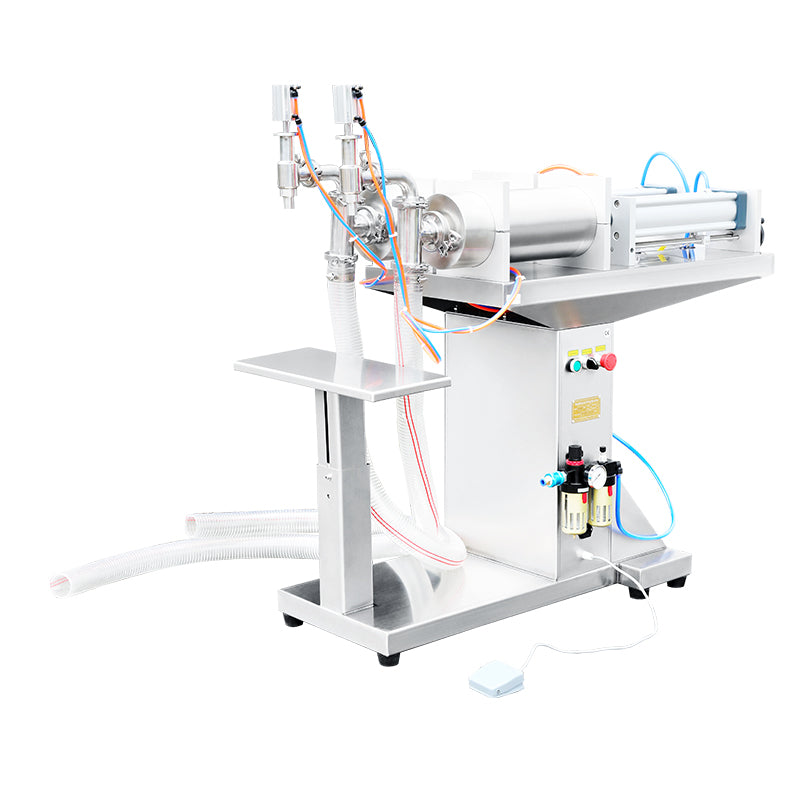

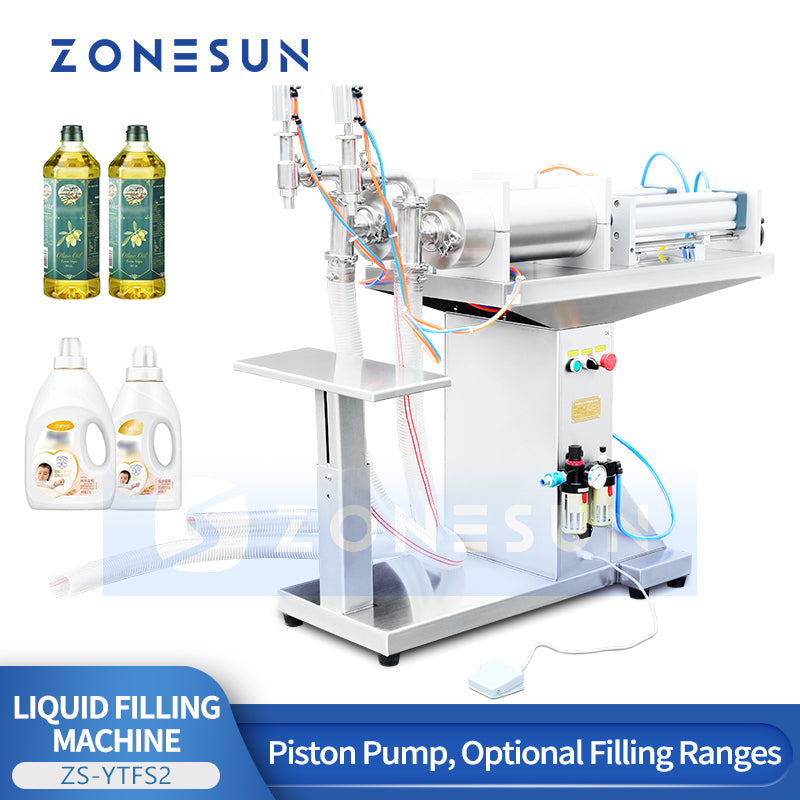

The ZONESUN ZS-YTFS2 is a pneumatic piston liquid filling machine featuring dual filling nozzles and a wide volume range of 10 mL to 5,000 mL. Powered by both electricity and compressed air, it delivers ±0.5% filling accuracy at speeds of 12–20 bottles per minute, making it suitable for viscous and non-viscous liquids alike — including beverages, edible oils, shampoos and hand sanitizers. The height-adjustable bottle holder accommodates diverse container sizes without tooling changes, and each unit is pre-tested with water before shipment to guarantee performance upon arrival.

Technical Parameters

• Machine Type: Pneumatic Piston Liquid Filling Machine
• Voltage: 220V / 50Hz or 110V / 60Hz
• Power: 100W
• Energy Source: Electric + Pneumatic
• Gas Capacity: >30 L

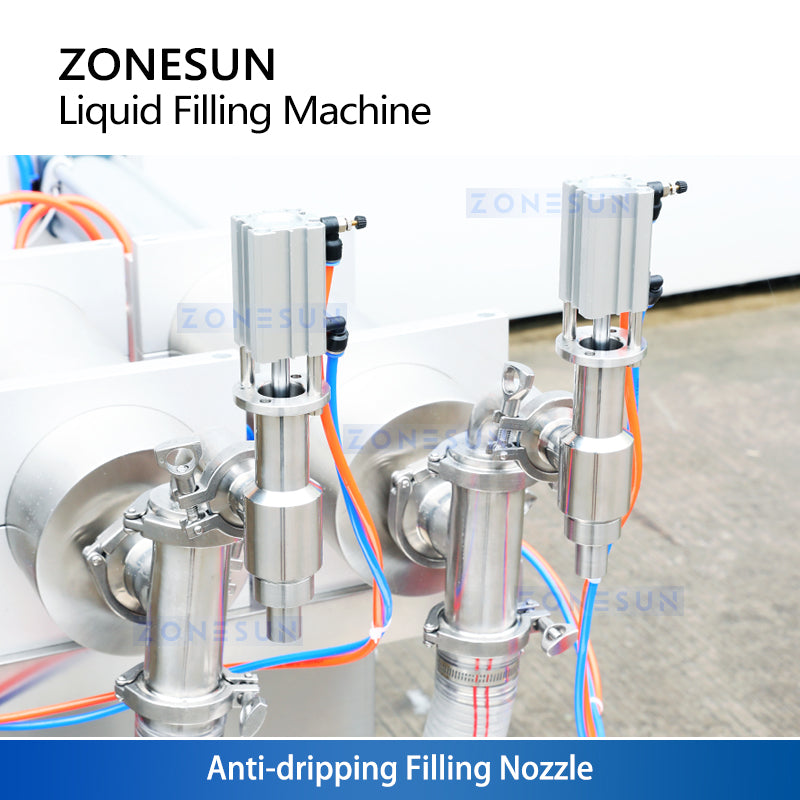

• Filling Nozzles: 2

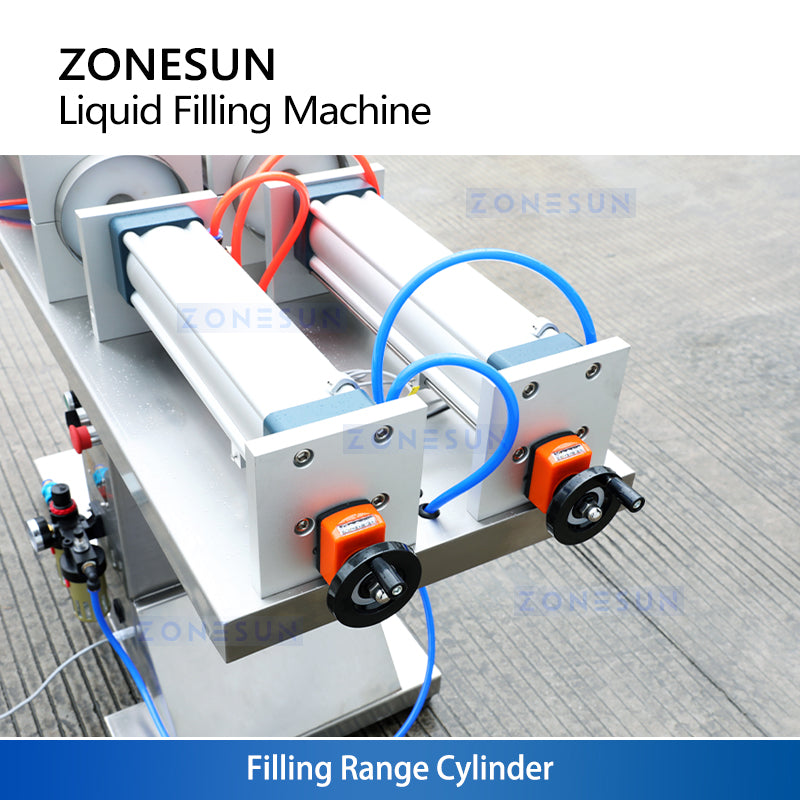

• Filling Range: 10–100 mL / 10–300 mL / 50–500 mL / 100–1000 mL / 500–3000 mL / 1000–5000 mL
• Filling Speed: Approx. 12–20 bottles/min
• Filling Accuracy: ±0.5%
• Air Pressure: 0.4–0.6 MPa
• Bottle Holder: Height adjustable
• Package Weight: Approx. 72.5 kg

Key Features

• Dual Nozzle Simultaneous Filling: Two nozzles fill two containers at once, doubling throughput versus single-nozzle machines at the same cycle speed — ideal for small-to-medium production runs where efficiency matters without the cost of a full multi-head system.
• Ultra-Wide Volume Range (10 mL – 5,000 mL): Six selectable filling ranges cover everything from small cosmetic vials to large 5-liter containers, allowing one machine to serve multiple product SKUs without mechanical replacement.

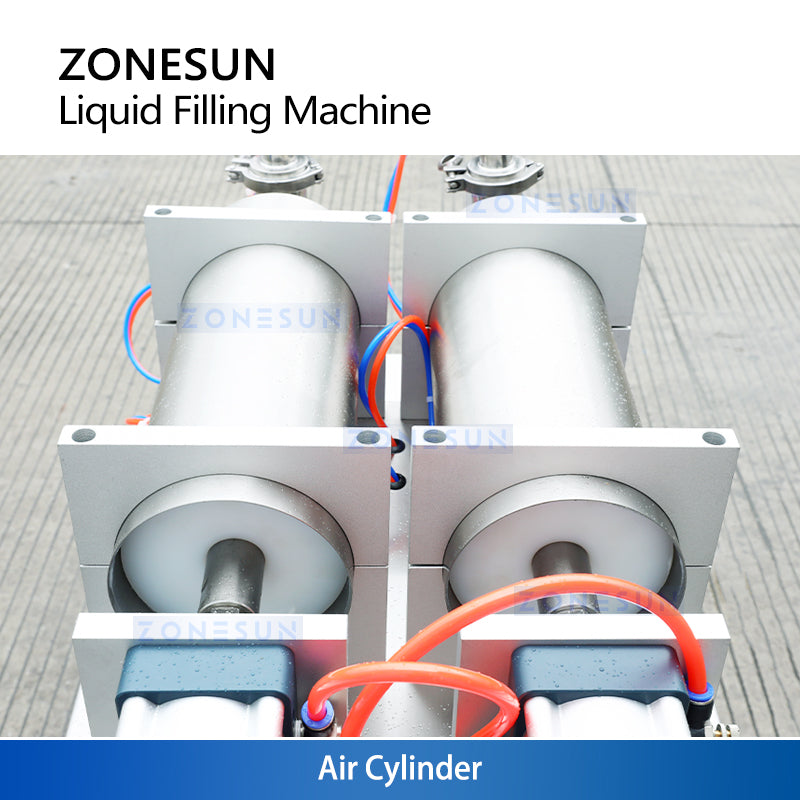

• ±0.5% High-Precision Piston Dosing: Pneumatic piston mechanism delivers consistent, repeatable fill volumes with ±0.5% accuracy — tighter than most gravity or peristaltic alternatives — minimizing product giveaway and meeting fill-weight compliance requirements.
• Electric + Pneumatic Dual Drive: Combined electric and compressed air power source provides smooth, controllable piston actuation suitable for both thin liquids (water, juice) and moderately viscous products (shampoo, oil, sauce).

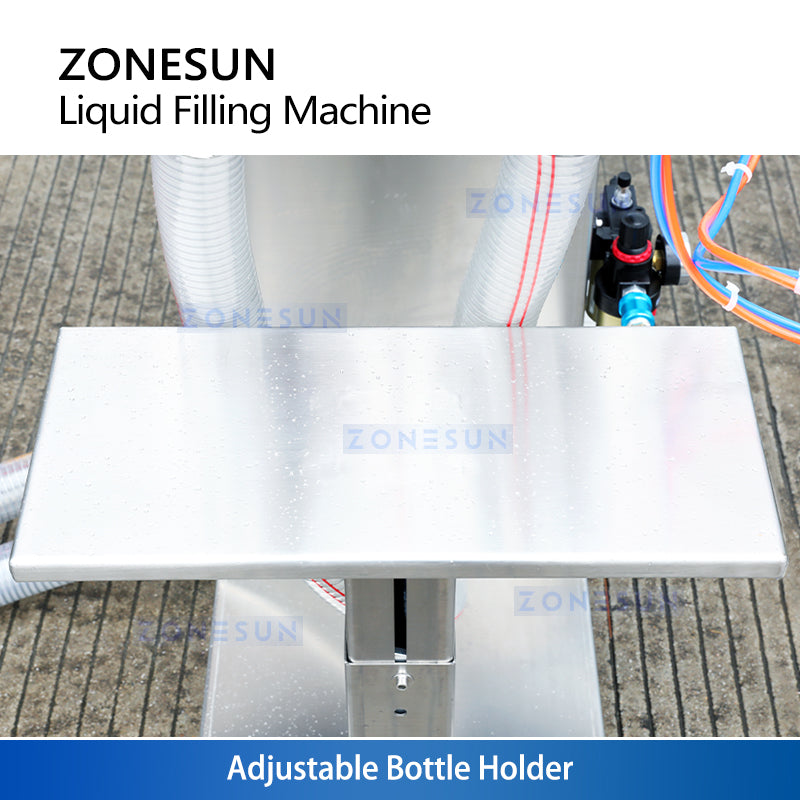

• Height-Adjustable Bottle Holder: Tool-free height adjustment accommodates containers of different sizes without requiring changeover parts, reducing downtime between product runs.
• Dual Voltage Support (110V / 220V): Ships in both North American and international voltage configurations, enabling global deployment without electrical modification.
• Pre-Tested Before Shipment: Every unit is water-tested at the factory prior to dispatch, ensuring the machine is fully calibrated and operational upon arrival — reducing setup time and commissioning risk.
• Compact Vertical Footprint: Standing upright design minimizes bench and floor space usage, making it suitable for small production rooms, lab environments, or pilot-scale operations.

Applications

• Food & Beverage: Juice, water, milk, edible oil, vinegar, sauce, and condiment filling into glass or plastic bottles for food production and co-packing.
• Personal Care & Cosmetics: Shampoo, conditioner, body wash, lotion, hand sanitizer, and liquid soap filling for retail, salon, and private label brands.
• Pharmaceutical & Nutraceutical: Oral liquids, syrups, tinctures, and supplement solutions filling into amber or clear glass bottles under controlled conditions.
• Perfume & Essential Oils: Alcohol-based and oil-based fragrance filling into glass vials and bottles for perfume brands, aromatherapy, and wellness product lines.
• Laboratory & Pilot Production: Small-batch liquid dispensing for R&D, quality control sampling, and pilot-scale production runs requiring precise, repeatable fill volumes.
