ZONESUN ZS‑GTJ Pneumatic Paste Filling Machine With Mixer

Description

The ZONESUN Paste Filling Machine is a high-performance, pneumatic piston filler featuring an integrated heating and mixing hopper, designed for accurately filling high-viscosity products like arequipe, creams, and sauces. Built with food-grade stainless steel, this machine ensures consistent, drip-free, and hygienic packaging for various thick, viscous materials.

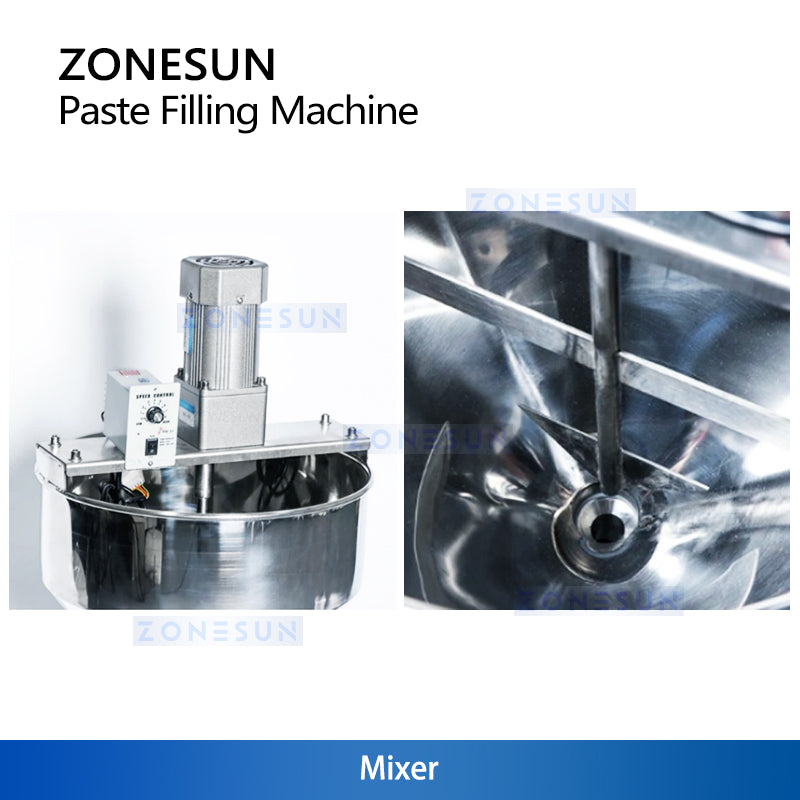

ZONESUN Paste Filling Machine with Mixing & Heating Hopper

Precision Filling for Viscous Liquids, Creams & Arequipe

Streamline your production with the ZONESUN Industrial Paste Filling Machine. Engineered specifically for high-viscosity products, this machine combines a powerful pneumatic piston filler with a specialized mixing and heating hopper. Whether you are packaging thick food products like arequipe or cosmetic creams, this equipment ensures a consistent, drip-free fill every time.

NOTE

Air compressor required,Sold separately

PARAMETER

Model：ZS-GTJ
Type：Paste Filling Machine

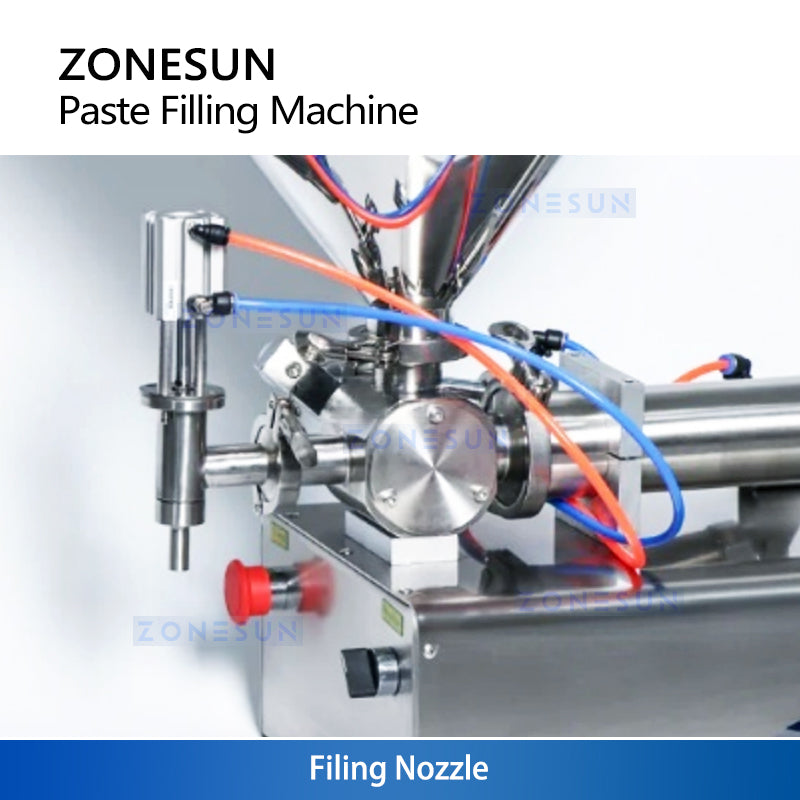

Filling Nozzle：Single Nozzle (Double Nozzle Optional)
Filling Speed：5–25 bottles/min
Filling Range：10-100ml/10-200ml/30-300ml/50-500ml/100-1000ml/500-2500ml/1000-5000ml
Rotation Speed：0–1700 r/min
Filling Accuracy：≤ ±0.5% – 2%
Air Pressure：0.4–0.6 MPa
Air Tank Capacity：＞30 L
Machine Size (L×W×H)：773 × 280 × 910 mm
Packing Size：930 × 360 × 335 mm (Machine)440 × 455 × 505 mm (Hopper)
Net Weight：34.5 kg
Gross Weight：25 kg (Machine)14.5 kg (Hopper) based on machine Volume

220/110V 50/60HZ (if you need 110v , please inform us ,then we will make 110v for you )

· Approximate Speed 20-40 pcs/min (depending on operator speed, product density, draw length, a fill speed, among others)

· All Parts in Contact with Product are Food Grade (SS 304/316)

· Includes one 30Liter Hopper

· Stainless Steel Construction

· Rugged Rotary Valve System Design

· Pneumatic Operation

· Silica gel O-ring System(cam bear 200 Celsius degree)

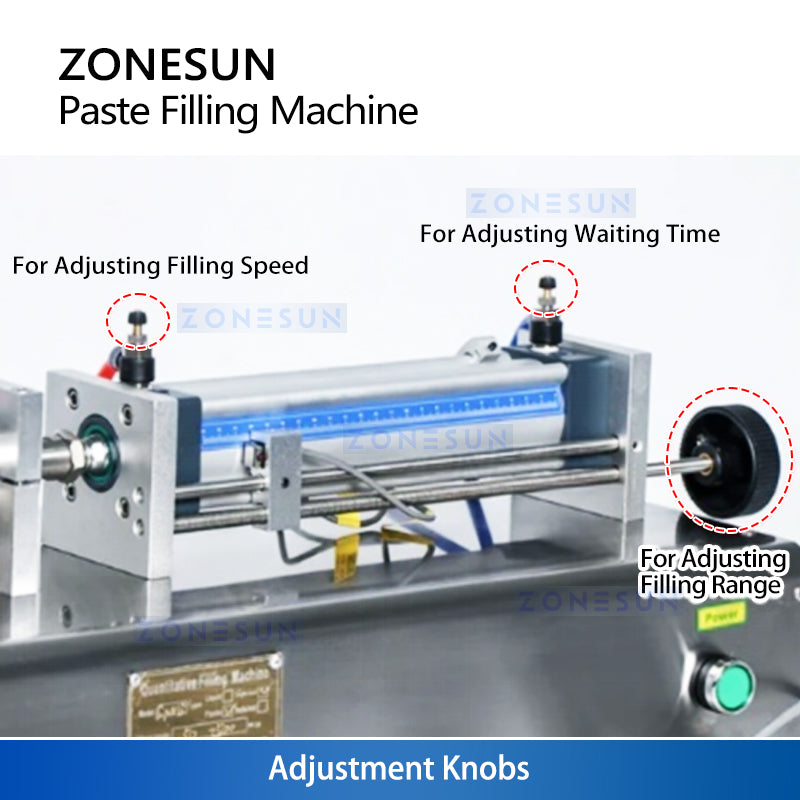

· Piston Feed Speed Adjustment

· No-drip Option Included and Installed

· Extremely Accurate (+/- 1%)

· Extremely Easy to Clean and Maintain

· Sanitary Stainless Steel Quick Disconnect Fittings

· Extremely Easy to Operate

· Quick Connect/Disconnect Pneumatic Fittings.

Control Panel:

Semi Auto/Continuous Operation Selector Switch

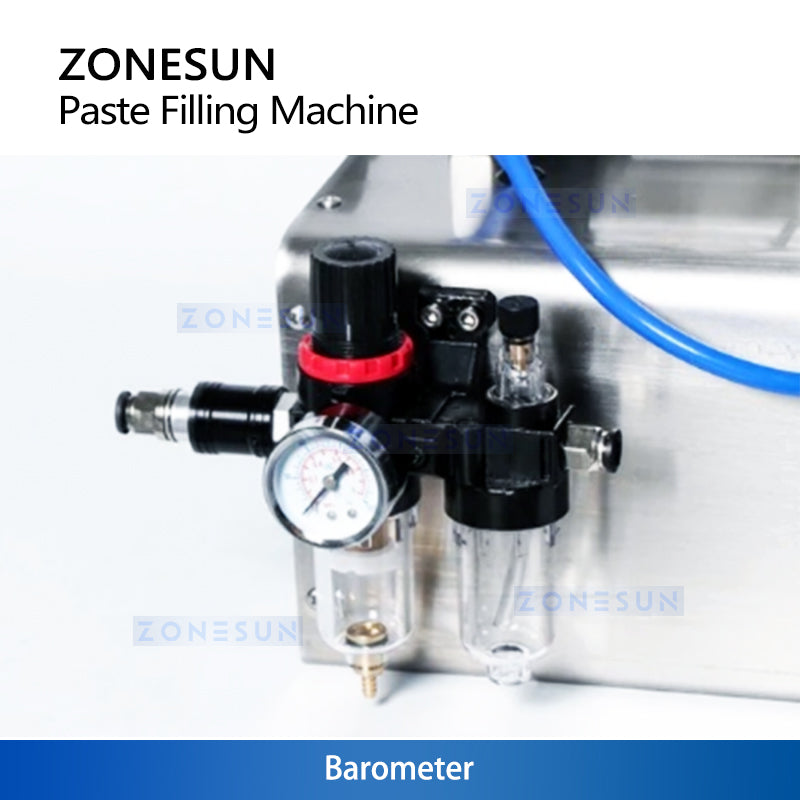

Air Pressure Gauge

Air Intake Pressure Adjustment

Piston Volume Adjust

Accessory

Air Consumption 3-5KG 0.4-0.6MPa

Wearing parts : Silica gel O-ring System (when delivery, we will prepared enough for you use in one year. Customer can buy in the future in their country)
