Description
This filling capping machine is designed for filling liquid into spout pouch bag like laundry detergent, essence,juice.It is equipped with piston pump,different filling range can be chosen as need.It is widely used in food,daily chemical industries.
Parameter
- Model：ZS-ASP2
- Working Mode：Manual pouch hanging + automatic quantitative filling +
- automatic cap feeding + automatic capping + automatic pouch discharge
- Control System：PLC with HMI touch screen
- Compliance：Meets GMP food hygiene requirements
- Filling Volume：50–500 mL
- Production Capacity：800–1200 pouches/hour
- Total Power：1 kW
- Power Supply：220V / 50Hz
- Air Pressure：0.6–0.7 MPa
- Machine Weight：Approx. 160 kg
- Overall Dimensions：1160 × 1100 × 1510 mm
Control Panel
Provides centralized control with easy parameter setting, real-time monitoring, and a PLC interface with customizable language options.
Filling Structure
Provides accurate and hygienic dosing into stand‑up pouches through a stable, controlled filling mechanism.
Capping Head
Applies and tightens caps onto filled stand-up pouches with precise positioning and stable torque control, ensuring secure and consistent sealing.
Spout Pouch Feeding Structure
Feeds and positions spout pouches accurately into the filling and capping stations, ensuring stable transfer, correct alignment, and continuous automated operation.

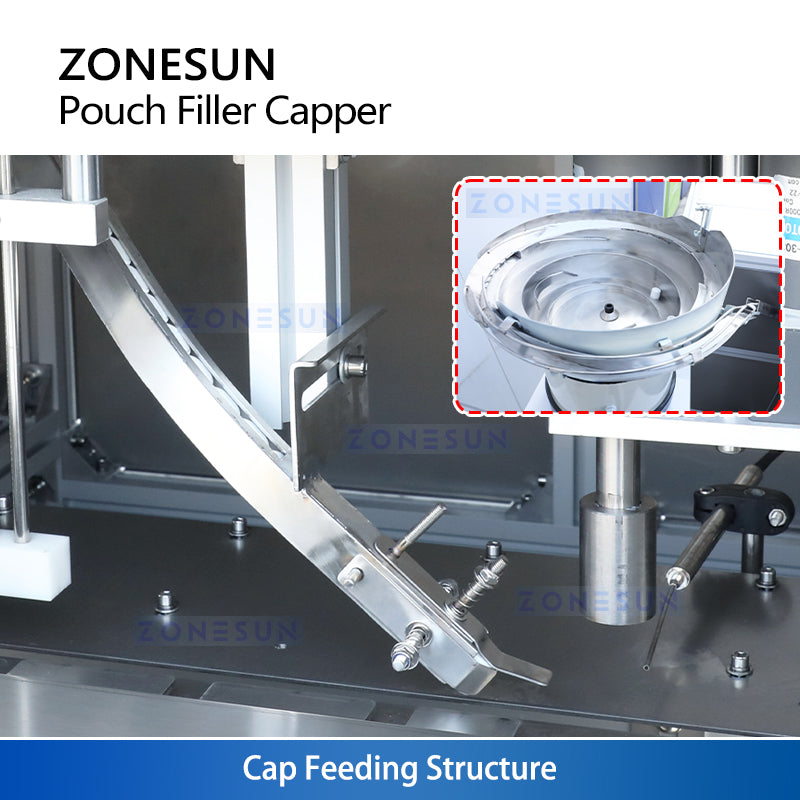

Cap Feeding Structure
Sorts, orients, and feeds caps in a stable, continuous flow to the capping station, ensuring correct direction and smooth automated operation.
