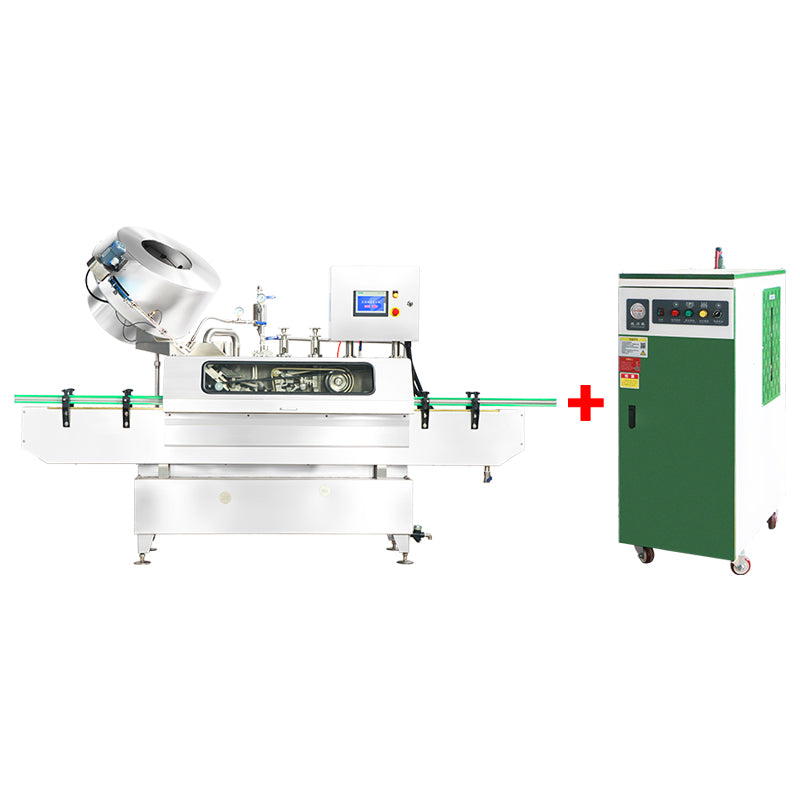

ZONESUN ZS-XG01 Steam Vacuum Can Sealing Machine
ZONESUN ZS-XG01 Steam Vacuum Can Sealing Machine
Nie można załadować gotowości do odbioru
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
Description
Introducing our latest product, the High-Speed Steam Vacuum Capping Machine! This advanced machine is designed for efficient sealing of bottles using steam injection and vacuum technology. The bottle sealing process is seamlessly automated, ensuring airtight and hygienic packaging. With a production capacity of 4800-9000 bottles per hour, it's perfect for your business needs. Say goodbye to manual capping and hello to increased productivity and reliable vacuum sealing!
Parameter Specification
Power Supply 220V / 380V, 3.12kW
Working Capacity 80–150 bottles/min
Cap Diameter Φ38–53mm or Φ53–82mm (customizable)
Bottle Diameter Φ38–100mm (customizable)
Bottle Height 65–260mm (customizable)
Steam Consumption 182–227kg/h
Steam Pressure ≤0.4MPa
Vacuum Degree 34–67KPa
Cap Feeder Payload 1000–2000 pcs
Machine Size Approx. 3000 × 1100 × 2010mm
Machine Weight Approx. 1100kg
INFEED
The machine is equipped with a cap feeder system that ensures a steady supply of caps for the capping process. The cap slide incorporates a sensor for cap detection, ensuring efficient and reliable operation by preventing issues related to cap supply shortages.
CAP PLACEMENT
This feature eliminates the need for manual cap placement, saving time and reducing labor costs. The bottles seamlessly carry the caps and undergo a smooth and efficient capping process, ensuring consistent and accurate cap positioning.
SEALING
The caps go through a pre-tightening stage in the limiting cap guide, facilitated by foot pressure and pre-sealing blocks. This step ensures secure positioning of the caps before the final sealing process. The differential belt pressure plate then tightly seals the caps using two differential flat belts, guaranteeing consistent and reliable sealing results.
STEAM & VACUUM
The integration of steam injection and vacuum technology guarantees airtight and hygienic sealing. The steam injection area replaces the air in the bottle neck with high-speed steam, eliminating any potential contaminants. The subsequent vacuum sealing process ensures a reliable and secure seal, preserving the quality and freshness of the packaged products.
