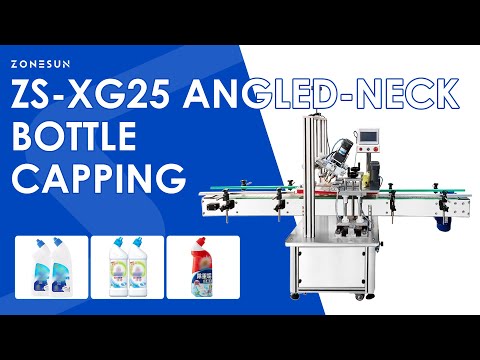

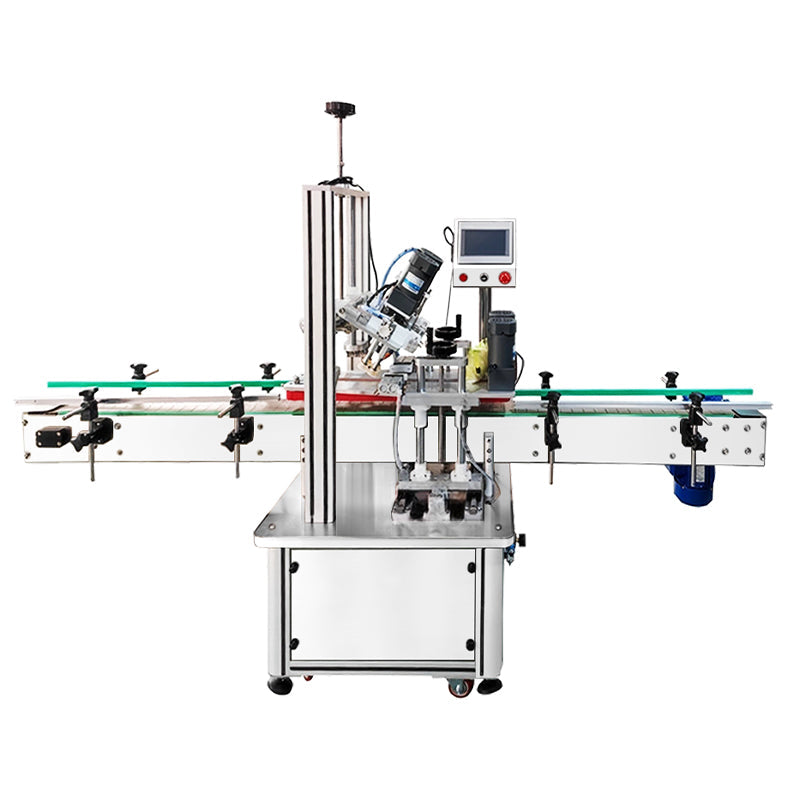

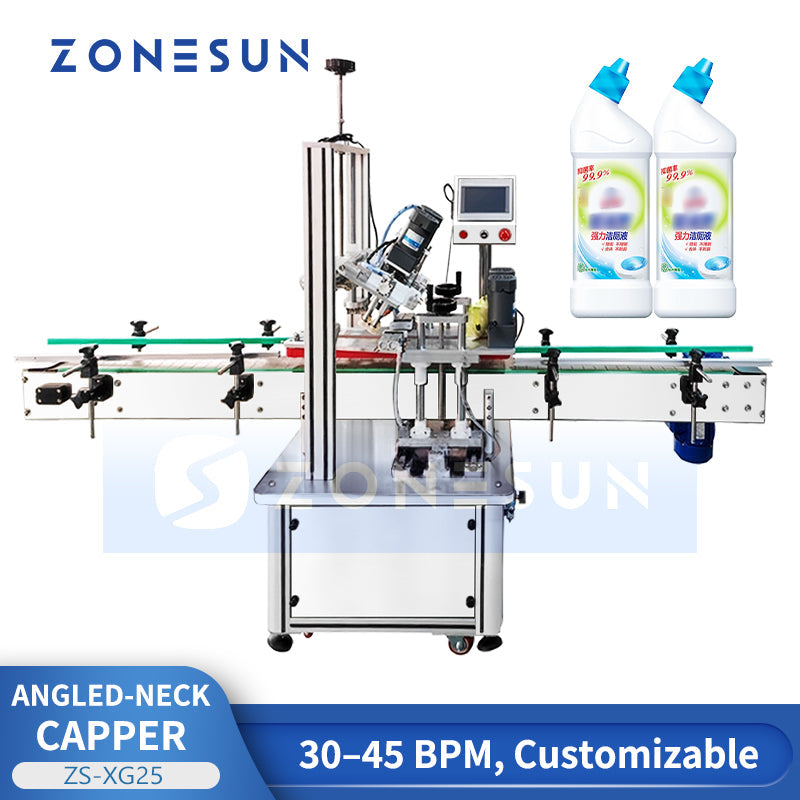

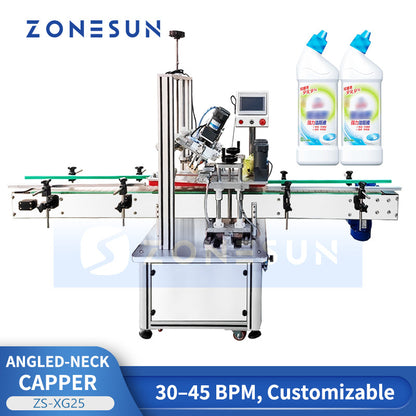

ZONESUN ZS-XG25 Automatic Angled-Neck Regular Bottle Capping Machine

Description

The ZONESUN ZS-XG25 is an automatic angled-neck bottle capping machine designed for both angled-neck and regular bottles. Running at 30–45 bottles per minute, it features an adjustable capping head, dual-side synchronized adjustment, and a bottle holding conveyor system to ensure stable and precise operation. Built with 304 stainless steel and aluminum alloy, the machine offers durability, hygiene, and compliance with production standards. With its fiber optic sensor head, chain plate conveyor, and customizable design, it provides reliable, efficient, and versatile performance for medium to large-scale production lines, commonly used for toilet cleaners, disinfectants, shampoos, and other angled-neck packaging.

Parameter

• Model: ZS-XG25
• Production Capacity: 30–45 bottles/min
• Power Consumption: 800 W
• Cap Size Range: 20–60 mm (customizable)
• Working Voltage: 220 V / 50 Hz
• Applicable Bottle Height: 30–330 mm
• Working Air Pressure: 0.4–0.6 MPa
• Material: 304 stainless steel / aluminum alloy
• Machine Dimensions (L×W×H): 200 × 75 × 165 cm
• Machine Weight: 150 kg

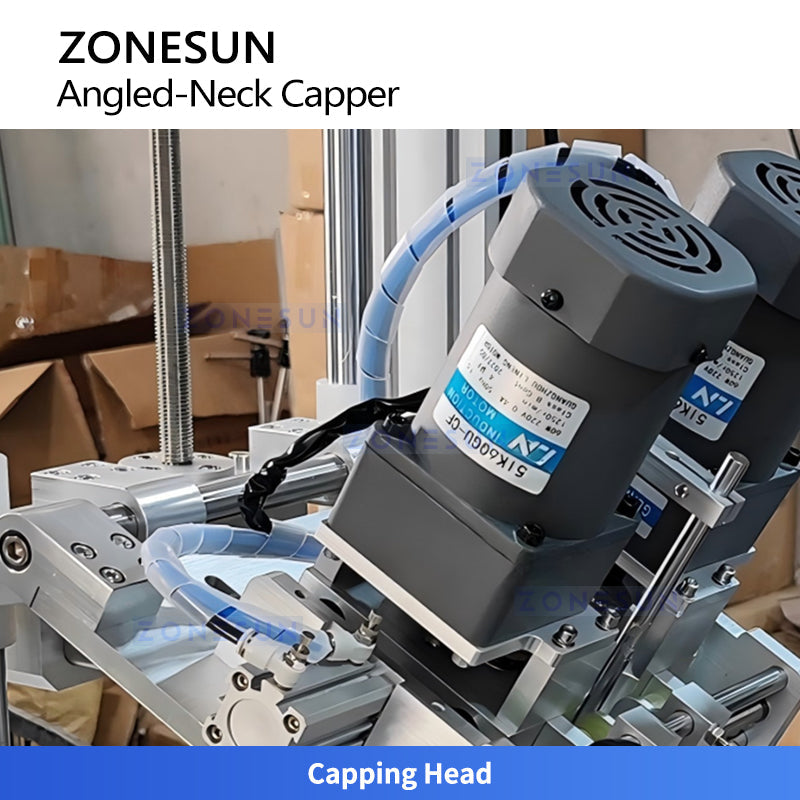

Capping Head

Adjustable capping head that allows angle tuning to cap both angled-neck and regular bottles securely.

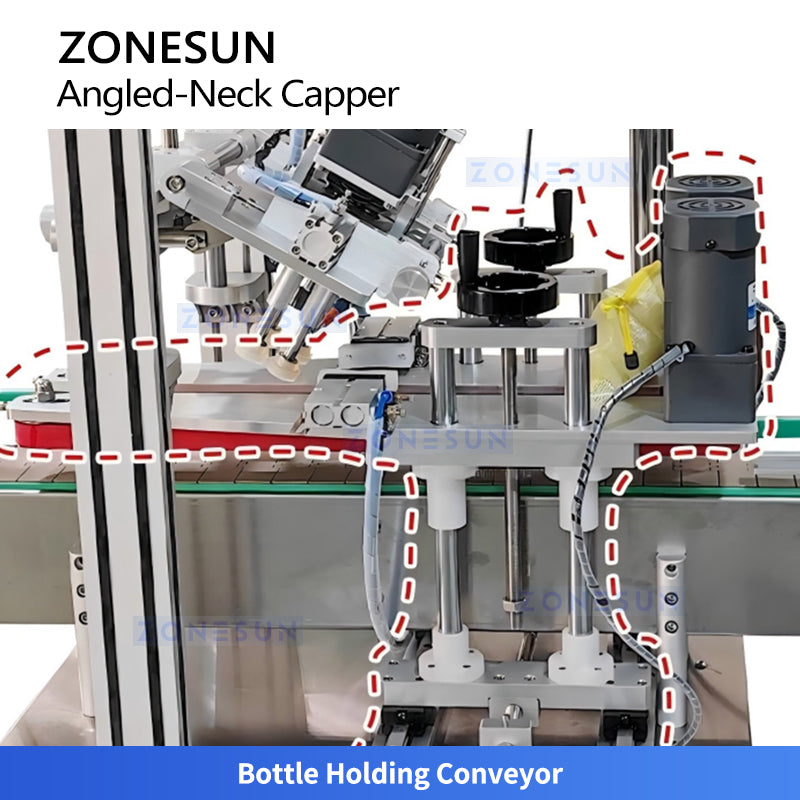

Bottle Holding Conveyor

Clamps bottles with sponge rubber belts to stabilize transfer, prevent tipping, and ensure smooth capping workflow.

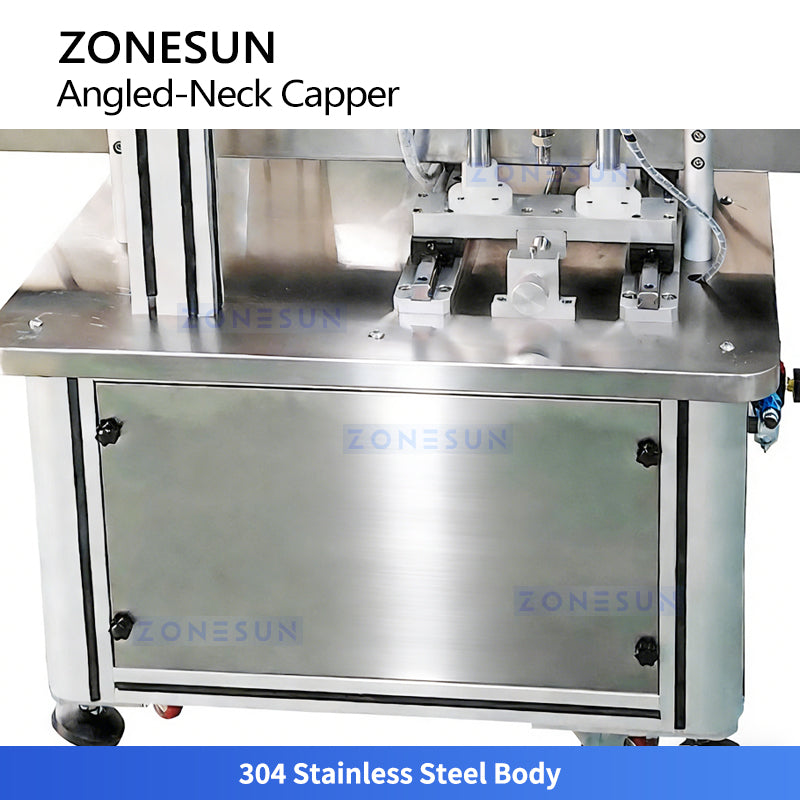

304 Stainless Steel Body

Constructed with 304 stainless steel for durability, safety, hygiene, and compliance with production standards.

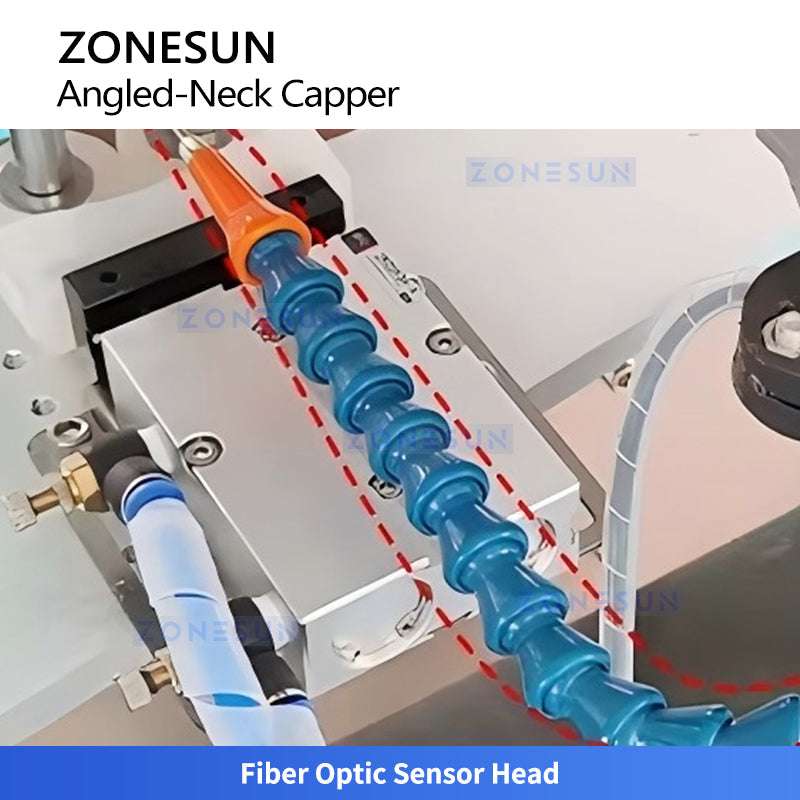

Fiber Optic Sensor Head

Fiber optic sensor head with 360° adjustable mount, detects bottle position for accurate capping.

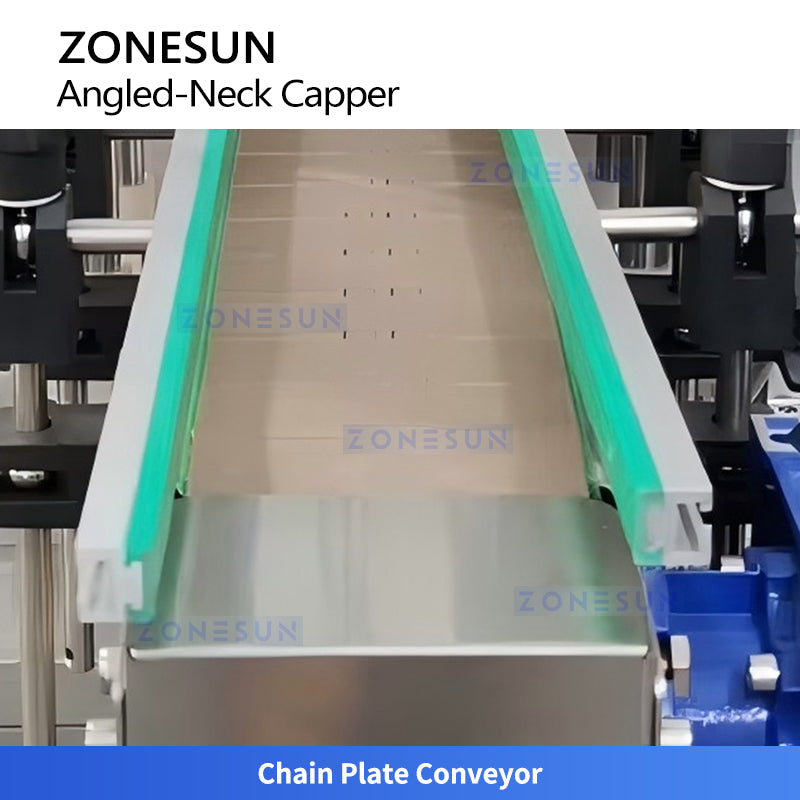

Chain Plate Conveyor

Superior durability and load capacity, adjustable speed, and customizable dimensions for stable bottle transfer.

Convenient Capping Adjustment

Dual-side synchronized adjustment ensures quick, accurate positioning of capping heads for stable operation.
