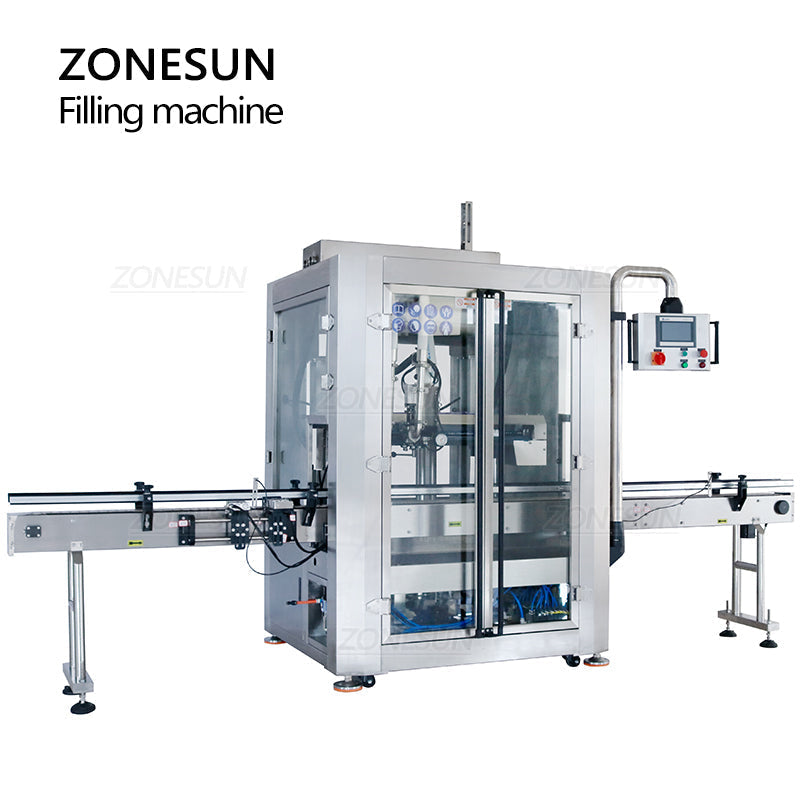

ZONESUN ZS-VTPF2 Automatic Double Tracking Heads Paste Liquid Filling Machine

$18,799.00 USD

~~$19,299.00 USD~~ $18,799.00 USD

W promocji Wyprzedane

Koszt wysyłki obliczony przy realizacji zakupu.

Material SUS 304 SUS 316

Voltage 110V 220V

Pre-sale Support

Chinese Company： Guangdong Shanghang Technology Co., Ltd.

Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223

ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.

Feature

1.With double tracking heads, it will fill materials by moving with the bottles automatically, no need to stop to fill. Greatly improve work efficiency.

2.With high-quality electric eye, it will detect bottles accurately. Intelligent and efficient.

3.With high precise piston, it will fill materials accurately. Ensure production quality.

4.With movable stock bin, it is convenient to feed materials and clean the stock bin. Save labor cost.

5.With chain conveyor belt, it can transport containers stably, improving working efficiency.

6.This machine can work in production line, realizing manless production.

Parameter

Machine Model：ZS-VTPF2
Voltage：380V
Power：3.4kW
Filling Head：2 Heads
Filling Range：200-2000mL (Can be customized)
Filling Speed：2400-3600bottles/hour(depend on material and bottle size)
Filling Accuracy：±1%
Air Pressure：0.6-0.7Mpa
Air Consumption：6-7m³/min
Machine Material：Stainless Steel
Machine Size：3000*1500*2100mm
Machine Weight：650kg

Application

This machine is suitable for filling paste or liquid, such as cream, honey, shampoo, laundry detergent, juice, etc. It can work with automatic capping machine and labeling machine, realizing automated production. The machine can be widely used in pharmaceutical, beverage, daily chemical industries. Help to improve work efficiency.

Attention

1.This machine will be shipped by sea. If you want a faster shipping, please contact us.

2.This machine can be customized as needed. Please contact us if you need. Thank you!

PLC Control Panel

With touch screen panel, it’s easy to set parameters and control the machine. The language of panel can be customized according to customers’ need.

Tracking Heads

Different from other machines, the filling heads of this one will move as bottles move during filling, which greatly improves working efficiency. Driven by powerful air cylinder, it will fill viscous liquid quickly and accurately.

Intelligent Control

With electric eye, it will detect bottles accurately and control machine to work automatically. Intelligent and efficient. The plate is designed for separating bottles during working, ensuring they can be transported in order.

Conveyor Belt

With chain conveyor belt, it can transport heavy bottles stably and smoothly, saving labor cost. The width of conveyor belt can be adjusted according to bottles’ size. Easy to operate.
