Description

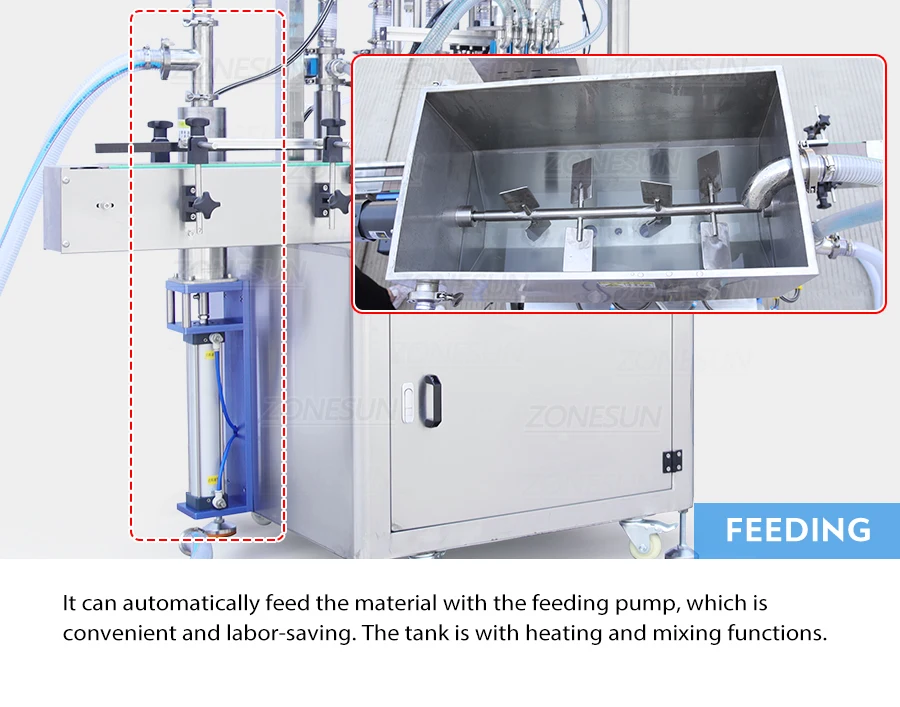

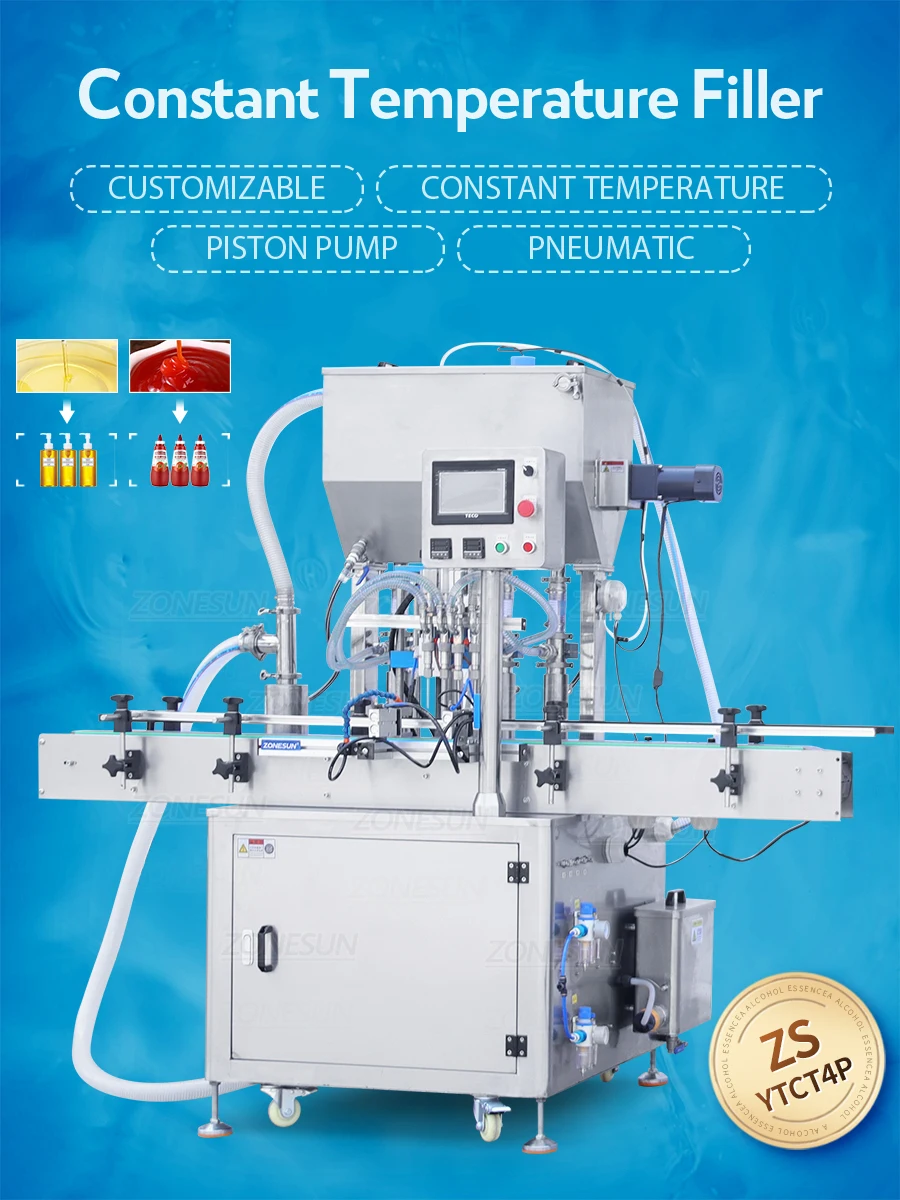

The ZONESUN ZS-YTCT4P is an automatic constant temperature paste feeding and filling machine equipped with a feeding pump and a constant temperature system. Unlike standard filling machines, it maintains the liquid or paste at a consistent temperature throughout the entire feeding-to-filling process, ensuring stable viscosity and accurate dosing for temperature-sensitive materials.
Available in Standard and With Heater and Mixer configurations, it supports filling ranges from 10ml to 1,000ml across three selectable ranges, with 4 filling nozzles (customizable) and a capacity of 30–100 bottles/min.

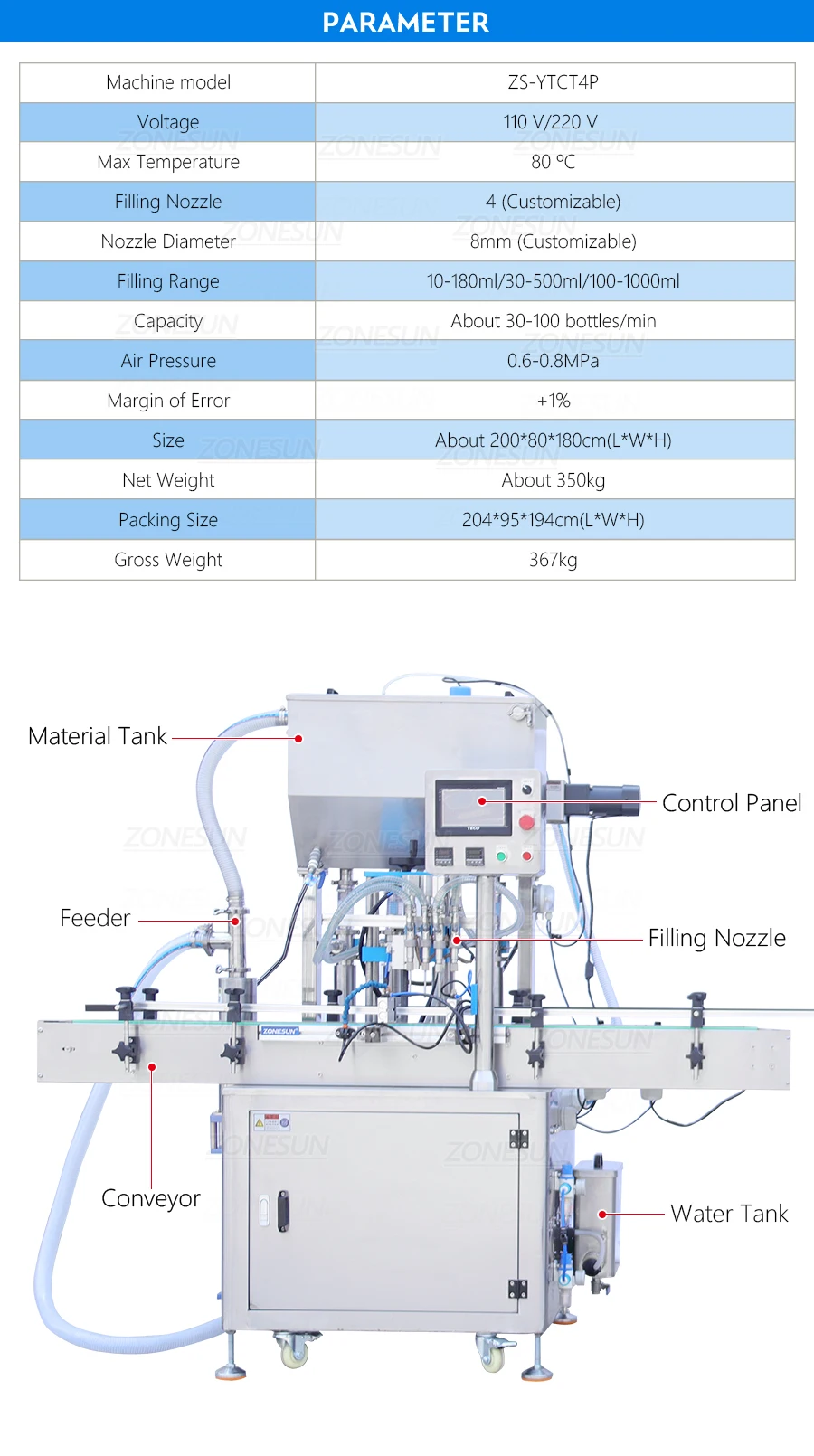

Technical Specifications
- Model: ZS-YTCT4P
- Voltage: 220V (single phase / 3-phase) / 380V (3-phase)
- Max Temperature: 80°C
- Filling Nozzles: 4 (customizable)
- Nozzle Diameter: 8mm (customizable)
- Filling Range: 10–180ml / 30–500ml / 100–1,000ml (selectable)
- Capacity: Approx. 30–100 bottles/min
- Filling Accuracy: ±1%
- Air Pressure: 0.6–0.8 MPa
- Machine Size (L×W×H): Approx. 2,000 × 800 × 1,800mm
- Net Weight: Approx. 210kg
- Package Size (L×W×H): 2,040 × 950 × 1,940mm
- Gross Weight: 367kg
Configuration Options
- Standard: Base constant temperature paste filling machine
- With Heater and Mixer: Includes integrated heating and mixing unit for materials requiring pre-heating or continuous agitation during filling

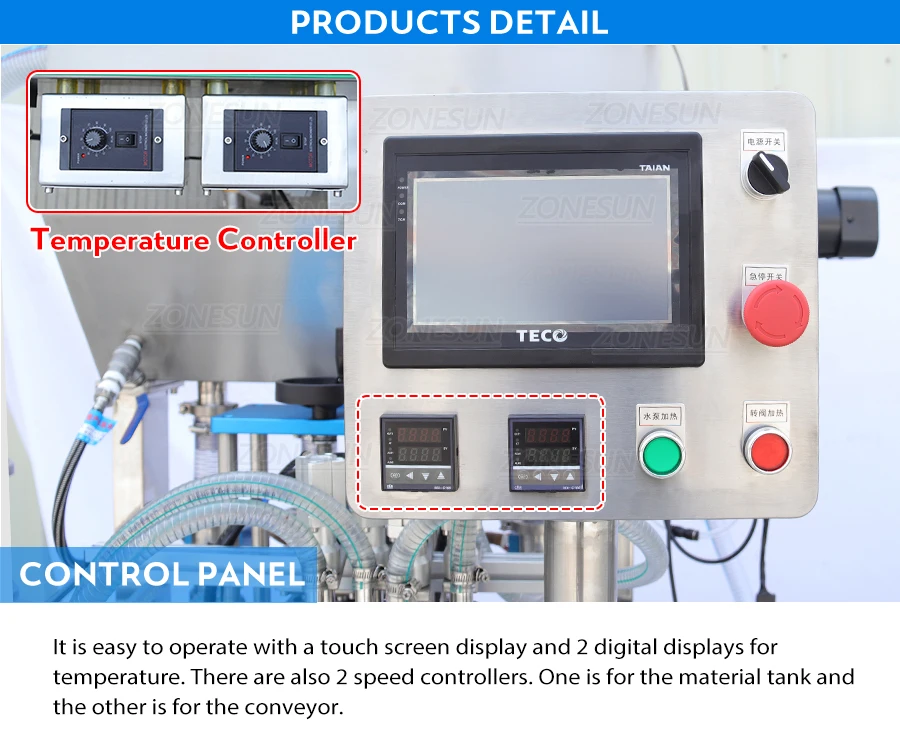

CONTROL PANEL It is easy to operate with a touch screen display and 2 digital displays for temperature. There are also 2 speed controllers. One is for the material tank and the other is for the conveyor.

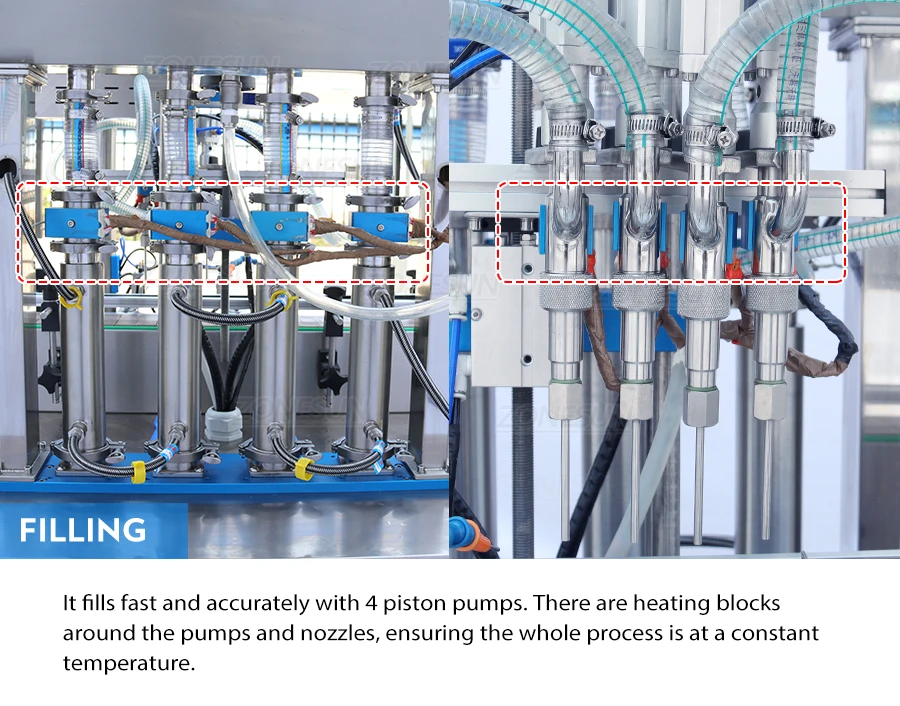

FILLING It fills fast and accurately with 4 piston pumps. There are heating blocks around the pumps and nozzles, ensuring the whole process is at a constant temperature.

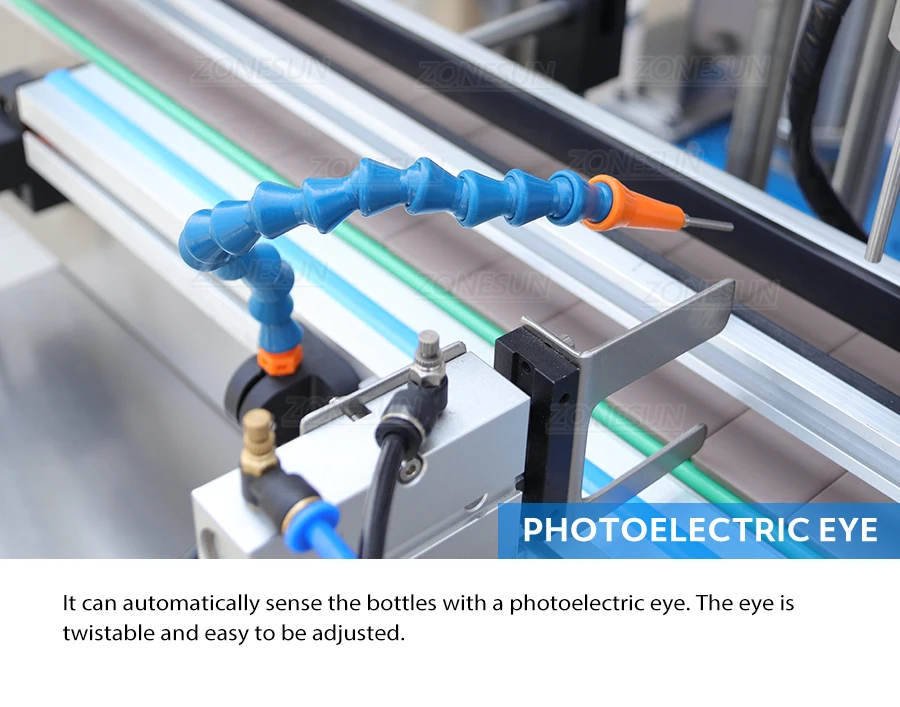

PHOTOELECTRIC EYE It can automatically sense the bottles with a photoelectric eye. The eye is twistable and easy to be adjusted.

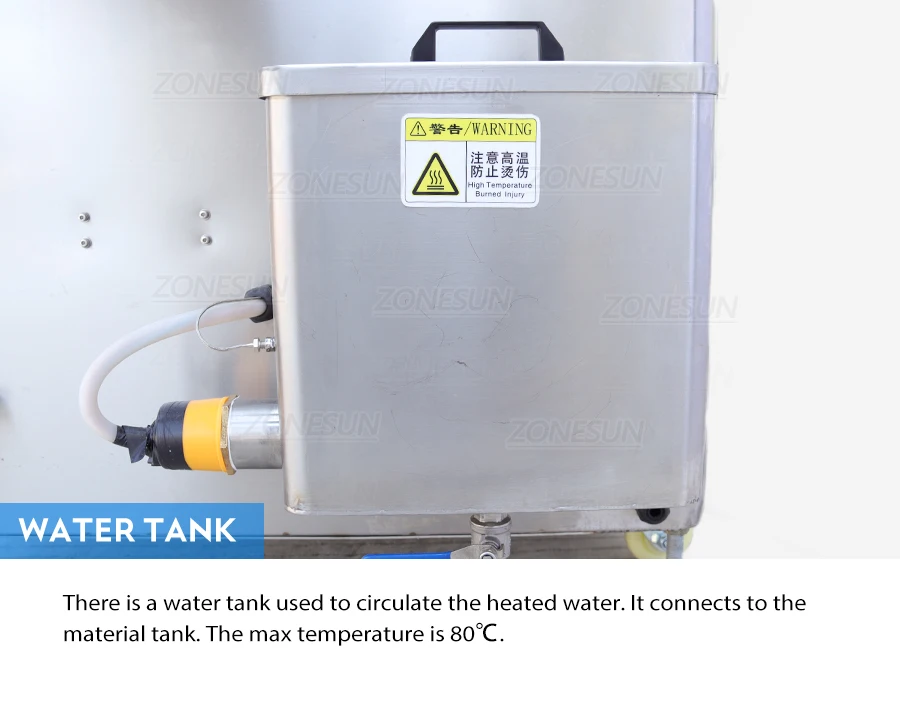

WATER TANK There is a water tank used to circulate the heated water. It connects to the material tank. The max temperature is 80°C.
Why Choose the ZS-YTCT4P?
- ✅ Constant Temperature System: Maintains material temperature up to 80°C from feeding to filling for consistent viscosity and accurate dosing
- ✅ High Speed: 30–100 bottles/min for efficient production across small to large-scale operations
- ✅ Wide Filling Range: 10ml–1,000ml across three selectable ranges for maximum product flexibility
- ✅ 4 Filling Nozzles: Simultaneous multi-nozzle filling for high throughput (customizable quantity)
- ✅ ±1% Filling Accuracy: Precise dosing for consistent product quality and minimal waste
- ✅ Optional Heater + Mixer: Integrated heating and mixing for materials requiring pre-heating or continuous agitation
- ✅ Customizable Nozzle Size: 8mm standard nozzle diameter, customizable to suit your product
- ✅ Multi-Voltage: 220V (single/3-phase) and 380V (3-phase) options for global compatibility
Ideal Applications
- 🍯 Food: Sauce, jam, honey, peanut butter, salad dressing, chili paste, cooking oil
- 🧴 Cosmetics: Cream, lotion, body butter, shea butter, hair conditioner, face mask
- 🧼 Daily Chemical: Shampoo, body wash, detergent, hand sanitizer, liquid soap
