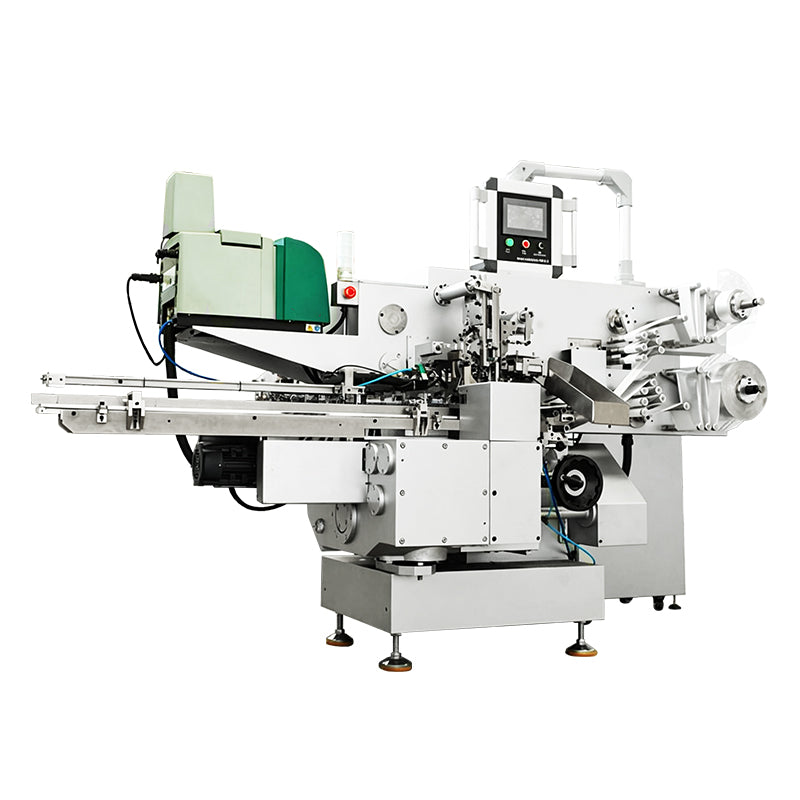

ZONESUN ZS-CWM2 High Speed Chocolate Bar Wrapping Machine with Automatic Film Wrapping System

ZONESUN ZS-CWM2 High-Speed Automatic Chocolate Bar Wrapping Machine

The ZONESUN ZS-CWM2 is a high-speed automatic chocolate folding and wrapping machine engineered for industrial confectionery production. Supporting both envelope-style and fold-style wrapping with pre-printed foil, PET, or plastic film, it achieves 200–260 pcs/min with a packaging qualification rate of ≥ 98%. Designed for square, rectangular, and trapezoidal chocolate bars, cookies, and similar products, it integrates PLC control, photoelectric eye film tracking, and hot melt sealing to deliver precise, attractive packaging at scale.

Technical Specifications

• Model: ZS-CWM2
• Packaging Speed: 200–260 pcs/min
• Voltage: 380V 50Hz 3-Phase
• Product Size Range: L: 10–80 mm, W: 4–45 mm, H: 4–35 mm
• Packaging Materials: Foil, PET, plastic film
• Packaging Qualification Rate: ≥ 98%
• Main Motor Power: 3.5 kW
• Conveyor Power: 2.2 kW
• Compressed Air: 0.6 MPa

Applications

The ZS-CWM2 is designed for high-volume confectionery and food packaging production, including:

• Chocolate bars — square, rectangular, and trapezoidal shapes
• Cookies & biscuits — individually wrapped confectionery
• Candy & hard candy — foil-wrapped sweets
• Energy bars & protein bars — film-wrapped snack products
• OEM confectionery production lines requiring high-speed wrapping

HOT MELT SEALING

Advanced heating technology ensures gentle and uniform melting of various hot melt adhesives, preventing carbonization and guaranteeing superior sealing quality

PHOTOELECTRIC SENSOR

Provides real-time feedback to the PLC via sensors to instantly trigger self-protection to prevent defective output upon detecting missing, overlapping, or misaligned products.

PHOTOELECTRIC EYE TRACKING

Corrects film positioning in real-time via high-sensitivity photoelectric sensors to ensure accurate cutting trajectories, keeping the printed designs perfectly centered on the package.

PLC CONTROL

Manages operational configurations via a PLC program and a color touchscreen interface, supporting automatic fault diagnosis and real-time status monitoring.

VERSATILE FOLDING

It achieves various exquisite wrapping styles such as envelope and fold styles, suitable for square, rectangular, or trapezoidal products.

Key Features

• High-Speed Wrapping — 200–260 pcs/min continuous output for demanding industrial confectionery production lines
• Dual Wrapping Styles — Supports both envelope-style and fold-style wrapping to accommodate different product and packaging requirements
• PLC Control System — Precise parameter management, real-time monitoring, and easy format changeover via touchscreen interface
• Photoelectric Eye Film Tracking — Automatic print registration ensures pre-printed film patterns align accurately on every product
• Hot Melt Sealing — Reliable heat sealing delivers tight, professional-grade wrapping with consistent seal quality
• Wide Product Size Range — Handles products from L: 10–80 mm, W: 4–45 mm, H: 4–35 mm with adjustable format settings

Benefits

• High Qualification Rate — ≥ 98% packaging pass rate minimizes waste and rework on the production line
• Versatile Material Compatibility — Works with foil, PET, and plastic film to support different branding and barrier requirements
• Consistent Packaging Quality — Photoelectric tracking and PLC control ensure every bar is wrapped precisely and attractively
• High Production Efficiency — Up to 260 pcs/min throughput reduces per-unit packaging cost at scale
• Easy Line Integration — Conveyor-based design integrates with upstream chocolate molding and downstream cartoning lines
