ZONESUN ZS-LWCSM2 Semi-Automatic Continuous Bag Sealer with Coding Function

DESCRIPTION

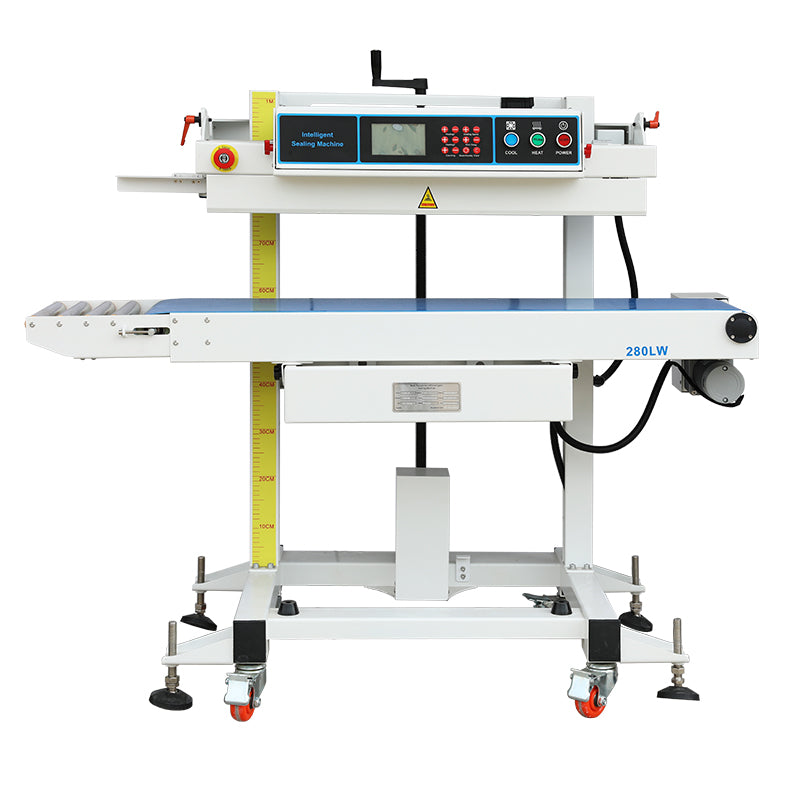

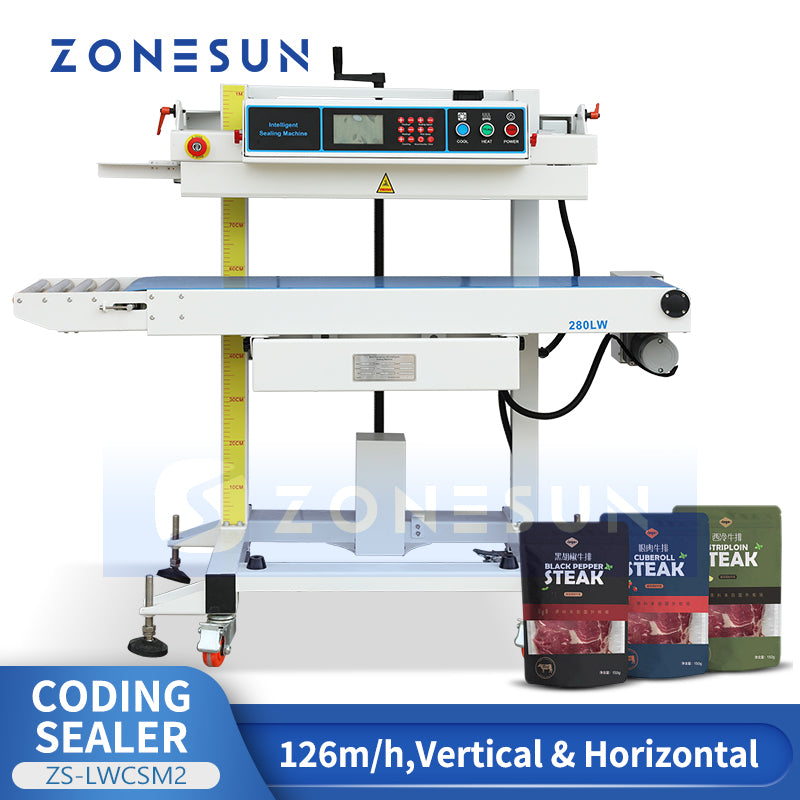

The ZONESUN ZS-LWCSM2 is a semi-automatic continuous bag sealer with integrated coding function designed for reliable sealing and inkjet printing on a variety of bag types. Its adjustable conveyor height and dual heating elements ensure consistent performance across packaging applications. Contact us for pricing, custom solutions, or batch order support.

⚠️ Important Notice for 110V Machines

110V machines must be connected to an external voltage converter before operation. Please make sure the voltage converter is properly connected after receiving the machine.

Failure to use the external voltage converter may cause excessive power load and could burn out electrical components or the control system of the machine.

Parameter

• Model: ZS-LWCSM2
• Power Supply: 220V / 50–60Hz
• Power: 1700W
• Conveyor Table Motor: 24V / 120W / 18K
• Conveyor Table Height: 350–900 mm (adjustable)
• Sealing Speed: 0–21 m/min
• Sealing Width: 15 mm
• Temperature Control Range: 0–280°C
• Max Packaging Bag Size: 600 × 400 × 15C
• Sealing Belt Specs: 1450 × 18 × 0.22 mm
• Conveyor Belt Specs: 2440 × 250 × 2 mm
• Main Chassis Motor: 60BYG2100-50A
• Toothed Belt: M5 × 560 / 670 mm
• Heating Tube Specs: 350W / 150 × 12 mm × 4
• Conveying Load Capacity: 15 kg
• Machine Size: 1390 × 600 × 1200 mm
• Total Weight: 90 kg

Key Features

• Semi-automatic continuous sealing with coding printing
• Dual heating groups for stable sealing
• Adjustable conveyor table height
• Suitable for different bag materials
• Easy operation and maintenance

Applications

• Packaging lines for food products
• Bag sealing in industrial OEM environments
• Seal and code bags for daily product industry.
• Ideal for warehouses and production facilities

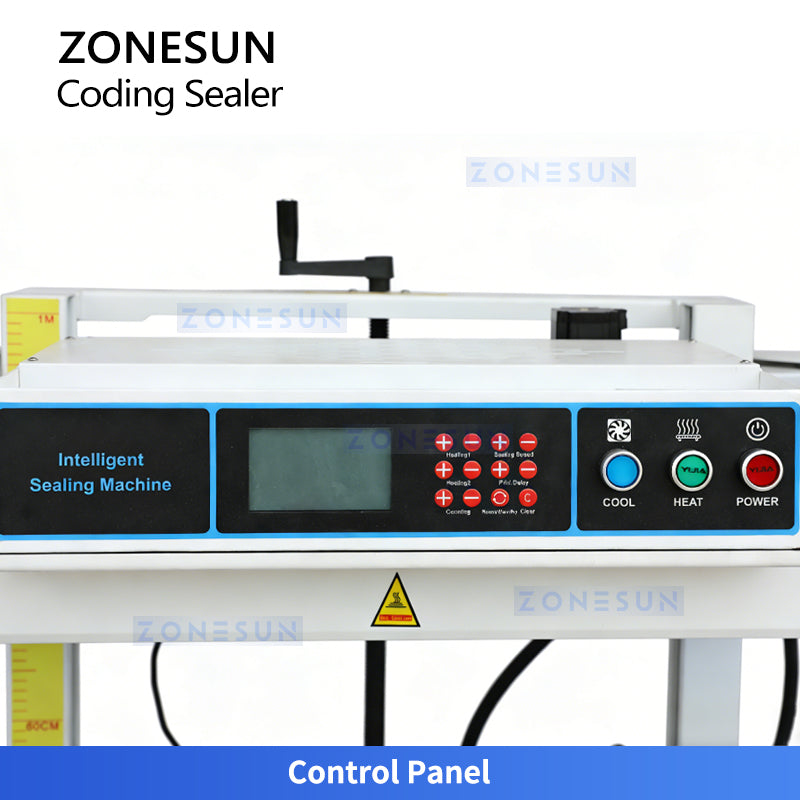

CONTROL PANEL

Provides a precise display and clear controls for easy parameter setting and optimal operation.

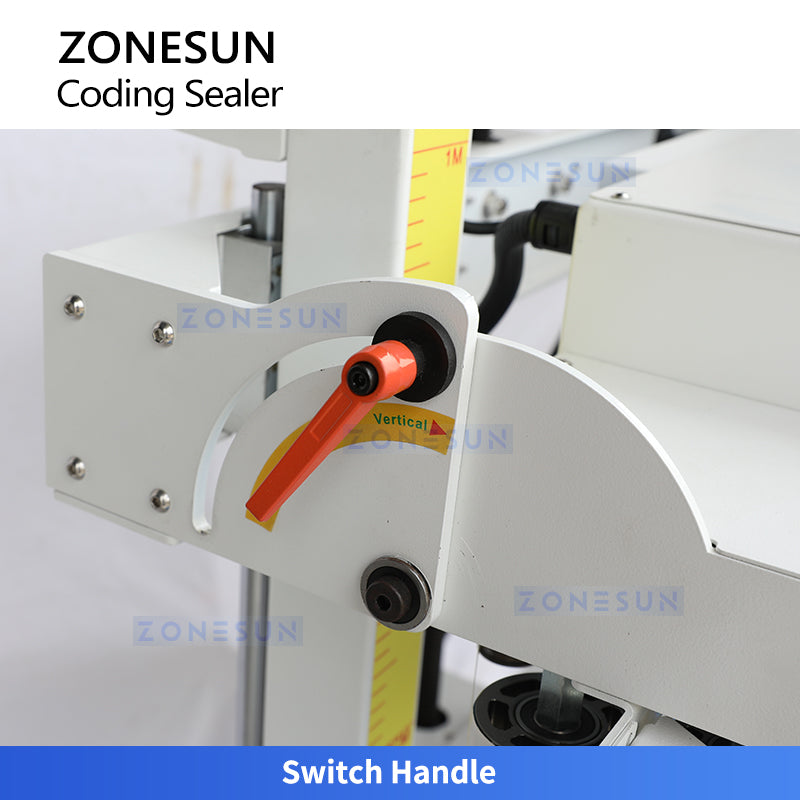

SEALING ANGLE ADJUSTMENT

Adjusts the sealing-head angle for different bag shapes and allows quick switching between vertical and horizontal sealing.

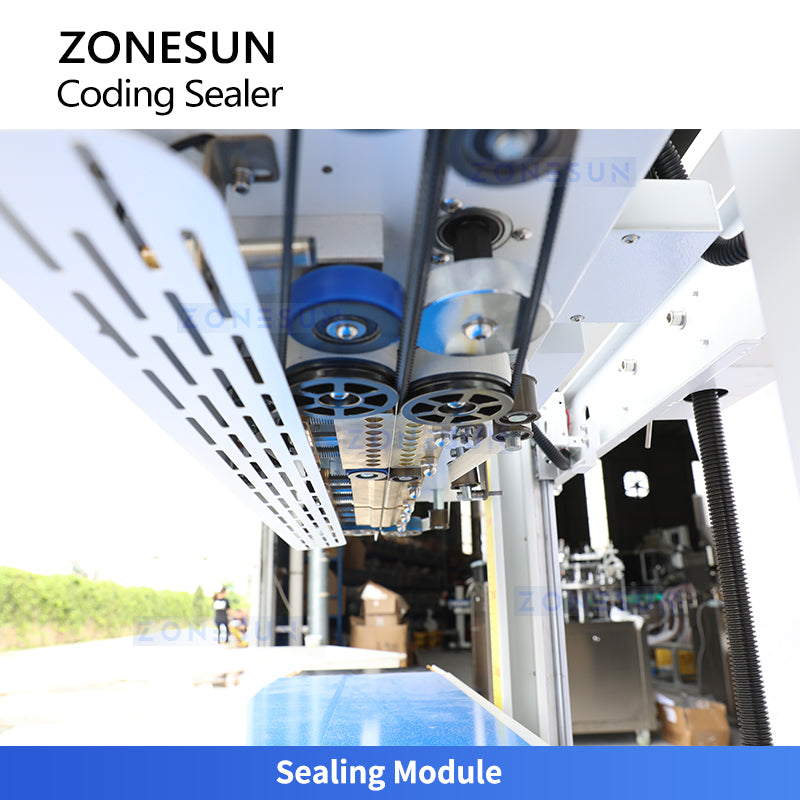

HEATING & CODING MODULE

Provides extended high-capacity heating for smooth, wrinkle-free sealing and integrates coding for clear printing.

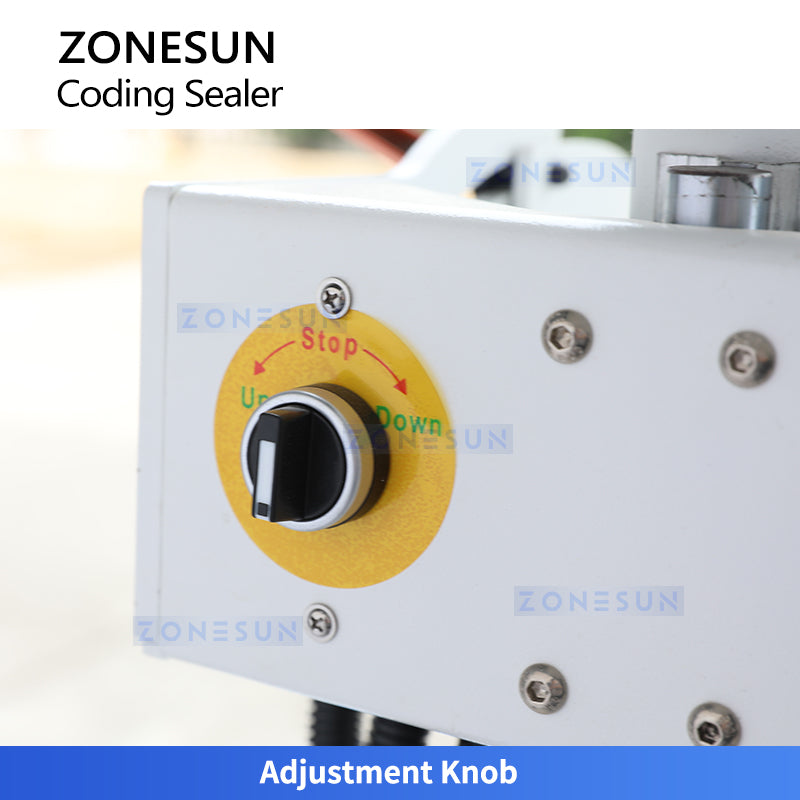

HEIGHT ADJUSTMENT KNOB

Motorized lifting adjusts the heating-module height for safe, neat sealing of products in different sizes.

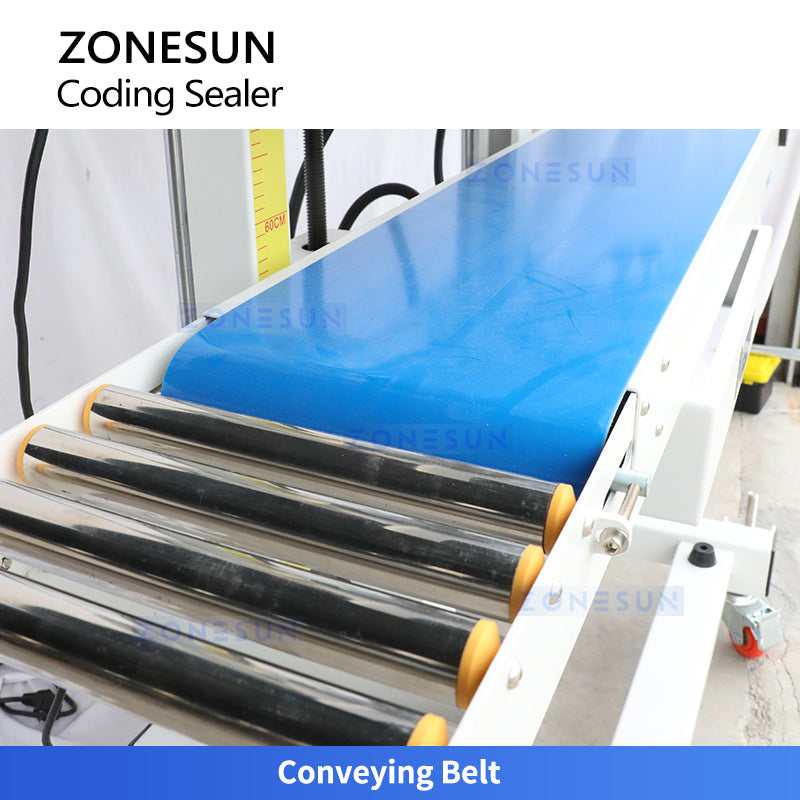

CONVEYOR

Transports products smoothly, buffers heavy loads, and offers adjustable length for flexible unloading.
