Description

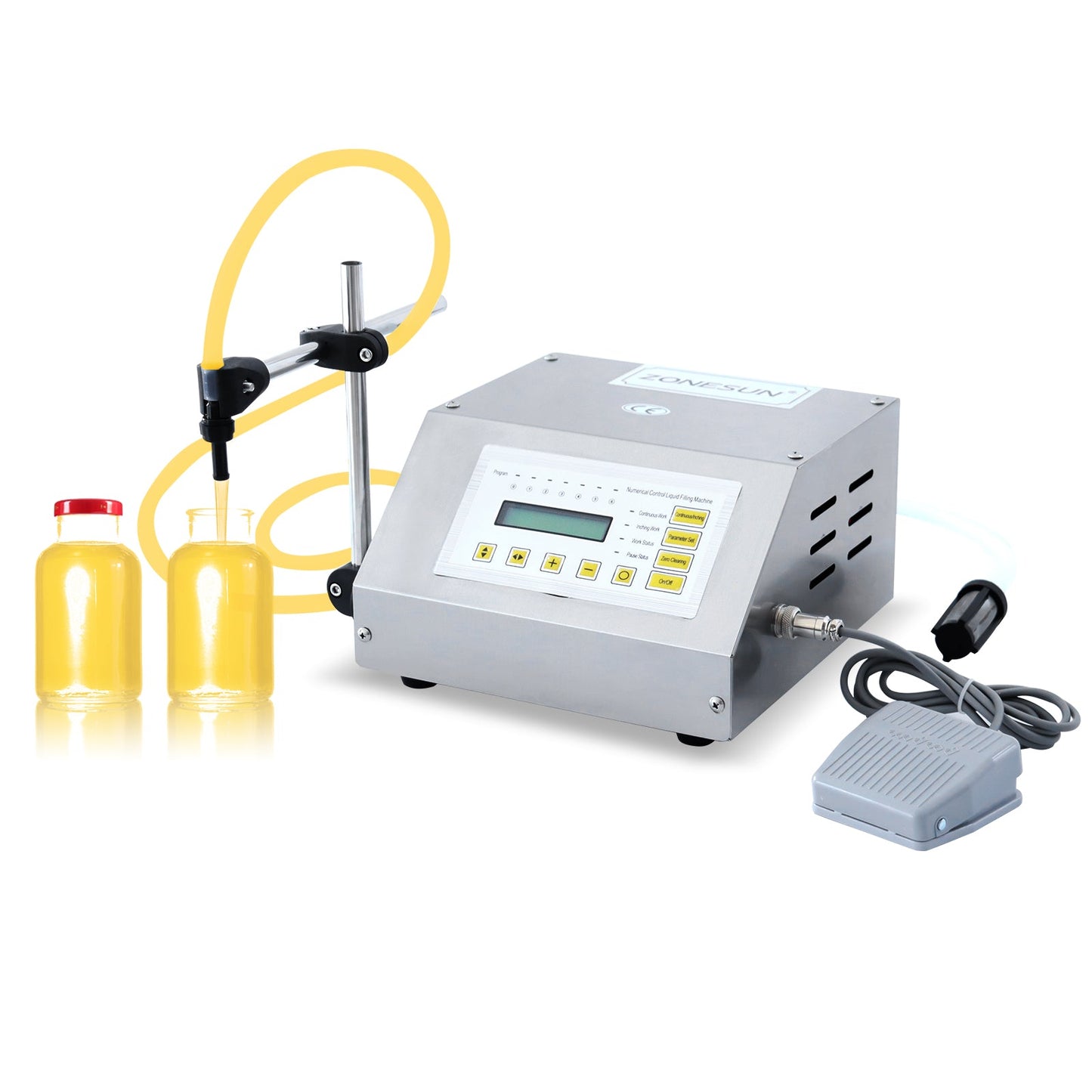

The ZONESUN ZS-GFK160 is a compact and portable numerical control liquid filling machine with a self-priming diaphragm pump. The stainless steel casing makes it durable and easy to clean. The built-in pump draws liquid directly from your container and dispenses it through the nozzle with ±0.5% filling accuracy and an anti-drip function for clean, precise filling.

Suitable for filling low-viscosity liquids including water, wine, olive oil, fuel, drinks, vinegar, milk, juice, and similar thin liquids. Not suitable for very thick liquids (sauce, detergent, etc.) or liquids containing small particles.

Technical Specifications

Model: ZS-GFK160
Voltage: AC 110V / 220V, 50–60Hz, 40W
Recommended Filling Range: ≤500ml
Maximum Flow Rate: 3.1L/min (based on water)
Filling Nozzle Diameter: Φ8mm
Maximum Suction Distance: 2m
Filling Accuracy: ±≤0.5%
Anti-Dripping Function: Included
Power-Off Memory Function: Included
Compatible Tubing: Model 17# (ID: 6.4mm, Wall Thickness: 1.6mm)
Package Size (L×W×H): 325 × 275 × 180mm
Gross Weight: 2.75kg

Configuration Options

Standard Set: Machine + standard silicone tube + Φ8mm nozzle
With Filter: Adds an inline filter to prevent particles from entering the pump
With 4mm Nozzle: Smaller nozzle for precise filling of narrow-mouth bottles
With 10mm Nozzle: Larger nozzle for faster filling of wide-mouth containers
With 2m Tube: Extended 2-meter suction tube for larger containers or deeper tanks

Note: Different liquids may require different tube materials. The tube provided is a silicone tube. Machines are tested with water before shipping — it is normal to find residual water in the pump and tube upon receipt.

ZONESUN ZS-GFK160 Diaphragm Pump Liquid Filling Machine

ZONESUN ZS-GFK160 Compact Portable Liquid Filler

ZONESUN ZS-GFK160 Anti-Drip Filling Function

ZONESUN ZS-GFK160 Digital Control Panel Power-Off Memory

ZONESUN ZS-GFK160 Self-Priming Pump 3.1L/min Flow Rate

ZONESUN ZS-GFK160 Water Oil Juice Vinegar Milk Filling

ZONESUN ZS-GFK160 Stainless Steel Casing Easy Clean

ZONESUN ZS-GFK160 Liquid Filling Machine Application

Why Choose the ZS-GFK160?

✅ Compact & Portable: Lightweight 2.75kg design ideal for benchtop and small workshop use
✅ Self-Priming Pump: Draws liquid directly from your container — no pre-filling required
✅ ±0.5% Filling Accuracy: Precise digital control for consistent fill volumes
✅ Anti-Drip Function: Clean, drip-free filling for a tidy production environment
✅ Power-Off Memory: Retains settings after power interruption for uninterrupted production
✅ 2m Suction Distance: Flexible liquid intake from large containers or tanks
✅ Multiple Configurations: Choose from standard, with filter, 4mm nozzle, 10mm nozzle, or 2m tube
✅ Stainless Steel Casing: Durable, hygienic, and easy to clean
✅ Multi-Voltage: 110V / 220V, 50–60Hz for global compatibility
