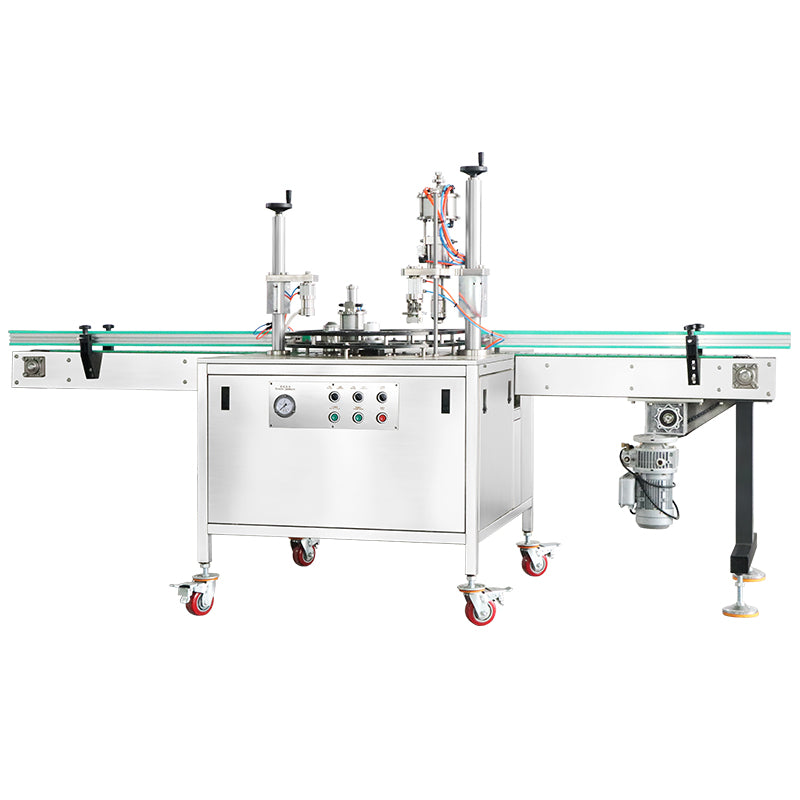

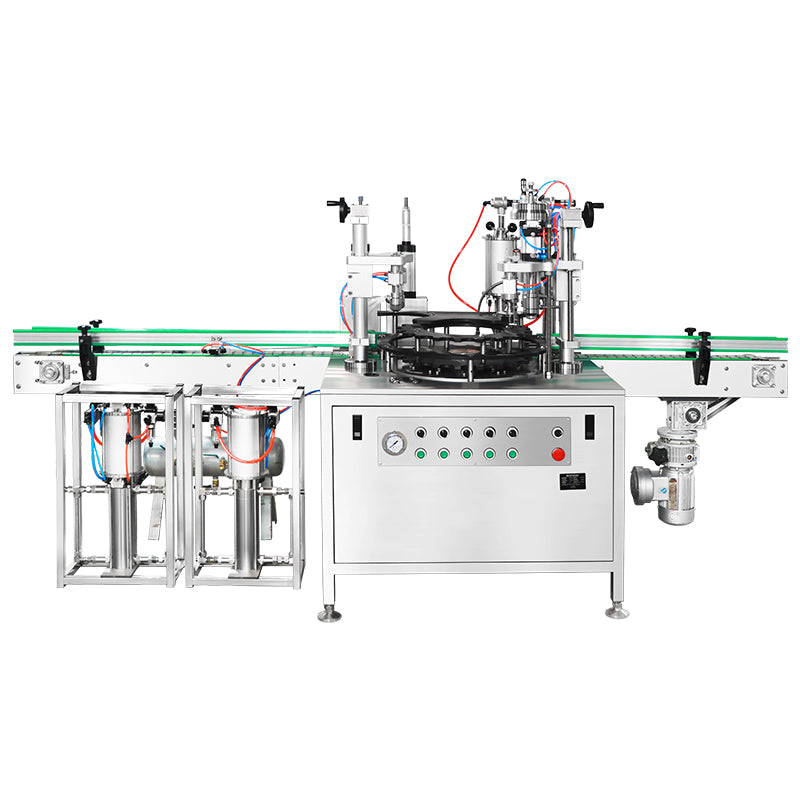

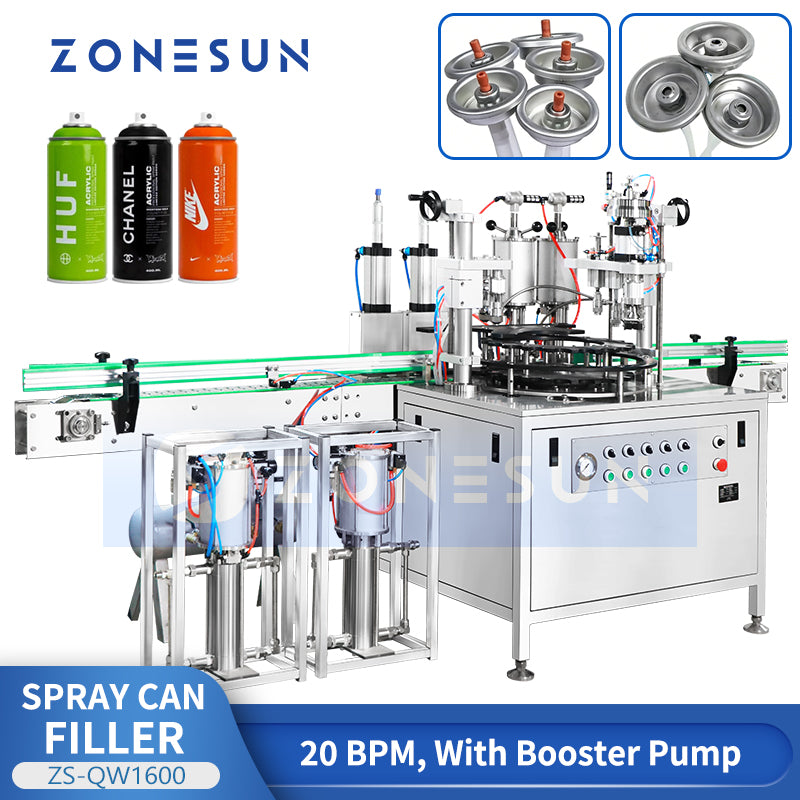

ZONESUN Aerosol Filling Sealing Machine Spray Can Sealer ZS-QW1600

DESCRIPTION

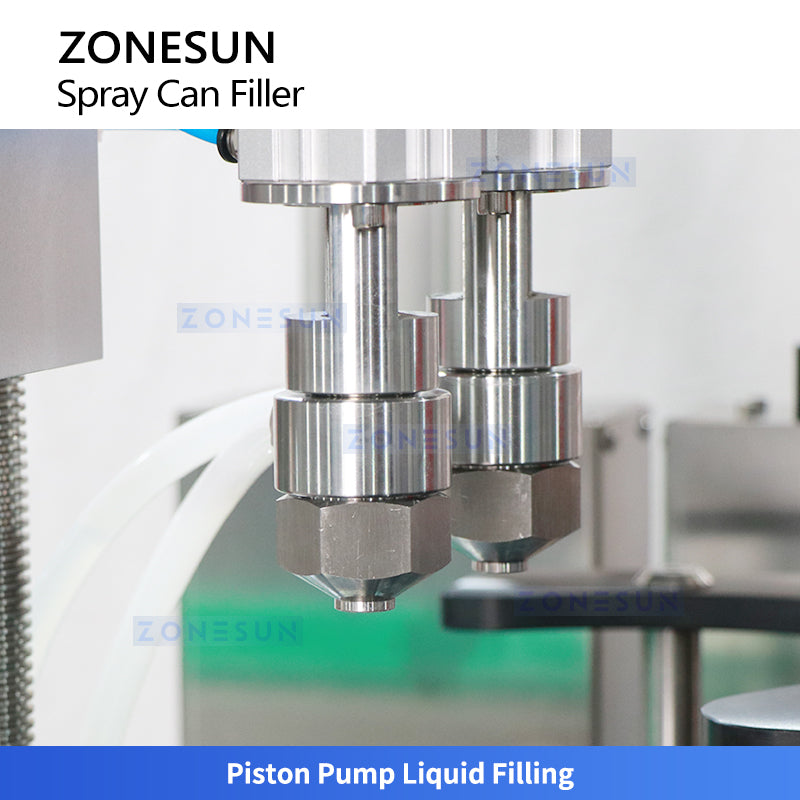

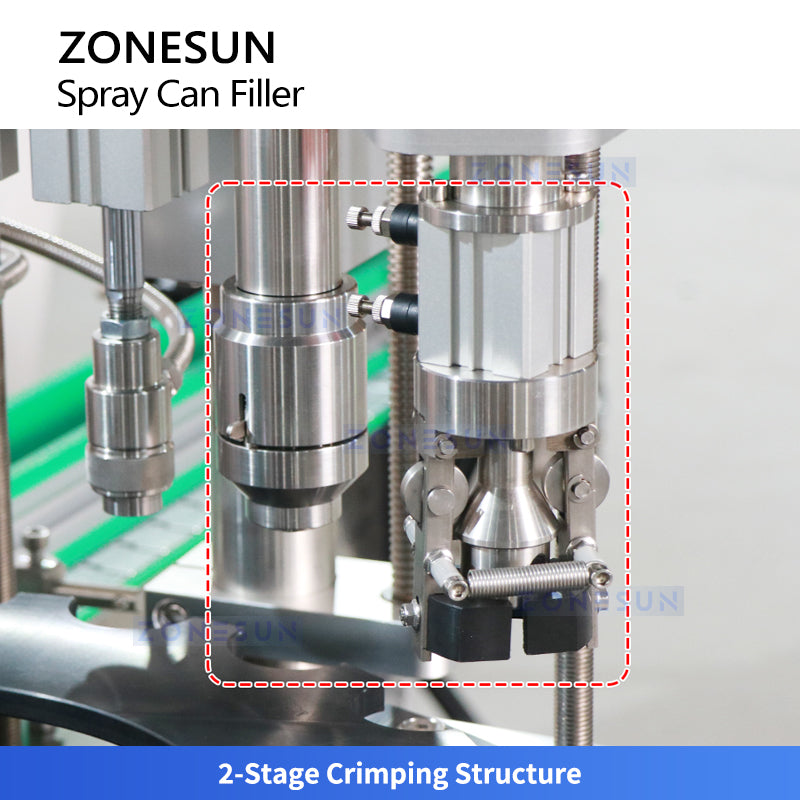

The ZONESUN aerosol filling and crimping machine integrates multiple processes in one system, including liquid filling, valve pre-crimping, crimping, and optional gas filling for metal aerosol cans.

For vapor propellants, a booster pump is not required, while liquefied gases require the use of a booster pump for proper filling. The modular gas filling station can be easily removed when gas filling is not needed.

This machine is compatible with both male and female aerosol valves, but it is not suitable for BOV (Bag-On-Valve) aerosol cans.

Whatever your packaging needs are, you can rely on ZONESUN.

Parameter

• Machine Model：ZS-QW1600

• Valve Size：Customized

• Filling Range：50-500 ml

• Working Capacity：About 20 bottles/min

• Working Air Pressure：0.5–0.8 MPa

• Suitable Aerosol Can Diameter：35–69 mm

• Suitable Aerosol Can Height：70–330 mm

• Machine Size：About 3050 × 1100 × 1650 mm

• Package Size (Main Machine)：About 1160 × 1130 × 1640 mm

• Package Size (Booster Pump)：About 500 × 470 × 790 mm

• Package Size (Conveyor)：About 2070 × 440 × 300 mm

• Package Weight：About 590 kg (475 kg main machine + 58 kg booster pump + 57 kg conveyor)
