ZONESUN ZS-FM750F Semi-Automatic Auger Powder Filling Machine | 5–5000g | Servo-Driven | 50L Hopper
ZONESUN ZS-FM750F Semi-Automatic Auger Powder Filling Machine | 5–5000g | Servo-Driven | 50L Hopper
Не удалось загрузить сведения о доступности самовывоза
Description
The ZONESUN ZS-FM750F is a semi-automatic servo-driven auger powder filling machine designed for precise dosing of dry powders such as spices, coffee, protein powder, and talcum powder. It uses a servo-driven auger system for volumetric filling and can integrate a weighing feedback system to achieve accurate weight-based filling regardless of powder density variations.
Equipped with a 50L hopper, PLC touchscreen control, and foot pedal operation, it ensures flexible and efficient production. Optional vacuum dust extraction and screw feeding systems improve cleanliness and efficiency, while interchangeable augers allow filling ranges from 5g to 5,000g.
Technical Specifications
- Model: ZS-FM750F
- Voltage: 110V / 220V / 380V, 50–60Hz, 2.2kW
- Filling Range: 5–50g / 50–300g / 300–1,000g / 1,000–5,000g (by changing auger)
- Filling Accuracy: ±1%
- Hopper Size (Filling Machine): 50L
- Hopper Size (Feeding Machine): 150L
- Feeder Pipe Diameter: 102mm
- Feeder Ground Height: Customizable
- Number of Filling Heads: 1 head (multiple heads optional)
- Machine Size (L×W×H): 2,950 × 1,150 × 2,000mm
- Machine Weight: Approx. 800kg
CONTROL PANEL
PLC-based interface allows operators to easily adjust filling speed, weight, and key parameters, making operation intuitive and precise.
HOPPER
Stores powder, stabilizes feeding into the screw system, reduces refills, and supports connect to a feeder for automatic supply.
AUGER FILLING
Servo-driven auger dispenses powders precisely, while the anti-dust nozzle reduces scattering. Together they ensure accurate, stable, and hygienic filling.
WEIGHING SYSTEM
Provides feedback control to keep filling accurate despite powder density changes. It monitors weight and adjusts the auger automatically for precision.
VACUUM DUST COLLECTION
Removes airborne powder during filling, improves the working environment, and keeps products clean.

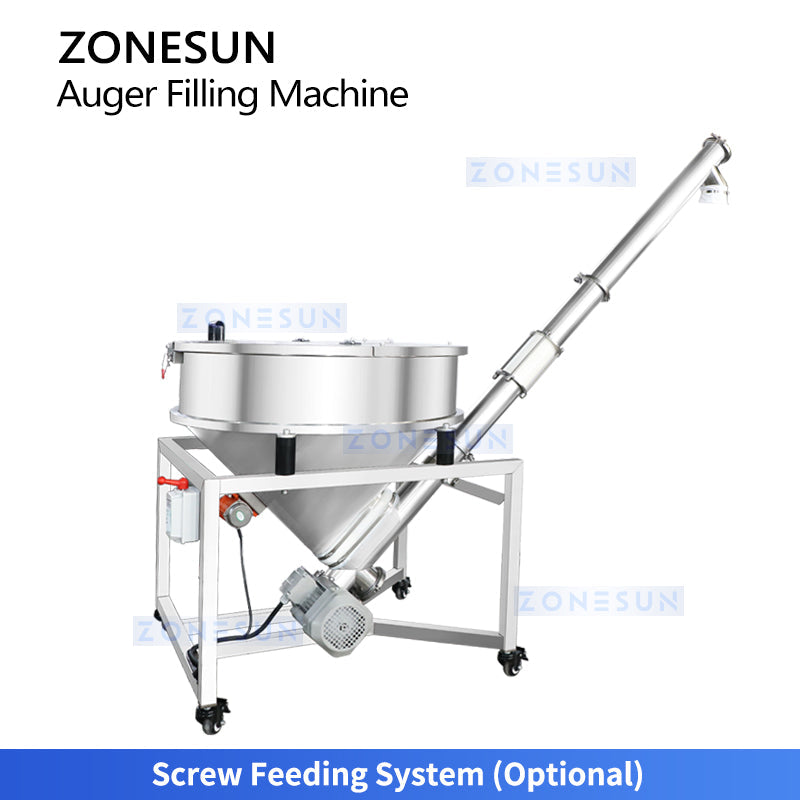

SCREW FEEDING
Automatically supplies powder to the hopper for continuous operation, reducing manual refills and ensuring stable, efficient filling.
FOOT PEDAL SWITCH
Enables hands-free control, improving convenience and operation efficiency of this semi automatic auger filler.
Why Choose the ZS-FM750F?
- ✅ Servo-Driven Auger System: Precise, repeatable volumetric filling with consistent torque control for stable dosing
- ✅ Wide Filling Range: 5g–5,000g across 4 selectable auger sizes — one machine for multiple product formats
- ✅ ±1% Filling Accuracy: Optional weighing feedback system compensates for powder density variations
- ✅ 50L Hopper + 150L Feeder: Large capacity for uninterrupted, high-volume production runs
- ✅ PLC Touchscreen Control: Easy parameter setting, recipe storage, and production monitoring
- ✅ Foot Pedal Operation: Hands-free triggering for flexible, ergonomic semi-automatic use
- ✅ Optional Dust Extraction: Vacuum dust control system for clean, hygienic powder handling
- ✅ Optional Screw Feeder: Automated powder feeding from 150L hopper for continuous production
- ✅ Interchangeable Augers: Quick auger swap for different filling ranges without major changeover
- ✅ Multi-Voltage: 110V / 220V / 380V, 50–60Hz for global compatibility
Ideal Applications
- Food & Spices: Spice blends, salt, sugar, flour, starch, seasoning powder, instant soup mix
- Coffee & Beverages: Ground coffee, instant coffee, milk powder, cocoa powder, matcha
- Health & Nutrition: Protein powder, collagen powder, pre-workout, vitamin supplements, meal replacement
- Pharmaceutical: Medicinal powder, herbal powder, enzyme powder, health supplement capsule filling
- Cosmetics & Personal Care: Talcum powder, face powder, dry shampoo, bath salts, body powder
- Chemical & Industrial: Chemical powder, agricultural powder, industrial dry material dosing
