ZONESUN ZS-PCL1 Automatic Potato Chips Production Line for Fire Snack Processing

$165,000.00 USD

~~$0.00 USD~~ $165,000.00 USD

Распродажа Продано

Стоимость доставки рассчитывается при оформлении заказа.

Voltage 380V

Pre-sale Support

Chinese Company： Guangdong Shanghang Technology Co., Ltd.

Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223

ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.

Description

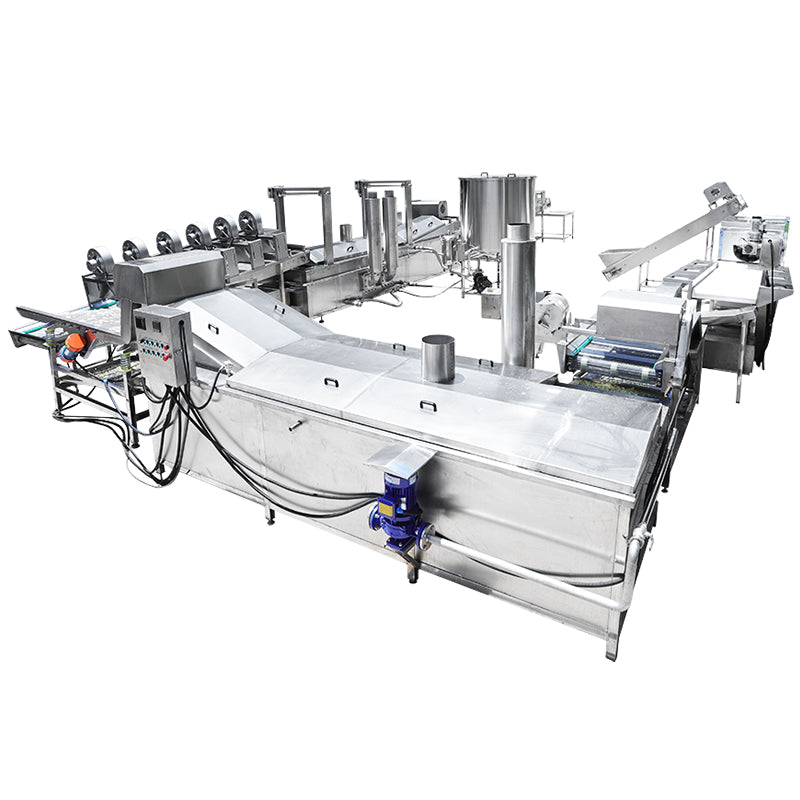

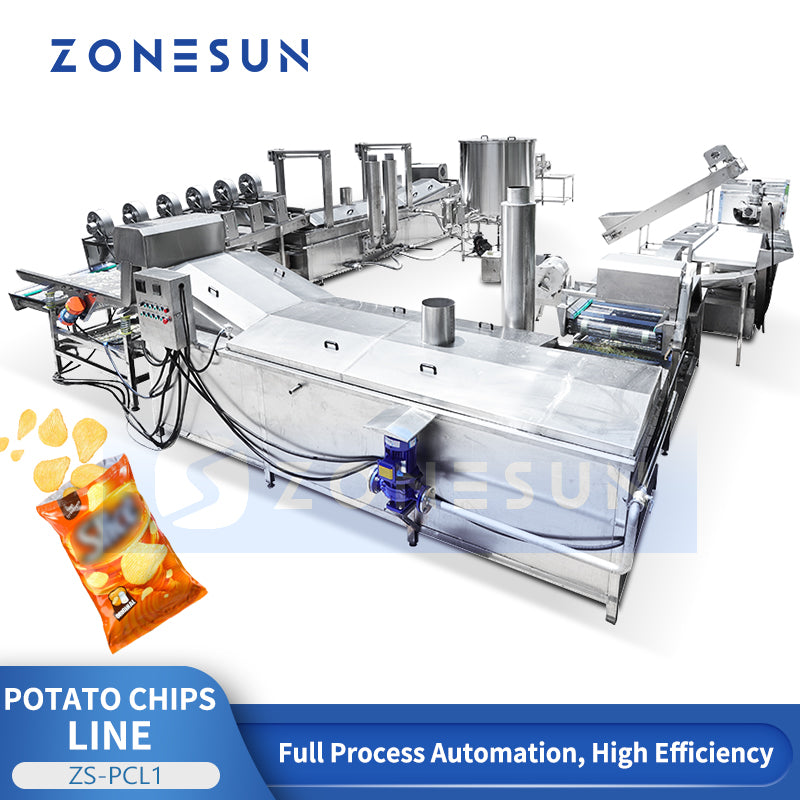

The ZONESUN ZS-PCL1 is a fully automatic potato chips production line designed for efficient, stable, and high-quality snack processing. From raw potato feeding to packaging, the line integrates washing, peeling, slicing, rinsing, blanching, dewatering, drying, frying, seasoning, and packaging into one streamlined process. Built with stainless steel frames and advanced automation, it ensures consistent product quality, energy efficiency, and easy maintenance. Suitable for medium to large-scale food manufacturers, it delivers reliable performance and flexible capacity.

ZONESUN ZS-PCL1 Fully Automatic Potato Chips Production Line for Food Manufacturers

Potato Sorting and Lifting Machine

Model：ZS-PCLT1
Power – Main Conveyor Motor：1.5 kW / 380 V / 50 Hz
Power – Auxiliary Motor：0.75 kW
Power – Air Pump：0.75 kW
Effective Conveyor Belt Width：500 mm
Transmission Motor：Gear Motor
Conveyor Belt Material：Stainless Steel Chain Mesh Belt
Frame Structure：50 × 50 × 2 mm Rectangular Stainless Steel Square Tube
Other Materials：304 Stainless Steel Plate (cut, folded, and welded)
Overall Dimensions (L×W×H)：2500 × 650 × 1300 mm

Potato Sorting and Lifting Machine

Lifts potatoes from a sediment tank into the peeler while removing surface dirt; stainless steel frame for easy cleaning and maintenance.

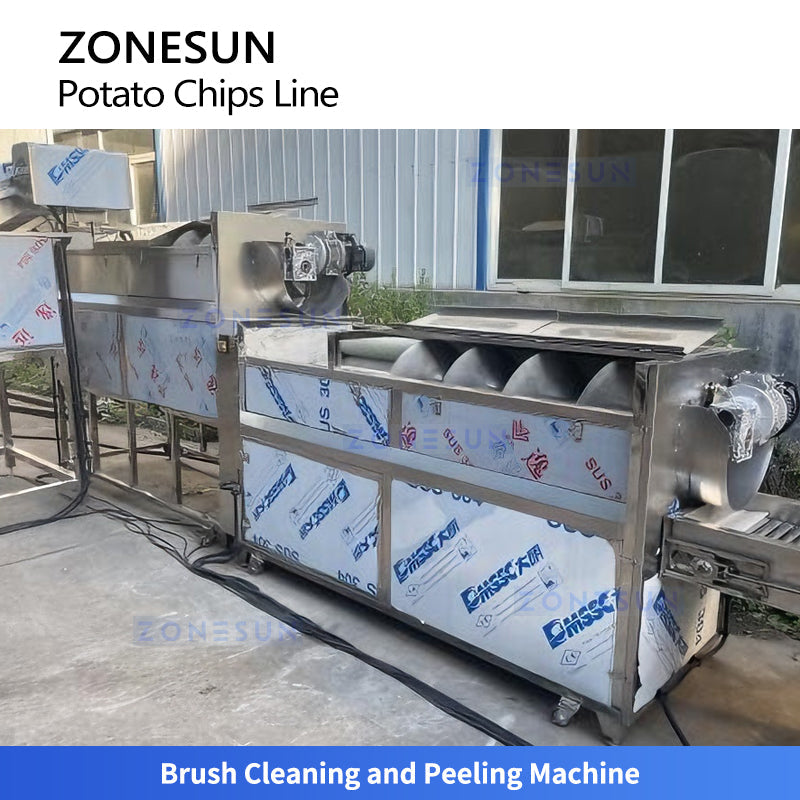

Brush Cleaning and Peeling Machine

Model：ZS-PCLT2
Power：4.55 kW / 380 V / 50 Hz
Number of Brushes：9
Brush Length：2000 mm
Transmission Motor：Motor
Discharge Motor：Planetary Gear Motor
Spiral Gear Structure：Stainless Steel Plate Bending
Other Materials：304 Stainless Steel Plate (cut, folded, and welded)
Overall Dimensions (L×W×H)：2350 × 824 × 1650 mm

Brush Cleaning and Peeling Machine

Brush rollers clean and peel potatoes with spiral discharge for continuous production, stainless steel frame for durability.

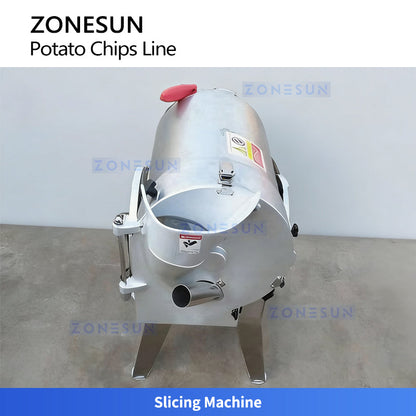

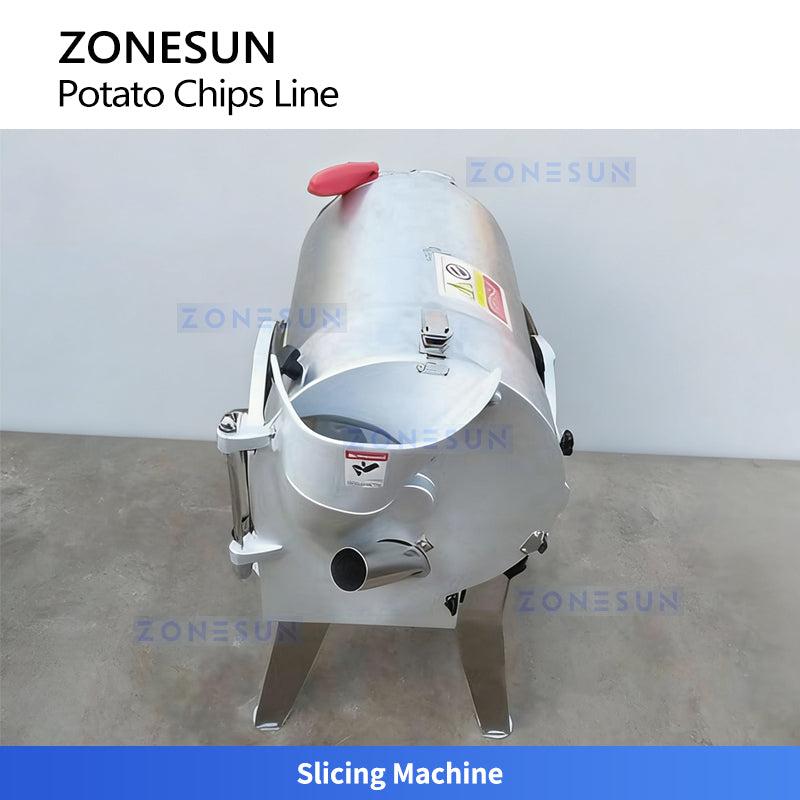

Slicing Machine

· Model：ZS-PCLT3
· Power：1.5 kW / 380 V / 50 Hz
· Slicing Dimensions：Adjustable (0.8–3 mm)
· Slicing Options：Slices, Wavy Slices, Julienne Strips, Dices
· Transmission Motor：Motor
· Frame Material：Aluminum Alloy
· Overall Dimensions (L×W×H)：1200 × 600 × 850 mm

Slicing Machine

Slices peeled potatoes and feeds them directly into the rinsing machine; durable blades and stable operation.

Rinsing Machine

· Model：ZS-PCLT4
· Total Power：3.7 kW / 380 V / 50 Hz
· Transmission Power：1.5 kW
· Bubbling Power：2.2 kW
· Effective Width of Conveyor Belt：600 mm
· Transmission Motor：Planetary Gear Motor with Variable Frequency Speed Control
· Conveyor Belt：Stainless Steel Chain Mesh Belt
· Overall Dimensions (L×W×H)：3000 × 1000 × 950 mm

Rinsing Machine

Rinses sliced potatoes to remove surface starch with bubbling to prevent sticking; stainless steel mesh conveyor with cleaning and spray system at outlet.

Potato Blanching Machine

· Model：ZS-PCLT5
· Total Power：94.1 kW / 380 V / 50 Hz
· Transmission Power：1.5 kW
· Circulation Water Pump Power：1.5 kW
· Lifting Motor Power：1.1 kW
· Effective Width of Conveyor Belt：800 mm
· Electric Heating Power：90 kW
· Transmission Motor：Planetary Gear Motor with Variable Frequency Speed Control
· Conveyor Belt：Stainless Steel Chain Mesh Belt
· Frame Material：50×50×2 mm Rectangular Stainless Steel Square Tube
· Overall Dimensions (L×W×H)：5000 × 1000 × 950 mm
· Application：Blanching potato slices in 60–85°C hot water to remove starch and preserve color

Vibrating Screen

· Model：ZS-PCLT6
· Power：0.26 kW / 380 V / 50 Hz
· Screen Width：800 mm
· Stainless Steel Screen Plate：2 mm thickness
· Vibration Motor：Three-phase Asynchronous Vibration Motor
· Frame Material：50 × 50 × 2 mm Rectangular Stainless Steel Square Tube
· Overall Dimensions (L×W×H)：2000 × 800 × 950 mm

Vibrating screen

Removes excess surface moisture from potato chips with stable vibration; made of easy-to-clean 304 stainless steel.

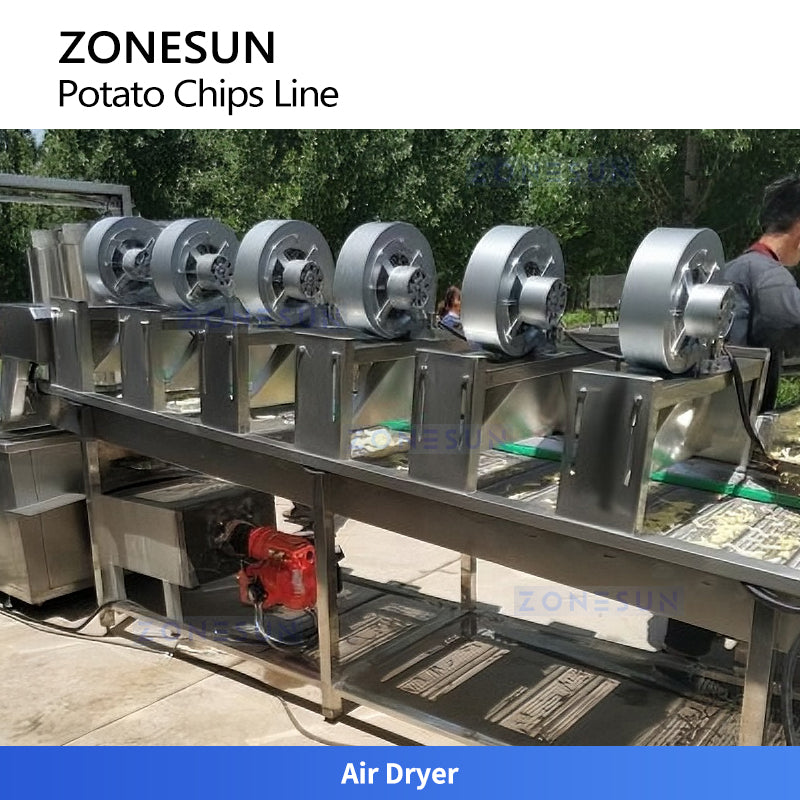

Air Dryer

Model：ZS-PCLT7
Total Power：3.75 kW / 380 V / 50 Hz
Transmission Power：0.75 kW
Fans：0.75 kW × 4 Effective Width of Conveyor Belt：800 mm
Transmission Motor：Planetary Gear Motor with Variable Frequency Speed Control
Conveyor Belt：Stainless Steel Chain Mesh Belt
Frame Material：50 × 50 × 2 mm Rectangular Stainless Steel Square Tube
Overall Dimensions (L×W×H)：4000 × 800 × 950 mm

Air dryer

Dries blanched potato chips with fans and blade nozzles to remove moisture, prevent splatter, and shorten frying.

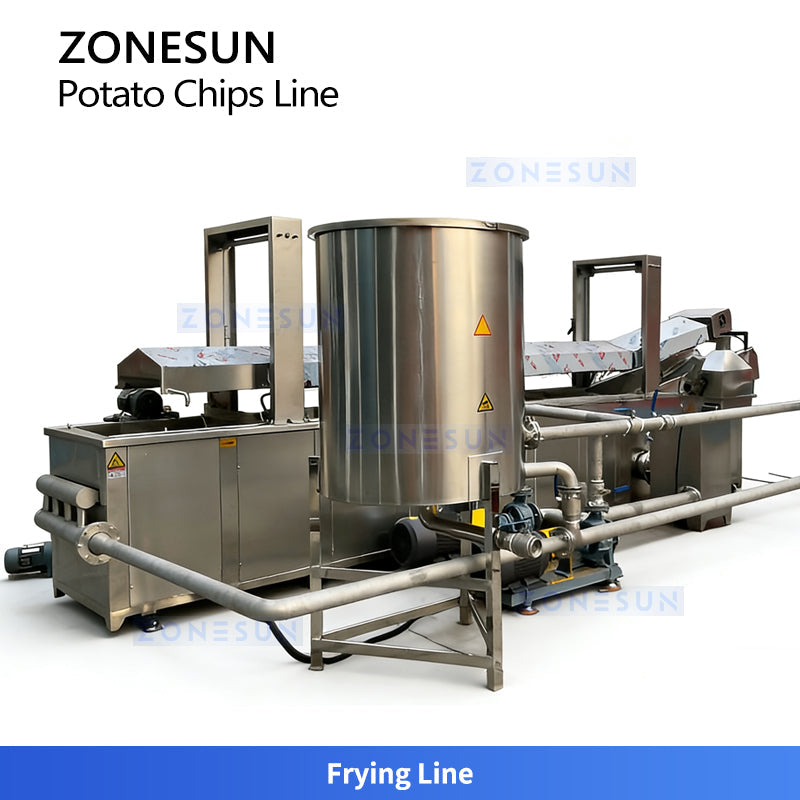

Frying Line

Model：ZS-PCLT8
Total Power：4.8 kW / 380 V / 50 Hz
Conveyor Power：2.2 kW
Oil Pump Power：1.5 kW
Lifting Power：0.55 kW × 2
Burner Capacity：40 kcal
Effective Width of Conveyor Belt：800 mm
Transmission Motor：Planetary Gear Motor with Variable Frequency Speed Control
Conveyor Belt：Stainless Steel Chain Plate Belt (Press-submerge section: Stainless Steel Chain Mesh Belt)
Frame Material：50 × 50 × 2 mm Rectangular Stainless Steel Square Tube
Overall Dimensions (L×W×H)：6500 × 1000 × 2020 mm
