ZONESUN ZS-FALU3 Automatic Production Line Fruit Jam Chocolate Hot Sauce Packaging System

ZONESUN ZS-FALU3 Automatic Production Line Fruit Jam Chocolate Hot Sauce Packaging System

$41,589.00 USD
$0.00 USD $41,589.00 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

Pre-sale Support

Chinese Company： Guangdong Shanghang Technology Co., Ltd.


Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223

ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.



Description

This packaging system is consist of turntable machine, bottle rinser&dryer, piston pumpfilling machine, twist off capping machine,round bottle labeling machine and bottle sorting machine.it is can realize the automated production of jam, ketchup, hot sauce etc.

Parameter

Filling Machine

  • Model：ZS-FALU3 Jam and Sauce Production Line
  • Power Supply：380V/220V, 50-60Hz
  • Rinsing & Drying Efficiency：12 bottles rinsing +12 bottles drying per cycle
  • Rinser Temperature：About 0-300℃
  • Filling Range：100-1000ml(can be customized)
  • Filling Accuracy：≤±1%
  • Air Pressure：0.5-0.7MPa
  • Applicable Bottle Size：Dia. Φ12-100mm
  • Applicable Cap Size：OD30-80mm(Can be customized)
  • Applicable Label Size：(L)20-300mm (H)15-150mm
  • Label Roll Size：Core dia. Φ76mm, outer dia. ≤Φ350mm
  • Machine Size：About 10300mm*3600mm*2400mm
  • G.W. ：About 2139KG
Bottle Rinser and Dryer

Clean and dry bottles before filling to maintain cleanliness and hygiene standards.

4-head Filling Nozzles

Multiple nozzles work simultaneously to improve production efficiency.

Built-in Spiral Mixer

Prevent particles in jams or sauces from settling at the bottom.

Dual Capping Head

Driven by servo motor, ensure the capping accuracy and efficiency.

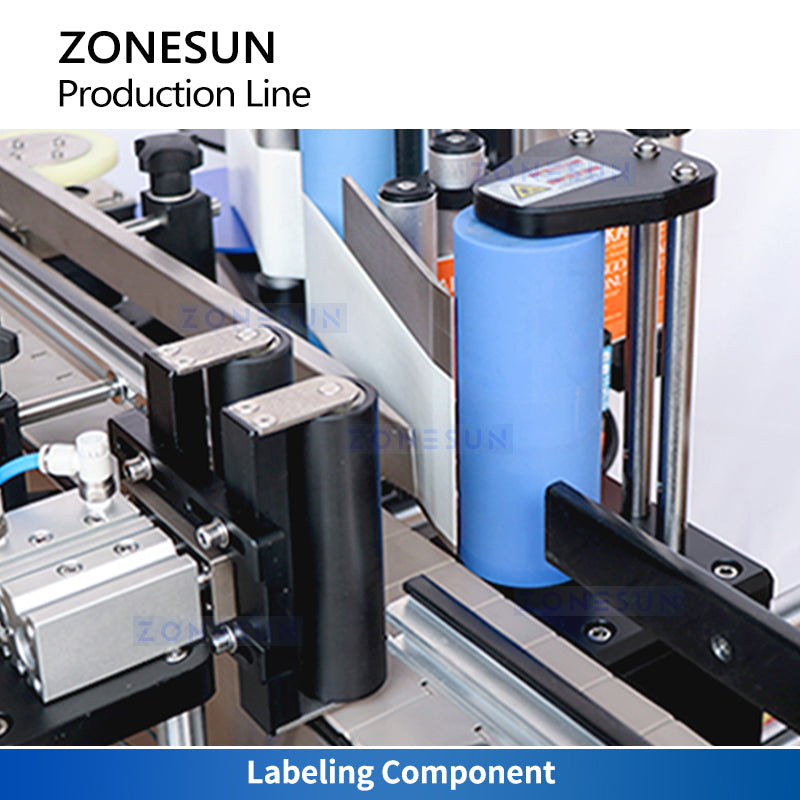

Labeling Component

Freely adjust the labeling position according to production needs.

Bottle Turntable

Bottle sorting before production and accumulation the bottles at the end.
