ZONESUN ZS-CF4A Semi-automatic 4 Heads Carbonated Drinks Sparkling Wine Soda Mixing Filling Machine
ZONESUN ZS-CF4A Semi-automatic 4 Heads Carbonated Drinks Sparkling Wine Soda Mixing Filling Machine
Regular price
$8,099.00 USD
Regular price
$0.00 USD
Sale price
$8,099.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.

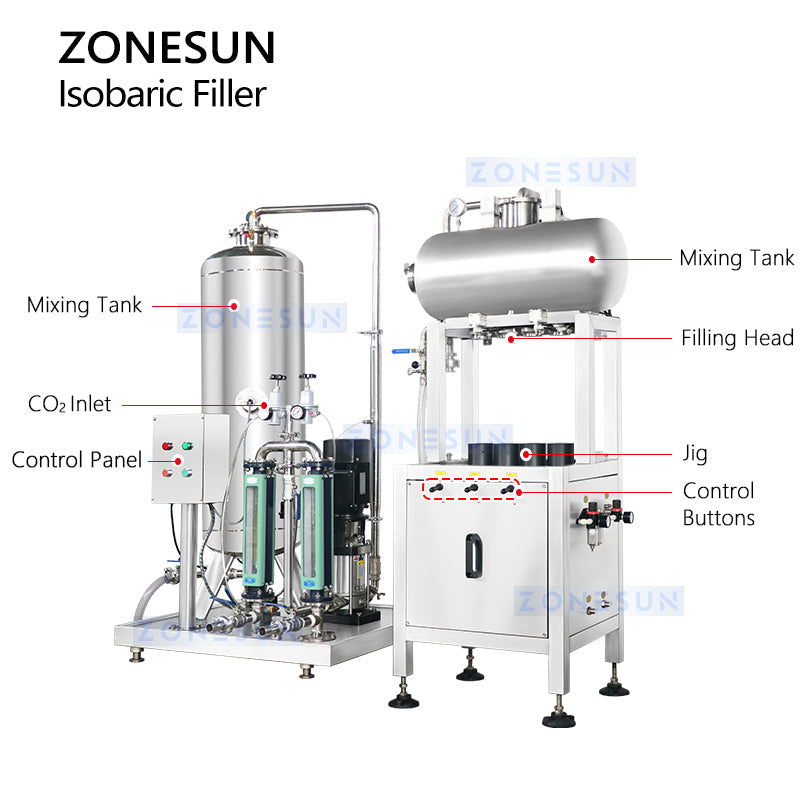

This semi-automatic filling system is used to mixing material and fill carbonated drinks into metal cans.This machine is easy to operate and has compact machine body, it is suitable for the small or the medium scale production of soda drinks or carbonated drinks.
Parameter
Filling Machine
- Filling nozzle quantity:4
- Filling material temperature:1-4℃
- Filling material pressure:0.2-0.3MPa
- Working capacity:240-400BPH
- Inlet & Outlet diameter:For 330/500ml Metal Cans(Can be customized)
- Air pressure:0.5-0.7MPa
- CO2 pressure:0.2-0.3MPa
- Package size:About 950*750*1960mm
- Package weight:About 163kg
Mixing Machine
- Technical requirements
- Production capacity:1.5—2T/h
- The mixing ratio of syrup and water:1:2—1:8
- Beverage liquid outlet temperature:<6℃
- Beverage liquid outlet pressure:0.3—0.5Mpa
- Carbonation gas content:3G.V
- Requirements for raw materials
- Inlet pressure of treated water:0.2 Mpa
- Inlet temperature of treated water:<6℃
- Syrup inlet temperature:<4℃
- CO2 inlet pressure:0.28—0.35 Mpa
- CO2 purity:＞99%
- Package size:About 910*1000*1880mm
- Package weight:About 200kg
