Description

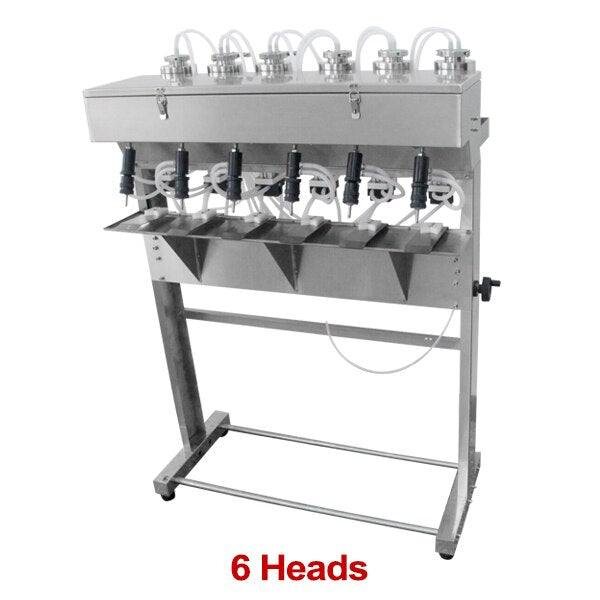

The vacuum liquid filling machine is a pure pneumatic equipment and requires no electricity,it can prevent the fragrance from spreading,this is especially good for perfume filling. The GZ-G4000 uses the vacuum constant liquid level filling principle, regardless of whether the bottle volume is the same, the filling liquid level will remain the same.
Application
This machine is mainly used for filling small doses of liquid materials such as toilet water, perfume, skin care water, eye drops, oral liquid, sesame oil, fruit juice drinks, carbonated drinks, mineral water, purified water, alcohol, battery liquid, detergent, etc.
| Parameter | 2 Heads | 4 Heads | 6 Heads |
|---|---|---|---|
| Air Pressure | 0.5–0.8 MPa | 0.5–0.8 MPa | 0.5–0.8 MPa |
| Liquid Level Accuracy | ±1 mm | ±1 mm | ±1 mm |
| Viscosity Range | Max applicable viscosity is 20Cps (static viscosity) | Same | Same |
| Working Speed | 50 Bottles / Minute | 50 Bottles / Minute | 50 Bottles / Minute |
| Bottle Height | ≤250 mm | ≤250 mm | ≤250 mm |
| Bottle Opening Size | ≤φ10mm–φ20mm | ≤φ10mm–φ20mm | ≤φ10mm–φ20mm |
| Adjustable Liquid Level (from bottle mouth) | <27 mm | <27 mm | <27 mm |
| Dimensions (excluding storage bottles) | 400 × 320 × 1400 mm | 620 × 370 × 1400 mm | 660 × 470 × 1400 mm |
| Pumping Rate | 5.5 L/s | 5.5 L/s | 5.5 L/s |
The main power of this machine is air source, customers need to buy the air compressor separately.
