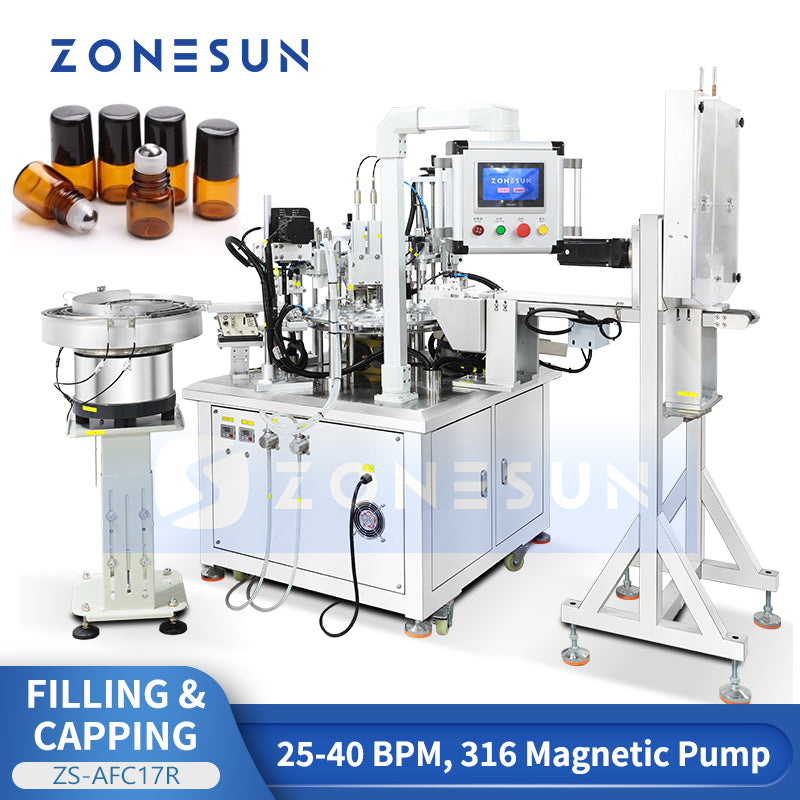

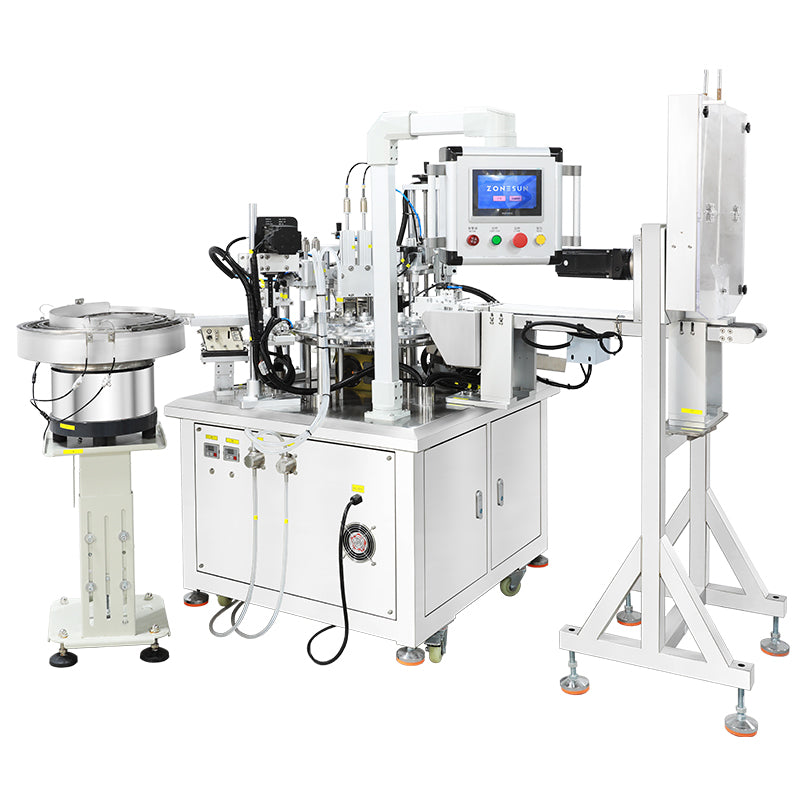

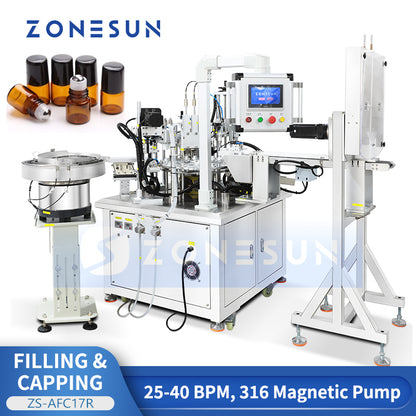

ZONESUN ZS-AFC17R High Speed Roller Bottle Deodorant Filling Capping Machine

DESCRIPTION

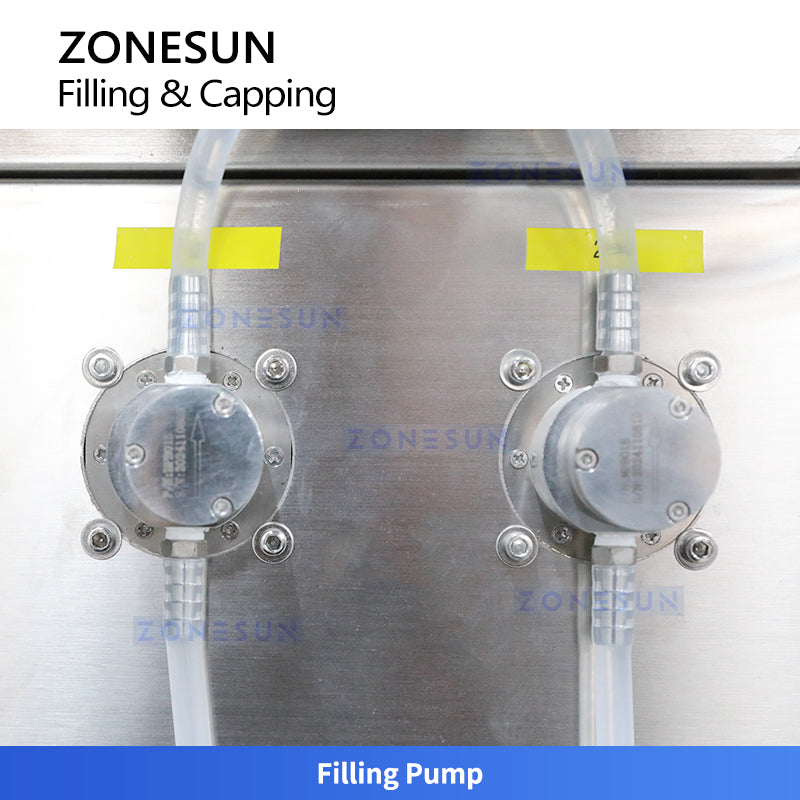

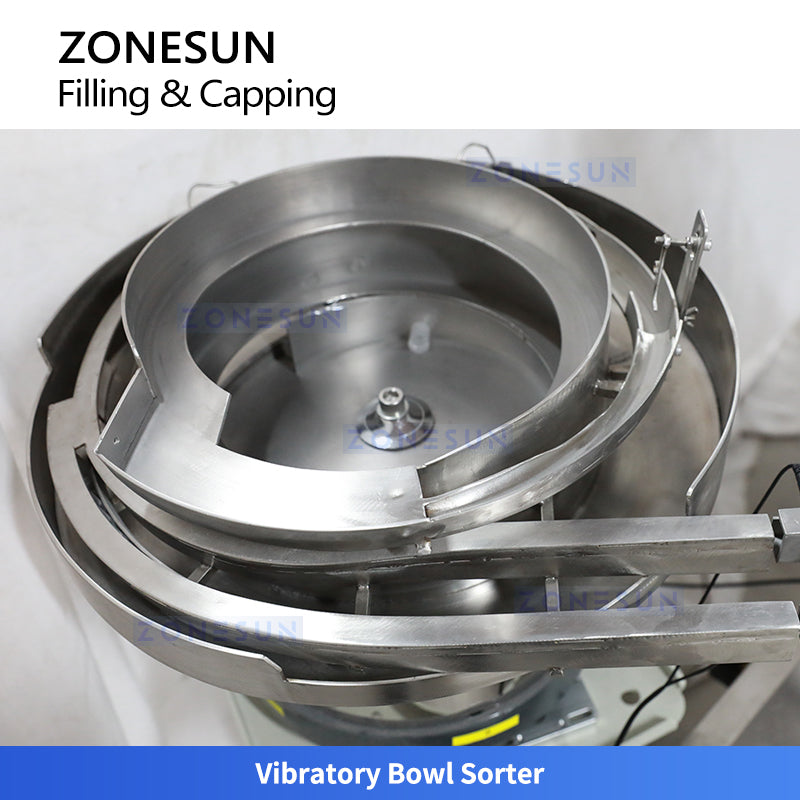

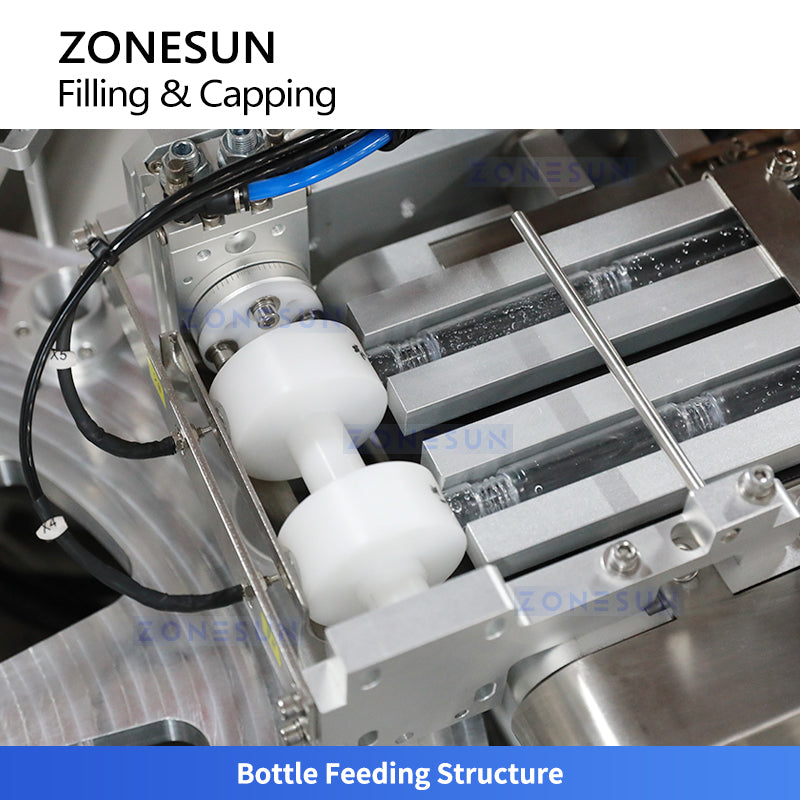

This automatic roller ball bottle filling and capping machine is a high-efficiency, fully automated device designed specifically for small roll-on bottles (can not stand upright during conveying), ideal for filling and sealing liquids such as perfumes and essential oils. This machine integrates bottle feeding, liquid filling, roller ball pressing, and outer cap sealing, enabling a fully automated production process from empty bottles to finished products. Equipped with a SUS316 magnetic pump, it ensures a filling accuracy of ±1%, suitable for filling volumes of 5-20 ml. Compact design not only saves space but can also be connected to a horizontal labeling machine to complete the entire packaging process.

Parameter

• Machine Model: ZS-AFC17R
• Voltage: AC110V/220V, 50-60Hz
• Power: ~2.5KW
• Filling Pump: Magnetic Pump
• Number of Filling Heads: 2
• Suitable Bottle Size: Φ15-30 mm, H=50-120 mm
• Suitable Cap Size: Φ15-25 mm
• Working Speed: ~25-40 BPM
• Recommended Filling Volume: 5-20 ml
• Filling Accuracy: ±1%
• Air Pressure: 0.4-0.8 MPa
• Machine Size: ~1937×1866×1628 mm
• Machine Weight: ~480 kg
• Package Size:
     Vibratory + Conveyor: ~1130×820×570 mm
     Bracket: ~800×650×1870 mm
     Main Machine: ~1180×1110×1760 mm
• Package Weight: ~656 kg (145+125+386 kg)
