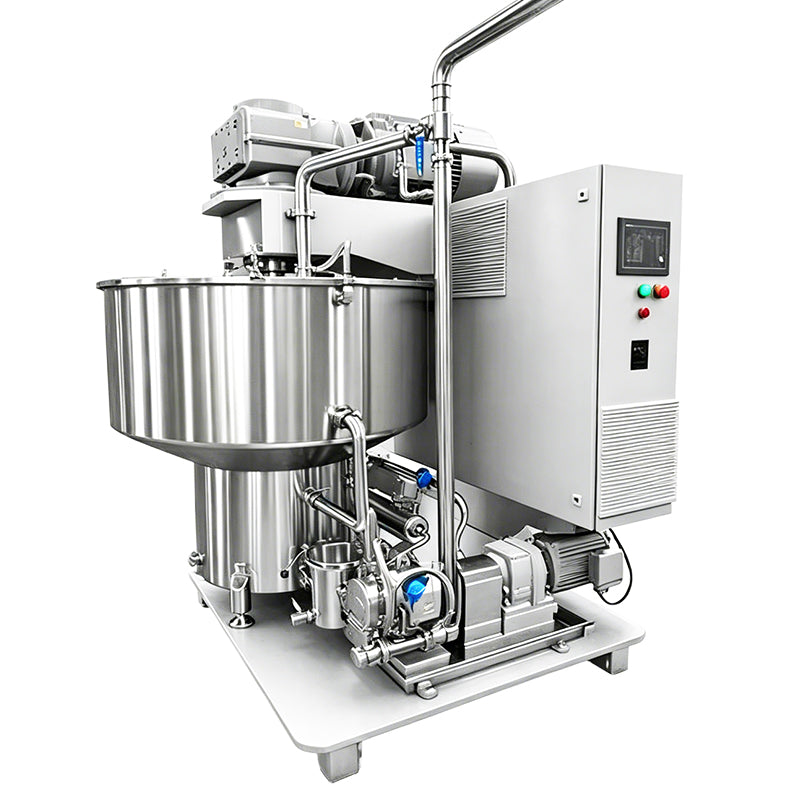

ZONESUN ZS-BM150 Vertical Chocolate Ball Mill Refiner for Chocolate Factory Production Lines

Overview

The ZONESUN ZS-BM150 is an industrial vertical chocolate ball mill refiner designed for fine grinding and refining of chocolate paste, cocoa liquor, nut pastes, and other fat-based masses. Using high-strength steel balls and continuous rotational friction, it achieves a fineness of 18–25 µm — suitable for premium chocolate production.

Built with food-grade 304 stainless steel, intelligent PLC control, and a separate structural design for easy cleaning, the ZS-BM series is available in four capacities from 150L to 1000L, making it ideal for chocolate factories and confectionery production lines of all scales.

Technical Specifications

Model ZS-BM150

• Capacity: 150 L
• Voltage: 380V
• Grinding Time: 3–4 h
• Main Motor Power: 11 kW
• Electric Heating Power: 6 kW
• Steel Ball Diameter: 12 mm
• Material Fineness: 18–25 µm
• Material Standard: SS304 Stainless Steel

Model ZS-BM300

• Capacity: 300 L
• Voltage: 380V
• Grinding Time: 3–4 h
• Main Motor Power: 15 kW
• Electric Heating Power: 6 kW
• Steel Ball Diameter: 12 mm
• Material Fineness: 18–25 µm
• Material Standard: SS304 Stainless Steel

Model ZS-BM500

• Capacity: 500 L
• Voltage: 380V
• Grinding Time: 4–6 h
• Main Motor Power: 30 kW
• Electric Heating Power: 9 kW
• Steel Ball Diameter: 12 mm
• Material Fineness: 18–25 µm
• Material Standard: SS304 Stainless Steel

Model ZS-BM1000

• Capacity: 1000 L
• Voltage: 380V
• Grinding Time: 5–8 h
• Main Motor Power: 32–55 kW
• Electric Heating Power: 12 kW
• Steel Ball Diameter: 12 mm
• Material Fineness: 18–25 µm
• Material Standard: SS304 Stainless Steel

Key Features

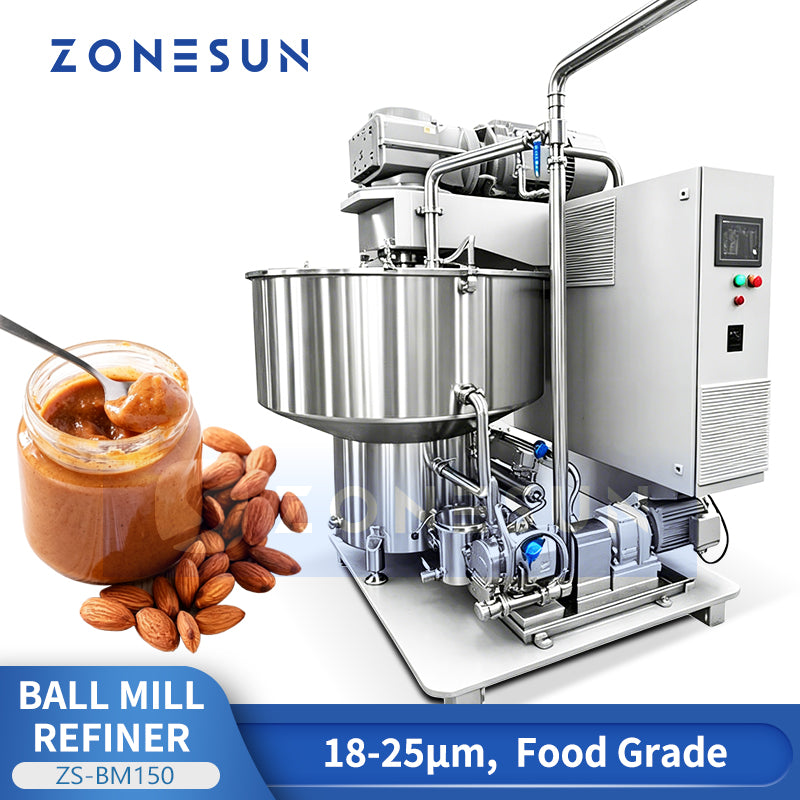

• ✅ 18–25 µm Fineness — Premium Chocolate Quality
  High-strength 12mm steel balls deliver ultra-fine, smooth chocolate paste meeting premium confectionery texture standards.
• ✅ 4 Capacity Options — 150L to 1000L
  Scalable from small-batch artisan production to large-scale industrial chocolate manufacturing on the same platform.

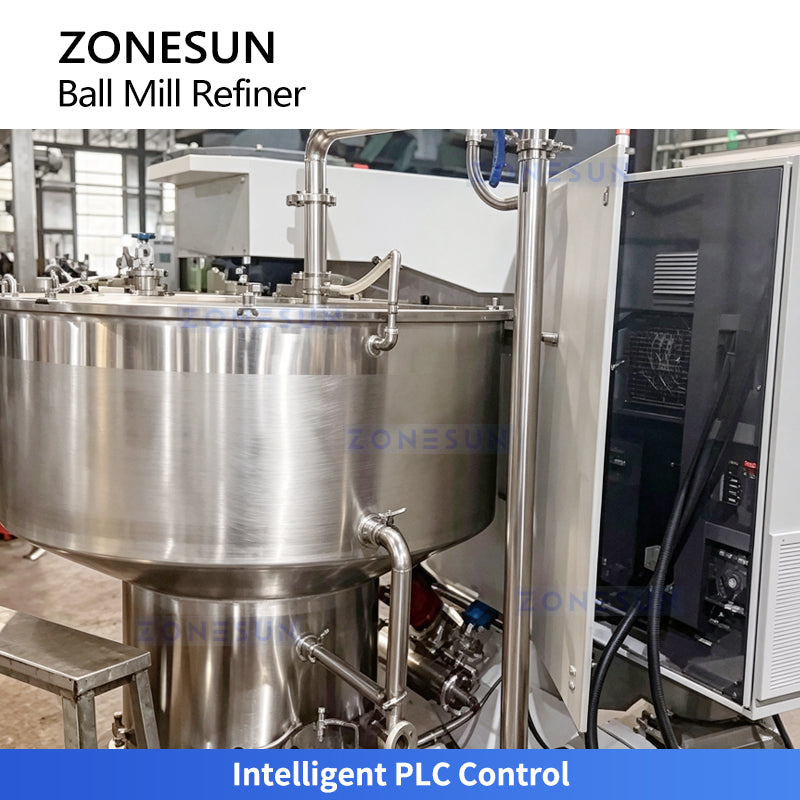

• ✅ PLC Intelligent Control
  Automated process management ensures consistent grinding cycles and easy parameter adjustment for different recipes.

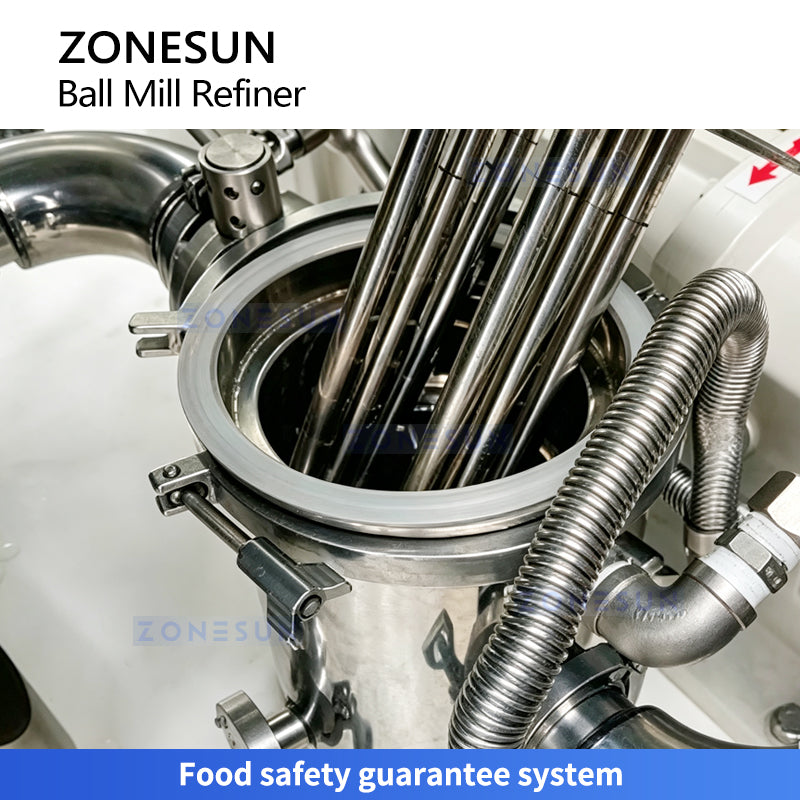

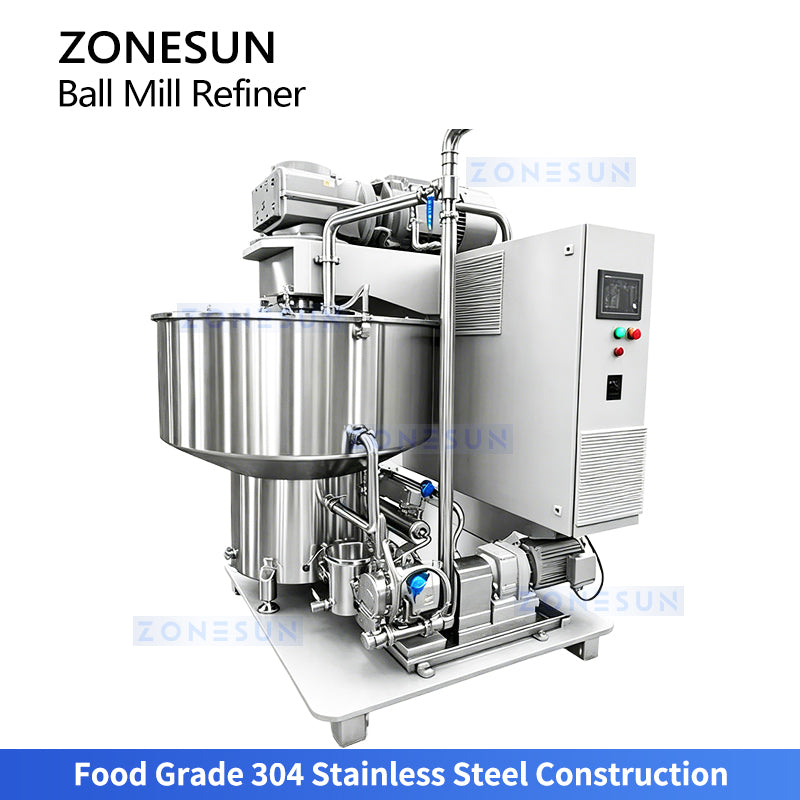

• ✅ Food-Grade SS304 Construction
  All contact surfaces meet food safety and hygiene standards with corrosion resistance and easy daily cleaning.

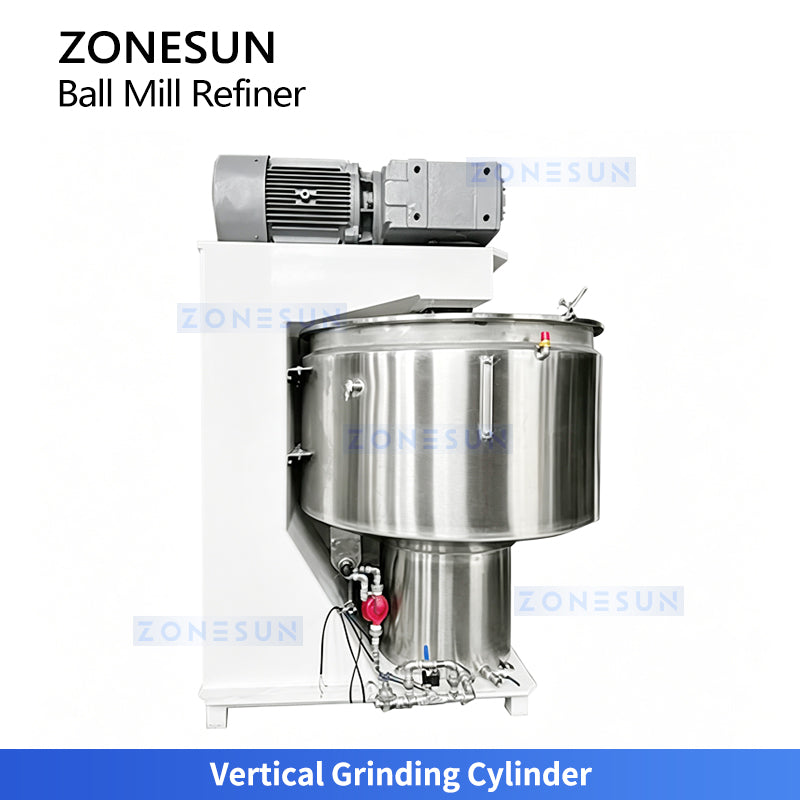

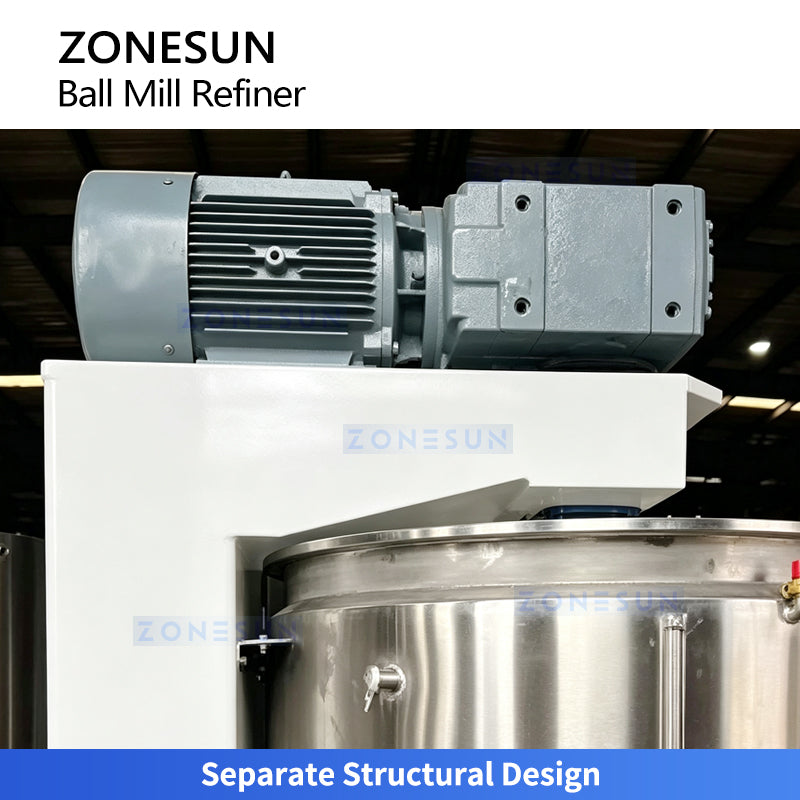

• ✅ Separate Structure Design — Easy Cleaning & Maintenance
  Modular disassembly allows fast product changeover and thorough sanitation between production batches.

Ideal Applications

• 🍫 Chocolate Refining — Dark, milk, and white chocolate paste grinding for confectionery and coating production.
• 🌶️ Cocoa Processing — Cocoa liquor and cocoa mass refining for chocolate ingredient manufacturing.
• 🥜 Nut Paste & Praline — Hazelnut paste, almond praline, and nut-based filling production for confectionery lines.
• 🏭 Industrial Confectionery Plants — High-volume chocolate and compound coating production for food manufacturers and OEM suppliers.
