DESCRIPTION

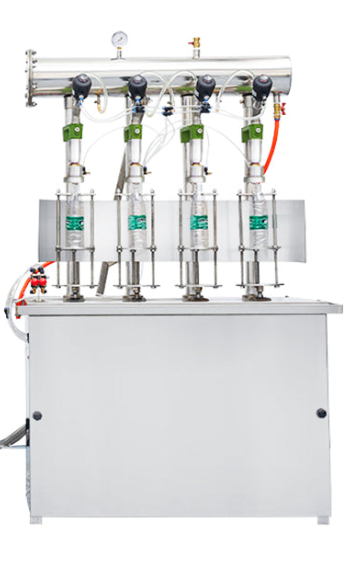

This machine is used to fill carbonated liquids, such as cola, beer, and soda. It includes a mixing tank and a 4-head filler. It adopts isobaric filling technology, which is suitable for reducing bubbles.

PARAMETER

• Product：Filler
• Filling nozzle quantity：4
• Working temperature：4-10℃
• Working capacity：300-500BPH
• Inlet & Outlet Diameter：32mm
• Air pressure：0.5-0.7MPa
• Machine size：About 1090*590*1800mm

Mixer Parameters

• Production Capacity: 1.5–2 t/h
• Mixing Ratio of Syrup and Water: 1:2 – 1:8
• Liquid Outlet Temperature: ＜6 ℃
• Liquid Outlet Pressure: 0.3–0.5 MPa
• Carbonation Gas Content: 3 G.V

Raw Material Requirements

• Water Inlet Pressure: 0.2 MPa
• Water Inlet Temperature: ＜6 ℃
• Syrup Inlet Temperature: ＜4 ℃
• CO₂ Inlet Pressure: 0.28–0.35 MPa
• CO₂ Purity: ＞99%

PRODUCT DETAILS

SIMPLE OPERATION

Foolproof, easy to use.

VISUAL DESIGN

Easy to monitor the working state of the tank.

PNEUMATIC

The switch controls the bottle holder and filling.

FILLING HEAD

It adopts isobaric filling technology, which reduces bubbles during filling.

Attention:

The CO₂ cylinder is required for producing carbonated drinks and is excluded in this link.
