ZONESUN ZS-DPYT1500 Single Head Heat Resistant Liquid Filling Machine
ZONESUN ZS-DPYT1500 Single Head Heat Resistant Liquid Filling Machine
Couldn't load pickup availability
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
Description
The ZONESUN ZS-DPYT3000 / ZS-DPYT1500 is a single-head diaphragm pump liquid filling machine offering precision, efficiency, and versatility for small-scale production. Its anti-drip nozzle ensures clean, accurate fills, while the intelligent eye sensor streamlines operation. The ZS-DPYT1500 features a heat-resistant design allowing filling of liquids up to 100°C. Detachable inlet/outlet tubes make cleaning and maintenance simple. A microcomputer control system provides timing accuracy down to 0.1 second, making it ideal for water, beverages, sauces, juices, soybean milk, toner, and other low-viscosity, particle-free, non-foaming liquids.
Technical Specifications
| Parameter | ZS-DPYT3000 | ZS-DPYT1500 |
|---|---|---|
| Pump Type | Diaphragm pump | Diaphragm pump |
| Max Temperature | 5–50°C | 5–100°C |
| Min Fill Volume | 10ml | 5ml |
| Recommended Fill Range | 10–500ml | 5–250ml |
| Max Flow Rate | 3,000ml/min | 1,500ml/min |
| Nozzle Diameter | 9mm | 9mm |
| Voltage | AC 110–220V, 50–60Hz (DC 12V output) | |
| Filling Speed | Adjustable | |
| Filling Counter | 1–9,999 | |
| Working Mode | Manual / Automatic / Intelligent induction | |
| Memory Function | Available | |
| Inlet / Outlet Tube | 1.5m inlet / 0.8m outlet | |
| Machine Size (L×W×H) | 636 × 166 × 179 mm | |
| Package Size | 650 × 170 × 180 mm | |
Key Features

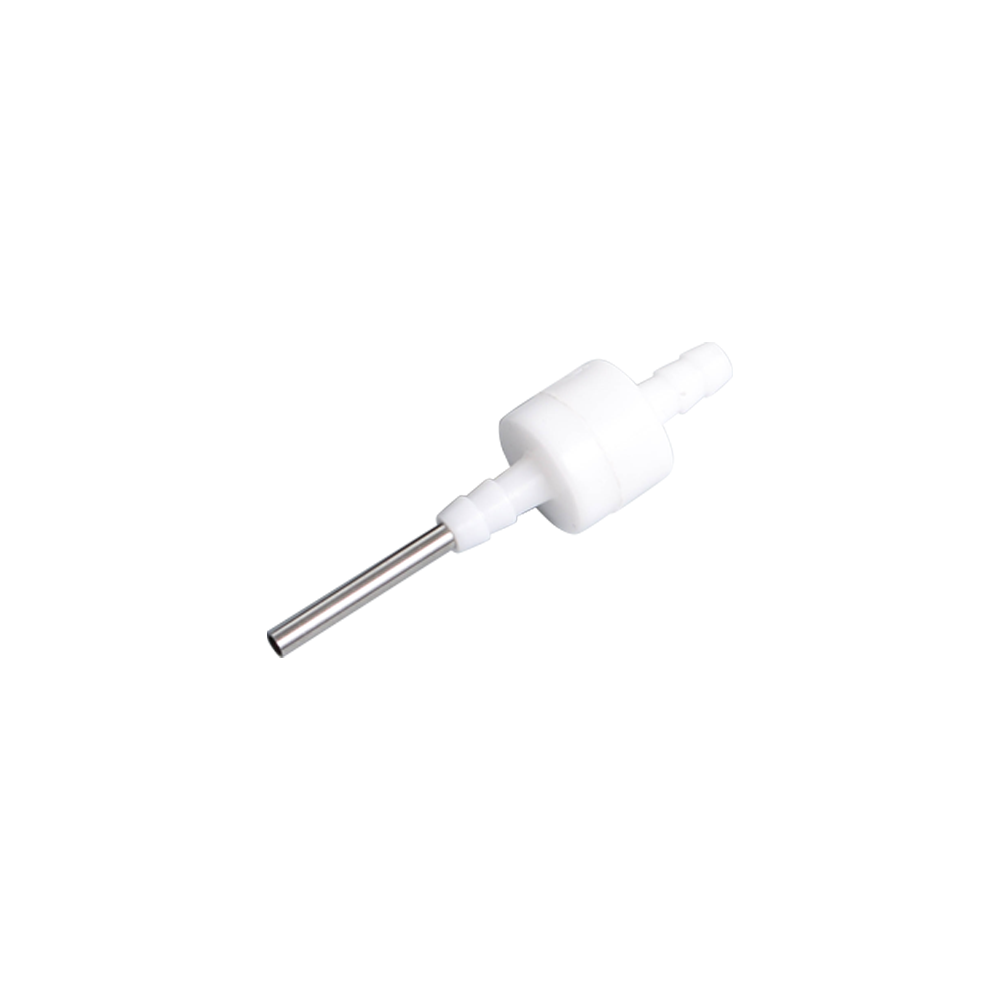

- Anti-Drip Nozzle — Clean, accurate fills with no waste or mess
- Intelligent Eye Sensor — Automatic bottle detection for hands-free operation
- Heat-Resistant (ZS-DPYT1500) — Fills liquids up to 100°C
- Microcomputer Control — Timing accuracy to 0.1 second
- 3 Working Modes — Manual, automatic, and intelligent induction
- Memory Function — Saves settings for quick product changeover
- Filling Counter — Counts 1–9,999 fills for production tracking
- Detachable Tubes — Easy cleaning and maintenance
Suitable Products & Applications
Water & Beverages
Drinking water, juice, milk, soft drink
Cosmetics & Toner
Toner, serum, lotion, essential oil
ZS-DPYT1500
hot Liquid
Small Batch Production
Craft beverages, home bottling, startup lines
