ZONESUN ZS-FS100L Automatic VFFS Sachet Powder Packaging Machine | 5–100ml

Description

The ZONESUN ZS-FS100L is a compact vertical form-fill-seal (VFFS) machine designed for precise powder dosing and automatic sachet packaging. It integrates film pulling, bag forming, auger filling, and heat sealing into a single streamlined unit.

Operating at 30–50 sachets per minute with ±1% filling accuracy, it supports a filling range of 5–100 ml. Ideal for pharmaceutical, food, and chemical industries requiring efficient small-dose powder packaging in laminated film sachets.

Technical Specifications

• Model: ZS-FS100L
• Voltage: 110V / 220V
• Power Consumption: 4 kW
• Working Speed: 30–50 bags/min
• Filling Range: 5–100 ml
• Filling Accuracy: ±1%
• Bag Length: 50–150 mm
• Bag Width: 20–40 mm
• Machine Dimensions (L×W×H): 1,080 × 790 × 1,750 mm
• Machine Weight: 340 kg

CONTROL PANEL

Enables customizable language settings, controls packaging parameters, monitors machine status, and facilitates operational adjustments.

AUGER FILLING

Transfers powder materials from the hopper to the next processing stage using a rotating screw mechanism for controlled and continuous flow.

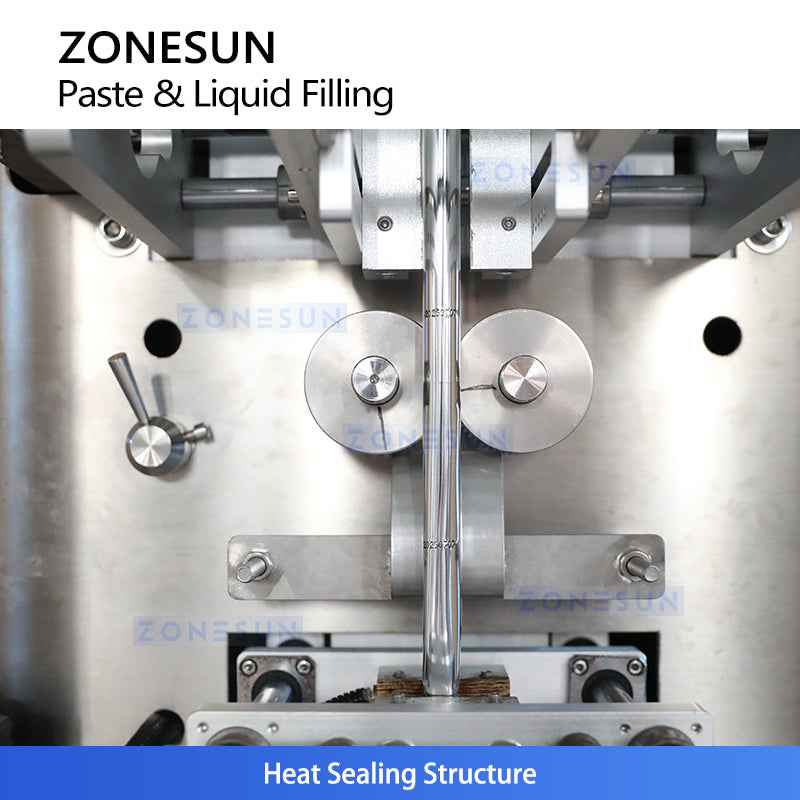

HEAT SEALING

Seals the packaging film using heat and pressure to create airtight sachets.

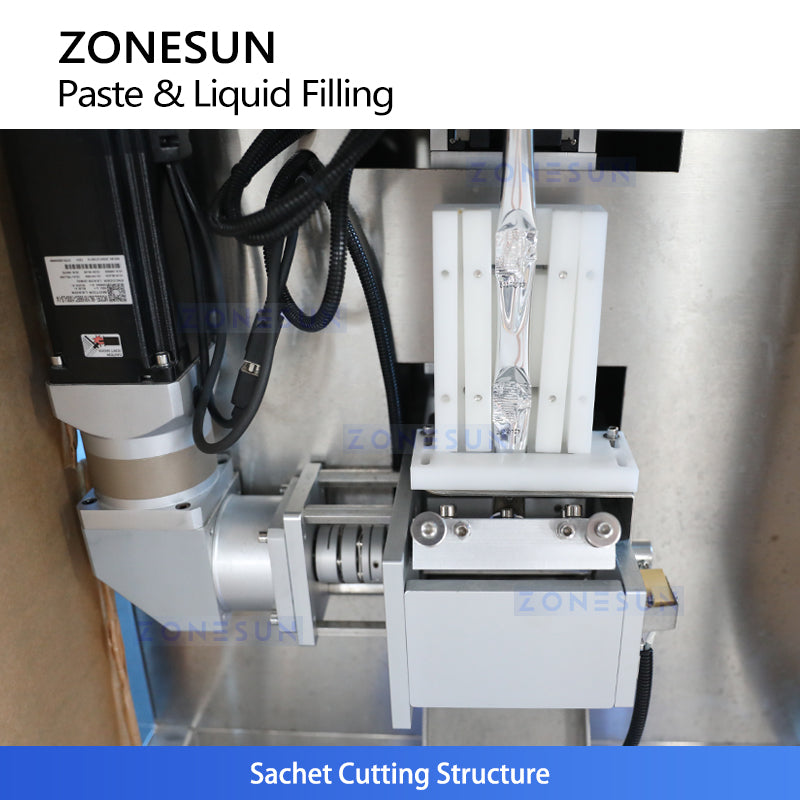

SACHET CUTTING

Cuts continuous film into uniform sachets with clean edges. Positioning block ensures accurate alignment.

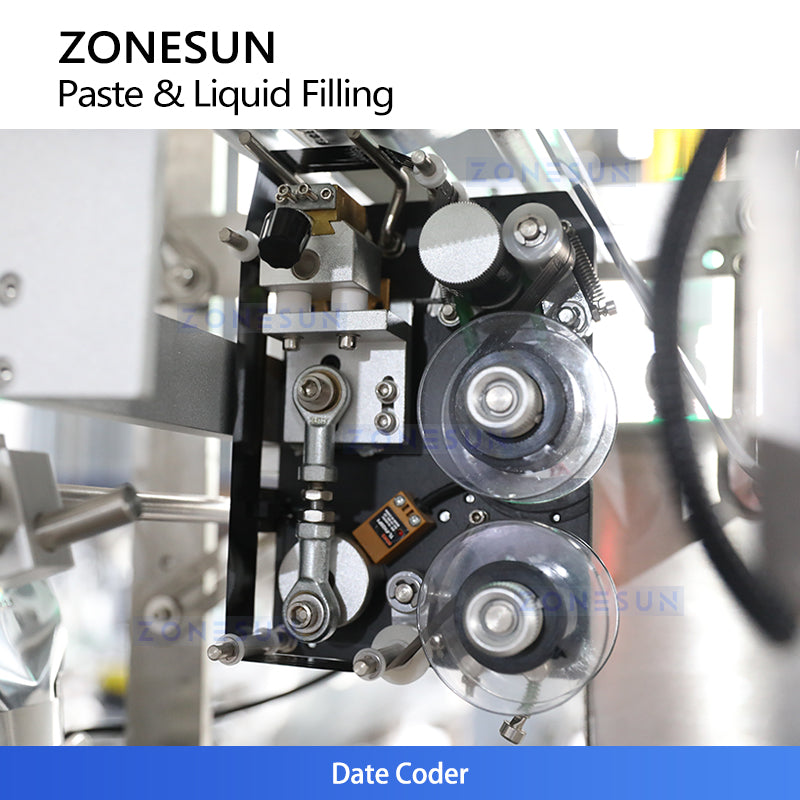

DATE CODER

Prints production date, batch number, and expiration information onto each sachet in sync with packaging cycle.

Why Choose the ZS-FS100L?

• ✅ All-in-One VFFS System: Film pulling, bag forming, auger filling, and heat sealing in one compact unit
• ✅ High Speed: 30–50 bags/min for efficient small to medium-scale production
• ✅ Precise Dosing: ±1% filling accuracy for consistent, waste-free packaging
• ✅ Wide Filling Range: 5–100 ml adaptable to various sachet sizes
• ✅ Flexible Bag Size: Length 50–150mm / Width 20–40mm for diverse packaging needs
• ✅ Compact Footprint: 1,080 × 790mm base — space-saving for any production floor
• ✅ Worldwide Voltage: 110V / 220V compatible

Ideal Applications

• Pharmaceutical: Medicine powder sachets, health supplement packets, enzyme powder
• Food: Seasoning powder, coffee, milk powder, protein powder, spice sachets
• Chemical: Detergent powder, agricultural chemicals, industrial powder sachets
• Health & Nutrition: Vitamin powder, probiotic sachets, herbal powder
