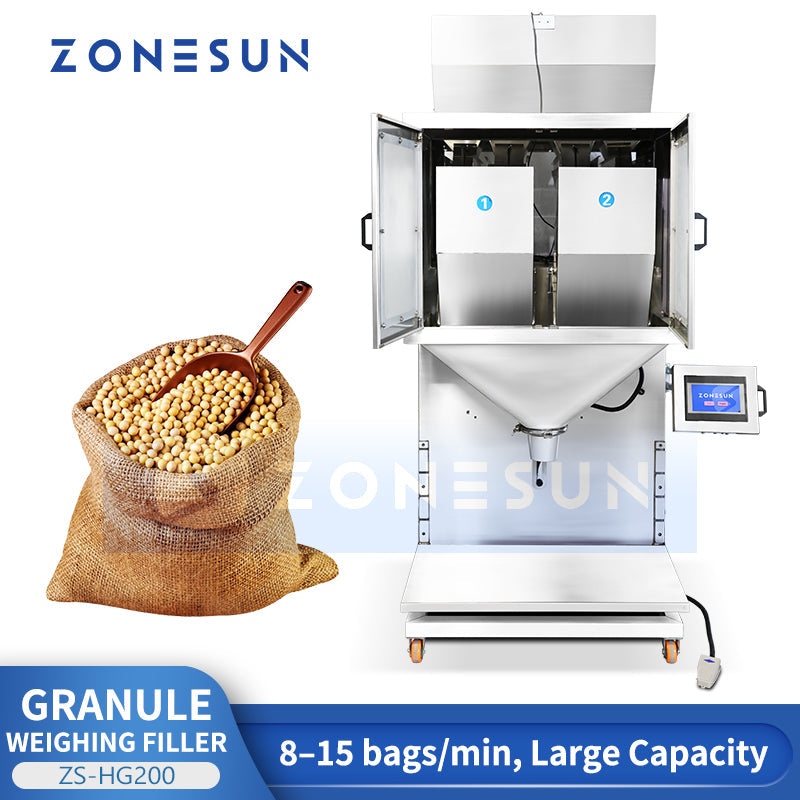

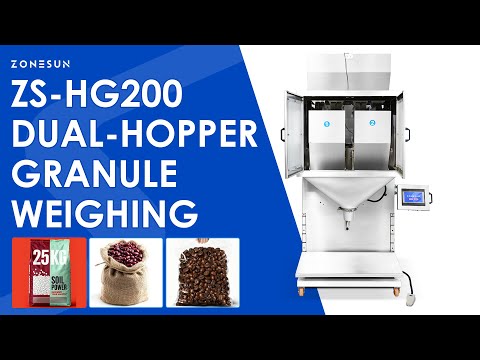

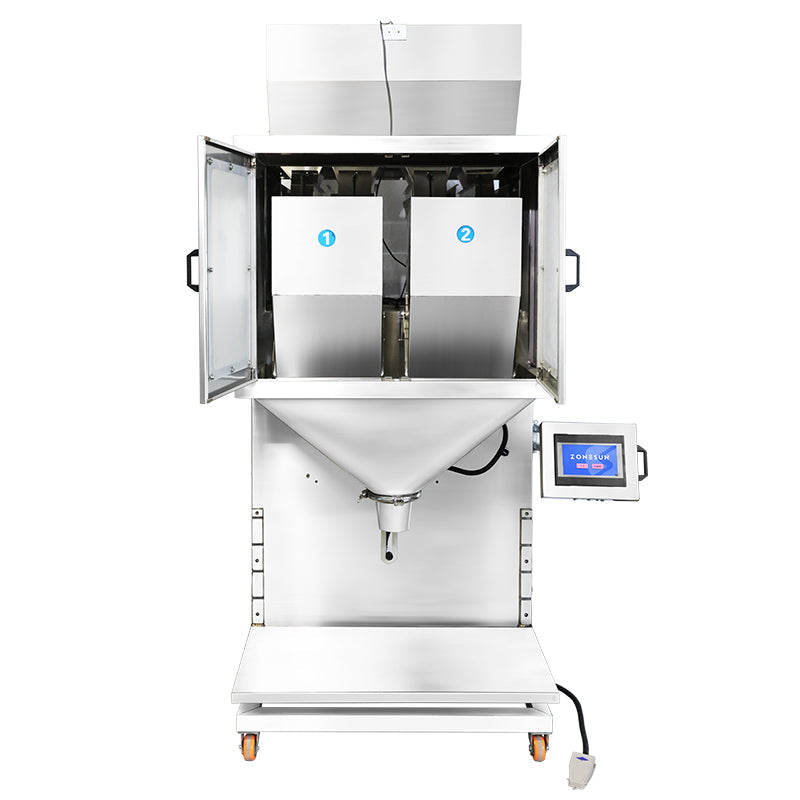

ZONESUN ZS-HG200 Dual-Hopper Granule Weighing and Filling Machine Rice Plastic Pellets Filler

Description

The ZONESUN ZS-HG200 dual-hopper granule weighing and filling machine is built for large-capacity packaging, operating at 8–15 bags per minute with a four-stage vibratory feeding system to ensure smooth and accurate flow. Made of stainless steel with 304 contact parts, it offers durability, hygiene, and long service life. Widely used in food, agriculture, and chemical industries, it is ideal for seeds, nuts, grains, rice, beans, animal feed, fertilizers, and plastic pellets. With PLC touchscreen control and stable discharge design, it delivers efficient, precise, and reliable performance for medium to large-scale production lines.

Parameter

• Model: ZS-HG200
• Feeding Method: Four-stage vibrator, four-stage feeding
• Material: Stainless steel 201 (body); contact parts made of 304 stainless steel
• Packaging Range: 0–10000 g (dual-hopper weighing)
• Packaging Accuracy: ±0.2%
• Power Supply: 380V, 50Hz
• Machine Power: 500 W (excluding feeder)
• Weighing Method: Dual-hopper weighing module with PLC touchscreen display
• Packaging Speed: 8–15 bags/min
• Weighing Hopper Volume:
  • Two hoppers： 150L，two discharge hoppers, each weighing 7kg per cycle.
• Machine Weight: 520 kg
• Machine Dimensions (L×W×H): 1100 × 1250 × 2040 mm

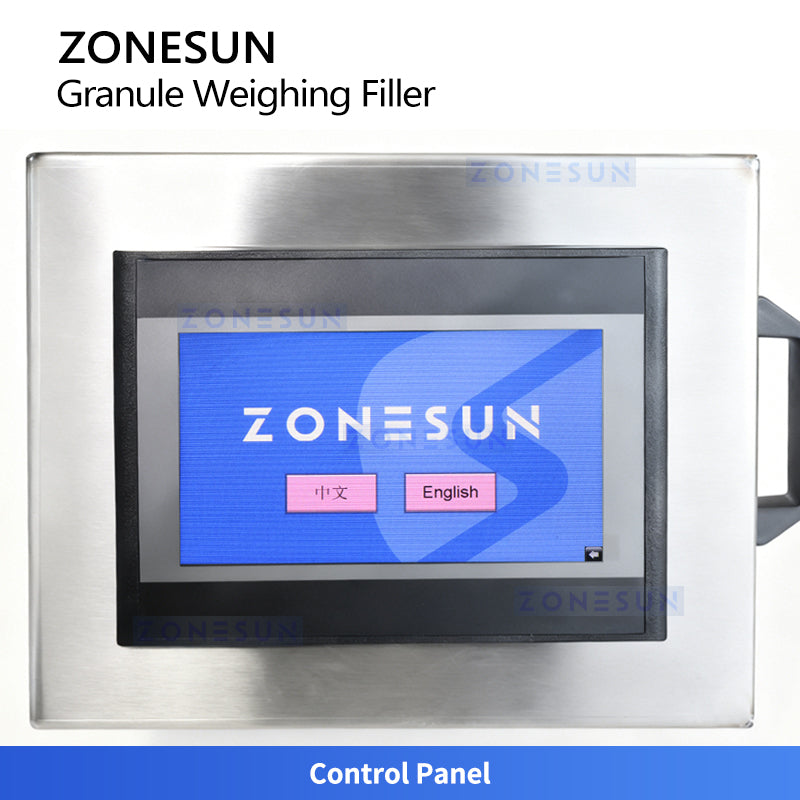

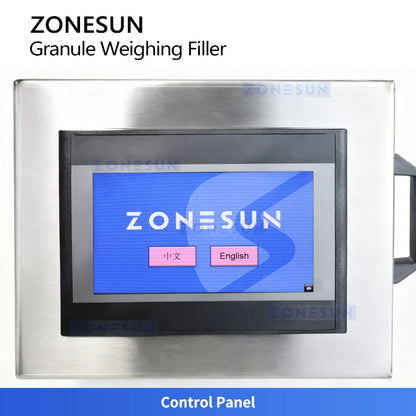

Control Panel

Provides centralized control via touch screen for setting parameters, monitoring status, and managing weighing operations.

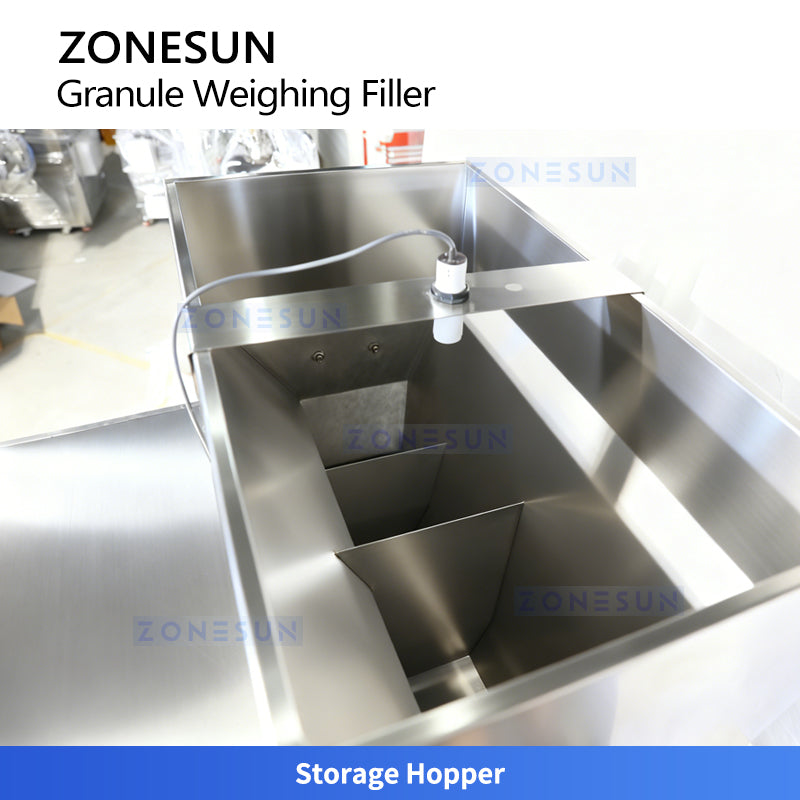

Storage Hopper

Stores bulk granules and ensures continuous supply to the feeder and weighing system.

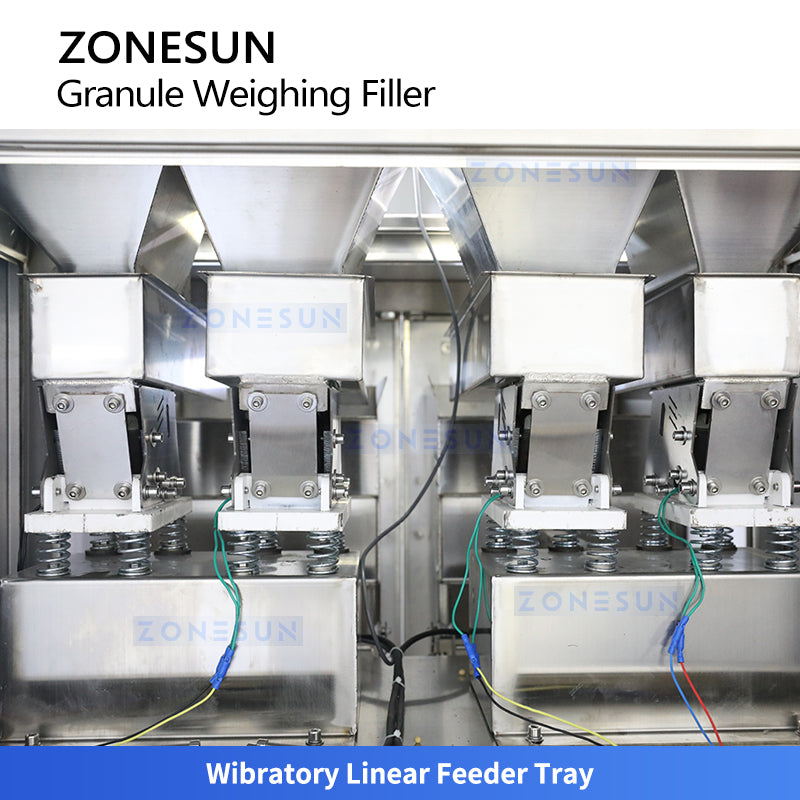

Wibratory Linear Feeder Tray

Feeds granules evenly into the weighing hopper using controlled vibration, preventing clogging and ensuring stable flow.

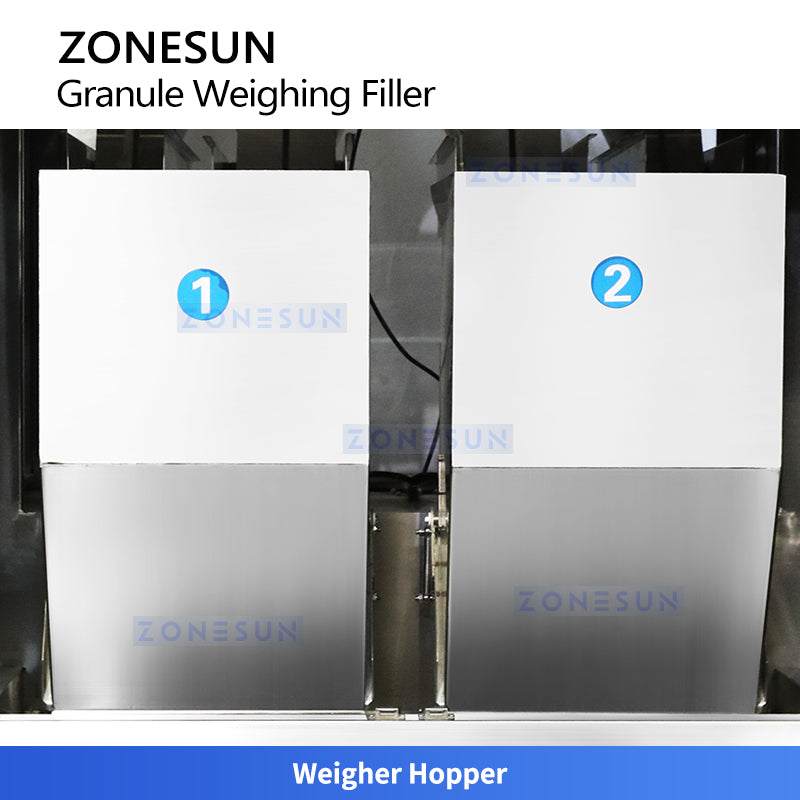

Weigher Hopper

Receives granules from the feeder and performs precise dosing before discharge, ensuring accurate weight per cycle and supporting stable filling.

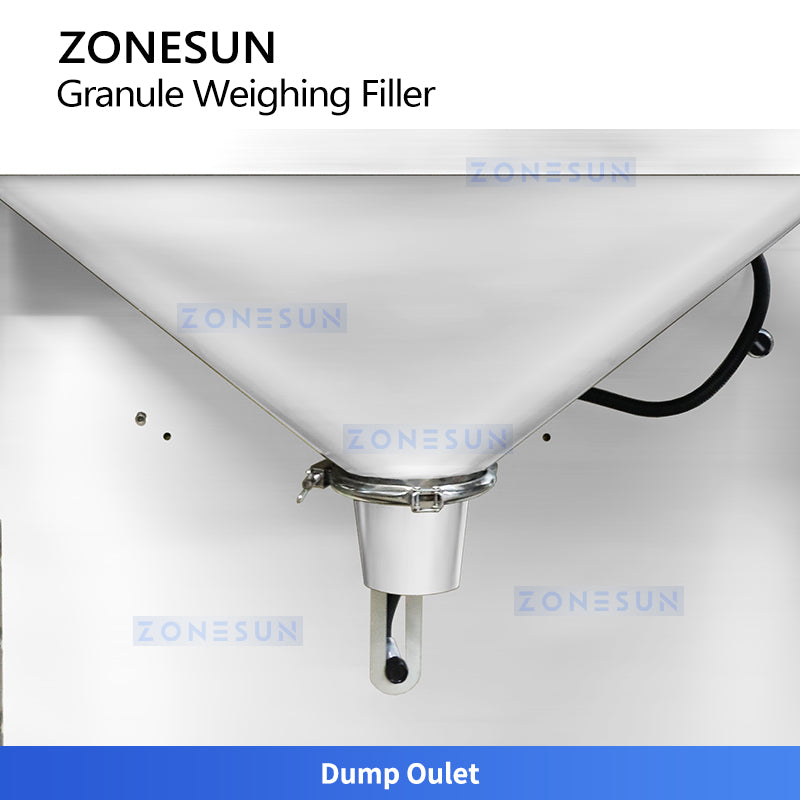

Dump Oulet

Discharges the weighed granules into packaging containers after dosing, enabling fast and clean filling.

Protective Cover

Protects the weighing hopper from dust, moisture, and interference, ensuring hygiene, safety, and weighing accuracy.

Workbench

Supports packaging containers during filling, ensuring stable positioning and clean discharge.
