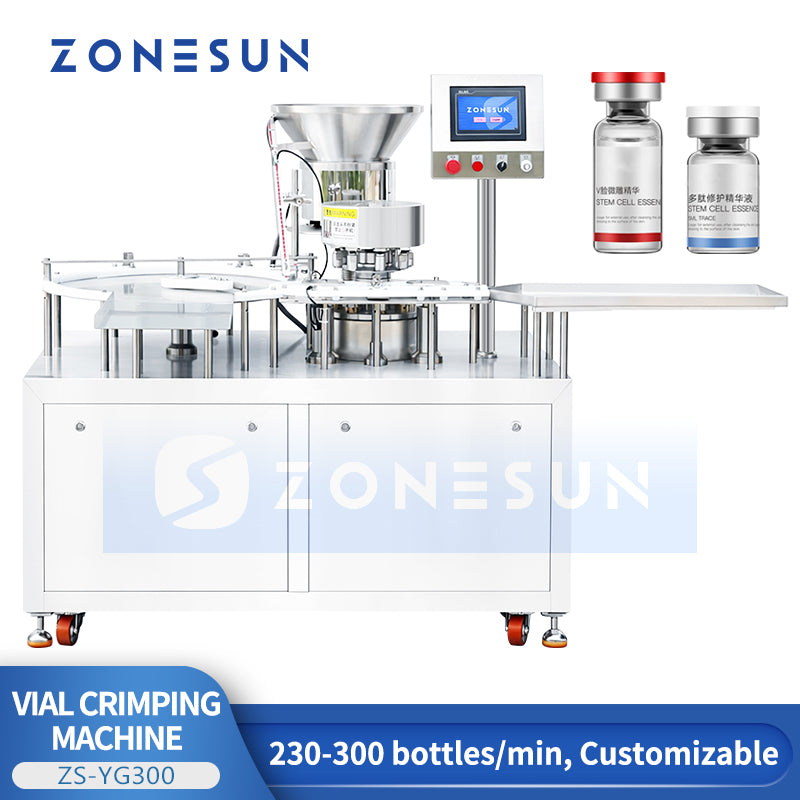

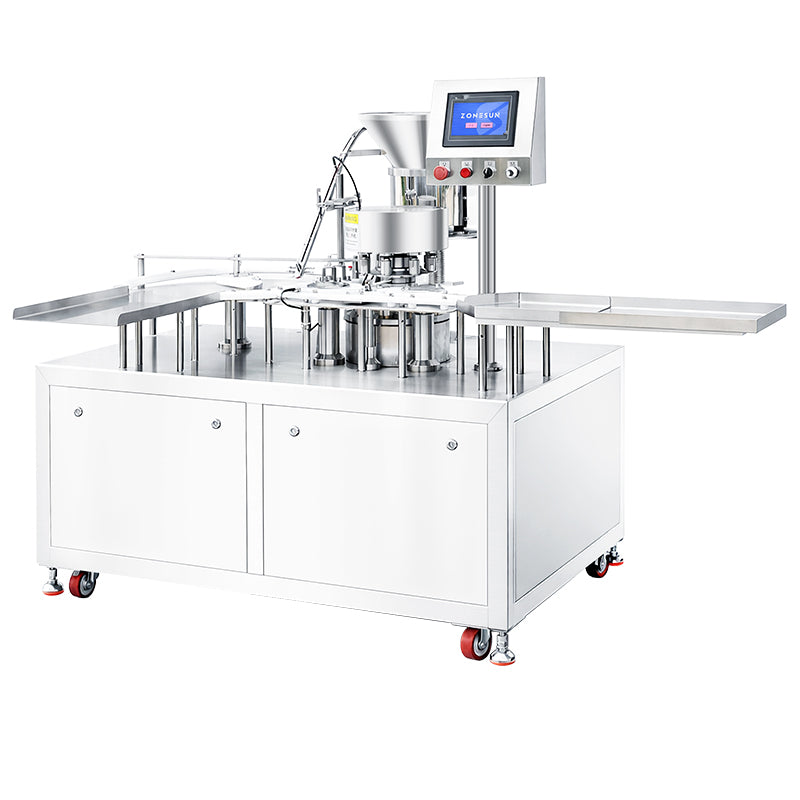

ZONESUN ZS-YG300 Automatic Vial Capping Machine Pharmaceutical Lab Bottle Capper
ZONESUN ZS-YG300 Automatic Vial Capping Machine Pharmaceutical Lab Bottle Capper
Couldn't load pickup availability
DESCRIPTION
- Precision Crimping: Single-knife rotary modules ensure consistent torque and leak-proof sealing for aluminum/plastic caps.
- High Efficiency: Capable of handling up to 18,000 vials per hour, perfect for medium to large-scale pharmaceutical lines.
- Smart Control: Equipped with a Delta/Siemens PLC and touch screen for intuitive parameter adjustment and real-time monitoring.
- GMP Compliance: Constructed with Stainless Steel 304/316, meeting strict hygiene standards for lab and medical environments.
Parameter
- Model: ZS‑YG300
- Production Capacity: 230–300 bottles/min (8‑head capping)
- Capping Heads: 8
- Cap Feeding: Electromagnetic vibrator automatic sorting & feeding
- Sealing Method: Single‑knife, 8‑head sealing
- Bottle Height: 2–60 mm
- Bottle Diameter: Ø13–Ø20 mm (adjustable)
- Power: 2 kW, 220 V, 50 Hz
- Air Source: 0.4–0.6 MPa
- Net Weight: Approx. 598 kg
- Machine Dimensions: 1640 × 1230 × 1660 mm

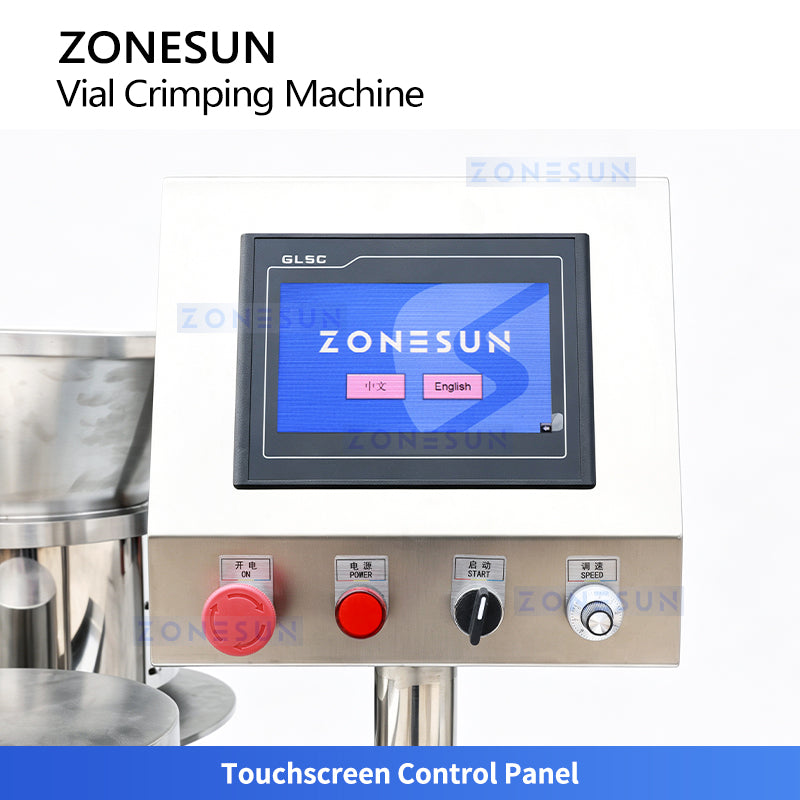

Touchscreen Control Panel
The touchscreen provides centralized control of machine operation and production parameters for convenient setup and monitoring.

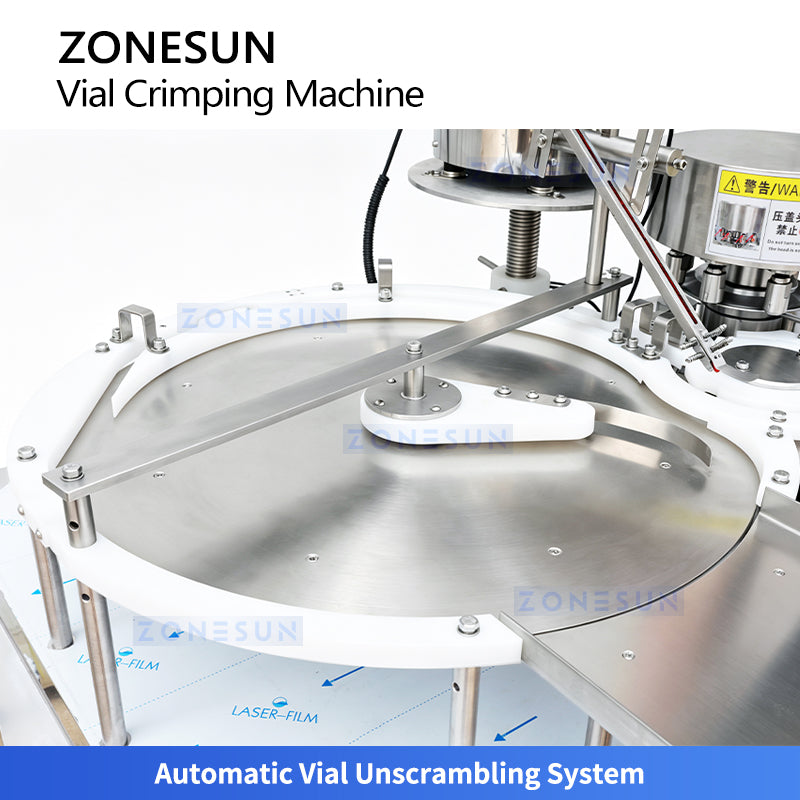

Automatic Vial Unscrambling System
Automatically organizes and feeds scattered vials into an orderly line to the star-wheel system for stable, continuous production.

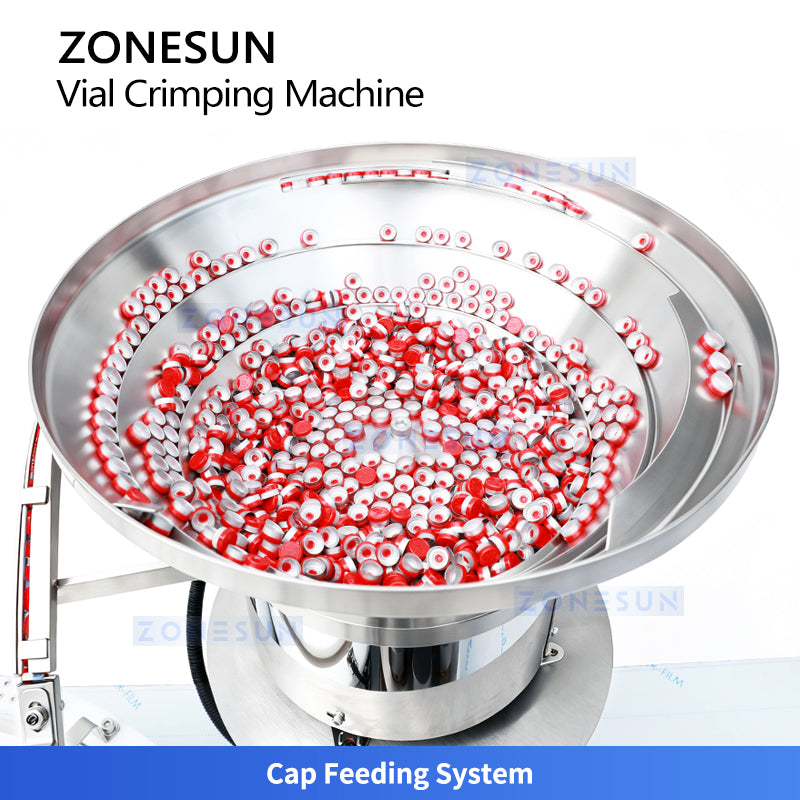

Cap Feeding System
The SUS304 vibratory bowl automatically sorts and feeds aluminum caps to the crimping station for continuous operation.
9-Head High-Speed Crimping System
10-Eight crimping heads seal aluminum caps at up to 230–300 bottles/min and can be customized for different vial and cap sizes.

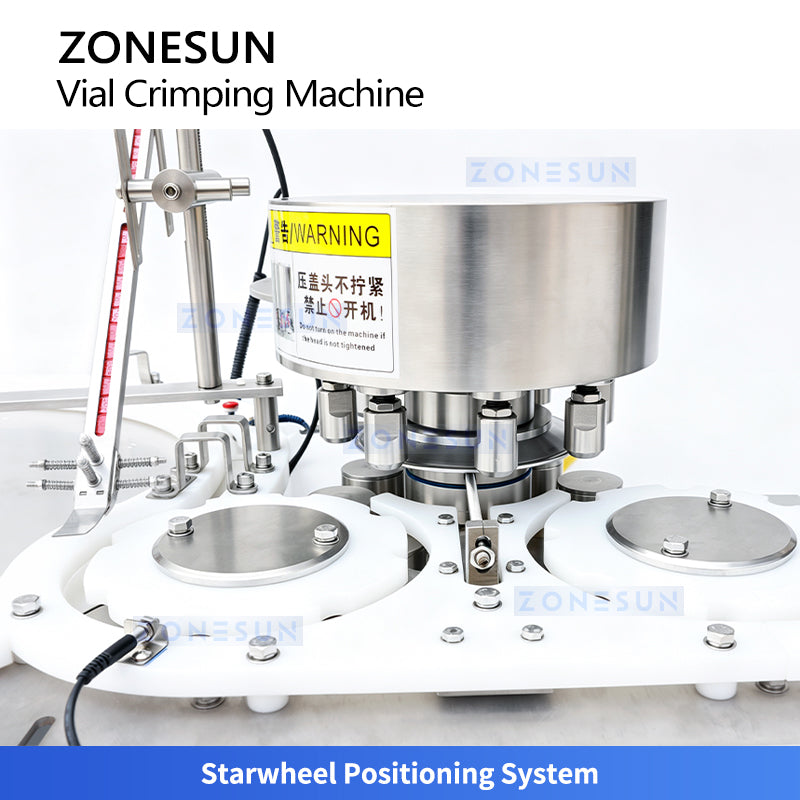

Starwheel Positioning System
The customized star wheel precisely positions and transfers vials for stable high-speed crimping, with customizable designs for different vial sizes.
Integrated Electrical Control System
The organized electrical cabinet integrates control and drive components for stable machine operation and convenient maintenance.
